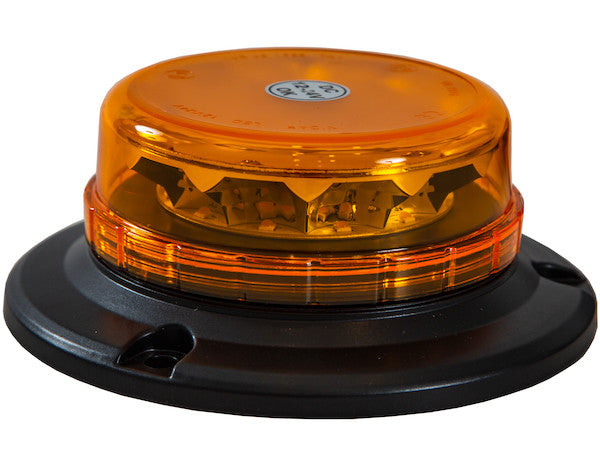

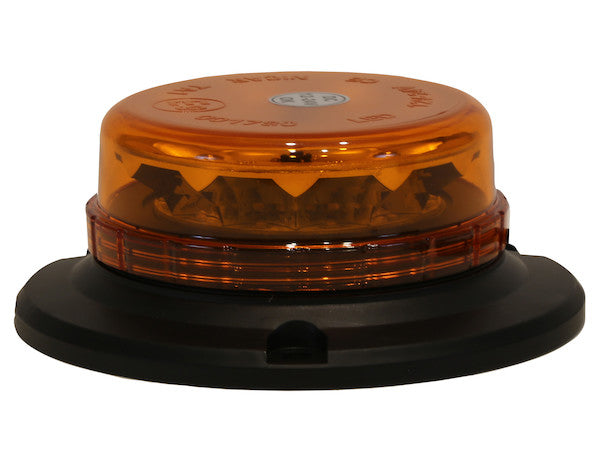

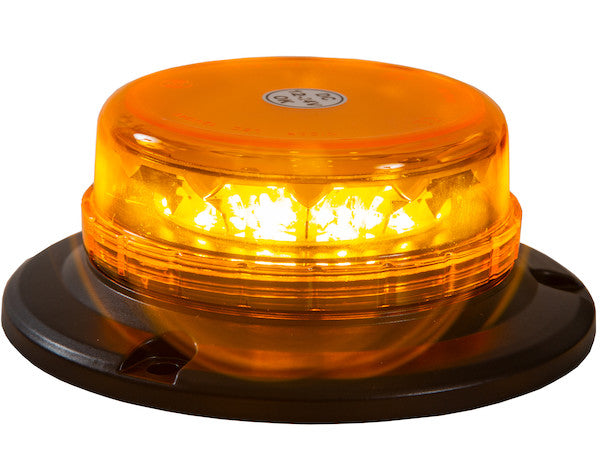

Buyers Products Low Profile Class 1 6 Inch Wide LED Beacon features three flash patterns and is rated SAE J845 Class 1. It is available with either an 15 ft cord with an auxiliary plug or 13 in. blunt-cut wires. The plug-in version can be permanently or magnetically mounted, the hard-wired version must be permanently mounted. The light is rated IP56 for water and dust resistance. It is backed with a 5 year warranty.
Specifications
| Amp draw at 12 Volts | 1.0 |
|---|---|
| Base / Mount Type | Permanent or magnetic |
| Built-In Switch | Yes |
| Certification | IP56 |
| Color | Amber |
| Grommet/Base Included | Yes |
| Hard Wired or Plug | Plug |

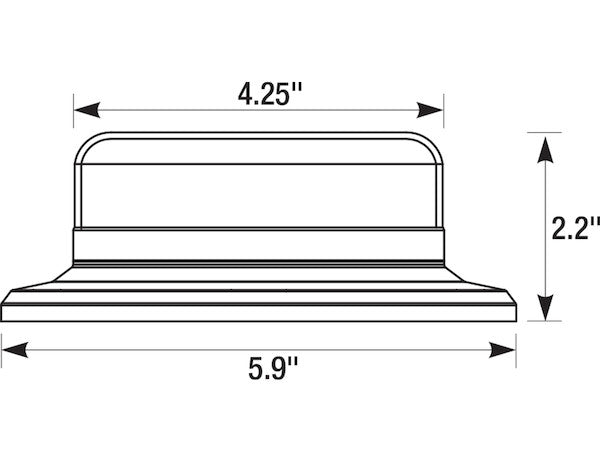

| Height | 2.170 |
| Housing Material | Polycarbonate |
| Lead Length | 15 |
| Lens Material | Polycarbonate |
| Lens Shape | Dome |
| Mount Type | 3-Point permanent diecast or magnetic |
| Number of Flash Patterns | 3 |
| Number of Wires | 1 |
| Operating Temperature | -22 to 122 |
| Overall Width | 5.9 in. |
| Synchronous Function | No |
| Type of Flash Pattern | rotate, single, dual flash |
| Type of Plug | Auxiliary Power Connector |
| Voltage | 12-24 |
| Wattage | 12 |
The Buyers Products Low Profile 6 Inch by 2 Inch LED Beacon Strobe Light with Auxiliary Plug represents a superior engineering solution designed for demanding professional applications requiring robust, high-visibility warning illumination. This device is not merely a light source; it is an integrated safety system component, meticulously crafted to enhance operational safety across diverse industrial, commercial, and utility sectors. Its compact dimensions, combined with advanced LED technology and flexible mounting options, position it as an indispensable tool for vehicles and equipment operating in environments where conspicuous presence is paramount.
Advanced LED Illumination Technology and Optical Performance
At the core of this beacon strobe light is state-of-the-art Light Emitting Diode (LED) technology. Unlike traditional incandescent or halogen lamps, LEDs offer a multitude of operational advantages that translate directly into enhanced performance and reduced total cost of ownership. The system operates efficiently at a 1.0 Amp draw at 12 Volts, corresponding to a modest 12 Watts of power consumption. This low power demand is particularly critical for vehicles and equipment with finite electrical system capacities, minimizing drain on batteries and alternators while maximizing available power for other essential onboard systems. Furthermore, the universal 12-24 Volt compatibility ensures broad interoperability across a vast range of vehicle platforms, from standard automotive (12V) to heavy-duty industrial and commercial equipment (24V).
The amber color of the LED output is specifically chosen for its recognized efficacy in warning and hazard signaling across many jurisdictions. Amber light penetrates atmospheric conditions such as fog, rain, and dust more effectively than other colors, ensuring optimal visibility in challenging weather. The dome-shaped polycarbonate lens is optically engineered to maximize light dispersion and intensity, creating a broad and effective warning signal from multiple angles. Polycarbonate, as a lens material, is selected for its exceptional impact resistance, high optical clarity, and inherent UV stability, ensuring that the lens remains clear and functional over extended periods of outdoor exposure without yellowing or degradation.
This beacon strobe light features three distinct flash patterns: rotate, single flash, and dual flash. Each pattern is designed to convey a specific level of urgency and attract attention effectively. The "rotate" pattern simulates the classic rotating beacon, providing a continuous, sweeping visual alert that is highly recognizable. The "single flash" and "dual flash" patterns deliver sharp, distinct pulses of light, optimized for maximum noticeability during daylight and nighttime operations. The ability to select from these patterns allows operators to tailor the warning signal to the specific application requirements and environmental conditions, thereby optimizing safety outcomes. The built-in switch offers immediate control over these patterns, providing operational flexibility without requiring complex external wiring or controllers.
SAE J845 Class 1 Certification: The Pinnacle of Warning Light Performance
A defining characteristic of this LED beacon is its SAE J845 Class 1 certification. The Society of Automotive Engineers (SAE) J845 standard specifies the performance requirements for warning lamps, and Class 1 represents the highest level of photometric intensity and coverage. This certification signifies that the light meets rigorous criteria for:
- Luminous Intensity: The beacon emits a minimum specified intensity of light, ensuring it is highly visible under various ambient lighting conditions, including bright daylight.
- Chromaticity: The amber light emitted adheres to strict color specifications, preventing confusion with other signal lights and maintaining consistency across devices.
- Flash Rate and Duration: The flash patterns (rotate, single, dual) comply with prescribed rates and durations, guaranteeing effective attention-grabbing characteristics without causing visual fatigue or confusion.
- Photometric Distribution: The light output is distributed evenly across a wide angle, ensuring that the beacon is visible from all critical approach directions to the vehicle or equipment.
- Environmental Durability: The certification also implies a degree of resistance to environmental factors, although the IP56 rating provides more specific details on this.
Engineered for Durability: IP56 Rating and Material Science
The operational longevity and reliability of any warning light are critically dependent on its environmental resilience. The Buyers Products LED Beacon boasts an IP56 Ingress Protection (IP) rating, a crucial metric defining its resistance to dust and water.
- IP5x (Dust Protected): The first digit, '5', indicates protection against the ingress of dust. This means that while some dust may penetrate the enclosure, it will not do so in a sufficient quantity to interfere with the satisfactory operation of the equipment. This level of protection is vital for applications in dusty environments such as construction sites, agricultural fields, or mining operations.
- IPx6 (Protected against Powerful Water Jets): The second digit, '6', denotes protection against powerful jets of water. This implies that water projected in powerful jets (from a 12.5 mm nozzle) against the enclosure from any direction shall have no harmful effects. This robust water resistance ensures the beacon can withstand heavy rain, snow, power washing, and splash from road spray without compromising its internal electronics or performance.
- High Impact Resistance: It can withstand significant physical shocks and impacts, making the beacon highly durable in rugged operational environments. This prevents damage from debris, accidental bumps, or minor collisions.
- Wide Operating Temperature Range: With an impressive operating temperature range from -22°F to 122°F (-30°C to 50°C), the beacon is designed to perform reliably in extreme cold and intense heat, ensuring consistent operation across diverse global climates.
- UV Stability: Modern polycarbonates are formulated with UV stabilizers, which protect the material from degradation due to prolonged exposure to sunlight, preventing brittleness, discoloration, and loss of structural integrity over time.
- Lightweight: Despite its strength, polycarbonate is relatively lightweight, which minimizes the load on mounting surfaces and contributes to easier installation.
Versatile Mounting and Power Connectivity
The design of this LED beacon emphasizes versatility and ease of deployment. The primary configuration features a 15-foot cord terminated with an auxiliary power connector (often referred to as a cigarette lighter plug). This plug-and-play solution offers unparalleled convenience, allowing for rapid deployment and transfer between vehicles without complex wiring procedures. The integrated auxiliary plug typically includes a built-in switch, providing immediate control over the beacon's operation directly from the vehicle's cabin.
The beacon supports dual mounting options to cater to various application needs:
- Magnetic Mounting: This option provides quick, temporary, and flexible installation. The robust magnetic base ensures secure attachment to any ferromagnetic surface on a vehicle, such as a roof or fender. Magnetic mounting is ideal for situations where a warning light is needed intermittently, or where permanent alteration to the vehicle is undesirable (e.g., leased vehicles, temporary deployments, or shared equipment). For optimal safety with magnetic mounts, it is crucial to ensure the mounting surface is clean, flat, and free of debris, and to adhere to manufacturer guidelines regarding maximum vehicle speeds when the beacon is magnetically attached.
- Permanent (3-Point Diecast) Mounting: For applications requiring a fixed, enduring installation, the 3-point permanent diecast mount provides superior stability and security. This method involves bolting the beacon directly to the vehicle's surface, ensuring maximum resistance to vibration, theft, and extreme driving conditions. Permanent mounting is the preferred choice for dedicated service vehicles, fleet applications, or any situation where the beacon is considered a permanent fixture of the equipment. The diecast base material offers additional strength and corrosion resistance, ensuring a reliable connection for the lifetime of the product.
Applications Across Diverse Sectors
The robust design, high-intensity output, and versatile mounting of the Low Profile 6 Inch by 2 Inch LED Beacon Strobe Light make it exceptionally well-suited for a wide array of professional applications:
- Construction & Infrastructure: Essential for heavy machinery like excavators, bulldozers, loaders, and dump trucks operating on active construction sites, road work zones, or mining operations. It ensures these large vehicles are highly visible to other personnel and equipment, mitigating accident risks.
- Utility Services: Indispensable for utility vehicles (electrical, gas, water, telecommunications) during roadside repairs, maintenance, or new installations. It alerts passing motorists to the presence of personnel and equipment, enhancing worker safety.
- Roadside Assistance & Towing: Provides critical warning for tow trucks, service vehicles, and emergency breakdown assistance, particularly when parked on the shoulder of busy highways or roads.
- Agriculture: Enhances the visibility of tractors, combines, and other farm machinery, especially when operating on or near public roads, or during early morning/late evening hours.
- Fleet & Delivery Vehicles: Can be used by delivery trucks, landscaping crews, and municipal maintenance fleets to mark their presence during stops, loading/unloading, or work operations.
- Security & Patrol: Useful for private security vehicles, campus patrols, or non-emergency response units that require a conspicuous presence without the intensity of full emergency light bars.
- Industrial & Warehouse Environments: Applicable for forklifts, industrial tuggers, and specialized equipment operating in busy industrial facilities, warehouses, or large manufacturing plants to warn pedestrians and other vehicle operators.
- Emergency Support: While not a primary emergency response light, it serves as an excellent auxiliary warning device for support vehicles, volunteer fire/EMS personnel's private vehicles, or incident command posts.
- Marine & Aviation Ground Support: Can be employed on ground support equipment at airports or in certain non-navigation marine contexts where a warning signal is required for safety.
Maintenance and Longevity
One of the significant advantages of LED technology is its inherent reliability and low maintenance requirements. Unlike traditional bulbs that have filaments prone to breakage from vibration and thermal cycling, LEDs are solid-state devices with no moving parts. This translates to an exceptionally long operational lifespan, significantly reducing the need for frequent bulb replacements and associated downtime. The 5-year warranty offered with this product underscores the manufacturer's confidence in its long-term performance and durability. Routine maintenance is typically limited to periodically cleaning the polycarbonate lens with a mild soap and water solution to ensure maximum light output and clarity, and inspecting the power cord and mounting hardware for any signs of wear or damage, particularly for magnetically mounted units which may be frequently repositioned.
Conclusion
The Buyers Products Low Profile 6 Inch by 2 Inch LED Beacon Strobe Light with Auxiliary Plug is an expertly engineered warning solution that combines cutting-edge LED technology with robust construction and versatile functionality. Its low-profile design minimizes aerodynamic drag and offers a discreet aesthetic when not in use, while its SAE J845 Class 1 certification guarantees superior photometric performance crucial for professional safety applications. The IP56 environmental rating and durable polycarbonate housing ensure sustained operation in the harshest conditions, backed by a comprehensive 5-year warranty. With its convenient auxiliary plug and dual permanent/magnetic mounting options, this beacon delivers unparalleled flexibility and ease of deployment. For professionals demanding uncompromised visibility, reliability, and regulatory compliance, this LED beacon stands as an exemplary choice, contributing significantly to operational safety and efficiency across a wide spectrum of industries.
