Buyers Products Low Profile Class 1 6 Inch Wide LED Beacon features three flash patterns and is rated SAE J845 Class 1. It is available with either an 15 ft cord with an auxiliary plug or 13 in. blunt-cut wires. The plug-in version can be permanently or magnetically mounted, the hard-wired version must be permanently mounted. The light is rated IP56 for water and dust resistance. It is backed with a 5 year warranty.
Specifications
| Amp draw at 12 Volts | 1.0 |
|---|---|
| Base / Mount Type | Permanent |
| Certification | IP56 |
| Class Level | - |
| Color | Amber |
| Grommet/Base Included | yes |
| Hard Wired or Plug | Hard Wired |
| Height | 2.170 |
| Housing Material | Polycarbonate |
| Lead Length | 13 |
| Lens Material | Polycarbonate |
| Lens Shape | Dome |
| Mount Type | 3-Point permanent diecast |
| Number of Flash Patterns | 3 |
| Number of Wires | 2 |
| Operating Temperature | -22 to 122 |
| Overall Width | 5.9 in. |
| Synchronous Function | no |
| Type of Flash Pattern | rotate, single, dual flash |
| Type of Plug | Blunt Cut |
| Voltage | 12-24 |
| Wattage | 12 |
Advanced Technical Overview: Low Profile 6 Inch by 2 Inch LED Beacon with Blunt Cut Leads
The Low Profile 6 Inch by 2 Inch LED Beacon with Blunt Cut Leads represents a pinnacle of contemporary warning light technology, meticulously engineered by Buyers Products to deliver unparalleled visibility, durability, and operational efficiency in a compact form factor. This advanced signaling device is specifically designed for a broad spectrum of professional applications where vehicle and personnel safety are paramount, ranging from construction sites and utility operations to roadside assistance and municipal services. Its designation as a Class 1 beacon, coupled with its robust construction and versatile flash patterns, positions it as an indispensable component for any fleet requiring superior cautionary illumination.
Precision-Engineered Low Profile Design

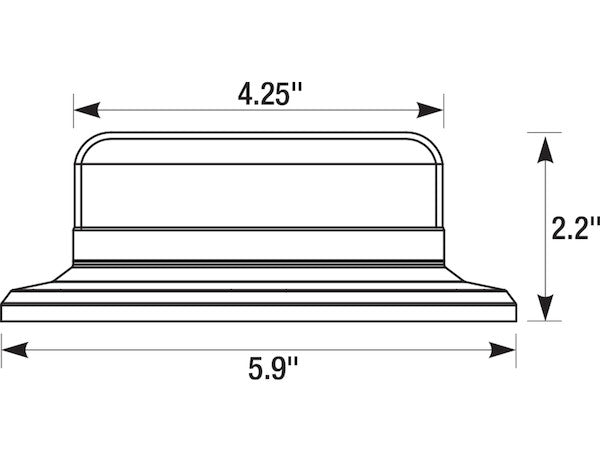

One of the most distinguishing characteristics of this LED beacon is its remarkably low profile design. With an overall width of 5.9 inches and a height of just 2.170 inches, this beacon significantly minimizes aerodynamic drag and maintains a discreet aesthetic when mounted on vehicle rooftops or other elevated positions. The compact dimensions (approximately 6 inches by 2 inches) ensure that the beacon does not obstruct the operator's line of sight or interfere with other vehicle-mounted equipment. This low-profile attribute is not merely an aesthetic consideration; it contributes to enhanced fuel efficiency by reducing air resistance, and it allows for installation in spaces where traditional, taller beacons might be impractical. The sleek, dome-shaped lens further integrates into the vehicle's design while optimizing light dispersion, ensuring maximum peripheral visibility without compromising the beacon's structural integrity. The thoughtful integration of form and function in its design underscores its suitability for a wide array of demanding operational environments.
Advanced LED Technology and Optical Efficacy
At the core of this beacon's exceptional performance lies its cutting-edge LED (Light Emitting Diode) technology. Unlike conventional incandescent or strobe beacons, LEDs offer inherent advantages in terms of energy efficiency, lifespan, and instantaneous illumination. The solid-state nature of LEDs means they are significantly more resistant to shock and vibration, factors commonly encountered in demanding work environments, thereby reducing maintenance requirements and increasing operational uptime. This beacon is specifically designed to emit a brilliant amber light, a universally recognized color for cautionary and warning applications across various industries. The optical system is precisely engineered to maximize the output of the amber LEDs, projecting a potent and attention-grabbing signal that penetrates adverse weather conditions such as fog, rain, or snow. The consistent color output and high lumen efficacy ensure that the beacon’s warning is clear and unmistakable, day or night.
SAE J845 Class 1 Certification: The Benchmark for Warning Performance
This LED beacon proudly carries the SAE J845 Class 1 certification, a critical standard established by the Society of Automotive Engineers for vehicle emergency warning lights. The Class 1 designation signifies that the beacon meets the highest intensity requirements, ensuring maximum visibility under all ambient light conditions, including direct sunlight. Compliance with SAE J845 Class 1 mandates rigorous testing for light output, flash pattern consistency, color chromaticity, and durability under various environmental stressors. For operators, this certification is a guarantee of superior performance and reliability, confirming that the beacon provides the necessary visual warning to effectively alert motorists and pedestrians to potential hazards. Operating a vehicle equipped with SAE J845 Class 1 compliant lighting demonstrates a commitment to safety and adherence to industry best practices, often a regulatory requirement for specific vehicle types and operational scenarios.
Configurable Flash Patterns for Diverse Applications
Versatility in signaling is a critical aspect of effective warning lights, and this beacon provides three distinct flash patterns to suit varying operational requirements and environmental conditions. These patterns include a "rotate," "single flash," and "dual flash" mode, selectable by the user to optimize visibility and communication. The "rotate" pattern simulates the effect of a traditional rotating beacon, offering a sweeping visual alert that is highly effective for general warning and area illumination. The "single flash" pattern provides a sharp, intermittent burst of light, ideal for attracting immediate attention. The "dual flash" pattern, characterized by two rapid flashes in quick succession, often provides a more emphatic warning signal, particularly useful in high-traffic or high-risk areas where immediate recognition is crucial. The ability to switch between these patterns allows operators to adapt the beacon's visibility signature to specific operational contexts, thereby enhancing safety and operational clarity.
Robust Construction and Environmental Resilience: IP56 Rating
Durability is an inherent characteristic of the Buyers Products Low Profile LED Beacon, explicitly designed to withstand the rigors of harsh operational environments. Both the housing and the lens are constructed from high-grade polycarbonate, a material renowned for its exceptional impact resistance, thermal stability, and UV resistance. This choice of material ensures that the beacon can endure physical impacts, resist damage from flying debris, and maintain optical clarity without yellowing or degradation due to prolonged exposure to sunlight. The beacon's impressive IP56 rating is a testament to its robust environmental sealing. The "IP" stands for Ingress Protection, with the first digit (5) indicating protection against dust ingress, meaning that dust cannot enter in a quantity sufficient to interfere with the satisfactory operation of the equipment. The second digit (6) indicates protection against powerful jets of water from any direction, signifying that the beacon is capable of withstanding heavy rain, pressure washing, and other high-volume water exposure without internal damage. This comprehensive protection ensures reliable performance across a broad operating temperature range of -22 to 122 degrees Fahrenheit (-30 to 50 degrees Celsius), making it suitable for deployment in virtually any climate.
Integrated Hard-Wired Blunt Cut Leads for Secure Installation
This specific variant of the Low Profile LED Beacon is equipped with 13-inch blunt-cut leads, facilitating a direct, hard-wired connection to the vehicle's electrical system. This approach offers several advantages over plug-in alternatives, particularly for permanent installations. Hardwiring ensures a highly secure and tamper-resistant electrical connection, eliminating the risk of accidental disconnection during vehicle operation or due to vibration. The 13-inch lead length provides ample flexibility for routing wires to an appropriate power source within the vehicle's chassis, allowing for a clean and professional installation without excessive wire slack. The blunt-cut termination requires proper splicing and sealing by a qualified installer, which, when performed correctly, creates a highly reliable and weather-sealed electrical junction. This method is preferred for applications where the beacon is intended to be a fixed component of the vehicle's warning system, offering superior longevity and stability compared to temporary or magnetic mounting solutions.
Permanent 3-Point Diecast Mounting System
For applications demanding maximum security and structural integrity, this beacon is designed exclusively for permanent mounting via its robust 3-point diecast base. This mounting system utilizes three distinct points of attachment, distributing mechanical stress evenly across the mounting surface and ensuring exceptional stability even under extreme vehicle motion or environmental conditions. The diecast construction of the base provides inherent strength and resistance to corrosion, ensuring that the beacon remains firmly affixed to the vehicle throughout its operational lifespan. The permanent mounting strategy is crucial for vehicles that frequently operate at high speeds, traverse rough terrain, or are exposed to significant vibrations. A grommet is included with the base, which plays a vital role in sealing the mounting holes against water and debris ingress, further enhancing the beacon's overall weather resistance and preventing potential damage to the vehicle's bodywork. This comprehensive mounting solution guarantees that the beacon will remain securely in place, delivering consistent warning signals without fail.
Optimized Electrical Specifications and Energy Efficiency
The electrical characteristics of this LED beacon have been meticulously optimized for vehicle integration and energy efficiency. Operating across a versatile voltage range of 12-24 Volts, it is compatible with a vast majority of commercial, utility, and emergency vehicles without the need for additional voltage converters. At 12 Volts, the beacon draws a modest 1.0 Amp, translating to a power consumption of approximately 12 Watts. This low current draw is a significant advantage, as it minimizes the strain on the vehicle's electrical system, reduces the risk of battery drain, and allows for the integration of multiple warning devices without compromising overall electrical integrity. The inherent energy efficiency of LED technology not only contributes to lower operational costs through reduced fuel consumption (by alleviating alternator load) but also extends the operational life of the vehicle's battery and charging system. The beacon features a straightforward 2-wire electrical connection, simplifying installation and reducing wiring complexity.
Applications and Versatility
The Low Profile 6 Inch by 2 Inch LED Beacon with Blunt Cut Leads is engineered for a diverse range of demanding professional applications where high-visibility warning is critical. Its SAE J845 Class 1 certification and robust construction make it ideal for:
- Construction Vehicles: Excavators, bulldozers, loaders, and dump trucks operating on active construction sites, alerting personnel and other equipment to their presence and movements.
- Utility Service Vehicles: Trucks and vans used by electrical, telecommunications, water, and gas companies, providing essential warning during roadside work, infrastructure maintenance, and emergency repairs.
- Roadside Assistance and Towing: Enhancing visibility for tow trucks, service vehicles, and recovery units operating on busy highways and roadways, protecting both the operator and stranded motorists.
- Municipal and Public Works: Sanitation vehicles, street sweepers, snowplows, and maintenance trucks, ensuring public safety during routine operations and adverse weather events.
- Agricultural Equipment: Tractors, harvesters, and other large machinery operating in fields and on rural roads, improving visibility during planting, harvesting, and transport.
- Fleet Vehicles: Any commercial fleet where increased vehicle visibility is a safety mandate, preventing collisions and enhancing operational awareness in dynamic environments.
Unwavering Reliability and Manufacturer Support
Buyers Products stands behind the superior quality and enduring performance of this Low Profile LED Beacon with a comprehensive 5-year warranty. This extensive warranty period serves as a powerful testament to the manufacturer's confidence in the beacon's design, materials, and manufacturing excellence. It assures users of long-term reliability and provides peace of mind, knowing that their investment is protected against defects in materials and workmanship. The commitment to a prolonged warranty period underscores the rigorous quality control measures implemented throughout the production process, from component selection to final assembly and testing. Choosing a product backed by such a robust warranty minimizes potential downtime, reduces unforeseen replacement costs, and ensures consistent operational readiness for critical safety applications.
Conclusion
In summary, the Low Profile 6 Inch by 2 Inch LED Beacon with Blunt Cut Leads from Buyers Products represents an expertly crafted warning solution, integrating state-of-the-art LED technology with a meticulously engineered low-profile, durable design. Its adherence to the stringent SAE J845 Class 1 standard guarantees exceptional light intensity and visibility, while its IP56 environmental rating ensures unwavering performance in the most challenging conditions. The permanent 3-point diecast mount and hard-wired blunt-cut leads provide a secure, reliable, and professional installation. With its energy-efficient operation, versatile flash patterns, and an industry-leading 5-year warranty, this beacon delivers a comprehensive package of safety, durability, and value, making it the ideal choice for demanding professional applications where uncompromising warning capability is essential.
