Buyers Products 6 Inch LED Amber Round Strobe Light has 24 LEDs and is SAE J595 Class 1 rated. It features 12-24V power range and has an impact-resistant plastic housing. A grommet is included for installation. These lights have 9 selectable flash patterns along with alternating and synchronous function. Lights are rated IP67 for water and dust resistance and are backed with a 5 year warranty.
Specifications
| Alternating Function (Y/N) | Yes |
|---|---|
| Amp draw at 12 Volts | .25 |
| Base / Mount Type | Recessed Rubber Grommet |
| Built-In Switch | Remote |
| Certification | SAE J595 Class 1, IPX7 |
| Class Level | 1 |
| Color | Red/Blue |
| Connector | Blunt Cut Wire |
| Depth | .92-1.04 |
| Grommet/Base Included | Yes |
| Hard Wired or Plug | Hard Wired |
| Height | .92-1.04 |
| Housing Material | Polycarbonate |
| IP Rating | IPX7 |
| Lead Length | 8 |
| Lens Material | Polycarbonate |
| Lens Shape | Oval |
| Lumens | 0 |
| Mount Type | Recessed Rubber Grommet |
| Number of Contacts | 3 |
| Number of Flash Patterns | 9 |
| Number of Wires | 3 |
| Operating Temperature | -40 C to +65 C |
| Overall Width | 7.56 |
| Plug Included | Blunt Cut Wire |
| SAE Classification | SAE J595 Class 1 |
| Synchronous Function | Yes |
| Type of Flash Pattern | 9 Flash Patterns |
| Type of Plug | Blunt Cut |
| Voltage | 12-24 |
| Wattage | 3 |

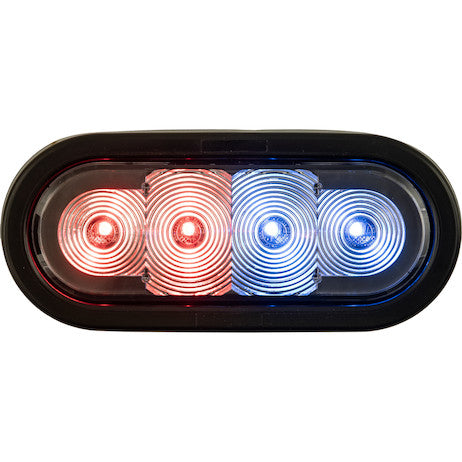

Advanced Warning Illumination: The 6-Inch LED Oval Strobe Light with Red/Blue LEDs and Clear Lens
The 6-Inch LED Oval Strobe Light with its distinctive Red/Blue LED configuration and clear lens represents a pinnacle in modern vehicle warning illumination technology. Engineered for demanding applications requiring superior visibility and unwavering reliability, this advanced strobe light is a critical safety component for a wide array of service, utility, and emergency vehicles. Integrating 24 high-intensity LEDs within a robust, oval form factor, it delivers a powerful, attention-grabbing visual signal designed to penetrate various environmental conditions and ensure maximum situational awareness for both vehicle operators and the surrounding public. Its compliance with SAE J595 Class 1 standards signifies its eligibility for primary warning light applications, underscoring its exceptional performance capabilities.
Precision Engineering and Optical Design
At the core of this warning light's performance is its meticulously engineered optical system. Comprising 24 individual LEDs, each precisely positioned, the light is designed to maximize output intensity and beam dispersion. The selection of Red/Blue LEDs is deliberate, serving specific regulatory and functional requirements for emergency and official use in many jurisdictions. Red and blue light wavelengths are highly effective at capturing human attention, particularly in low-light conditions, fog, or inclement weather, due to their distinct contrast against typical ambient light. The clear polycarbonate lens acts not merely as a protective barrier but as an integral optical component. Unlike colored lenses that can filter and reduce light output, a clear lens allows the full intensity and vibrant color of the Red/Blue LEDs to project unimpeded. This design choice ensures that the light emitted is pure, distinct, and maximally visible from a distance and across a broad viewing angle, enhancing safety for all road users. The oval shape, measuring approximately 7.56 inches in overall width and with a depth/height of .92-1.04 inches, is not just an aesthetic feature; it allows for versatile mounting options while contributing to an effective light spread, making it ideal for integration into existing vehicle lighting schemes or as a standalone unit.
Robust Electrical Architecture and Power Efficiency
The operational efficiency and reliability of this LED strobe light are directly attributable to its advanced electrical design. It features a wide voltage input range of 12-24V DC, making it universally compatible with nearly all vehicle electrical systems, from standard 12V automotive batteries found in passenger vehicles and light trucks to 24V systems commonly employed in heavy-duty commercial vehicles, construction equipment, and certain specialized machinery. This broad compatibility simplifies inventory management for fleet operators and ensures ease of integration without requiring voltage converters or specialized wiring. Despite its high output and robust warning capabilities, the unit exhibits exceptional power efficiency, drawing a mere 0.25 Amps at 12 Volts, corresponding to a modest 3 Watts of power consumption. This minimal current draw significantly reduces the strain on a vehicle's electrical system, preventing battery drain and allowing for the installation of multiple warning lights without necessitating expensive alternator or battery upgrades. Such efficiency also translates to lower operational costs over the product's extensive lifespan, a critical consideration for fleets and public service agencies.
Advanced Flash Pattern Control and Synchronization
Adaptability to diverse operational requirements and regional regulations is a hallmark of this strobe light, facilitated by its nine selectable flash patterns. These patterns offer a range of visual signals, from rapid, high-impact bursts to more prolonged, sweeping sequences, allowing operators to choose the most effective pattern for their specific scenario. Whether signaling an immediate hazard, directing traffic, or providing general warning, the variety of patterns ensures optimal visibility and compliance. Pattern selection is managed via a remote interface, providing convenient control without direct access to the light unit itself. Beyond individual pattern selection, the light incorporates advanced alternating and synchronous functions. The alternating function enables two or more lights to flash in an opposing sequence, creating a dynamic visual effect that significantly enhances conspicuity. The synchronous function, conversely, allows multiple lights to flash in unison, presenting a cohesive and powerful warning display. These capabilities are invaluable for creating comprehensive, multi-unit warning systems on larger vehicles or across an entire fleet, ensuring coordinated and highly effective visual signaling, thereby maximizing safety and visibility in complex operational environments.
Uncompromised Durability and Environmental Resilience
Designed for continuous operation in the most challenging conditions, the 6-Inch LED Oval Strobe Light is built with an unwavering commitment to durability and environmental resilience. Both the housing and the clear lens are constructed from high-grade polycarbonate, a material renowned for its exceptional impact resistance, thermal stability, and clarity. This polycarbonate construction renders the light virtually impervious to impacts from road debris, minor collisions, and vandalism, ensuring long-term structural integrity. Furthermore, polycarbonate inherently offers excellent UV resistance, preventing yellowing or degradation over prolonged exposure to sunlight, which is crucial for maintaining optical clarity and light output over the product's lifespan. The unit boasts an IP67/IPX7 ingress protection rating. IP67 signifies complete protection against dust ingress and protection against the effects of immersion in water up to 1 meter for 30 minutes. IPX7 specifically denotes protection against temporary immersion in water. This comprehensive sealing ensures that internal components remain shielded from moisture, dust, dirt, and other environmental contaminants, which are common causes of failure in lesser-quality warning lights. This robust sealing technology, combined with a broad operational temperature range of -40°C to +65°C, guarantees reliable performance in extreme cold, intense heat, heavy rain, snow, and dusty conditions, making it suitable for global deployment in diverse climates and industrial settings.
Streamlined Installation and Integration

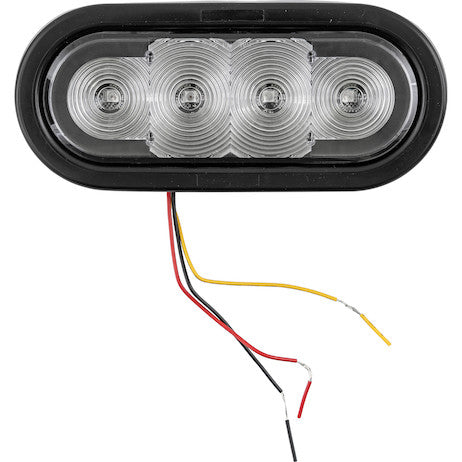

Ease of installation is a key consideration in the design of this 6-inch LED strobe light. It features a recessed rubber grommet mount, a highly practical and secure method for flush mounting the light into vehicle body panels or other surfaces. The rubber grommet not only provides a snug, vibration-dampening fit but also contributes to the light's ingress protection by sealing the mounting aperture against water and dust. A grommet is conveniently included with the light, simplifying the installation process. Electrical connection is achieved via a blunt cut wire termination with an 8-inch lead length, providing flexibility for hard-wiring into a vehicle's existing electrical system or a dedicated warning light controller. The three-wire configuration typically allows for power, ground, and a control wire for pattern selection or synchronization, offering a straightforward yet versatile connection scheme for seamless integration into various vehicle configurations and wiring harnesses. This hard-wired design ensures a secure and permanent electrical connection, minimizing the risk of accidental disconnection or compromised performance under heavy vibration or adverse weather conditions.
Adherence to SAE J595 Class 1 Standards
A critical technical attribute of this LED strobe light is its certification to SAE J595 Class 1 standards. The Society of Automotive Engineers (SAE) J595 standard defines the performance requirements for flashing warning lamps for authorized vehicles. Class 1 certification represents the highest intensity level within this standard, designating the light as suitable for primary warning applications where maximum visibility is paramount. This includes use on emergency vehicles such as police cruisers, fire trucks, and ambulances, as well as critical utility and construction vehicles operating in high-risk environments. To achieve Class 1 certification, a light must meet stringent criteria for luminous intensity, flash rate, color, and beam pattern. This certification provides a definitive assurance to purchasers that the product delivers the superior warning power required for critical safety functions, ensuring compliance with regulatory requirements and enhancing operational safety. The specified Red/Blue color output falls within the chromaticity requirements for emergency vehicle signaling in many regions, further reinforcing its compliance profile.
Versatile Applications and Enhanced Operational Safety
The 6-Inch LED Oval Strobe Light’s robust design, high-intensity output, and versatile features make it an indispensable component for a wide array of demanding applications. It is ideally suited for:
- Emergency Services: Police, fire, and EMS vehicles requiring high-visibility primary warning signals for urgent response and scene safety. The Red/Blue combination is internationally recognized for such roles.
- Utility and Public Works Fleets: Vehicles involved in road maintenance, telecommunications, power line repair, and other infrastructure work, where worker safety and public awareness are paramount.
- Construction and Mining Vehicles: Heavy machinery operating in dynamic and often hazardous environments, where robust, high-visibility lighting is crucial for preventing accidents.
- Tow Trucks and Roadside Assistance: Providing essential warning to approaching traffic, especially during nighttime recovery operations or inclement weather.
- Security Patrols: For private security vehicles where a prominent visual presence is necessary for deterrence and rapid response.
- Agricultural Equipment: Enhancing the visibility of slow-moving or oversized farm machinery on public roads or in large fields.
Unwavering Reliability and Long-Term Value
The commitment to quality and longevity is further underscored by the inclusion of a comprehensive 5-year warranty. This extensive warranty period provides peace of mind, reflecting the manufacturer's confidence in the product's engineering, material quality, and consistent performance. The inherent advantages of LED technology – including their vastly superior lifespan compared to traditional incandescent or xenon strobe lights, resistance to shock and vibration, and minimal maintenance requirements – contribute to a lower total cost of ownership over the operational life of the vehicle. Operators benefit from reduced downtime associated with bulb replacements and fewer instances of product failure, ensuring that critical warning capabilities are consistently available when needed most. The combination of state-of-the-art LED technology, durable construction, advanced control features, and industry-leading certifications positions this 6-Inch LED Oval Strobe Light as an exceptional investment for any organization prioritizing safety, reliability, and performance in their vehicle warning systems.
