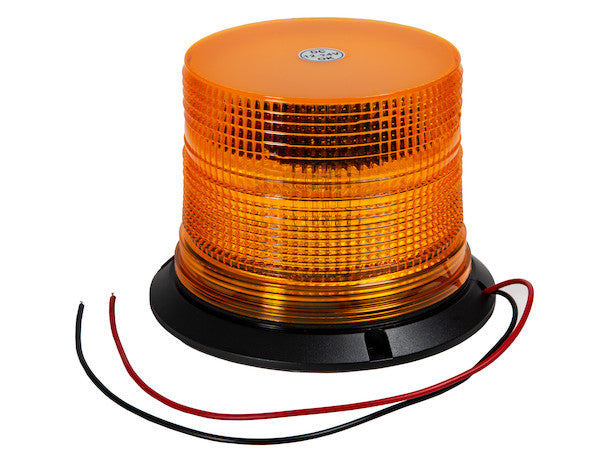

Buyers Products 5 Inch Wide Incandescent Beacon features one flash pattern and an amber colored lens. It features 3-bolt and 1 in. pipe mounting options and 12 in. blunt cut leads. Lights are backed with a 1 year warranty.
Specifications
| Amp draw at 12 Volts | 1.50 |
|---|---|
| Base / Mount Type | Surface |
| Built-In Switch | No |
| Class Level | - |
| Color | Amber |
| Connector | Blunt Cut |
| Depth | - |
| Hard Wired or Plug | Hard Wired |
| Height | 4.750 |
| Housing Material | Plastic |
| Lead Length | 12.0 |
| Lens Material | Polycarbonate |
| Lens Shape | Dome |
| Mount Type | Permanent |
| Number of Batteries Required | - |
| Number of Flash Patterns | 1 |
| Number of Wires | 2 |
| Overall Width | - |
| Plug Included | No |
| Type of Plug | Stripped Leads |
| Voltage | 12-24 |
| Wattage | 18.0 |
Advanced Technical Overview: The 6.5 Inch by 5 Inch 8 Joule Incandescent Beacon Strobe Light
The 6.5 Inch by 5 Inch 8 Joule Incandescent Beacon Strobe Light from Buyers Products represents a robust and reliable solution for a diverse range of warning and safety illumination requirements. Engineered for demanding operational environments, this incandescent strobe beacon combines traditional, high-intensity light output with durable construction and versatile mounting options, making it an indispensable component for enhancing visibility and safety across numerous industrial, commercial, and municipal applications.
Illumination Technology and Output Characteristics
At the core of this warning device lies its incandescent strobe technology, designed to produce a powerful, attention-grabbing flash. The 8 Joule rating signifies the energy discharged per flash, a critical parameter indicating the intensity of the light pulse. In a strobe system, a capacitor is charged to a high voltage and then rapidly discharged through a xenon flash tube. This rapid discharge generates a brilliant, brief burst of white light with a broad spectral output. The amber lens then filters this white light, producing a highly visible amber flash that is universally recognized as a caution or warning signal.
The use of a xenon flash tube offers several advantages, including excellent peak light intensity, a full 360-degree light dispersion, and a distinctive visual signature that stands out against ambient light conditions, particularly in fog, dust, or low-light scenarios. While modern LED strobes offer efficiency, the classic incandescent strobe provides a unique, powerful flash that many operators and regulatory bodies continue to favor for specific applications. The single flash pattern, meticulously engineered for consistency, ensures that the beacon delivers an unambiguous warning signal, minimizing the risk of misinterpretation in dynamic work zones or traffic situations. This consistent, repetitive flash pattern is optimized for maximum visual impact, ensuring that personnel and other road users are alerted to potential hazards or the presence of working vehicles.
Optimal Visibility and Safety Compliance
The selection of an amber lens for this beacon is not merely aesthetic but rooted in established safety protocols and optical science. Amber light (typically in the 570-620 nm wavelength range) possesses characteristics that make it highly effective for warning applications. Its wavelength allows it to penetrate atmospheric obscurants such such as fog, mist, and dust more effectively than shorter-wavelength colors like blue or white, thus maintaining visibility in adverse weather conditions. Furthermore, amber is widely recognized globally as a color indicating caution, slow-moving vehicles, wide loads, or utility work, adhering to numerous regional and international safety standards.
The 8-Joule energy discharge contributes significantly to the beacon's effective visibility range. This high energy output translates into a powerful flash that can be seen from considerable distances, providing ample warning time for approaching traffic or personnel. While specific class levels (e.g., SAE J845/J1318 Class 1, 2, or 3) are not explicitly stated, the design and performance characteristics, particularly the 8-Joule output and amber coloration, align with the requirements for warning lights intended for heavy-duty, utility, construction, and service vehicles operating in environments where high visibility is paramount for operational safety and regulatory compliance.
Robust Construction and Material Science
Durability is a cornerstone of the 6.5 Inch by 5 Inch Incandescent Beacon's design. The housing is constructed from high-grade plastic, chosen for its excellent balance of strength, lightweight properties, and corrosion resistance. This material effectively protects the internal electronic components from environmental ingress, including dust, moisture, and mild chemical exposure, which are common challenges in outdoor and industrial settings. The plastic housing is also resilient against minor impacts and vibrations inherent to mobile equipment operation.
Complementing the robust housing is the dome-shaped lens, manufactured from high-performance polycarbonate. Polycarbonate is an exceptionally tough thermoplastic, renowned for its superior impact resistance – significantly higher than that of acrylic or glass. This makes the lens highly resistant to chipping, cracking, and shattering, even when subjected to accidental impacts from debris, tools, or branches. Furthermore, polycarbonate offers excellent optical clarity and inherent UV resistance, preventing yellowing or clouding over time due to prolonged sun exposure. The dome shape is not only aesthetically functional, contributing to a sleek profile, but also plays a crucial role in light dispersion, allowing for a broad, uniform distribution of the amber flash across a full 360-degree horizontal plane, ensuring maximum visibility from all angles around the vehicle or equipment.
Electrical Specifications and System Integration
This beacon is designed for seamless integration into common vehicle and equipment electrical systems, supporting a wide operating voltage range of 12-24 volts DC. This dual-voltage capability ensures compatibility with both standard 12V automotive electrical systems and heavier-duty 24V systems found in many commercial trucks, construction machinery, and industrial equipment, simplifying fleet management and inventory. The amp draw is specified at 1.50 amps at 12 volts, resulting in an 18.0-watt power consumption. This wattage reflects the significant energy required for an 8-Joule incandescent flash while remaining within manageable limits for most vehicle electrical systems. Understanding the current draw is vital for electrical system planning, ensuring adequate power supply and preventing overload on existing circuits.
The beacon features a hard-wired connection with 12-inch blunt cut leads. This hard-wired design ensures a secure, permanent electrical connection, which is crucial for reliability in environments subject to vibration, moisture, and dirt. Blunt cut leads, or stripped leads, offer installers the flexibility to integrate the beacon directly into the vehicle's wiring harness using appropriate connectors (e.g., butt splices, terminal blocks) or to route wiring through protective conduits. The 12-inch lead length provides ample wire for making connections without needing immediate extensions in many installation scenarios. The two-wire configuration (typically positive and ground) simplifies the wiring process, reducing installation time and complexity, and minimizing potential points of failure.
Versatile Mounting Options

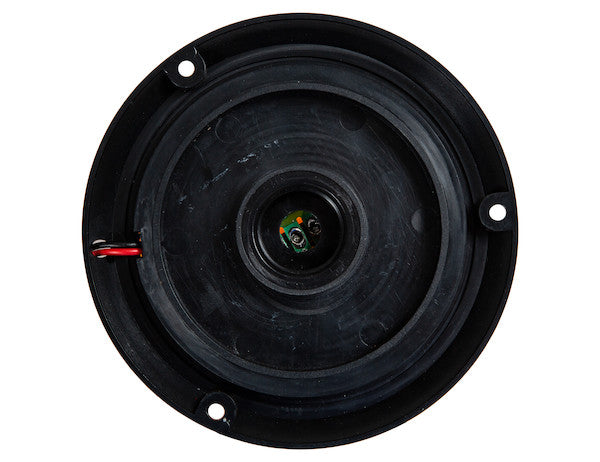

The flexibility in mounting is a key functional attribute of this beacon. It offers two primary permanent mounting options: 3-bolt surface mount and 1-inch pipe mount. The 3-bolt surface mount provides a highly secure and stable attachment directly to a flat surface, such as a vehicle roof, headache rack, or equipment chassis. This method ensures maximum resistance to vibration and wind shear, which is critical for beacons operating on moving vehicles or in exposed locations. The bolt pattern is typically standardized, allowing for relatively straightforward installation with common tools.
The 1-inch pipe mounting option offers an alternative for scenarios where direct surface mounting is not feasible or where a raised installation is desired. This allows the beacon to be affixed to standard 1-inch NPT (National Pipe Taper) threaded pipes, often found as existing mounting points on equipment, utility trucks, or custom fabrication. This method can elevate the beacon for increased visibility over obstacles or cab structures, optimizing the line of sight for the warning signal. Both mounting types are classified as permanent, emphasizing the beacon's intended role as a fixed safety fixture rather than a temporary solution, ensuring long-term reliability and compliance.
Dimensions and Form Factor

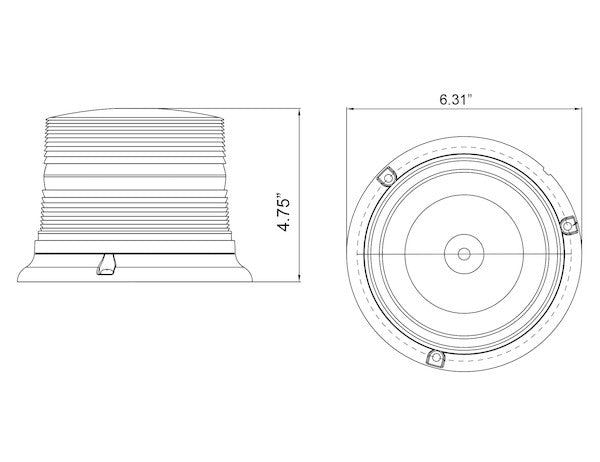

The product title specifies dimensions of 6.5 inches by 5 inches. Reconciling this with the detailed specifications, the beacon features a 5-inch wide (likely referring to the lens diameter or primary visual width) profile and a height of 4.750 inches. The 6.5-inch dimension could refer to the overall diameter of the base or the widest point of the housing, providing a stable footprint for the permanent mounting options. This compact yet substantial form factor ensures that the beacon does not excessively protrude or interfere with vehicle aerodynamics or equipment functionality, while still offering a visible and commanding presence. Its relatively low profile, at 4.75 inches in height, allows for installation in areas with overhead clearance restrictions, making it suitable for a broader range of vehicle types and operational environments.
Applications and Operational Context
The 6.5 Inch by 5 Inch 8 Joule Incandescent Beacon Strobe Light is ideally suited for a comprehensive array of demanding applications where active visual warning is indispensable. Its primary function is to enhance safety by making vehicles and equipment highly conspicuous. Typical applications include, but are not limited to:
- Construction Vehicles: Excavators, bulldozers, loaders, dump trucks, and paving equipment operating on job sites or public roads.
- Utility Trucks: Service vehicles for electricity, telecommunications, gas, and water companies, especially during roadside work or infrastructure maintenance.
- Agricultural Machinery: Tractors, combines, and other farm equipment that frequently operate on public roads or in large fields.
- Roadside Assistance & Towing: Tow trucks, recovery vehicles, and service vehicles assisting disabled motorists.
- Municipal & DOT Fleets: Snowplows, street sweepers, garbage trucks, and other public works vehicles.
- Industrial Facilities: Forklifts, burden carriers, and other material handling equipment in warehouses, factories, and ports.
- Security and Patrol Vehicles: Enhancing visibility for private security or facility patrol operations.
- Specialty Vehicles: Oversize load escorts, mobile command centers, and other vehicles requiring prominent warning signals.
In each of these scenarios, the beacon’s powerful amber flash acts as a crucial visual deterrent and warning, significantly reducing the risk of accidents by alerting pedestrians, other drivers, and machine operators to the presence and operational status of the equipment. It plays a vital role in creating safer working environments and ensuring regulatory compliance on public thoroughfares and private worksites.
Maintenance and Warranty
While incandescent strobe technology typically involves a xenon flash tube with a finite lifespan, the design of this beacon prioritizes robustness and ease of service if required. Modern xenon tubes are engineered for thousands of hours of operation, providing reliable service over extended periods. The 1-year warranty provided by Buyers Products underscores the manufacturer's confidence in the product's quality, durability, and performance, offering purchasers peace of mind and protection against manufacturing defects or premature failure under normal operating conditions. This warranty reflects a commitment to delivering dependable and long-lasting safety equipment.
Conclusion
The 6.5 Inch by 5 Inch 8 Joule Incandescent Beacon Strobe Light stands as a testament to effective, reliable warning illumination. Its combination of an 8-Joule high-intensity incandescent flash, a durable polycarbonate dome lens, robust plastic housing, and flexible permanent mounting options positions it as a top-tier choice for safety-critical applications. The wide 12-24V operating voltage and hard-wired blunt cut leads ensure broad compatibility and secure electrical integration. Designed to maximize visibility in challenging conditions and signal critical operational information, this amber strobe beacon is an essential investment for any organization prioritizing the safety of its personnel and the general public. Its proven technology and rugged construction ensure enduring performance, making it a professional-grade solution for a multitude of industrial and commercial safety requirements.
