Buyers Products Class 1 5 Inch Tall LED Beacon Light has 11 flash patterns and is rated SAE J845 Class 1. The beacon has an amber lens and includes a 14-3/4 ft cord with accessory power plug. Three different mounting options make it easy to install the light where you want it. Lights are backed with a 5 year warranty.
Specifications
| Amp draw at 12 Volts | 1.0 |
|---|---|
| Base / Mount Type | Surface |
| Built-In Switch | No |
| Certification | SAE J845 |
| Class Level | 1 |
| Color | Amber |
| Hard Wired or Plug | Plug |
| Height | 4.65 |
| Housing Material | Plastic |
| Lead Length | 177 |
| Lens Material | Polycarbonate |
| Lens Shape | Dome |
| Mount Type | Magnetic-Permanent |
| Number of Batteries Required | - |
| Number of Flash Patterns | 11 |
| Overall Width | 6.41 |
| Plug Included | Yes |
| SAE Classification | SAE J845 Class 1 |
| Type of Plug | Auxiliary Power Connector |
| Voltage | 12-24 |
| Wattage | 18.0 |
Advanced Engineering and High-Visibility Performance: The 6.5 x 5 Inch Amber LED Beacon Light

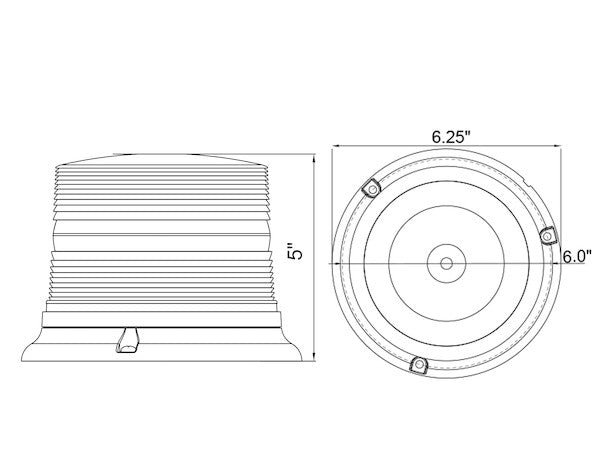

The 6.5 Inch by 5 Inch Amber LED Beacon Light represents a pinnacle in modern vehicle warning illumination, engineered for superior visibility, enduring reliability, and comprehensive regulatory compliance. This Class 1 beacon light, designed by Buyers Products, integrates cutting-edge LED technology with robust construction to deliver an indispensable safety solution across a diverse array of industrial, commercial, and utility applications. Its precise dimensions, with an overall width of 6.41 inches (approximately 6.5 inches) and a height of 4.65 inches (approximately 5 inches), optimize its profile for effective light dispersion while maintaining a compact footprint suitable for various vehicle types without impeding operational aesthetics or aerodynamics. The beacon’s amber lens, a universally recognized color for caution and warning signals, ensures maximum conspicuity in both daylight and adverse weather conditions, providing an unequivocal visual alert to surrounding traffic and personnel.
Unparalleled Optical Performance and LED Technology

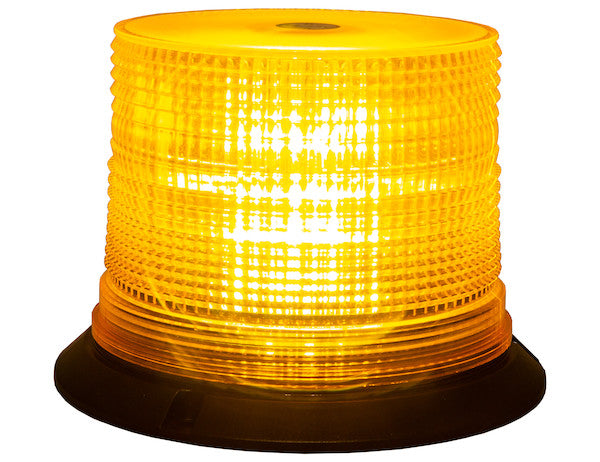

At the core of this beacon light's exceptional performance is its advanced LED array. Light Emitting Diodes (LEDs) offer distinct advantages over traditional incandescent or strobe technologies, including significantly higher energy efficiency, an extended operational lifespan, and instantaneous illumination. The 18.0 Watt power consumption, translating to a mere 1.0 Amp draw at 12 Volts, underscores its energy efficiency, minimizing the load on a vehicle's electrical system and contributing to fuel economy. This low power draw also allows for prolonged operation without excessive battery drain, a critical factor for vehicles in stationary warning scenarios.

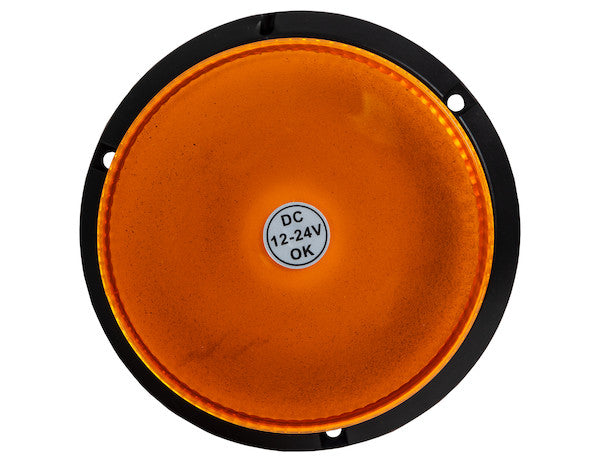

The selection of an amber lens material, specifically high-grade polycarbonate, is deliberate. Polycarbonate is renowned for its outstanding impact resistance, optical clarity, and resistance to UV degradation, ensuring that the lens retains its color integrity and structural soundness even after prolonged exposure to harsh environmental elements. The dome lens shape is not merely aesthetic; it is geometrically optimized to facilitate wide-angle light dispersion, projecting a uniform and intense amber light pattern across a broad area. This expansive light coverage is crucial for ensuring visibility from multiple perspectives, a fundamental requirement for effective hazard warning.
Furthermore, the beacon features 11 distinct flash patterns, providing operators with versatile signaling options to suit various operational contexts and ambient conditions. These patterns can range from rapid flashes designed to grab immediate attention in high-speed traffic to slower, more sustained pulsations suitable for stationary warnings or less urgent scenarios. The ability to switch between these patterns allows for adaptive communication, ensuring the message of caution is conveyed effectively regardless of the specific environment. The absence of a built-in switch implies that pattern selection and activation are typically managed via an external switch or integrated vehicle control system, offering greater flexibility in system design and user interface placement.
Adherence to SAE J845 Class 1 Standards
A cornerstone of this beacon's professional credibility is its certification as SAE J845 Class 1. The Society of Automotive Engineers (SAE) J845 standard defines the performance requirements for warning lamps, classifying them based on their effective light intensity and suitability for different operational environments. Class 1 designation signifies the highest level of light output, specifically engineered for applications where maximum visibility is paramount, often in high-speed traffic, construction zones, utility work areas, or emergency situations where the safety of personnel and the public is directly dependent on the warning light's efficacy. To achieve Class 1 certification, a beacon must demonstrate consistent, high-intensity light output across a specified horizontal and vertical angular range, maintaining specified flash rates and duty cycles under a variety of environmental conditions. This rigorous testing ensures that the beacon will perform reliably when deployed in the most demanding scenarios, offering an unambiguous visual alert even in bright daylight or through obscurants like fog or heavy rain. Compliance with SAE J845 Class 1 standards is not merely a technical specification; it is a critical safety assurance, guaranteeing that the beacon meets the legal and operational requirements for high-priority warning applications, thereby mitigating risks and enhancing safety for both operators and the public.
Robust Construction for Extreme Environments
Durability is paramount for equipment exposed to the rigors of commercial and industrial operations. The 6.5 x 5 Inch Amber LED Beacon Light is constructed with a high-grade plastic housing, engineered to withstand significant mechanical stress, environmental exposure, and temperature fluctuations. This specialized plastic formulation is chosen for its superior impact resistance, preventing damage from accidental bumps, falling debris, or high-pressure washing. Furthermore, the housing is designed for exceptional weather resistance, sealing critical internal components against ingress from dust, moisture, and other contaminants. While a specific IP (Ingress Protection) rating is not listed, the implied design for professional vehicle use suggests robust sealing against typical environmental challenges encountered on roadsides, construction sites, and remote utility locations.
The integrated design minimizes potential points of failure, contributing to the beacon's long-term reliability. Its resilience extends to operational temperature ranges, capable of performing consistently in extreme heat and freezing cold, a vital characteristic for vehicles operating across diverse geographical regions and seasonal conditions. Resistance to vibration is also critical for vehicle-mounted lights. The internal electronics and LED components are secured to withstand constant road vibration and shocks from off-road applications, preventing premature component failure and ensuring stable light output throughout its operational life. This meticulous attention to material selection and construction quality translates into a beacon light that demands minimal maintenance and delivers sustained, dependable performance, reinforcing the manufacturer's confidence exemplified by the 5-year warranty.
Versatile Mounting and Power Integration

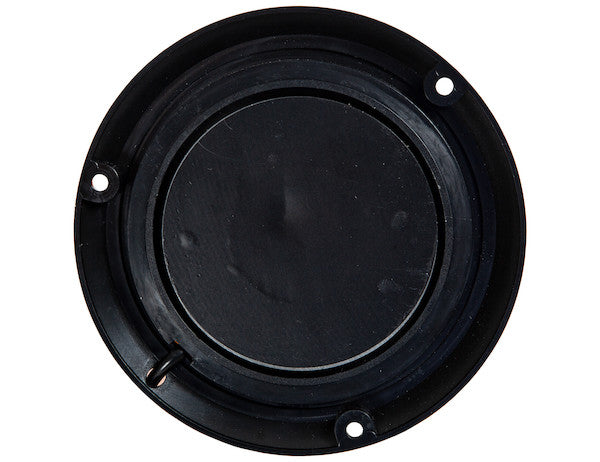

The beacon's design incorporates three different mounting options, providing exceptional flexibility for installation on a wide range of vehicles and equipment. While the specifications highlight "Surface" and "Magnetic-Permanent" mounting, these categories encompass several practical installation methods. The "Magnetic-Permanent" descriptor indicates a versatile base that typically allows for both temporary magnetic attachment and a more secure, permanent bolt-down installation. The specific interpretations are often:

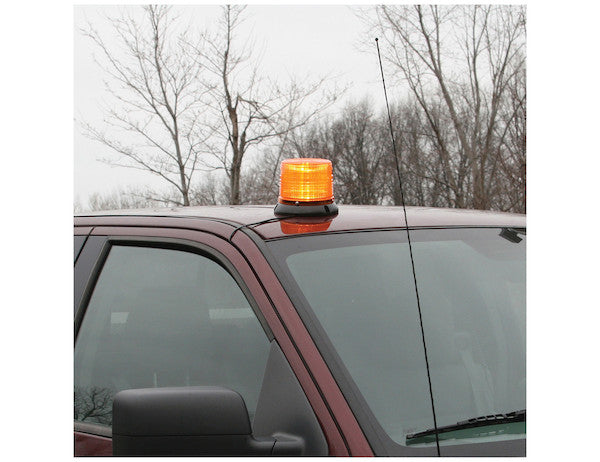

- Magnetic Mounting: Ideal for quick deployment and temporary applications where drilling into the vehicle surface is undesirable or impractical. Powerful rare-earth magnets embedded within the base provide a strong, secure hold to ferrous metal surfaces, capable of withstanding vehicle speeds and environmental forces. This option facilitates easy transfer between vehicles or removal when the warning light is not required, preserving the vehicle's appearance and allowing for multi-purpose use of the beacon.
- Permanent Surface Mounting (Bolt-Down): For applications requiring maximum security and a long-term installation, the base is designed with pre-drilled holes for bolt-down attachment to any flat surface. This method creates a robust, tamper-resistant fixture, ensuring the beacon remains in place even under extreme operating conditions, heavy vibrations, or accidental impacts. It is the preferred choice for dedicated service vehicles, heavy machinery, and permanent roadside installations.
- Combined or Specialized Mounting: The base's inherent design often allows for adaptation to other mounting accessories, such as pipe mounts or custom brackets, providing a third dimension of flexibility. This could involve using the surface mount points for custom interfaces or leveraging the sturdy base for integration into existing vehicle lighting infrastructure, demonstrating the product's adaptability beyond the two primary methods.

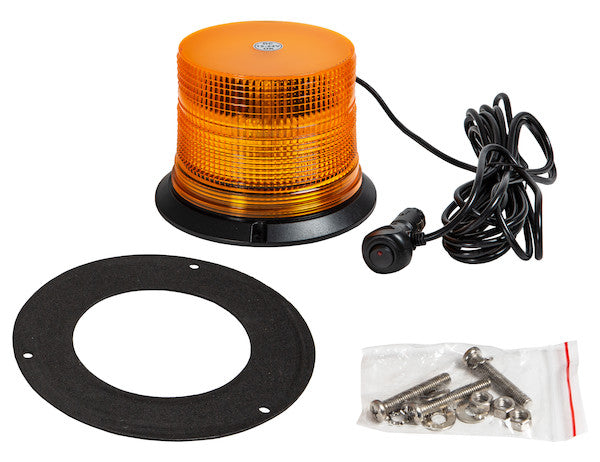

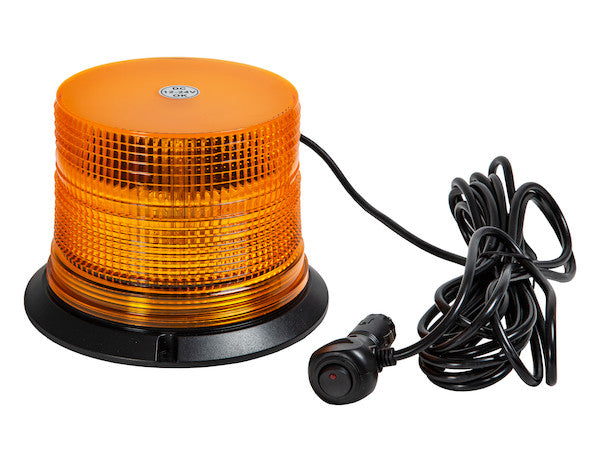

Powering the beacon is straightforward thanks to its 14-3/4 ft (177 inches) cord equipped with an auxiliary power connector plug. This generous lead length provides ample reach for routing the cable discreetly and effectively to a vehicle's 12-24V DC power source, typically a cigarette lighter or auxiliary power outlet. The plug-and-play design allows for immediate operation upon connection, simplifying installation and enabling rapid deployment without the need for complex wiring procedures. The 12-24V voltage compatibility makes the beacon universally adaptable to most light and heavy-duty vehicles, from passenger cars used for pilot escort to commercial trucks, construction equipment, and utility vehicles. This wide voltage range incorporates necessary internal regulation circuitry to ensure consistent light output and protection against voltage spikes or fluctuations inherent in vehicle electrical systems, further enhancing the beacon's longevity and reliability.
Optimal Applications and Operational Benefits
The 6.5 x 5 Inch Amber LED Beacon Light is an essential safety component across a broad spectrum of industries and applications where enhanced visibility and warning signals are critical. Its Class 1 rating and amber coloration make it suitable for:
- Construction and Road Maintenance: Warning approaching traffic of ongoing work, active machinery, or hazardous conditions on highways, urban roads, and construction sites.
- Utility Services: Identifying utility vehicles (telecommunications, electrical, gas, water) working on infrastructure, especially during roadside repairs or emergency call-outs.
- Towing and Recovery: Ensuring safety during vehicle recovery operations, alerting motorists to stationary hazards and personnel working on the roadside.
- Agricultural Equipment: Enhancing the visibility of tractors, combines, and other slow-moving farm machinery, particularly when operating on or near public roads.
- Emergency Support: Providing supplemental warning for non-primary emergency vehicles, volunteer responders, or incident command vehicles at accident scenes or major events.
- Commercial Fleets: General purpose warning for delivery trucks, waste management vehicles, or any commercial vehicle requiring increased conspicuity.
- Industrial and Mining Operations: Marking active heavy equipment, restricted access areas, or critical vehicles within industrial complexes or mining environments.
The operational benefits extend beyond mere compliance. The beacon significantly reduces the risk of accidents by providing a highly visible warning, improving situational awareness for drivers and pedestrians. Its low power consumption translates to reduced operational costs, as it places less strain on vehicle alternators and batteries, potentially extending the life of these components. The durability of its construction minimizes replacement frequency and maintenance efforts, offering a strong return on investment. The inclusion of a 5-year warranty underscores the manufacturer's confidence in the product's engineering and materials, providing long-term assurance of performance and reliability, thereby protecting the investment made by fleet managers and individual operators.
Technical Considerations and Long-Term Value
When considering the procurement of warning lights, several technical aspects contribute to the long-term value and effectiveness of a product like this LED beacon. The use of LEDs is a key differentiator, offering a significantly longer operational life compared to traditional xenon strobe or rotary beacons, often exceeding 50,000 hours. This reduces the total cost of ownership by eliminating frequent bulb replacements and associated labor. The instant-on characteristic of LEDs means full light intensity is achieved immediately, without warm-up delays, which is critical in dynamic, time-sensitive warning scenarios.
The precision engineering evident in the 11 flash patterns allows for optimized light signaling. Different patterns have varying psychological impacts and effectiveness in different ambient light or weather conditions. For example, a rapidly rotating or alternating flash pattern can be more attention-grabbing on a busy highway, while a more consistent, sweeping pattern might be preferred in fog or heavy rain to maintain continuous visibility. Operators can select the most appropriate pattern to maximize safety and compliance for their specific task.
Furthermore, the robust plastic housing and polycarbonate lens are selected not only for durability but also for their electrical insulation properties and resistance to chemicals commonly encountered in industrial environments (e.g., fuels, oils, road salts). This ensures the beacon maintains its structural integrity and electrical safety over its operational lifespan. The thoughtful integration of a long power cord with an auxiliary power connector enhances user convenience, allowing for quick deployment and removal, which is particularly beneficial for vehicles that are not permanently dedicated to warning light operations or for rental fleets. The absence of a built-in switch simplifies the design and allows for custom integration into a vehicle's existing control panel, offering a cleaner installation and centralized control over warning systems.
In summary, the 6.5 Inch by 5 Inch Amber LED Beacon Light represents a meticulously engineered solution for professional-grade warning illumination. Its blend of high-intensity LED technology, SAE J845 Class 1 compliance, robust construction, versatile mounting options, and a comprehensive 5-year warranty positions it as a leading choice for any application demanding uncompromising visibility and reliability. This beacon is not merely a light; it is a critical safety investment, designed to perform consistently under demanding conditions, protect personnel, and ensure regulatory compliance, thereby enhancing operational efficiency and peace of mind.
