Buyers Products 6 Inch Oval LED Recessed Strobe Light has 24 LEDs and can flash six times per second. SAE J595 Class 2 rated. It features a 12-24V power range and has impact-resistant plastic housing. The light is available in clear or amber and is rated SAE J595 Class 2. The light features impact-resistant plastic housing, has a 12-24V power range, and includes a grommet and PL-3 plug for installation. Lights are rated IP67 for water and dust resistance and are backed with a 5 year warranty.
Specifications
| Alternating Function (Y/N) | No |
|---|---|
| Amp draw at 12 Volts | 0.50 |
| Base / Mount Type | Recessed |
| Built-In Switch | No |
| Certification | IP67 |
| Class Level | 2 |
| Color | Clear |
| Connector | Blunt Cut/Ring Terminal |
| Depth | - |
| Hard Wired or Plug | Plug |

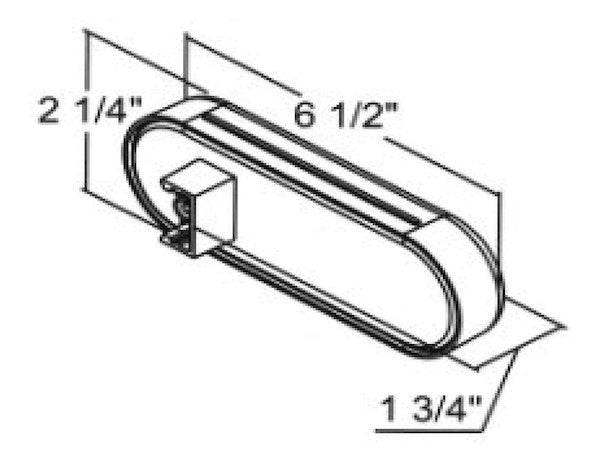

| Height | 2.250 |
| Housing Material | Polymer |
| Lead Length | 12.00 |
| LED 2 Color OLD | Clear |
| Lens Material | Polycarbonate |
| Lens Shape | Oval |
| Mount Type | Grommet, Snap-In |
| Number of Contacts | 3 |
| Number of Flash Patterns | 6 |
| Number of Wires | 3 |
| Operating Temperature | - |
| Overall Width | 6.500 |
| Plug Included | Yes |
| Synchronous Function | No |
| Traffic Strobe Patterns | No |
| Type of Flash Pattern | - |
| Type of Plug | PL-3 Connection |
| Voltage | 12-24 |
| Wattage | 6 |
Advanced Technical Overview: 6 Inch Clear Oval Recessed Strobe Light With 24 LED
The 6 Inch Clear Oval Recessed Strobe Light with 24 LEDs represents a sophisticated solution for enhancing vehicle visibility and operational safety across a multitude of industrial, municipal, and commercial applications. Engineered for robust performance and designed for seamless integration, this product is a testament to cutting-edge LED technology combined with stringent adherence to industry safety standards. This detailed description will delve into the technical attributes, operational benefits, and application versatility of this high-performance strobe light, emphasizing its contributions to safety, durability, and cost-efficiency.
Precision Engineering: LED Array and Optical Performance
At the core of this advanced warning light is a meticulously arranged array of 24 high-intensity Light Emitting Diodes (LEDs). This substantial count of individual emitters is crucial for achieving superior photometric performance, ensuring that the light output is not only bright but also broadly distributed for maximum conspicuity. Unlike traditional incandescent or HID strobe systems, LED technology offers several inherent advantages that are critically important in demanding operational environments. Each LED operates as a solid-state device, inherently more resistant to shock and vibration – common stressors in heavy-duty vehicle applications – than filament-based bulbs. This results in significantly prolonged operational lifespans, drastically reducing the frequency and cost associated with maintenance and replacement.
The clear lens, fabricated from robust polycarbonate, serves a dual purpose: it protects the delicate LED array while optimizing light transmission. Polycarbonate is renowned for its exceptional impact resistance, optical clarity, and resistance to UV degradation, ensuring that the lens remains clear and effective even after prolonged exposure to harsh sunlight and abrasive environmental conditions. The oval form factor is not merely an aesthetic choice; it often facilitates a wider beam spread in specific orientations, enhancing lateral visibility, which is critical for warning pedestrians and other vehicles approaching from various angles around stationary or slow-moving equipment. The photometric design of the lens and the strategic placement of the 24 LEDs work in concert to deliver a powerful, attention-grabbing flash that cuts through ambient light, fog, rain, and other obscurants.
Dynamic Signaling: Strobe Functionality and Flash Patterns
The primary function of this device is its strobe capability, designed to produce a highly conspicuous, intermittent light signal. Operating at a rapid flash rate of six times per second (6 Hz), the light is engineered to capture immediate attention, a paramount requirement for effective warning devices. This specific flash frequency falls within optimal human perception ranges for alerting, ensuring that the visual stimulus is readily detected without causing excessive visual fatigue. Furthermore, the light incorporates six distinct flash patterns. This versatility allows operators to select the most appropriate pattern for specific operational contexts or regulatory requirements. Different flash patterns can convey varying levels of urgency or provide distinct visual signatures that aid in identification or differentiation, depending on the operational scenario. While the unit does not feature an alternating or synchronous function for coordinated flashing with multiple lights, its standalone performance and multiple pattern options provide robust warning capabilities.
The ability to select from multiple flash patterns is typically controlled via a dedicated wire, allowing for integration with existing vehicle control systems or external switches. This flexibility ensures that the warning signal can be adapted to specific job site demands, traffic conditions, or company safety protocols, thereby optimizing its effectiveness in preventing accidents and enhancing operational safety.
Compliance and Certification: SAE J595 Class 2 and IP67 Ratings
A critical attribute of this 6 Inch Clear Oval Recessed Strobe Light is its certification under SAE J595 Class 2. The Society of Automotive Engineers (SAE) J595 standard defines the performance requirements for warning lamps, and a Class 2 rating signifies a substantial level of light output suitable for use in environments where ambient light levels are moderate to high, but not necessarily requiring the highest intensity (Class 1) for all conditions. This rating confirms that the strobe light meets specific criteria for effective warning signaling on vehicles operating on public roads, work zones, and other regulated environments. Adherence to SAE J595 Class 2 ensures compliance with many local, state, and federal regulations governing vehicle warning lights, providing fleet managers and operators with confidence in its legality and effectiveness. The rigorous testing involved in achieving this certification covers photometric intensity, flash rate consistency, and optical stability under various conditions.
Beyond photometric standards, the light boasts an impressive IP67 ingress protection rating. This international standard denotes a product's resistance to dust and water intrusion. The "6" in IP67 signifies total protection against dust ingress, meaning no dust can penetrate the enclosure under specified test conditions, thereby safeguarding internal electronic components from abrasive particles common in construction sites, agricultural fields, or industrial environments. The "7" indicates protection against the effects of temporary immersion in water, specifically up to 1 meter (3.3 feet) for 30 minutes. This level of sealing ensures the light can withstand heavy rain, pressure washing, splashes, and even brief submersion without compromise to its functionality. Such robust environmental sealing is indispensable for lights deployed on exterior vehicle surfaces, where exposure to inclement weather, road spray, and cleaning procedures is a constant reality. The polymer housing and polycarbonate lens are integral to achieving this high level of environmental resilience, forming a formidable barrier against external elements.
Electrical and Power Management: Wide Voltage Range and Efficiency
Designed for universal compatibility, the strobe light operates within a broad voltage range of 12-24V DC. This versatility is a significant advantage, allowing for seamless integration across a diverse fleet of vehicles, from light-duty service trucks and passenger cars (12V systems) to heavy-duty construction equipment, municipal vehicles, and commercial trucks (24V systems), without requiring additional voltage converters or specialized wiring. This wide operating voltage also provides a degree of tolerance against voltage fluctuations, contributing to the stability and longevity of the light’s internal electronics. The robust internal circuitry is designed to manage these voltage inputs efficiently, ensuring consistent light output and performance regardless of minor power fluctuations typical in vehicle electrical systems.
Despite its powerful light output, the strobe light is remarkably energy-efficient, drawing only 0.50 amps at 12 volts, translating to a low power consumption of 6 watts. This low amperage draw is a critical benefit for several reasons. Firstly, it minimizes the strain on the vehicle's electrical system, reducing the risk of overloading circuits and extending the life of alternators and batteries. Secondly, lower power consumption contributes to reduced fuel consumption in prolonged operational scenarios, offering long-term cost savings. Thirdly, it enables the installation of multiple warning lights without significant modifications to the vehicle's existing electrical infrastructure, providing flexibility for comprehensive safety lighting configurations. The inherent efficiency of LED technology, coupled with intelligent driver circuitry, ensures that maximum light output is achieved with minimal energy waste.
Durability and Construction: Materials and Design
The construction of the 6 Inch Clear Oval Recessed Strobe Light prioritizes extreme durability. The housing is crafted from a high-grade polymer, specifically chosen for its exceptional impact resistance, thermal stability, and resistance to chemical corrosion. Polymer materials offer an excellent strength-to-weight ratio, contributing to a lightweight yet incredibly robust assembly that can withstand physical impacts, stone chips, and prolonged vibration without cracking or degradation. This material choice is pivotal in maintaining the integrity of the light in demanding operational environments, where exposure to debris, accidental bumps, and rough terrain is common.
As previously mentioned, the lens is made from polycarbonate, a material known for its superior toughness compared to acrylic or glass. This ensures the optical clarity and structural integrity of the light face are preserved even under severe mechanical stress or temperature extremes. The recessed mounting design further enhances the light’s durability by integrating it flush or semi-flush into the vehicle body. This configuration minimizes protrusion, thereby protecting the light from accidental damage due to side swipes, impacts with obstacles, or general wear and tear, while also contributing to a cleaner, more aerodynamic aesthetic. The overall width of 6.500 inches and height of 2.250 inches ensure a compact footprint that is easily accommodated within various vehicle panels or bumpers.
Simplified Installation: Grommet, PL-3 Plug, and Wiring
Ease of installation is a key feature of this recessed strobe light. It is designed for mounting using a grommet and a snap-in mechanism, which provides a secure, vibration-dampening fit within a standard oval cut-out. The inclusion of a grommet simplifies the installation process, providing a clean finish and creating an effective seal against moisture and dust ingress at the mounting point. The unit is supplied with a PL-3 plug, a common and reliable connector type in heavy-duty vehicle lighting. This plug-and-play solution streamlines wiring, significantly reducing installation time and complexity compared to hardwired connections requiring individual terminal crimping. The PL-3 connection typically features three contacts: one for power, one for ground, and a third control wire for cycling through the six flash patterns. The lead length of 12.00 inches provides ample wiring for connection to the vehicle’s electrical system, often featuring blunt cut or ring terminals for flexible integration with various wiring harness types.
The absence of a built-in switch implies that control of the light, including power activation and flash pattern selection, is managed via an external switch or a vehicle's integrated control system. This design choice offers greater flexibility for operators to customize their control setup, integrating the strobe light into comprehensive warning light systems or vehicle-specific dashboards.
Comprehensive Applications and Benefits
The versatility and robust specifications of the 6 Inch Clear Oval Recessed Strobe Light make it an indispensable safety component across a wide array of sectors:
- Construction and Road Maintenance: Essential for warning personnel and motorists of active work zones, slow-moving machinery, and stationary vehicles. Its durability and IP67 rating are crucial in dusty, muddy, and wet construction environments.
- Utility Services: Ideal for telecommunications, electrical, gas, and water utility vehicles, ensuring visibility during roadside repairs, installations, and emergency call-outs.
- Towing and Recovery: Provides vital warning signals for tow trucks and recovery vehicles operating on busy highways and roadways, enhancing safety during vehicle recovery operations.
- Municipal Fleets: Applicable for sanitation trucks, snow plows, street sweepers, and other public service vehicles that require clear visibility to perform their duties safely.
- Agricultural Vehicles: Enhances safety for tractors, harvesters, and other farm equipment, especially when operating on or crossing public roads.
- Emergency Support Vehicles: While not a primary emergency light, it serves as an excellent auxiliary warning light for support vehicles, volunteer responders, or in non-code 3 scenarios where additional visibility is beneficial.
- Commercial and Delivery Fleets: Increases the conspicuity of delivery vans and trucks, particularly during stops in congested areas or low-light conditions.
The overarching benefits to the end-user are profound: enhanced operational safety through superior visibility, reduced risk of accidents, and compliance with safety regulations. The extreme durability and IP67 rating translate into minimal downtime and reduced maintenance costs. The energy efficiency contributes to lower operational expenditures, and the 5-year warranty underscores the manufacturer's confidence in the product's quality and reliability, providing long-term assurance and a strong return on investment.
Conclusion
The 6 Inch Clear Oval Recessed Strobe Light with 24 LEDs is a meticulously engineered warning device, designed to meet the rigorous demands of professional vehicle applications. Its combination of high-intensity LED technology, multiple flash patterns, SAE J595 Class 2 compliance, and IP67 environmental protection positions it as a leading solution for enhancing safety and visibility. With its wide 12-24V power compatibility, low power consumption, durable polymer and polycarbonate construction, and simplified PL-3 plug installation, this strobe light offers unparalleled performance, reliability, and ease of integration. Investing in this clear oval recessed strobe light is an investment in uncompromising safety, operational efficiency, and long-term durability for any professional fleet.
