Buyers Products Class 1 6-1/2 Inch Tall LED Beacon Light has 11 flash patterns and is rated SAE J845 Class 1. The beacon has an amber lens and includes a 14-1/2 ft cord with accessory power plug. Three different mounting options make it easy to install the light where you want it. Lights are backed with a 5 year warranty.
Specifications
| Amp draw at 12 Volts | 1 |
|---|---|
| Base / Mount Type | Surface |
| Built-In Switch | No |
| Certification | SAE J845 |
| Class Level | 1 |
| Color | Amber |
| Depth | - |
| Hard Wired or Plug | Plug |
| Height | 6.15 |
| Housing Material | Plastic |
| Lead Length | 175 |
| Lens Material | Polycarbonate |
| Lens Shape | Dome |
| Mount Type | Magnetic-Permanent |
| Number of Batteries Required | - |
| Number of Flash Patterns | 11 |
| Overall Width | 6.41 |
| Plug Included | Yes |
| SAE Classification | SAE J845 Class 1 |
| Type of Plug | Auxiliary Power Connector |
| Voltage | 12-24 |
| Wattage | 14.5 |
Advanced Technical Overview: The 6.5 Inch Amber LED Beacon Light with Tall Lens
In demanding operational environments where visibility and safety are paramount, the Buyers Products Class 1 6.5 Inch Amber LED Beacon Light with Tall Lens represents a pinnacle of warning illumination technology. Engineered to exceed the rigorous demands of professional use, this beacon is not merely a light source but a sophisticated safety system designed for unparalleled performance, durability, and versatility. With its robust construction, advanced LED optics, and adherence to industry-leading safety standards, it stands as an indispensable asset for a wide array of vehicles and applications requiring superior visual warning signals.
Precision Engineering and Optimal Dimensions
The physical dimensions of the beacon are meticulously designed to maximize both visibility and integration adaptability. Measuring approximately 6.5 inches in both width and height (specifically 6.41 inches in overall width and 6.15 inches in height as per detailed specifications), this compact footprint allows for discreet yet highly effective placement on various vehicle types. The notable "tall lens" design is a critical optical feature. Unlike standard low-profile beacons, the taller dome lens enhances the vertical light spread, ensuring that the warning signal is perceptible from greater distances and varying angles, including elevated vantage points or when the vehicle is situated on uneven terrain. This extended vertical dispersion is crucial for safety compliance, particularly in applications involving large machinery or vehicles where the beacon may be mounted relatively low, but still needs to project effectively over obstacles or across a wider field of view. The polycarbonate lens material, known for its exceptional optical clarity, impact resistance, and UV stability, guarantees sustained performance and aesthetic integrity even under prolonged exposure to harsh environmental conditions.
Unrivaled Performance: SAE J845 Class 1 Certification
At the core of this beacon's exceptional safety performance is its SAE J845 Class 1 certification. The Society of Automotive Engineers (SAE) J845 standard sets forth performance requirements for amber warning lamps, primarily for public utility, highway maintenance, and service vehicles. The "Class 1" designation signifies the highest level of light intensity and conspicuity within this standard. Beacons classified as Class 1 are intended for use in environments where the utmost visibility is required, including situations with high ambient light (daylight operations), high-speed traffic, or critical hazardous conditions where rapid and unmistakable warning is essential. This certification confirms that the beacon delivers superior optical power, ensuring maximum visual impact and adherence to regulatory mandates for primary warning signals. Achieving Class 1 means the beacon has undergone stringent testing for candela output, flash rate, effective projected luminous area, and environmental durability, affirming its reliability as a frontline safety device.
Advanced LED Technology: Efficiency and Longevity
The transition from traditional incandescent or strobe lighting to Light Emitting Diode (LED) technology represents a significant leap forward in warning light efficacy. This beacon harnesses the inherent advantages of LEDs, offering a superior combination of energy efficiency, extended operational lifespan, and enhanced durability. LEDs consume significantly less power compared to their predecessors, with this unit drawing only 1 Amp at 12 Volts and operating at a modest 14.5 Watts. This low current draw minimizes strain on vehicle electrical systems, reduces fuel consumption, and allows for extended operation without significant battery depletion, which is particularly beneficial for vehicles with multiple auxiliary power demands. Furthermore, LEDs are solid-state devices, meaning they lack fragile filaments or gas-filled tubes, rendering them highly resistant to shock, vibration, and temperature extremes. This inherent robustness contributes to a dramatically longer service life—often tens of thousands of hours—translating into reduced maintenance cycles, lower replacement costs, and maximized operational uptime. The instant-on capability of LEDs also ensures immediate visual warning, a critical factor in dynamic safety scenarios.
Dynamic Signaling: 11 Selectable Flash Patterns
The inclusion of 11 distinct flash patterns provides unparalleled versatility, allowing operators to select the optimal warning signal for specific environmental conditions or operational requirements. Different flash patterns have varying psychological and physiological impacts on observers, affecting how quickly and effectively the warning is perceived. For instance, a rapid, randomized flash pattern might be ideal for drawing immediate attention in high-traffic areas, while a slower, more deliberate pattern could be better suited for stationary work zones where a continuous presence signal is desired. Common patterns can include simulated rotation, quad-flash, single-flash, and various alternating sequences, each engineered to enhance visibility and convey urgency differently. While the beacon does not feature a built-in switch, pattern selection is typically managed via an external control mechanism, often integrated into the accessory power plug for convenient adjustment from within the vehicle's cabin. This flexibility ensures that the beacon can adapt to a multitude of scenarios, maximizing its effectiveness across diverse operational contexts.
Robust Construction for Extreme Environments
The durability of the 6.5 Inch Amber LED Beacon Light is a testament to its selection of high-grade materials and meticulous manufacturing processes. The housing is constructed from industrial-grade plastic, specifically engineered for resilience against impact, abrasion, and environmental stressors. This type of plastic, often a polycarbonate-ABS blend, provides excellent mechanical strength, heat resistance, and UV stability, preventing degradation, fading, or cracking over time, even with continuous outdoor exposure. The tall, dome-shaped lens is crafted from high-impact polycarbonate, a material renowned for its superior toughness compared to acrylic. Polycarbonate exhibits exceptional resistance to shattering, scratching, and yellowing, preserving optical clarity and light output efficiency throughout the beacon's lifespan. Furthermore, the unit is designed to withstand extreme temperature fluctuations, typical of most working climates, and its sealed construction offers robust protection against ingress of dust and moisture, ensuring reliable operation in all weather conditions, from torrential rain to heavy snow.
Versatile Power and Connectivity

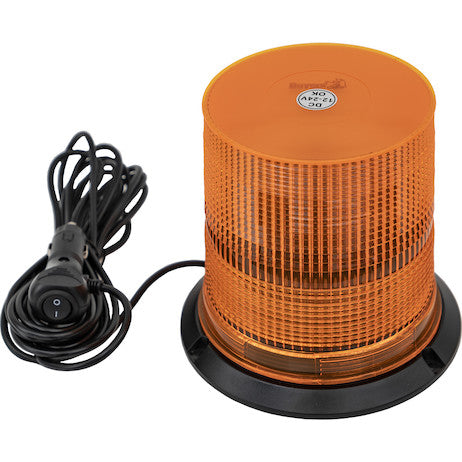

Powering this high-performance beacon is simplified by its wide voltage compatibility (12-24 Volts DC) and convenient connectivity features. The broad voltage range makes it suitable for integration into a vast array of vehicles, from standard 12V automotive systems to 24V heavy-duty trucks and industrial equipment, eliminating the need for voltage converters and streamlining fleet standardization. The inclusion of a 14.5-foot (175-inch) cord with an auxiliary power plug (cigarette lighter adapter) offers immediate plug-and-play functionality. This feature is particularly valuable for applications requiring rapid deployment or temporary installation, such as tow trucks, temporary work zones, or rented equipment, bypassing the need for complex hardwiring procedures. The generous lead length provides ample flexibility for routing the cable to a convenient power source within the vehicle's cabin, ensuring secure and tidy installation. For more permanent installations, the magnetic-permanent mounting base allows for direct wiring options, offering a seamless and integrated power solution.
Adaptable Mounting Solutions

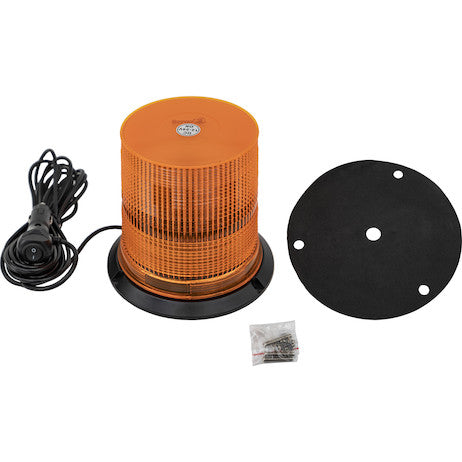

Recognizing the diverse installation requirements across various vehicle platforms and operational scenarios, the 6.5 Inch Amber LED Beacon Light offers exceptional mounting versatility. The specification table indicates "Magnetic-Permanent" and "Surface" as primary options, which typically encompasses three common methods, ensuring secure and flexible attachment:

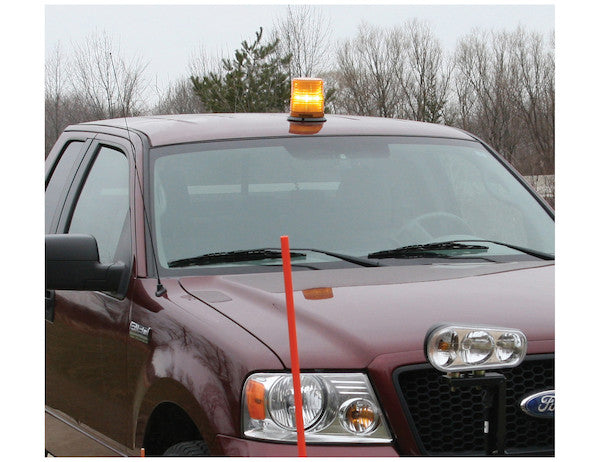

- Magnetic Mount: Ideal for temporary applications or situations where drilling into the vehicle surface is undesirable. Powerful rare-earth magnets embedded in the base provide a secure grip on ferrous metal surfaces, allowing for quick deployment and relocation without permanent alteration. This is perfect for utility crews, construction vehicles, or emergency responders who may need to transfer the beacon between vehicles or remove it when not in use.
- Permanent Surface Mount (Bolt-Down): For applications demanding the highest level of security and vibration resistance, the beacon can be permanently affixed to a flat surface using bolts. This method involves drilling small holes into the mounting surface and securing the beacon directly. This is the preferred option for heavy-duty vehicles, agricultural equipment, or any situation where the beacon will experience continuous, rigorous use and requires an unwavering attachment.
- Pipe/Pole Mount (often facilitated by the same base or an adapter): Many beacons are designed with a base that can also be adapted for mounting onto vertical poles or pipes, common on vehicle headache racks, roll bars, or specialized equipment. This provides elevated visibility and protects the beacon from potential damage in crowded work environments. The "Surface" mount category can often extend to include adaptors for pole mounting, further enhancing installation flexibility.
Comprehensive Applications and Operational Superiority
The utility of the 6.5 Inch Amber LED Beacon Light extends across a broad spectrum of industries and vehicle types, where enhanced visibility is crucial for safety and operational efficiency. Its Class 1 rating makes it suitable for:
- Construction Vehicles: Excavators, loaders, dozers, and dump trucks operating on active construction sites, where heavy machinery movement and pedestrian safety are critical concerns.
- Utility Vehicles: Electric, telecommunications, and gas service vehicles, particularly when working roadside, to alert approaching traffic to potential hazards and personnel presence.
- Towing and Recovery Operations: Tow trucks and roadside assistance vehicles, providing a vital warning signal to protect operators and incident scenes, especially during night-time or adverse weather conditions.
- Municipal Fleets: Snowplows, street sweepers, refuse trucks, and maintenance vehicles that require high visibility in public areas and diverse weather conditions.
- Agricultural Equipment: Tractors, combines, and other large farming machinery that often operate on public roads or in vast open fields.
- Emergency Support Vehicles: Volunteer fire, EMS, or auxiliary police vehicles that require Class 1 visibility for incident response and scene management.
- Mining and Industrial Sites: Heavy haul trucks, specialized equipment, and plant vehicles operating in environments with significant blind spots and moving hazards.
Long-Term Value and Warranty Assurance
The investment in a high-quality warning light system is a decision that impacts both immediate safety and long-term operational costs. Buyers Products stands behind the superior quality and reliability of this LED beacon with a robust 5-year warranty. This extended warranty period is a testament to the manufacturer's confidence in the product's design, materials, and manufacturing excellence. It provides significant peace of mind, ensuring protection against defects in material and workmanship, and minimizing the total cost of ownership over the product's lifespan. The combination of advanced LED technology, durable construction, and comprehensive warranty support translates into a beacon that delivers consistent, dependable performance and exceptional value, making it an intelligent choice for any organization prioritizing safety and operational longevity.
In conclusion, the 6.5 Inch Amber LED Beacon Light with Tall Lens is a technically sophisticated and highly effective warning device. Its adherence to SAE J845 Class 1 standards, coupled with advanced LED optics, versatile mounting, and robust construction, positions it as a leading solution for critical visibility requirements across numerous industrial and commercial sectors. This beacon is meticulously engineered to provide superior warning, enhance safety, and withstand the rigors of demanding operational environments, offering unparalleled performance and reliability for years to come.
