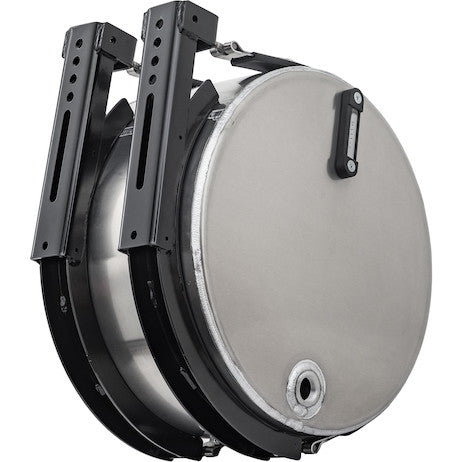

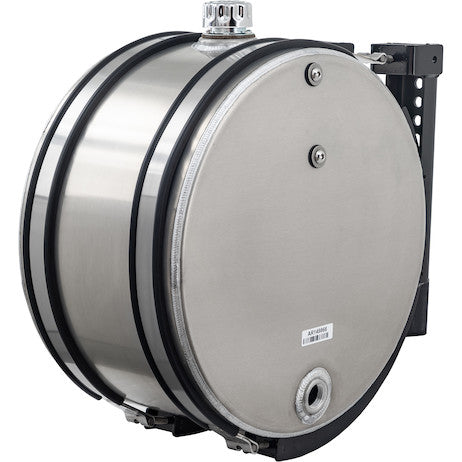

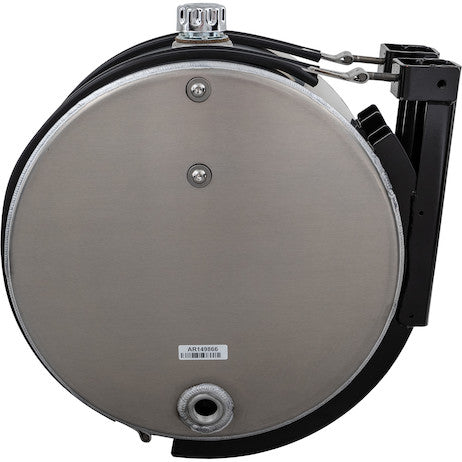

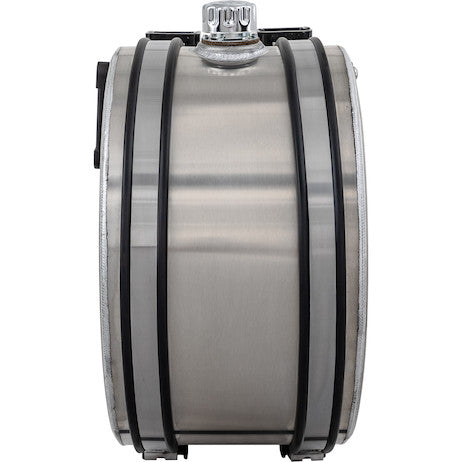

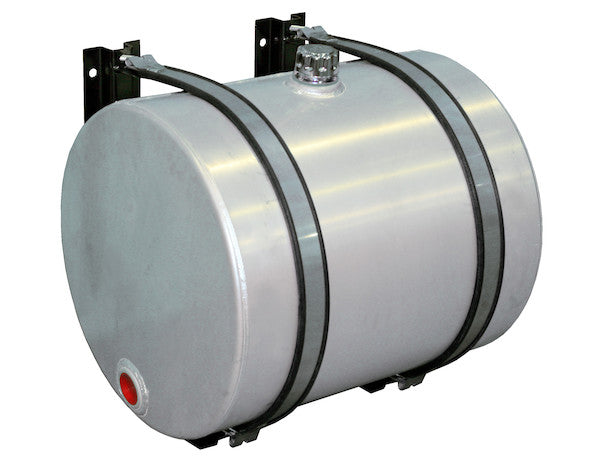

SMC25A - 25 Gallon Side Mount Aluminum Hydraulic Reservoir

The Side Mount Cylindrical Aluminum Reservoir Cylinder from Buyers Products is a versatile, lightweight fluid storage option for many different applications. It is available in 35 gal, 50 gal, or 70 gal capacities. The cylindrical design and aluminum construction can match your truck's fuel tank for a clean, coordinated appearance. It features a durable 11 Ga aluminum shell and 12 Ga heads. The reservoir features 2 in. NPT suction return/ports on each end of the tank and a 1/2 in. NPT port/drain on the tank's bottom. The included mounting brackets wrap under the tank to give added stability and support. Rubber-insulated stainless steel straps are also included to keep it secure. Each unit includes a quarter-turn filler breather unit with a basket strainer for keeping contaminants out of the fluid.

Specifications

The 25 Gallon Side Mount Aluminum Hydraulic Reservoir from Buyers Products represents a meticulously engineered solution for the demanding requirements of mobile and industrial hydraulic systems. This robust and efficient fluid storage component is designed to optimize hydraulic performance, extend system life, and streamline maintenance operations across a diverse range of applications. Its side-mount configuration, combined with advanced material selection and comprehensive feature set, positions it as an indispensable element for achieving maximum operational uptime and reliability.

At the core of this reservoir's design philosophy is its distinctive cylindrical shape and premium aluminum construction. The cylindrical form factor is not merely an aesthetic choice; it offers significant structural integrity, distributing internal pressures uniformly and resisting deformation more effectively than rectangular counterparts, particularly under dynamic operating conditions. This inherent strength contributes to a longer service life and enhanced safety. Furthermore, the smooth, silver finish of the aluminum complements the visual aesthetic of modern heavy-duty vehicles, allowing for a seamless integration alongside existing fuel tanks and other chassis-mounted components. This coordinated appearance not only maintains a professional look but can also contribute to vehicle resale value.

The material choice – high-grade aluminum – is paramount to the reservoir's superior performance characteristics. Aluminum's exceptional strength-to-weight ratio significantly reduces the overall weight added to the vehicle or machinery, contributing to improved fuel efficiency, increased payload capacity, and reduced wear on chassis components. Beyond its lightweight properties, aluminum boasts excellent corrosion resistance, a critical attribute for components exposed to harsh environmental elements such such as road salt, moisture, and various industrial fluids. This inherent resistance eliminates the need for extensive coatings or frequent repainting, thereby lowering long-term maintenance costs and ensuring the reservoir retains its structural integrity and aesthetic appeal over years of rigorous service.

Thermal management is another key advantage of aluminum. Its high thermal conductivity facilitates efficient heat dissipation from the hydraulic fluid. In hydraulic systems, operating temperatures are a crucial factor influencing fluid viscosity, seal integrity, and overall component longevity. By effectively radiating heat, the aluminum construction helps to maintain optimal fluid temperatures, preventing thermal degradation of the hydraulic oil, which can lead to premature wear of pumps, valves, and cylinders. This proactive thermal management directly translates into extended service intervals for hydraulic fluid and reduced capital expenditure on replacement components. The reservoir's construction utilizes a durable 11 Gauge (Ga) aluminum shell for the main body, providing robust resistance against external impacts and internal pressure fluctuations. The ends of the tank are constructed from 12 Ga aluminum heads, offering a balanced combination of strength and formability for these critical closure points. This specific gauge selection ensures structural rigidity while optimizing material usage and manufacturing efficiency.

With a generous usable capacity of 25 gallons, this reservoir is meticulously sized to meet the demands of a wide array of hydraulic applications. Proper reservoir sizing is fundamental for hydraulic system efficiency, ensuring sufficient fluid volume for heat dissipation, entrained air release, and contaminant settling. A 25-gallon capacity provides an adequate reserve for fluid expansion and contraction during operation, while also offering a suitable volume-to-flow ratio for many common mobile hydraulic pumps, thereby minimizing the risk of cavitation. For applications requiring different fluid volumes, Buyers Products also offers similar cylindrical aluminum reservoirs in 35-gallon, 50-gallon, and 70-gallon capacities, providing flexibility across a product line that caters to varied operational scales and requirements.

Connectivity and fluid management are expertly addressed through a thoughtfully designed port configuration. The reservoir features two 2-inch National Pipe Taper (NPT) suction/return ports, strategically positioned on each end of the tank. The NPT standard ensures a robust, leak-resistant connection, crucial for high-pressure hydraulic circuits. The dual functionality and placement of these ports offer significant installation versatility, allowing system designers and technicians to route suction and return lines efficiently based on chassis layout, pump location, and hydraulic circuit design. This flexibility simplifies plumbing, potentially reducing the length and number of hydraulic hoses required, which in turn minimizes pressure drops and system complexity. The sizing of the suction port is critical; a 2-inch NPT connection ensures an unrestricted flow path for the pump's suction line, mitigating the risk of cavitation, which occurs when insufficient fluid is available to fill the pump inlet, leading to destructive air bubble formation and collapse. Conversely, the return port adequately handles the discharged fluid from the hydraulic circuit, allowing it to return to the reservoir with minimal turbulence.

For comprehensive maintenance and fluid evacuation, a 1/2-inch NPT port/drain is strategically located on the tank's bottom. This lowermost placement ensures complete fluid drainage during routine maintenance or fluid replacement, preventing the accumulation of degraded fluid or sediment that could compromise system performance. The inclusion of a magnetic drain plug is a significant enhancement for proactive contamination control. This specialized plug incorporates a powerful magnet designed to attract and retain ferrous metallic particles that inevitably result from wear within the hydraulic system's components (e.g., pumps, motors, cylinders). By capturing these abrasive particles before they can recirculate and cause further damage, the magnetic drain plug actively contributes to extending the life of hydraulic fluid and critical components, thereby reducing costly repairs and downtime.

Further enhancing connectivity and system integration, the reservoir includes an additional 1 1/4-inch NPT port. This auxiliary port provides valuable flexibility for various system enhancements or monitoring requirements. It can be utilized for integrating additional return lines from secondary hydraulic circuits, connecting bypass filtration systems, incorporating fluid sampling ports, or installing specialized sensors such as pressure transducers or fluid quality monitors. This foresight in porting design allows for greater customization and adaptability to evolving operational needs without requiring aftermarket modifications or complex adapters. The presence of these varied port sizes (2 NPT, 1 1/4 NPT, 1/2 NPT) caters to a comprehensive range of hydraulic circuit requirements, from high-flow main lines to auxiliary and diagnostic connections.

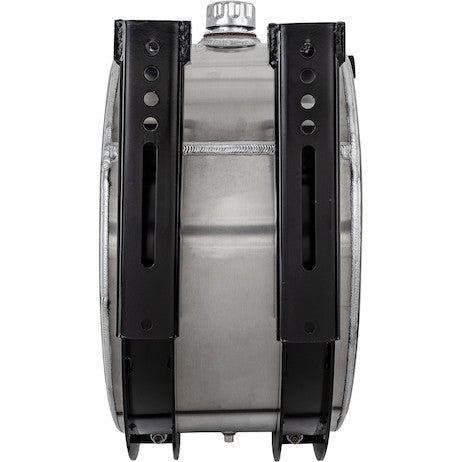

The "side mount" designation of this reservoir speaks to its optimal positioning alongside the vehicle or equipment chassis. This mounting method offers several advantages, including efficient use of space, improved weight distribution, and easier access for maintenance and inspection compared to top-mounted or in-frame reservoirs. To ensure secure installation and long-term stability, the reservoir comes complete with all necessary mounting hardware and brackets. The included mounting brackets are engineered to wrap underneath the tank, providing comprehensive support and effectively distributing the reservoir's weight across a larger surface area. This design minimizes stress concentrations on the mounting points and chassis, enhancing the structural integrity of the entire assembly. Further securing the reservoir are rubber-insulated stainless steel straps. Stainless steel provides superior corrosion resistance and tensile strength, ensuring a durable and reliable hold. The rubber insulation serves a dual purpose: it dampens vibrations transmitted from the vehicle chassis, protecting both the reservoir and its contents from stress-induced fatigue, and it acts as a galvanic isolator, preventing direct metal-on-metal contact between the aluminum reservoir and the stainless steel straps. This isolation is crucial to prevent galvanic corrosion, which can occur when dissimilar metals are in contact in the presence of an electrolyte, especially prevalent in outdoor and mobile applications. The synergy of robust brackets and insulated straps guarantees a stable, long-lasting, and corrosion-resistant mounting solution.

Fluid conditioning and system protection are paramount for hydraulic system longevity, and this reservoir incorporates key features to support these objectives. Each unit is equipped with a quarter-turn filler breather unit, an essential component for maintaining fluid cleanliness and system integrity. The breather element filters ambient air entering and exiting the reservoir as fluid levels fluctuate during system operation, preventing airborne contaminants such as dust, dirt, and moisture from entering the hydraulic fluid. Contaminated fluid is a leading cause of hydraulic component wear and system failure, making effective air filtration indispensable. The quarter-turn design ensures quick and easy access for fluid replenishment while providing a secure seal against environmental ingress. Integrated within the filler breather unit is a basket strainer. This primary filtration device acts as a coarse screen during fluid addition, capturing larger particulate matter and debris that might inadvertently enter the reservoir during the filling process. This initial barrier protects the main hydraulic system from gross contamination, allowing finer filtration elements (typically located elsewhere in the system) to focus on smaller particles.

While the technical specifications indicate the absence of an integral diffuser and return line filter, this design choice allows system integrators the flexibility to select and position these components externally, optimized for specific application requirements and maintenance strategies. A diffuser, typically placed at the return line inlet, helps to minimize turbulence and aeration of the returning fluid, promoting efficient de-aeration and reducing foam formation. An external return line filter provides finer filtration of the fluid before it re-enters the main reservoir volume, further ensuring the removal of wear particles and other contaminants generated within the hydraulic circuit. The ability to specify these components externally allows for greater customization in filter media, bypass options, and service accessibility.

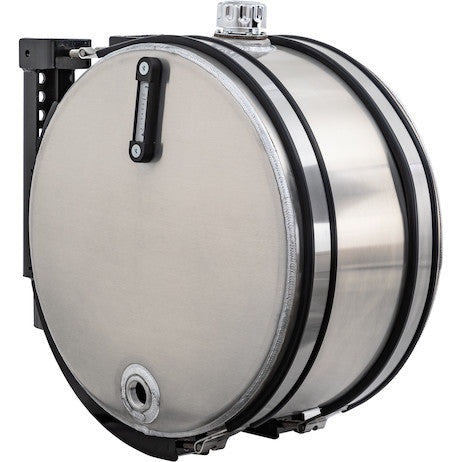

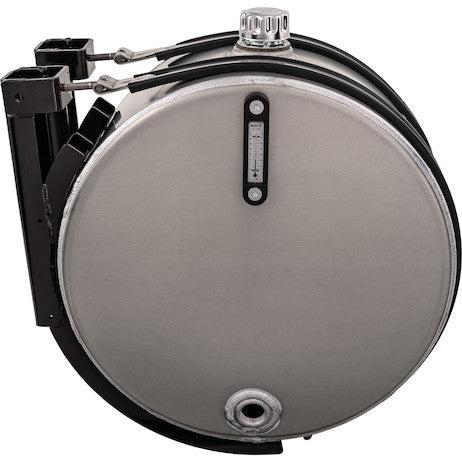

Monitoring key operational parameters is vital for proactive maintenance and system health. This reservoir thoughtfully includes a temperature gauge, providing real-time visibility into the hydraulic fluid's operating temperature. Monitoring fluid temperature is critical for several reasons: excessively high temperatures accelerate fluid degradation, reduce viscosity (leading to increased internal leakage and wear), and compromise the integrity of seals and hoses. Conversely, extremely low temperatures can lead to increased fluid viscosity, sluggish system response, and potential cavitation. The integrated temperature gauge empowers operators and maintenance personnel to identify abnormal thermal conditions promptly, allowing for timely intervention before minor issues escalate into catastrophic failures. While an integral level gauge is not included, a clear understanding of the system's fluid requirements and regular manual checks or the integration of external sight gauges can effectively manage fluid level monitoring. The design focuses on robust construction and essential diagnostics, leaving supplementary monitoring features customizable based on user preference and application criticality.

The 25 Gallon Side Mount Aluminum Hydraulic Reservoir is engineered for broad applicability across numerous industries. Its lightweight and corrosion-resistant properties make it ideal for mobile applications where weight savings and durability are crucial, such as on dump trucks, snowplows, refuse vehicles, and utility trucks. In construction and agricultural machinery, where equipment operates in demanding, often dusty and wet environments, the aluminum construction and robust mounting hardware ensure reliable performance. Material handling equipment, logging machinery, and specialized service vehicles can also greatly benefit from this reservoir's efficient fluid storage and thermal management capabilities. Its design considerations directly address the need for reliable hydraulic power in environments where components are subject to constant vibration, temperature extremes, and potential exposure to abrasive contaminants.

In conclusion, the 25 Gallon Side Mount Aluminum Hydraulic Reservoir from Buyers Products stands as a testament to engineering excellence, offering a superior combination of durability, efficiency, and adaptability. Its premium aluminum construction delivers significant advantages in weight reduction, corrosion resistance, and thermal management, critical factors for extending the lifespan of hydraulic systems. The thoughtful integration of robust mounting hardware, versatile porting options including a magnetic drain plug, and a comprehensive filler breather unit with a basket strainer underscores its design for both performance and maintainability. The inclusion of a temperature gauge provides essential diagnostic capability, empowering users to sustain optimal fluid health. This hydraulic reservoir is not merely a fluid container; it is a meticulously designed component that contributes fundamentally to the reliability, efficiency, and longevity of the entire hydraulic system, ensuring peak performance in the most demanding operational settings.
