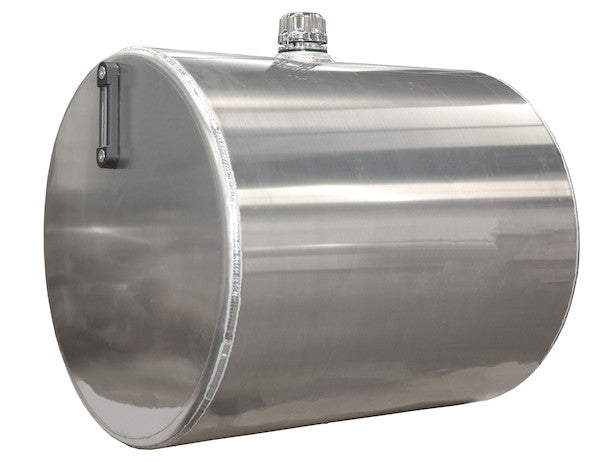

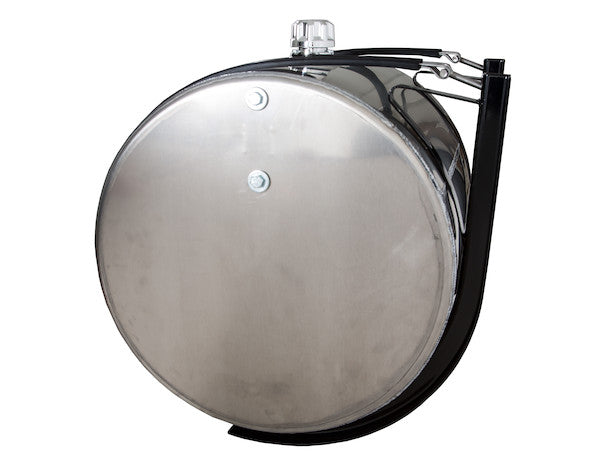

SMC25AR - 25 Gallon Side Mount Aluminum Reservoir with Rear Ports

Buyers Products Side Mount Cylindrical Aluminum Reservoir with Rear Ports features dual rear 2 in. NPT female-threaded suction/return ports. It's internally baffled to suppress sloshing and lower operating temperatures. The reservoir's aluminum body is light weight and extremely resistant to corrosion. The included mounting brackets wrap under the tank for added stability and support. Rubber-insulated stainless steel straps are also included standard to keep it secure. Each unit includes a chrome-plated polymer filler-strainer breather cap and a level/temperature sight gauge that can be mounted on either end of the reservoir. Reservoirs are available in 35 or 50 gallon capacities.

Specifications

Comprehensive Technical Overview: 25 Gallon Side Mount Aluminum Hydraulic Reservoir

The 25 Gallon Side Mount Aluminum Reservoir with Rear Ports represents a critical component in the design and operation of robust hydraulic systems, offering an exemplary balance of material science, functional engineering, and operational efficiency. This detailed exposition will delve into the technical attributes, performance benefits, and strategic advantages of integrating this specific reservoir into demanding mobile and stationary hydraulic applications.

Engineered for Excellence: Core Features and Design Philosophy

At the heart of any reliable hydraulic system lies a well-engineered reservoir, and this 25-gallon unit is meticulously designed to serve that foundational role. Its cylindrical form factor and side-mount orientation are specifically chosen to optimize space utilization on commercial vehicles and industrial equipment while providing a stable, high-capacity fluid storage solution.

Superior Material Construction: The Aluminum Advantage

The primary construction material of this reservoir is high-grade aluminum, utilizing an 11-gauge thickness for the main body. Aluminum offers a multitude of benefits critical for hydraulic reservoir applications:

• Exceptional Strength-to-Weight Ratio: Aluminum’s inherent lightness significantly reduces the overall vehicle or equipment weight compared to steel reservoirs of equivalent capacity. This contributes to improved fuel efficiency, increased payload capacity, and reduced wear on suspension components, which is particularly vital for mobile hydraulic systems.
• Outstanding Corrosion Resistance: Aluminum naturally forms a passive oxide layer, providing superior resistance to corrosion from environmental factors such as road salts, moisture, and various industrial chemicals. This inherent property ensures a longer operational lifespan and reduces maintenance requirements, even in harsh operating conditions. It also prevents the formation of rust and scale, which can contaminate the hydraulic fluid.
• Superior Thermal Dissipation: Aluminum possesses a higher thermal conductivity compared to steel. This characteristic allows the reservoir walls to effectively radiate heat generated within the hydraulic fluid to the ambient environment, contributing significantly to thermal management. Maintaining optimal fluid temperatures is paramount for preserving the hydraulic fluid's integrity, extending the lifespan of seals, hoses, and other hydraulic components, and ensuring consistent system performance. The large surface area of the cylindrical design further aids this natural cooling process.
• Durability and Longevity: The 11-gauge aluminum construction provides robust structural integrity, capable of withstanding the dynamic stresses, vibrations, and minor impacts common in heavy-duty applications without compromising fluid containment.

Optimal Fluid Dynamics through Internal Baffling

A hallmark of this reservoir's advanced design is its internally baffled construction. Baffles are strategically placed partitions within the reservoir that play a crucial role in enhancing fluid quality and system efficiency:

• Suppression of Fluid Sloshing: In mobile applications, vehicle movement can cause significant fluid agitation. Baffles effectively mitigate sloshing, preventing excessive aeration and cavitation, which can lead to pump damage and inconsistent system performance.
• Enhanced De-aeration: By extending the flow path of return oil from the system, baffles increase the fluid's residence time within the reservoir. This extended period allows entrained air bubbles to rise to the surface and escape, significantly reducing aeration. Minimizing air in the hydraulic fluid is critical for preventing spongy operation, noise, heat generation, and oxidation of the fluid.
• Promoted Contaminant Settling: The reduced turbulence created by baffles allows particulate contaminants to settle at the bottom of the reservoir, away from the suction line. This natural filtration process helps maintain fluid cleanliness, protecting sensitive hydraulic components from abrasive wear.
• Improved Heat Dissipation: Baffles ensure that the warmer return oil circulates throughout the reservoir, maximizing contact with the cooling surfaces (the reservoir walls) before being drawn back into the system. This controlled circulation pattern optimizes the reservoir's inherent cooling capabilities.

Precision Fluid Connection: Rear Port Configuration

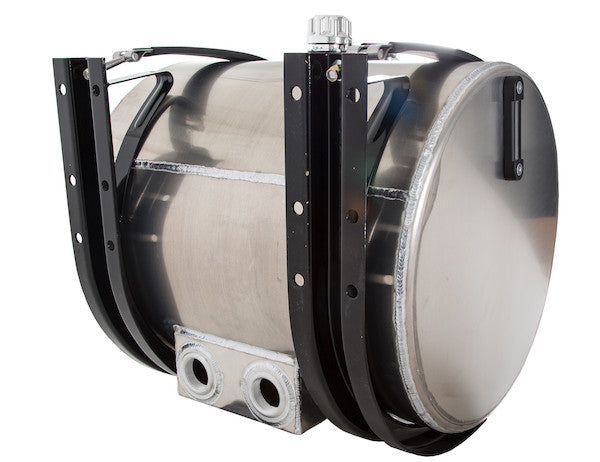

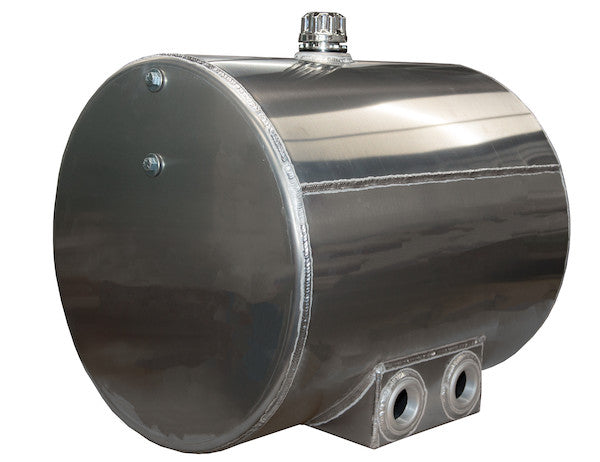

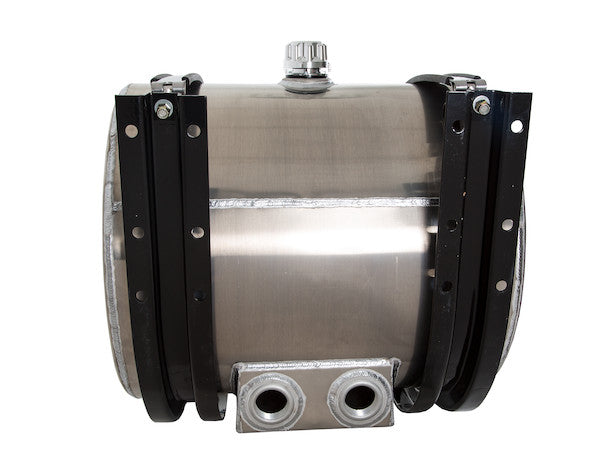

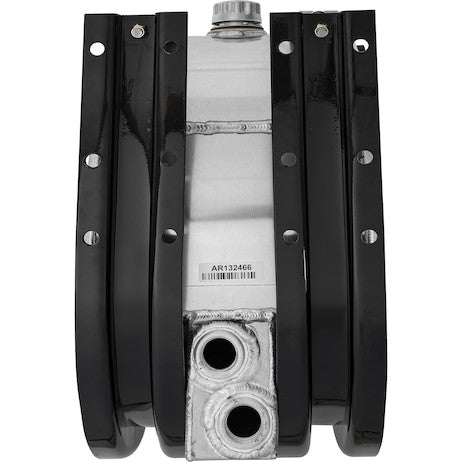

This 25-gallon reservoir is equipped with strategically positioned rear ports to facilitate efficient hydraulic plumbing. While the general product line description references dual rear 2-inch NPT female-threaded suction/return ports, the specific specifications for this 25-gallon model confirm a 1 1/4 NPT suction port and an additional 1 1/4 NPT port. This configuration offers:

• Versatile Plumbing Options: The dedicated 1 1/4 NPT suction port is sized to accommodate the flow requirements of various hydraulic pumps, ensuring an unrestricted fluid supply. The additional 1 1/4 NPT port provides flexibility for configuring a return line, an auxiliary connection, or a drain, allowing for tailored system integration.
• Secure and Leak-Proof Connections: National Pipe Taper (NPT) threading is an industry standard, ensuring robust, high-pressure, and leak-free connections when properly sealed. The rear-mount position aids in clean hose routing and protects connections from potential external damage.

Robust Mounting System for Uncompromising Stability

The stability and secure mounting of a hydraulic reservoir are paramount, especially in high-vibration environments. This reservoir includes a comprehensive mounting system:

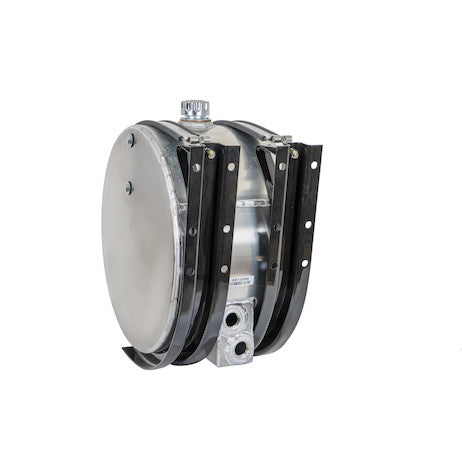

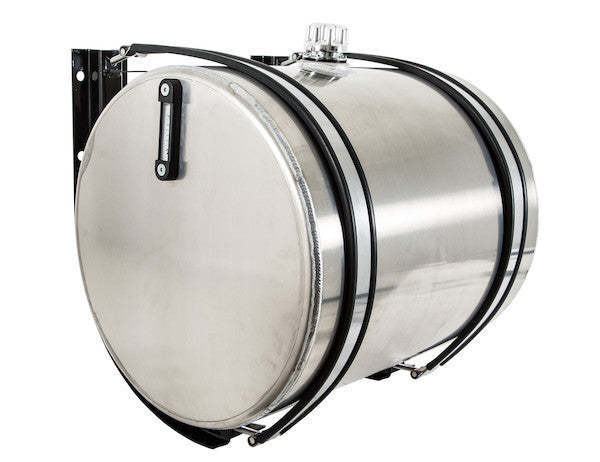

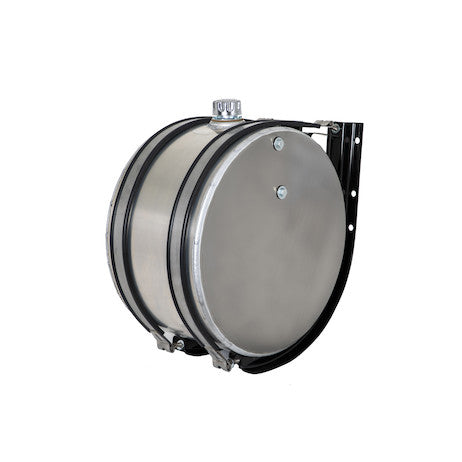

• Heavy-Duty Mounting Brackets: The included mounting brackets are engineered to wrap securely under the tank, providing substantial support and evenly distributing the reservoir's weight. This design minimizes stress points on the reservoir body and ensures a stable installation.

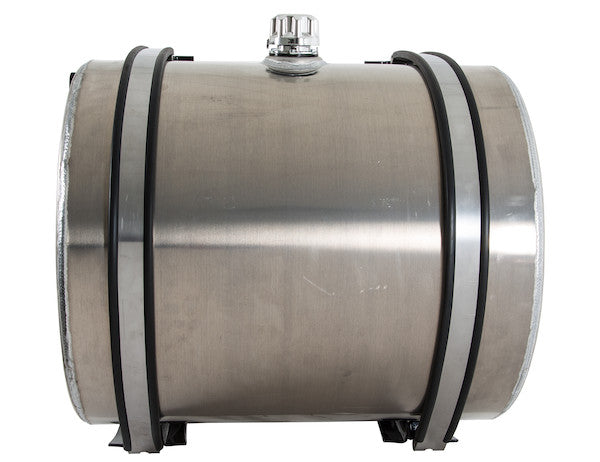

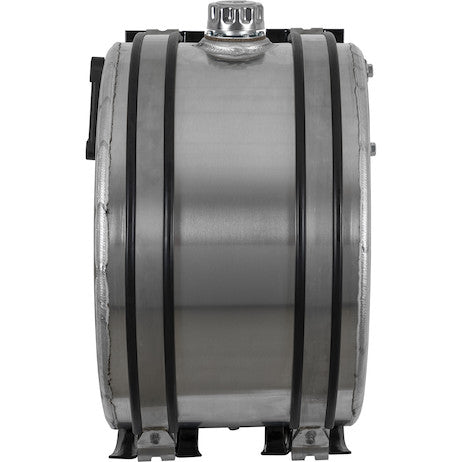

• Rubber-Insulated Stainless Steel Straps: Complementing the brackets, robust stainless steel straps are included. These straps are rubber-insulated to perform a dual function:
  • Vibration Dampening: The rubber insulation absorbs and dampens vibrations, preventing their transmission between the chassis and the reservoir. This protects the reservoir from fatigue cracking and reduces noise.
  • Corrosion Protection: Stainless steel offers excellent resistance to corrosion, ensuring the straps maintain their structural integrity over time. The rubber insulation also prevents galvanic corrosion between dissimilar metals (aluminum reservoir and steel chassis components).
• Side Mount Configuration: The side mount position is advantageous for optimal weight distribution on vehicles, ease of access for maintenance, and efficient use of chassis space, making it a popular choice for truck and mobile equipment applications.

Integrated Fluid Management and Monitoring Solutions

Effective monitoring and maintenance are crucial for maximizing the lifespan and efficiency of hydraulic systems. This reservoir incorporates essential components for comprehensive fluid management:

• Chrome-Plated Polymer Filler-Strainer Breather Cap: This multi-functional cap serves several vital roles:
  • Fluid Filling: Provides a convenient port for adding hydraulic fluid.
  • Straining: An integrated strainer physically prevents the introduction of large particulate contaminants during the filling process.
  • Breathing: The breather element allows atmospheric air to enter and exit the reservoir as fluid levels fluctuate during system operation, preventing vacuum formation or over-pressurization. It also filters airborne particles (e.g., 40-micron filtration) from the incoming air, preventing external contamination of the hydraulic fluid.
  • Durability and Aesthetics: The chrome-plated polymer construction offers robust resistance to environmental factors and chemicals while providing a professional, finished appearance.

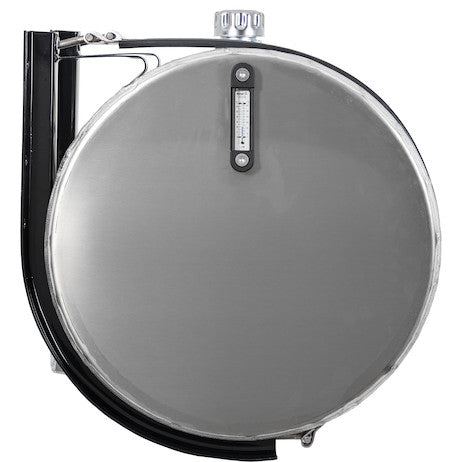

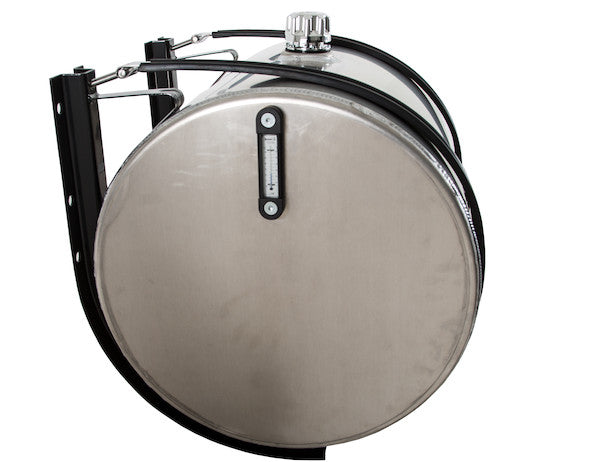

• Level/Temperature Sight Gauge: An essential diagnostic tool, the sight gauge provides real-time visual indications of two critical hydraulic fluid parameters:
  • Fluid Level: Allows operators and technicians to quickly verify that the hydraulic fluid is within the optimal operating range, preventing pump cavitation due to low fluid or overflow issues from overfilling.
  • Fluid Temperature: Monitors the actual operating temperature of the hydraulic fluid. Elevated temperatures are often the first indicator of system inefficiencies, impending component failure, or inadequate cooling. Prompt detection allows for proactive intervention, preventing costly damage.
  • Flexible Mounting: The ability to mount the gauge on either end of the reservoir offers installation flexibility, allowing for optimal visibility based on the specific equipment layout.
• Magnetic Drain Plug: A simple yet highly effective preventative maintenance feature, the magnetic drain plug is strategically located at the lowest point of the reservoir. Its purpose is to attract and retain ferrous metallic wear particles that accumulate in the hydraulic fluid. Regular inspection of the drain plug allows technicians to:
  • Identify Wear: The presence and quantity of metallic particles can indicate the wear rate of internal hydraulic components (e.g., pumps, motors, valves).
  • Prevent Secondary Damage: By removing these abrasive particles from circulation, the magnetic plug significantly reduces wear on other sensitive components, extending system lifespan.
  • Simplify Maintenance: Facilitates easy removal of contaminants during routine fluid changes or inspections.

Performance Advantages in Hydraulic System Operation

The synergy of these meticulously designed features translates into tangible performance advantages for the overall hydraulic system:

• Extended Fluid Life: Effective thermal management, superior de-aeration, and robust contamination control directly contribute to maintaining the hydraulic fluid's properties, reducing oxidation and degradation, thereby extending its service intervals and lowering operational costs.
• Enhanced Component Longevity: By mitigating aeration, controlling temperatures, and minimizing contaminants, the reservoir significantly reduces wear and tear on hydraulic pumps, valves, cylinders, and motors, leading to fewer breakdowns and longer component lifespans.
• Improved System Efficiency and Reliability: A well-managed fluid environment translates to consistent power transmission, smoother operation, reduced noise, and increased overall system reliability. Operators can depend on consistent performance even under strenuous conditions.
• Reduced Maintenance Burden: Features like the magnetic drain plug and the integrated sight gauge simplify routine inspections and preventive maintenance, allowing for early detection of potential issues and reducing unplanned downtime. The corrosion-resistant aluminum also minimizes external maintenance.

Applications and Versatility

The 25 Gallon Side Mount Aluminum Reservoir with Rear Ports is ideally suited for a broad spectrum of demanding hydraulic applications, including but not limited to:

• Commercial & Heavy-Duty Vehicles: Dump trucks, refuse compactors, tow trucks, utility service vehicles, snowplows, and other vocational trucks requiring dedicated hydraulic power.
• Construction Equipment: Mini excavators, skid steers, backhoes, and other compact machinery where space and weight are considerations.
• Agricultural Machinery: Tractors, harvesters, and specialized implements that rely on robust hydraulic systems.
• Material Handling Equipment: Forklifts, lift gates, and various industrial lifting solutions.
• Industrial Power Units: Stationary hydraulic power units in manufacturing plants, processing facilities, and other industrial settings where reliable fluid management is paramount.

Its side-mount design offers flexibility for integration into existing chassis or for OEM installations where space optimization and weight distribution are critical design factors.

Detailed Analysis of Technical Specifications

A closer look at the provided specifications reveals the precise engineering behind this hydraulic reservoir:

• Capacity: 25 Gallons (Usable Capacity 25): This specifies the total and usable volume of hydraulic fluid the reservoir can effectively hold. A 25-gallon capacity is suitable for medium-duty hydraulic systems, ensuring adequate fluid volume for heat dissipation, de-aeration, and accommodating fluid displacement during cylinder extension/retraction, while providing a compact footprint.
• Additional Port Size: 1 1/4 NPT & Suction Port Size: 1 1/4 NPT (Number of Suction Ports: 1): As discussed, these specifications indicate the primary connection points. The 1 1/4 NPT size is a common standard for moderate flow rates, balancing efficient fluid transfer with hose and fitting availability. The presence of two such ports (one designated suction, one additional) provides excellent flexibility for connecting the pump suction line and a return line or other auxiliary hydraulic circuits.
• Color: Silver, Finish: Smooth: The natural silver color of aluminum, coupled with a smooth finish, not only offers a clean aesthetic but also supports easy cleaning and visual inspection for leaks or damage.
• Depth: 24 inches, Diameter O.D.: 24.21 inches, Height: 24 inches, Width: 14.38 inches: These dimensions provide the exact physical footprint for installation planning. The cylindrical shape with these specific dimensions ensures a compact yet volumetrically efficient design, optimizing space on the vehicle chassis or equipment frame.
• Diffuser Included (y/n): No: The absence of a separate diffuser indicates that the internal baffling system is designed to effectively manage return oil flow, promoting de-aeration and heat transfer without the need for an additional component, potentially simplifying the internal structure and reducing potential points of failure.
• Hardware and Brackets Included (y/n): Yes: This confirms that the necessary components for mounting – the robust brackets and rubber-insulated stainless steel straps – are supplied, simplifying the installation process and ensuring a secure fit from the outset.
• Included Valve (y/n): No: The reservoir is supplied without an integral valve, allowing system designers and installers to select and integrate external valves that precisely match the specific requirements of their hydraulic circuit, whether for isolation, relief, or other control functions.
• Integral Brackets (y/n): No: The mounting brackets are separate components, which offers flexibility in installation positioning and allows for replacement if damaged, unlike integral designs.
• Integral Level Gauge (y/n): Yes, Oil Level Gauge (y/n): Yes, Temperature Gauge (y/n): Yes: These redundant specifications confirm the inclusion of the critical level/temperature sight gauge, providing operators with immediate visual feedback on the most vital fluid parameters for preventative maintenance and operational safety.
• Magnetic Drain Plug (y/n): Yes: Reiterating its importance, the inclusion of this feature underscores a commitment to prolonging fluid and component life through proactive contaminant removal.
• Material Gauge: 11: This 11-gauge thickness (approximately 0.120 inches or 3.05 mm) signifies a robust and durable aluminum construction, providing excellent resistance to internal fluid pressures and external physical stresses.
• Mount Position: Side Mount: Confirms the intended installation method, which is common for mobile applications due to its efficient use of chassis space.
• Reservoir Shape: Cylinder: The cylindrical shape offers inherent structural strength, efficiently manages internal pressures, and provides a uniform surface for heat dissipation.
• Return Line Filter Included (y/n): No: Similar to the "Included Valve" specification, the absence of an integral return line filter allows for the selection and external installation of a filter that precisely meets the system's specific filtration requirements (e.g., micron rating, flow capacity, bypass valve setting), offering optimal contamination control tailored to the application.

Conclusion: A Strategic Investment in Hydraulic System Integrity

The 25 Gallon Side Mount Aluminum Reservoir with Rear Ports is more than just a container for hydraulic fluid; it is a fundamental engineering component that significantly influences the performance, longevity, and reliability of the entire hydraulic system. Its thoughtful design, characterized by robust 11-gauge aluminum construction, sophisticated internal baffling, flexible rear porting, and comprehensive monitoring and mounting accessories, positions it as an exceptional choice for demanding applications.

By effectively managing thermal loads, promoting fluid de-aeration, controlling contamination, and ensuring a stable, lightweight installation, this reservoir actively contributes to lower operating costs, reduced downtime, and extended service life for hydraulic fluid and components. Investing in this technically superior aluminum reservoir is a strategic decision for any professional seeking to optimize the efficiency and durability of their hydraulic machinery.
