SMC35A - 35 Gallon Side Mount Aluminum Hydraulic Reservoir

The Side Mount Cylindrical Aluminum Reservoir Cylinder from Buyers Products is a versatile, lightweight fluid storage option for many different applications. It is available in 35 gal, 50 gal, or 70 gal capacities. The cylindrical design and aluminum construction can match your truck's fuel tank for a clean, coordinated appearance. It features a durable 11 Ga aluminum shell and 12 Ga heads. The reservoir features 2 in. NPT suction return/ports on each end of the tank and a 1/2 in. NPT port/drain on the tank's bottom. The included mounting brackets wrap under the tank to give added stability and support. Rubber-insulated stainless steel straps are also included to keep it secure. Each unit includes a quarter-turn filler breather unit with a basket strainer for keeping contaminants out of the fluid.

Specifications

Advanced Technical Overview: The 35 Gallon Side Mount Aluminum Hydraulic Reservoir

The Buyers Products 35 Gallon Side Mount Aluminum Hydraulic Reservoir represents a meticulously engineered component designed to serve as the foundational fluid management element in a diverse range of mobile and stationary hydraulic systems. This document provides an in-depth technical examination of its design, materials, functionality, and integration, emphasizing its critical role in optimizing hydraulic system performance, longevity, and reliability. Engineered for robust applications, this cylindrical aluminum reservoir offers a superior blend of material science, precise fabrication, and functional utility, distinguishing it as a premier choice for professionals seeking an efficient and durable hydraulic fluid storage solution.

Material Science and Structural Integrity: The Aluminum Advantage

The selection of aluminum for the construction of this hydraulic reservoir is a deliberate engineering decision rooted in its superior material properties, which significantly benefit hydraulic system operation. The main shell of the reservoir is constructed from 11-gauge (approximately 0.125 inches or 3.175 mm) aluminum, while the heads utilize 12-gauge (approximately 0.109 inches or 2.769 mm) aluminum. This differential gauging ensures optimal structural integrity while managing overall weight.

Aluminum, particularly the alloys commonly used in such applications, offers several distinct advantages:

1. Exceptional Strength-to-Weight Ratio: One of aluminum's most compelling attributes is its high strength-to-weight ratio. This reservoir, despite its substantial 35-gallon capacity, remains considerably lighter than equivalent steel reservoirs. For mobile applications, such as commercial trucks, this weight reduction translates directly into increased payload capacity, improved fuel efficiency, and reduced wear on vehicle suspension components. In stationary applications, ease of installation and reduced structural load are notable benefits.
2. Superior Corrosion Resistance: Aluminum naturally forms a passive oxide layer on its surface, providing excellent resistance to corrosion, especially in environments where moisture, road salts, or other corrosive agents are prevalent. This inherent corrosion resistance obviates the need for extensive coatings or treatments often required for steel, simplifying maintenance and extending the operational life of the reservoir, even in harsh conditions.
3. Enhanced Heat Dissipation: Aluminum possesses a significantly higher thermal conductivity compared to steel. This property is crucial for hydraulic reservoirs, which function not only as fluid storage but also as passive heat exchangers. The large surface area of the aluminum tank, particularly its cylindrical form, coupled with aluminum's excellent thermal transfer capabilities, facilitates efficient dissipation of heat generated within the hydraulic system. This helps maintain optimal fluid operating temperatures, preventing thermal degradation of hydraulic fluid and extending the life of seals and other sensitive components.
4. Fabrication and Weldability: Modern aluminum alloys are highly amenable to fabrication processes, including welding. The precision manufacturing techniques employed ensure robust, leak-proof seams that withstand the stresses of dynamic operation and fluid containment. The smooth finish specified further attests to the quality of the fabrication, minimizing potential sites for contaminant adhesion and simplifying cleaning.

The cylindrical design further augments the structural integrity of the reservoir. A cylindrical shape inherently distributes internal pressure more uniformly across its surface compared to rectilinear designs, reducing stress concentrations and enhancing resistance to deformation. This geometric advantage, combined with the specified gauge aluminum, contributes to a highly durable and reliable fluid containment vessel.

Hydraulic System Integration and Functionality

The hydraulic reservoir is not merely a tank; it is a vital functional component of any hydraulic system, performing several critical tasks beyond mere fluid storage. Its design directly impacts the overall efficiency, cleanliness, and thermal management of the entire hydraulic circuit.

Key functions include:

1. Fluid Storage and Volume Accommodation: The primary role is to store the hydraulic fluid necessary to operate the system. The 35-gallon usable capacity is engineered to accommodate variations in fluid volume due to cylinder extension and retraction, thermal expansion, and potential leakage within the system, ensuring that the pump always has an adequate supply of fluid. A general rule of thumb for reservoir sizing is to provide a volume of 3 to 5 times the pump's flow rate per minute, though specific application demands may vary. For this 35-gallon unit, it suggests suitability for systems with pump flow rates ranging from approximately 7 to 11 gallons per minute (GPM) for typical mobile applications where reservoir sizing might be optimized for space and weight.
2. Heat Dissipation: As previously noted, the aluminum construction and large surface area are instrumental in dissipating heat. Hydraulic systems convert mechanical energy into fluid power, and this process inherently generates heat due to friction, flow restrictions, and inefficiencies. Effective heat rejection by the reservoir is crucial to prevent overheating, which can degrade hydraulic fluid, reduce viscosity, and damage seals and components.
3. Contaminant Settling: The generous volume and internal design (though without an explicit diffuser in this model) contribute to a relatively quiescent environment for the hydraulic fluid. This allows heavier solid contaminants to settle to the bottom of the tank, where they can be removed via the drain plug, rather than being recirculated through the system.
4. Air Separation: Hydraulic fluid can entrain air, leading to cavitation, spongy operation, noise, and accelerated fluid degradation. The reservoir's volume and return line configuration (even without an internal diffuser) aid in allowing entrained air bubbles to rise to the surface and escape through the breather, preventing air from being drawn back into the pump suction line.

Port Configuration and Fluid Management

The precise configuration of ports is crucial for efficient fluid management within the hydraulic system. This reservoir features:

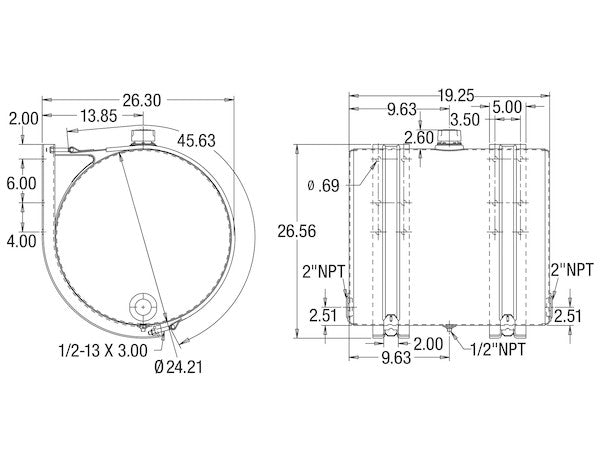

1. 2-inch NPT Suction/Return Ports: Strategically located on each end of the tank, these 2-inch National Pipe Taper (NPT) ports offer significant versatility in plumbing configurations.
   • Suction Line: The suction line is critical for drawing fluid into the hydraulic pump. A 2-inch NPT port provides ample diameter to ensure low fluid velocity and minimal pressure drop, preventing pump cavitation. Proper sizing of the suction line and its components (e.g., suction strainers, if used externally) is paramount to maintain adequate net positive suction head (NPSH) for the pump. The availability of ports on both ends allows for flexible pump mounting orientations or dual-pump configurations.
   • Return Line: The return line carries fluid back to the reservoir from the hydraulic system after it has performed work. The 2-inch NPT port facilitates a low-velocity return flow, minimizing turbulence and aeration within the tank. Ideally, return lines should terminate below the minimum fluid level to prevent splashing and foam generation. While this specific model does not include an internal diffuser, external diffusers or proper pipe extensions can be implemented to optimize return flow dispersion and reduce fluid agitation.
2. 1/2-inch NPT Port/Drain on the Tank's Bottom: This smaller NPT port serves a dual function. Primarily, it acts as a drain port, allowing for complete evacuation of hydraulic fluid during maintenance, fluid changes, or system decommissioning. Its bottom location ensures maximum fluid removal, helping to flush out settled contaminants. Additionally, this port can serve as an auxiliary connection point for various accessories, such as a fluid level sensor, a temperature sensor, or a dedicated fluid sampling port, offering enhanced diagnostic capabilities and operational monitoring. The inclusion of a magnetic drain plug in the specifications is a notable advantage, as it captures ferrous wear particles that settle at the tank bottom, providing an early indicator of potential system wear and preventing these particles from recirculating.

Filtration and Contaminant Control

Hydraulic fluid cleanliness is paramount for the longevity and reliable operation of any hydraulic system. Contamination, whether particulate or ingressed air, is the leading cause of hydraulic component wear and failure. While this reservoir does not include an integral return line filter or diffuser, it incorporates essential features for proactive contaminant control:

1. Quarter-Turn Filler Breather Unit with Basket Strainer: This integrated component serves two vital functions:
   • Fluid Filling: The quarter-turn design allows for quick and secure access for replenishing hydraulic fluid. The basket strainer within the filler opening acts as a coarse primary filter, preventing larger particles, debris, or foreign objects from entering the reservoir during the filling process. This is a critical first line of defense against ingress contamination.
   • Breathing Function: As fluid levels in the reservoir fluctuate during system operation (due to cylinder movement or thermal expansion/contraction), air must enter and exit the tank to prevent a vacuum or over-pressurization. The breather element ensures that this exchanged air is filtered, preventing airborne particulate matter from entering the hydraulic fluid. Although specific micron ratings are not provided, these breathers typically offer protection against dust and environmental particles. Regular inspection and replacement of the breather element are crucial maintenance tasks.
2. Magnetic Drain Plug: As mentioned, this feature is instrumental in proactive maintenance. The magnetic properties attract and hold ferrous metal particles that wear off internal components (pumps, valves, cylinders), preventing their recirculation and minimizing abrasive wear. Visual inspection of the magnetic plug during fluid changes provides valuable insights into the health of the hydraulic system, indicating potential issues before catastrophic failure.

It is important for system designers to supplement these features with appropriate in-line or off-line filtration as required by the application's cleanliness standards (e.g., ISO 4406 codes), typically including pressure filters and/or return line filters external to the reservoir.

Thermal Management and Operational Efficiency

The thermal characteristics of this aluminum reservoir are a significant contributor to overall system efficiency and fluid longevity. Hydraulic fluid is engineered to perform optimally within a specific temperature range. Exceeding this range accelerates fluid degradation, breaking down additives, reducing viscosity, and forming harmful sludges and varnishes. Conversely, operating too cold can lead to increased fluid viscosity, sluggish system response, and potential cavitation.

The large surface area of the cylindrical design, combined with aluminum's high thermal conductivity (approximately 205 W/m·K for common alloys, significantly higher than steel's ~50 W/m·K), allows the reservoir to effectively radiate heat into the ambient environment. This passive cooling capability is often sufficient for many mobile hydraulic applications, reducing or eliminating the need for auxiliary oil coolers, thereby simplifying system design, reducing costs, and improving overall reliability by eliminating additional components and potential leak points. For demanding applications with high heat loads, the reservoir's inherent cooling capacity can still significantly reduce the burden on supplemental cooling systems.

Mounting and Installation Considerations

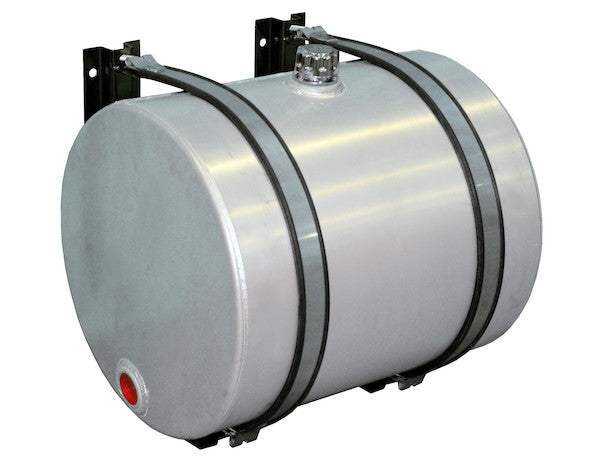

The side-mount design with included hardware is optimized for secure and stable installation, particularly on vehicle chassis or equipment frames. The mounting system components include:

1. Mounting Brackets: These robust brackets are designed to wrap under the tank, providing comprehensive support and stability. This under-tank support evenly distributes the weight of the fluid and the reservoir itself, minimizing stress points and preventing localized fatigue failures in the tank structure.
2. Rubber-Insulated Stainless Steel Straps: The use of stainless steel straps ensures high tensile strength and corrosion resistance for long-term security. The rubber insulation serves several critical functions:
   • Vibration Damping: It isolates the tank from chassis vibrations, protecting both the reservoir and its internal fluid from damaging resonant frequencies and reducing wear on mounting points.
   • Thermal Expansion Accommodation: It allows for minor thermal expansion and contraction of the tank without inducing excessive stress on the mounting hardware.
   • Chafe Protection: It prevents direct metal-on-metal contact between the straps and the aluminum tank, guarding against abrasive wear and potential galvanic corrosion.
   • Secure Grip: The rubber enhances friction, providing a more secure grip on the smooth aluminum surface and preventing the tank from shifting during dynamic operation.

Proper installation involves ensuring a level mounting surface, correct torqueing of fasteners, and appropriate clearance for plumbing and maintenance access. The "Strap" mount style, combined with the comprehensive bracket system, ensures that the reservoir remains firmly in place even under severe operational stresses and terrain variations typical of mobile hydraulic applications.

Maintenance and Longevity

The design of the 35 Gallon Side Mount Aluminum Hydraulic Reservoir facilitates straightforward maintenance procedures, contributing significantly to the extended lifespan of both the reservoir and the entire hydraulic system. Key maintenance considerations include:

1. Regular Fluid Level Checks: Maintaining the correct fluid level is crucial. The original description notes the absence of an integral level gauge, meaning external indicators or manual inspection via the filler breather port will be necessary. Operating with insufficient fluid can lead to cavitation, overheating, and pump damage.
2. Fluid Sampling and Analysis: Periodically sampling the hydraulic fluid and submitting it for laboratory analysis can provide invaluable data on fluid condition, wear particle content, and contamination levels. This predictive maintenance approach allows for timely intervention before costly failures occur.
3. Fluid Changes: Adhering to manufacturer-recommended fluid change intervals, or intervals determined by fluid analysis, is critical. The bottom-mounted 1/2-inch NPT drain port and magnetic drain plug simplify this process, allowing for complete fluid evacuation and removal of ferrous contaminants.
4. Breather Element Inspection and Replacement: The filler breather’s air filter element should be regularly inspected for clogging and replaced as needed. A clogged breather can lead to pressure differentials within the tank, potentially causing seal leaks or drawing unfiltered air into the system.
5. Cleaning: The smooth finish and cylindrical shape make the exterior easy to clean, preventing the buildup of dirt and debris that could hinder heat dissipation. Periodic internal cleaning, coinciding with fluid changes, can remove settled sludge and contaminants.
6. Structural Inspection: Regular visual inspection of the tank for signs of dents, cracks, leaks, or corrosion, especially around welds and ports, is recommended. Similarly, mounting brackets and straps should be checked for integrity, tightness, and rubber insulation condition.

Versatile Applications

The robust construction, optimal thermal management, and practical design of this 35-gallon side-mount reservoir make it suitable for a wide array of demanding hydraulic applications. Its cylindrical aesthetic and aluminum finish are particularly well-suited to integrate seamlessly with vehicle chassis. Common applications include:

• Commercial Trucking: Powering dump bodies, refuse compactors, roll-off hoists, snow plows, and utility cranes where space, weight, and durability are critical factors.
• Construction Equipment: Auxiliary hydraulic systems on excavators, loaders, and other heavy machinery requiring reliable fluid storage and cooling.
• Agricultural Machinery: Providing hydraulic power for various implements, especially where exposure to outdoor elements and demanding operational cycles are common.
• Specialty Vehicles: Utility service vehicles, towing and recovery units, and municipal fleet vehicles that rely on robust hydraulic functionality.
• Industrial and Marine Systems: While primarily designed for mobile applications, its inherent durability and corrosion resistance make it viable for certain stationary industrial or marine hydraulic power units.

Conclusion

The Buyers Products 35 Gallon Side Mount Aluminum Hydraulic Reservoir stands as a testament to intelligent engineering and robust manufacturing. From its superior aluminum construction providing unparalleled corrosion resistance and thermal dissipation to its carefully considered porting, integrated contamination control through the filler breather and magnetic drain plug, and secure mounting system, every aspect of this reservoir is designed to maximize the performance, longevity, and reliability of the hydraulic systems it supports. Its lightweight nature, combined with a capacity optimized for a range of demanding applications, ensures that it not only meets but exceeds the stringent requirements of modern hydraulic operations. Investing in this high-quality component translates directly into reduced downtime, lower maintenance costs, and sustained operational efficiency for any hydraulic power unit.
