SMC50A - 50 Gallon Side Mount Aluminum Hydraulic Reservoir

The Side Mount Cylindrical Aluminum Reservoir Cylinder from Buyers Products is a versatile, lightweight fluid storage option for many different applications. It is available in 35 gal, 50 gal, or 70 gal capacities. The cylindrical design and aluminum construction can match your truck's fuel tank for a clean, coordinated appearance. It features a durable 11 Ga aluminum shell and 12 Ga heads. The reservoir features 2 in. NPT suction return/ports on each end of the tank and a 1/2 in. NPT port/drain on the tank's bottom. The included mounting brackets wrap under the tank to give added stability and support. Rubber-insulated stainless steel straps are also included to keep it secure. Each unit includes a quarter-turn filler breather unit with a basket strainer for keeping contaminants out of the fluid.

Specifications

Advanced Technical Overview: 50 Gallon Side Mount Aluminum Hydraulic Reservoir

The 50 Gallon Side Mount Aluminum Hydraulic Reservoir represents a critical component in the design and operation of mobile and stationary hydraulic systems demanding robust performance, weight efficiency, and superior fluid management. Engineered by Buyers Products, this specific model, part of a versatile series, is meticulously crafted to meet the rigorous demands of various applications, from commercial trucking to heavy-duty industrial machinery.

Fundamental Role of Hydraulic Reservoirs

At its core, a hydraulic reservoir serves several indispensable functions within a hydraulic circuit, extending beyond mere fluid storage. It acts as a primary heat exchanger, dissipating thermal energy generated by system inefficiencies, such as fluid friction and component operation. Furthermore, it provides a crucial space for fluid conditioning, allowing entrained air to separate from the hydraulic fluid, facilitating the settling of particulate contaminants, and enabling proper filtration. A well-designed reservoir ensures adequate fluid volume to accommodate system fluctuations (e.g., cylinder extension and retraction), maintains a positive head pressure for the pump's suction port, and provides an accessible point for fluid maintenance and sampling. The 50-gallon capacity of this particular model is optimized for medium to large hydraulic systems, ensuring sufficient fluid residence time for effective heat transfer and contaminant separation, thereby enhancing system longevity and operational efficiency.

Material Science and Structural Integrity: The Aluminum Advantage

The selection of aluminum as the primary construction material for this hydraulic reservoir is a deliberate engineering choice, offering a multitude of technical and operational benefits. The main shell is fabricated from durable 11 Gauge (Ga) aluminum, while the heads utilize 12 Ga aluminum. In the American Wire Gauge (AWG) system, a lower gauge number indicates a thicker material, signifying the robust construction of this unit. This differential thickness is often strategic, with the main shell requiring slightly more resistance to internal pressure fluctuations and external impacts along its cylindrical length, while the formed heads contribute significantly to overall structural rigidity.

Aluminum offers several key advantages over traditional steel reservoirs:

1. Weight Reduction: Aluminum's inherent low density translates to a significantly lighter component. For mobile applications, such as dump trucks, refuse vehicles, and snowplows, this weight savings directly contributes to increased payload capacity, improved fuel efficiency, and reduced wear on chassis components.
2. Corrosion Resistance: Aluminum naturally forms a passive oxide layer, providing excellent resistance to corrosion, particularly when exposed to environmental elements such as road salts, moisture, and various industrial fluids. This inherent resistance significantly extends the service life of the reservoir, reducing maintenance costs and ensuring long-term structural integrity.
3. Thermal Conductivity: Aluminum possesses superior thermal conductivity compared to steel. This property enhances the reservoir's ability to dissipate heat from the hydraulic fluid to the ambient environment, contributing significantly to thermal management within the hydraulic system. Effective heat dissipation is critical for maintaining optimal fluid viscosity, preventing premature degradation of hydraulic seals, and preserving the chemical stability of the hydraulic fluid.
4. Aesthetic Integration: The natural finish and clean appearance of aluminum allow for seamless integration with other vehicle components, such as fuel tanks, creating a uniform and professional aesthetic. The "Smooth" finish further contributes to its clean lines and ease of cleaning.
5. Durability and Weldability: Despite its lighter weight, aluminum, when properly engineered and welded, provides substantial structural integrity. The welding processes used for aluminum tanks are designed to maintain material strength and ensure leak-proof seams under dynamic operating conditions.

Cylindrical Design and Side Mount Configuration

The cylindrical shape of this reservoir is not merely an aesthetic choice; it offers distinct engineering advantages. Cylindrical vessels inherently distribute internal pressures more uniformly across their surface, minimizing stress concentrations and enhancing structural stability, especially important in dynamic environments prone to sloshing. This design also facilitates easier cleaning and inspection compared to complex geometric shapes, reducing potential pockets for contaminant accumulation.

The "Side Mount" configuration is specifically chosen for applications where space along the vehicle frame is available and advantageous for accessibility. Mounting the reservoir along the side of the chassis allows for optimal weight distribution, complements existing vehicle architecture, and provides convenient access for routine maintenance tasks such as fluid level checks and filling. The generous dimensions (24.00" Depth, 24.20" O.D. Diameter, 24.00" Height, and 27.50" Width) are carefully considered to maximize fluid capacity while integrating efficiently into common vehicle chassis layouts.

Precision Port Configuration for Optimal Fluid Flow

The reservoir's porting strategy is designed for operational flexibility and hydraulic system efficiency:

1. Dual 2-inch NPT Suction/Return Ports: The inclusion of two 2-inch National Pipe Taper (NPT) ports, one on each end of the tank, provides exceptional versatility for system designers. NPT threads are a widely recognized standard, offering robust, leak-resistant connections due to their tapered design. The 2-inch diameter is critical for accommodating the high flow rates typically associated with 50-gallon capacity systems. Locating these ports on opposing ends allows for optimized plumbing configurations, minimizing hose runs and potential flow restrictions. Crucially, adequate suction line sizing (here, 2 inches) is paramount to prevent cavitation at the pump inlet, which can lead to premature pump wear and system inefficiency. Similarly, a generously sized return line minimizes back pressure, reducing energy losses and heat generation.
2. 1/2-inch NPT Port/Drain on Bottom: A 1/2-inch NPT port situated at the tank's lowest point serves multiple functions:
   • Drainage: Facilitates complete system drainage for maintenance, fluid replacement, or troubleshooting.
   • Sampling: Allows for convenient fluid sampling, enabling proactive fluid analysis and contamination monitoring.
   • Magnetic Drain Plug: The inclusion of a magnetic drain plug is a significant feature for preventative maintenance. This plug is designed to attract and retain ferrous metallic particles that circulate within the hydraulic fluid, indicating internal wear of components such as pumps, motors, or cylinders. Regular inspection of the magnetic drain plug provides valuable diagnostic information, allowing operators to address potential issues before they escalate into catastrophic failures.

Advanced Contamination Control and Air Management

Contamination, whether solid particles or entrained air, is the leading cause of hydraulic system failure. This reservoir integrates features designed to mitigate these risks effectively:

1. Quarter-Turn Filler Breather Unit with Basket Strainer:
   • Breather Function: The breather component ensures that the reservoir can "breathe" – allowing air to enter and exit as the fluid level fluctuates due to cylinder movement or temperature changes. This prevents pressure or vacuum buildup within the tank that could damage seals or impede pump performance. The breather element also typically incorporates a filter to prevent airborne contaminants (dust, moisture, etc.) from entering the system.
   • Quarter-Turn Mechanism: Provides quick, tool-free access to the filler neck, simplifying fluid additions and inspections.
   • Basket Strainer: Positioned within the filler neck, the basket strainer acts as a coarse filter, providing the first line of defense against particulate contamination during fluid replenishment. It prevents larger debris from entering the reservoir, protecting downstream filters and critical components.
2. Absence of Diffuser and Return Line Filter: While this model does not include an integral diffuser or a dedicated return line filter, this design decision often reflects a modular approach where system designers integrate external components tailored to specific application requirements. For instance, external diffusers can be precisely positioned to slow down return fluid and prevent aeration, while dedicated return line filters offer higher filtration efficiency and bypass options for enhanced system protection. The absence of these integral components provides flexibility for customization.

Robust Mounting System for Enduring Stability

The secure and stable mounting of a hydraulic reservoir is paramount for operational safety and component longevity, especially in mobile applications subjected to constant vibration, shock, and dynamic forces. This reservoir incorporates a sophisticated mounting system:

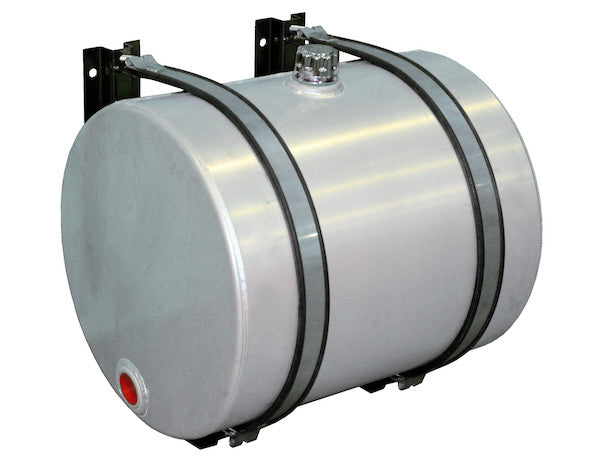

1. Wrap-Under Mounting Brackets: The included mounting brackets are engineered to "wrap under" the tank, providing comprehensive support and evenly distributing the load across a larger surface area of the reservoir body. This design minimizes stress concentrations on the tank material, preventing fatigue failures and ensuring long-term structural integrity under heavy fluid loads and dynamic stresses. The robust construction of the brackets ensures they can withstand the harshest operating conditions.
2. Rubber-Insulated Stainless Steel Straps: To further secure the reservoir, rubber-insulated stainless steel straps are provided.
   • Stainless Steel: Offers exceptional corrosion resistance and high tensile strength, ensuring the tank remains firmly fastened even in corrosive environments.
   • Rubber Insulation: The rubber layer serves multiple critical functions: it provides a cushioning effect that absorbs and dampens vibrations transmitted from the vehicle chassis, protecting the tank from fatigue. It also prevents metal-on-metal contact, which could lead to chafing, abrasion, and potential damage to the reservoir's surface or the straps themselves. This insulation also helps to electrically isolate the tank if needed, preventing galvanic corrosion in certain mixed-metal installations.

The synergy of these mounting components ensures that the 50 Gallon Side Mount Aluminum Hydraulic Reservoir remains steadfast, regardless of terrain or operational intensity, safeguarding both the equipment and personnel.

Comprehensive Dimensions and Design for Seamless Integration

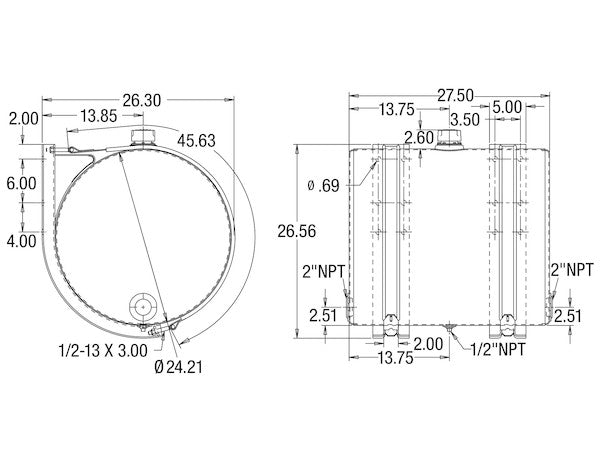

The provided dimensions (Depth: 24.00 inches, Diameter O.D.: 24.20 inches, Height: 24.00 inches, Width: 27.50 inches) are critical for pre-installation planning and integration into existing vehicle or machinery frames. These measurements indicate a relatively compact yet high-capacity cylindrical design, optimized for side-mount applications where chassis space often dictates component selection. The 24.20-inch outer diameter is a standard size that allows for efficient use of space without protruding excessively from the vehicle's profile. The overall 'Width' dimension (27.50 inches) likely accounts for the tank body and potentially the mounting flanges or strap clearances, providing a complete footprint for installation. These precise specifications enable engineers and installers to ensure proper fitment, maintain ground clearance, and comply with vehicle dimension regulations.

Applications and Performance in Demanding Environments

The 50 Gallon Side Mount Aluminum Hydraulic Reservoir is ideally suited for a broad spectrum of heavy-duty and commercial applications where reliability and performance are paramount. These include, but are not limited to:

• Commercial Trucking: Dump trucks, refuse compactors, roll-off trucks, and car carriers.
• Construction Equipment: Cranes, excavators, loaders, and various attachments requiring auxiliary hydraulics.
• Municipal Vehicles: Snowplows, salt spreaders, utility trucks, and street sweepers.
• Agricultural Machinery: Tractors and implements utilizing high-performance hydraulic systems.
• Specialty Vehicles: Wreckers, forestry equipment, and other custom hydraulic applications.

In each of these environments, the reservoir's aluminum construction ensures resistance to harsh weather conditions, road debris, and corrosive agents, while its robust design maintains structural integrity under constant vibration and operational stress. The thermal management capabilities of aluminum are particularly beneficial in applications involving sustained hydraulic power output, where fluid temperature control is essential for preventing system overheating and component damage.

Maintenance and Longevity

While designed for durability, proper maintenance remains critical for maximizing the operational lifespan of any hydraulic component. The design features of this reservoir facilitate easy maintenance:

• Accessible Filler Breather: The quarter-turn filler breather allows for convenient checking and topping off of hydraulic fluid. Regular inspection of the breather filter element is crucial to ensure it continues to prevent airborne contaminants from entering the system.
• Magnetic Drain Plug: Periodic inspection and cleaning of the magnetic drain plug during fluid changes or service intervals provide valuable early warning signs of internal component wear, allowing for proactive intervention.
• Fluid Quality: Maintaining the cleanliness and correct type of hydraulic fluid is paramount. The basket strainer in the filler neck provides initial protection, but the overall system should incorporate appropriate filtration downstream.

By adhering to recommended maintenance schedules and utilizing the diagnostic capabilities built into the reservoir, operators can significantly extend the life of their hydraulic systems and ensure consistent performance.

Conclusion

The 50 Gallon Side Mount Aluminum Hydraulic Reservoir from Buyers Products stands as a testament to intelligent engineering, combining advanced material science with practical design. Its lightweight aluminum construction, precisely dimensioned 50-gallon capacity, versatile port configuration, integrated contamination control features, and robust mounting system collectively deliver a superior solution for demanding hydraulic applications. This reservoir not only ensures efficient fluid management and thermal regulation but also contributes to overall vehicle efficiency and system longevity, making it a professional-grade choice for industries that rely on high-performance hydraulic power.
