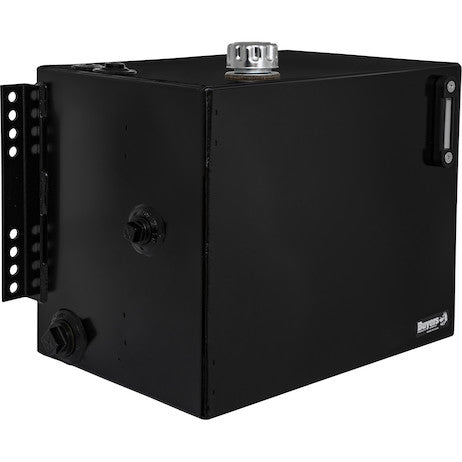

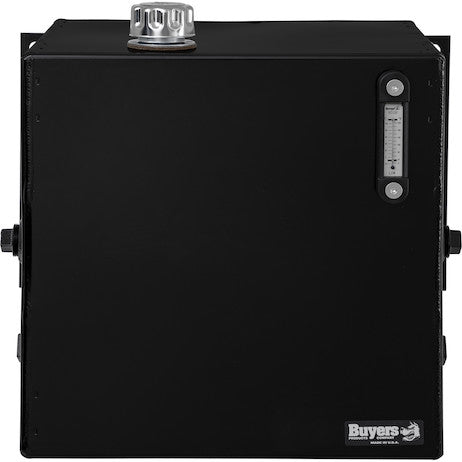

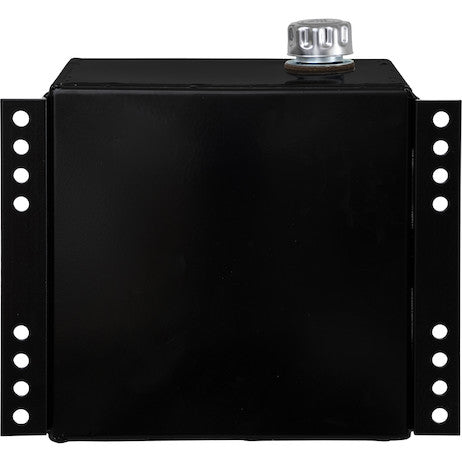

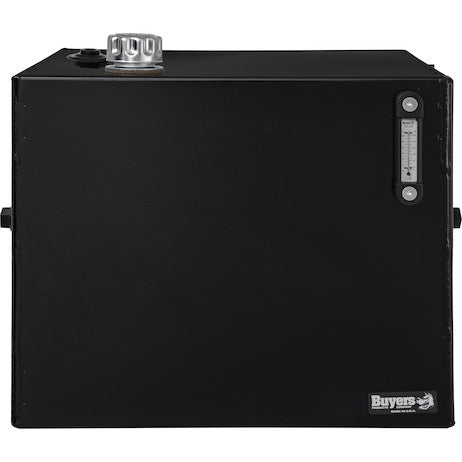

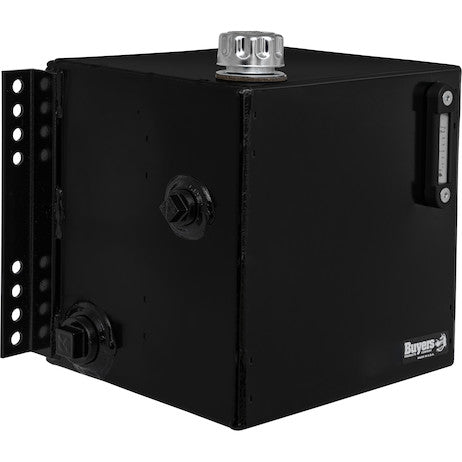

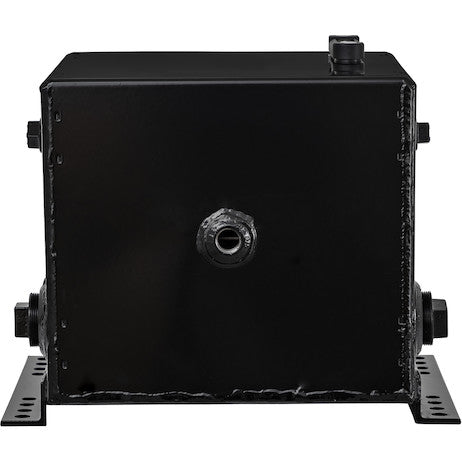

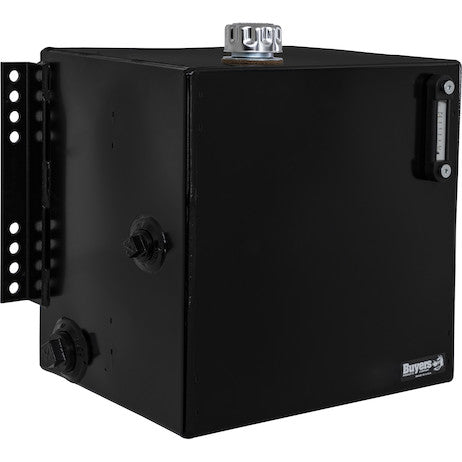

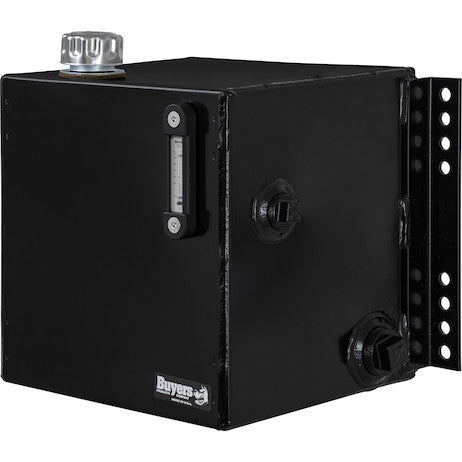

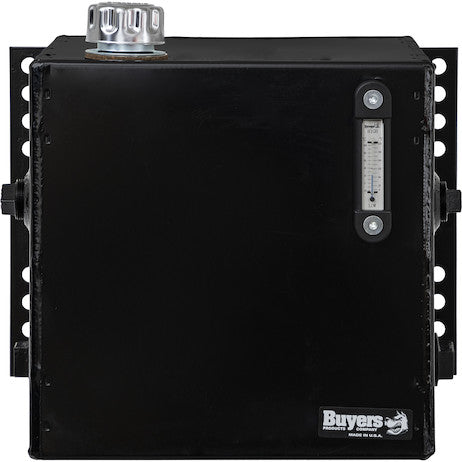

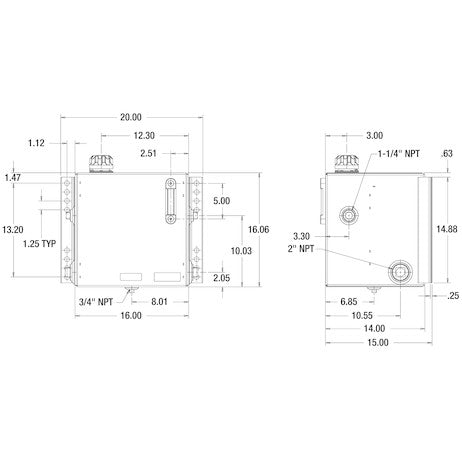

The 15 Gallon Side Mount Steel Reservoir features tough, 13 Ga HRPO steel construction with a welded-on bracket for easy installation to your truck frame. It's ideal for 1 ton trucks and smaller applications like spreaders. The reservoir has been factory powder-coated for corrosion resistance. System-protective features include: - a quarter-turn chrome filler breather with a wire basket strainer - a sight fluid level and temperature gauge - an interior baffle between suction and discharge to aid in fluid cooling - a magnetic drain plug to help prevent metallic particle contamination
Specifications
| Additional Port Size | 1 1/4 NPT; 3/4 NPT |
|---|---|
| Capacity | 15 |
| Color | Black |
| Depth | 19.58 |
| Diffuser Included (y/n) | No |
| Filter Head Material_1 | Aluminum |
| Finish | Powder-Coat |
| Hardware and Brackets Included (y/n) | No |
| Height | 17 |
| Included Valve (y/n) | No |
| Integral Brackets (y/n) | Yes |
| Integral Level Gauge (y/n) | Yes |
| Magnetic Drain Plug (y/n) | Yes |
| Material | Carbon Steel |
| Material Gauge | 13 |
| Mount Position | Side Mount |
| Mount Style | Side |
| Oil Level Gauge (y/n) | Yes |
| Reservoir Shape | Rectangle |
| Return Line Filter Included (y/n) | No |
| Style 1 Port Diameter | 2 |
| Style 2 Port Diameter | 1-1/4 |
| Suction Port Size | 2 NPT |
| Temperature Gauge (y/n) | Yes |
| Usable Capacity | 11 |
| Width | 14.500 |
Advanced Engineering: The 15 Gallon Side Mount Steel Hydraulic Reservoir for Demanding Applications
In the realm of mobile and industrial hydraulic systems, the reservoir serves as far more than a mere storage tank for hydraulic fluid. It is a critical component responsible for fluid conditioning, thermal management, and contamination control, all of which directly impact the efficiency, longevity, and reliability of the entire hydraulic circuit. The 15 Gallon Side Mount Steel Reservoir has been meticulously engineered to fulfill these vital functions with exceptional robustness and operational foresight, making it an indispensable asset for a wide array of demanding applications.
Precision Construction: 13 Gauge HRPO Carbon Steel
The foundation of this reservoir's enduring performance lies in its construction from 13 Gauge Hot Rolled Pickled and Oiled (HRPO) carbon steel. The specification "13 Ga" refers to the material's thickness, which translates to approximately 0.0897 inches (or 2.278 mm). This substantial gauge steel provides superior structural integrity, ensuring the reservoir can withstand the significant mechanical stresses, vibrations, and potential impacts inherent in mobile and industrial environments. Its robustness prevents deformation, maintains critical internal clearances, and ensures a secure, leak-free containment vessel for hydraulic fluid.
The choice of HRPO steel is strategic. Hot-rolled steel offers inherent strength and ductility, making it ideal for forming and welding. The "Pickled and Oiled" (PO) treatment is crucial for enhancing material quality. The pickling process involves acid washing to remove mill scale, rust, and other surface impurities that accumulate during the hot rolling process. This removal of contaminants results in a much cleaner, smoother surface finish. Subsequently, a thin layer of oil is applied to prevent flash rusting and provide temporary corrosion protection during manufacturing and storage. This pre-treated surface is not only aesthetically superior but, more importantly, provides an optimal substrate for the subsequent powder coating application, ensuring maximum adhesion and long-term finish durability. Carbon steel itself is known for its excellent strength-to-weight ratio, weldability, and cost-effectiveness, making it a pragmatic choice for heavy-duty hydraulic reservoirs.
Unrivaled Durability: Factory Powder-Coated Finish
To ensure uncompromising protection against the elements and operational hazards, the 15 Gallon Side Mount Steel Reservoir features a factory powder-coated finish. Powder coating is a highly advanced finishing process renowned for its superior durability compared to traditional liquid paints. The process involves electrostatically applying a dry powder (a mixture of finely ground resin particles, pigments, and curing agents) onto the steel surface. The part is then cured under heat, causing the powder to melt, flow, and chemically crosslink, forming a uniform, hard, and extremely resilient skin.
The benefits of this finish are manifold. It offers exceptional resistance to corrosion, effectively shielding the steel from moisture, road salts, chemicals, and industrial contaminants. Furthermore, the powder coat provides excellent resistance to chipping, scratching, fading, and abrasion, which are common challenges in rugged operating conditions. Its uniform black color and smooth texture contribute to a professional appearance while providing a tough, protective barrier. From an environmental perspective, powder coating is a more sustainable option, as it contains no Volatile Organic Compounds (VOCs), contributing to cleaner air quality during manufacturing.
Optimized Capacity and Hydraulic System Integration
With a nominal capacity of 15 gallons and a usable capacity of 11 gallons, this reservoir is meticulously sized for hydraulic systems typically found on 1-ton trucks and various smaller-scale applications, such as spreaders, lift gates, and auxiliary equipment. The distinction between nominal and usable capacity is critical in hydraulic system design. Usable capacity accounts for the necessary air cushion above the fluid level, which allows for fluid expansion due to temperature increases, prevents pump cavitation caused by vortexing at low fluid levels, and provides space for de-aeration. Industry best practices often recommend a reservoir capacity that is 3 to 5 times the pump's flow rate per minute to ensure adequate fluid residence time. This residence time is crucial for facilitating heat dissipation, allowing entrained air to escape, and enabling contaminants to settle out of the fluid before it is recirculated.
The reservoir's generous capacity for its compact footprint ensures that the hydraulic fluid has sufficient time to cool and condition, thereby extending the life of the fluid and protecting expensive hydraulic components such as pumps, valves, and cylinders from premature wear and thermal degradation. It acts as a thermal buffer, absorbing and dissipating heat generated by the hydraulic system, and plays a pivotal role in maintaining the fluid within its optimal operating temperature range.
Engineered for Seamless Installation: Side Mount Design
The "Side Mount" configuration with welded-on and integral brackets is a defining characteristic of this reservoir, offering significant advantages for mobile hydraulic applications. This design allows for secure attachment directly to the vehicle's chassis or frame rails, optimizing space utilization in often-crowded undercarriage areas. The integral, welded-on brackets eliminate the need for cumbersome and potentially weaker bolted-on solutions, providing a robust, permanent connection that can withstand severe road vibrations, torsional forces, and dynamic loads encountered during vehicle operation. This design not only simplifies the installation process for technicians but also enhances the overall structural integrity of the hydraulic system by reducing potential points of failure.
The side-mount position also contributes to a lower center of gravity for the vehicle, which can be beneficial for stability, particularly in applications where the reservoir is mounted on commercial trucks or specialized equipment. The precise dimensions—Depth: 19.58 inches, Height: 17 inches, Width: 14.500 inches—are carefully calibrated to fit within the common constraints of vehicle chassis, providing a compact yet functionally rich solution.
Comprehensive Fluid Management and Monitoring Features
The 15 Gallon Side Mount Steel Reservoir is equipped with several integrated features designed to enhance fluid integrity and simplify operational oversight:
Quarter-Turn Chrome Filler Breather with Wire Basket Strainer: The filler breather is a multi-functional component critical for maintaining the health of the hydraulic system. Its primary role is to allow air to enter and exit the reservoir as the fluid level fluctuates during system operation (e.g., cylinder extension/retraction). This prevents the creation of a vacuum or excessive pressure within the tank, which could otherwise damage seals or impede fluid flow. The breather element itself is designed to filter airborne contaminants such as dust, dirt, and moisture from the incoming air, preventing them from entering the hydraulic fluid. The quarter-turn design ensures quick and easy access for refilling and visual inspection, while the integral wire basket strainer acts as a preliminary filter during fluid top-offs, preventing larger particulates from accidentally entering the system. The chrome finish on the cap provides additional corrosion resistance and a professional appearance.
Sight Fluid Level and Temperature Gauge: Real-time monitoring of fluid conditions is paramount for proactive maintenance and operational efficiency. The integrated sight fluid level and temperature gauge provides immediate visual feedback on two critical parameters. The fluid level indicator allows operators to quickly ascertain if the fluid volume is within the optimal operating range, preventing issues such as pump cavitation caused by insufficient fluid or overflows from overfilling. The temperature gauge is equally vital, as hydraulic fluid viscosity and lifespan are highly sensitive to temperature. Operating fluid within its recommended temperature range prevents premature fluid degradation, seal hardening, and component wear. An abnormally high temperature can signal an overloaded system, a blocked cooler, or a failing component, enabling operators to take corrective action before a catastrophic failure occurs.
Advanced Thermal and Contamination Control: Internal Baffle and Magnetic Drain Plug
Two fundamental elements within the reservoir's design directly address the critical challenges of thermal management and contamination control:
Interior Baffle: The strategically positioned interior baffle is a cornerstone of effective hydraulic reservoir design. Its primary function is to separate the hot return fluid entering the reservoir from the cooler suction fluid being drawn by the pump. By creating a longer, circuitous path for the fluid, the baffle significantly increases the fluid's residence time within the reservoir. This extended residence time serves multiple crucial purposes:
- Heat Dissipation: As hot fluid travels along the longer path, it maximizes contact with the reservoir walls, allowing heat to dissipate more effectively to the ambient environment. This passive cooling mechanism is essential for maintaining optimal fluid operating temperatures.
- De-aeration: Entrained air bubbles, which can lead to pump cavitation and reduced system efficiency, are given more time to rise to the fluid surface and escape into the headspace before the fluid is drawn back into the pump. The baffle also promotes laminar flow, which is more conducive to de-aeration than turbulent flow.
- Contamination Settling: The reduced fluid velocity created by the baffle encourages heavier particulate contaminants to settle out of suspension and accumulate at the bottom of the reservoir, away from the pump's suction line. This passive filtration aids in prolonging the life of system filters and components.
Magnetic Drain Plug: The inclusion of a magnetic drain plug represents a critical layer of protection against abrasive wear within the hydraulic system. This specialized drain plug features a powerful magnet embedded within its structure. As hydraulic fluid circulates and settles, the magnetic field attracts and retains ferrous metallic particles – microscopic fragments of steel or iron generated from normal wear and tear within pumps, motors, cylinders, and valves.
The significance of the magnetic drain plug cannot be overstated. By capturing these ferrous particles, it prevents them from recirculating through the system, where they could cause further abrasive damage to precision components. More importantly, the accumulation of metallic debris on the magnet provides an invaluable diagnostic tool during routine fluid changes. An excessive or unusual buildup of particles can serve as an early warning indicator of accelerated wear or impending component failure within the hydraulic system, enabling proactive maintenance interventions before a catastrophic breakdown occurs. This simple yet effective feature significantly contributes to enhanced fluid cleanliness and extends the operational life of the entire hydraulic system.
Versatile Porting for Robust System Integration
The reservoir is outfitted with carefully selected National Pipe Taper (NPT) port sizes to facilitate robust and versatile system integration. The primary suction port is a 2 NPT, chosen to ensure minimal pressure drop and prevent cavitation at the pump inlet, even under demanding flow conditions. The provision of additional ports, including a 1 1/4 NPT and a 3/4 NPT, offers flexibility for connecting return lines from various hydraulic components, auxiliary circuits, or for integrating pressure filtration units. NPT threads are a standard in hydraulic applications, known for creating strong, tapered pipe connections that are inherently self-sealing when properly assembled with thread sealant. This design choice ensures leak-free performance, critical for maintaining system efficiency and environmental compliance.
Diverse Applications and Operational Versatility
While ideally suited for 1-ton trucks and smaller applications like spreaders, the robust design and integrated features of this 15 Gallon Side Mount Steel Reservoir extend its applicability across a much broader spectrum of mobile and industrial hydraulics. It is an excellent choice for utility vehicles, landscape equipment, small construction machinery (such as mini excavators, skid steers, or compact loaders), agricultural implements, forestry equipment, municipal service vehicles (e.g., salt spreaders, plow trucks, refuse collection units), and various custom auxiliary hydraulic systems. Its compact dimensions, durable construction, and comprehensive fluid management features make it a reliable cornerstone for systems requiring dependable hydraulic power in challenging environments.
Simplified Maintenance, Extended Longevity, and Economic Advantage
Every feature of the 15 Gallon Side Mount Steel Reservoir has been designed with an eye toward ease of maintenance and long-term operational efficiency. The accessible quarter-turn filler breather simplifies fluid top-offs and inspections, while the sight level and temperature gauge offer immediate diagnostic information. The magnetic drain plug provides a critical proactive indicator of system wear, enabling timely intervention. Combined with the resilient powder-coated finish and heavy-duty steel construction, these elements collectively contribute to significantly reduced maintenance requirements, extended component lifespans, and minimized downtime for the entire hydraulic system. Investing in such a robust and intelligently designed reservoir ultimately translates into substantial long-term cost savings through improved reliability and a lower total cost of ownership.
Conclusion
The 15 Gallon Side Mount Steel Reservoir stands as a testament to thoughtful engineering and robust construction. From its 13-gauge HRPO steel and superior powder-coat finish to its advanced fluid conditioning features like the interior baffle and magnetic drain plug, every aspect is designed to deliver unparalleled performance and protection. It is a vital component for any hydraulic system demanding reliability, durability, and efficient fluid management in the harshest of operating conditions, ensuring optimal performance and extended service life for mobile and industrial applications alike.
