The tough, durable 15 Gallon Side Mount Steel Reservoir with Micron Filter from Buyers Products features a system-protective filter for lasting performance. It's ideal for a 1 ton truck and small hydraulic applications like spreaders. The reservoir features 13 Ga HRPO steel that has been factory powder-coated for corrosion resistance, and a welded-on bracket for mounting to your truck frame. It comes pre-drilled for a tank-mounted HFA9 series return filter to help protect your hydraulic system from damaging contaminants. You can order the reservoir with or without a 10 or 25 micron filter (shipped separately). Other protective features include: - a quarter-turn chrome filler breather with a wire basket strainer - a sight fluid level and temperature gauge - an interior baffle between suction and discharge to aid in fluid cooling - a magnetic drain plug to aid in preventing metallic particle contamination
Specifications
| Additional Port Size | 1 1/4 NPT |
|---|---|
| Capacity | 15 |
| Color | Black |
| Depth | 14.50 |
| Diffuser Included (y/n) | No |
| Filter Head Material_1 | Aluminum |
| Finish | Powder-Coat |
| Hardware and Brackets Included (y/n) | No |
| Height | 16.1 |
| Included Valve (y/n) | No |
| Integral Brackets (y/n) | Yes |
| Integral Level Gauge (y/n) | Yes |
| Magnetic Drain Plug (y/n) | Yes |
| Material | Carbon Steel |
| Material Gauge | 13 |
| Mount Position | Side Mount |
| Mount Style | Side |
| Oil Level Gauge (y/n) | Yes |
| Reservoir Shape | Rectangle |
| Return Line Filter Included (y/n) | Yes |
| Return Line Filter Rating | 25 |
| Style 1 Port Diameter | 2 |
| Style 2 Port Diameter | 1-1/4 |
| Suction Port Size | 2 NPT |
| Temperature Gauge (y/n) | Yes |
| Usable Capacity | 11 |
| Width | 19.58 |
Advanced Technical Overview: 15 Gallon Side Mount Steel Hydraulic Reservoir with Integrated 25 Micron Filtration
The 15 Gallon Side Mount Steel Hydraulic Reservoir with 25 Micron Filter represents a critical component within a vast array of hydraulic power systems, engineered to provide robust fluid management and contamination control. This unit is not merely a storage vessel for hydraulic fluid; it is a meticulously designed subsystem integral to the longevity, efficiency, and reliability of the entire hydraulic circuit. Its construction, integrated features, and performance specifications are tailored to meet the demanding requirements of mobile and stationary applications, particularly those found on 1-ton trucks and various small to medium-duty hydraulic implements such as spreaders, small cranes, dump bodies, lift gates, and agricultural equipment.
Construction and Material Science
At the core of this reservoir's durability is its construction from 13 Gauge Hot Rolled Pickled and Oiled (HRPO) steel. HRPO steel is selected for its superior surface quality, improved formability, and excellent weldability compared to standard hot-rolled steel, ensuring a stronger, more consistent finished product. The 13-gauge thickness provides a robust physical barrier against external impacts and internal pressure fluctuations, contributing significantly to the reservoir's long-term structural integrity in harsh operating environments. Following fabrication, the steel undergoes a rigorous powder-coating process. This multi-stage finishing procedure involves meticulous surface preparation, followed by electrostatic application of a dry powder, and subsequent heat curing. The result is an exceptionally tough, aesthetically pleasing black finish that offers superior corrosion, abrasion, and chemical resistance compared to conventional liquid paint. This protective coating is crucial for components exposed to road salt, moisture, industrial chemicals, and UV radiation, ensuring the reservoir maintains its structural and aesthetic qualities over an extended operational lifespan. The integral, welded-on mounting bracket further exemplifies robust design, providing a rigid, vibration-resistant attachment point directly to the vehicle frame. This eliminates the need for complex external mounting hardware and minimizes potential points of failure, ensuring secure installation and stability during dynamic vehicle operations.
Integrated Filtration and Contamination Control
One of the most vital aspects of any hydraulic system is fluid cleanliness, and this reservoir is specifically engineered to facilitate advanced contamination control. It arrives pre-drilled and configured for a tank-mounted HFA9 series return filter, which is supplied with a 25-micron element. The return line filter is strategically placed to capture contaminants generated within the hydraulic circuit (e.g., wear particles from pumps, motors, and valves, or ingress through cylinder rods) before they re-enter the main fluid body. A 25-micron filter rating indicates its ability to remove particles 25 micrometers and larger. While this is effective for many applications, the option to upgrade to a 10-micron filter element (shipped separately) provides an enhanced level of filtration for systems requiring tighter ISO cleanliness codes or operating with more sensitive components. Proper filtration directly translates to reduced wear on hydraulic components, extended fluid life, and decreased maintenance costs. The filter head itself is constructed from aluminum, offering excellent corrosion resistance, a favorable strength-to-weight ratio, and efficient heat dissipation from the fluid passing through.
Beyond the primary return line filter, the reservoir incorporates several other features dedicated to preventing contamination:
- Quarter-Turn Chrome Filler Breather with Wire Basket Strainer: The breather cap serves multiple critical functions. Firstly, it allows the reservoir to "breathe," permitting atmospheric air to enter and exit the tank as fluid levels fluctuate due to thermal expansion/contraction and cylinder movement. This prevents vacuum formation or over-pressurization. The quarter-turn design ensures quick and secure access for fluid filling. The integrated chrome finish enhances durability and corrosion resistance. Crucially, the wire basket strainer beneath the filler cap acts as a coarse pre-filter, preventing larger particulate matter from entering the reservoir during fluid top-offs, a common point of contamination ingress.
- Magnetic Drain Plug: Located at the lowest point of the reservoir, the magnetic drain plug is a simple yet highly effective device for capturing ferrous metallic particles that settle out of the hydraulic fluid. These particles, often indicative of wear within pumps, motors, or other iron/steel components, are retained by the magnet, preventing their recirculation and subsequent abrasive damage to the system. Regular inspection of the magnetic drain plug during fluid changes provides valuable diagnostic information regarding the internal health and wear patterns of the hydraulic system.
Thermal Management and Fluid Conditioning
Maintaining optimal hydraulic fluid temperature is paramount for system efficiency and fluid longevity. Excessive heat accelerates fluid degradation, reduces viscosity, impairs lubrication properties, and can damage seals and hoses. This reservoir addresses thermal management through its inherent design and a key internal feature:
-
Interior Baffle between Suction and Discharge: The welded internal baffle is a critical design element that serves multiple functions. It effectively separates the return fluid path from the pump suction port, forcing the fluid to circulate through a longer, more tortuous route within the tank. This increased residence time allows for several crucial processes:
- Heat Dissipation: The larger fluid surface area exposed to the tank walls, combined with the extended flow path, enhances the transfer of heat from the fluid to the reservoir's exterior, which then dissipates into the ambient air. This passive cooling mechanism is essential for preventing thermal runaway.
- De-aeration: Entrained air bubbles, which can cause cavitation, noise, and erratic operation, are given more time to rise to the surface and escape through the breather. The baffle's design minimizes turbulence, aiding in the separation of air.
- Contaminant Settling: The reduced fluid velocity within the reservoir, facilitated by the baffle, allows heavier particulate contaminants and water droplets to settle to the bottom of the tank, where they can be captured by the magnetic drain plug or remain out of the active flow path.
Fluid Level and Temperature Monitoring
Effective monitoring of hydraulic fluid conditions is crucial for preventative maintenance and operational safety. This reservoir integrates features to provide immediate visual feedback:
- Sight Fluid Level and Temperature Gauge: A clearly visible sight gauge provides a continuous indication of the fluid level within the reservoir. Maintaining the correct fluid level is essential to prevent pump cavitation (due to insufficient fluid) and to ensure adequate air space for thermal expansion and de-aeration. The integrated temperature gauge allows operators to monitor fluid temperature in real-time, enabling early detection of overheating issues which could indicate system inefficiencies, component malfunctions, or insufficient cooling capacity. This combined gauge simplifies routine checks and supports proactive maintenance strategies.
Hydraulic System Integration and Application Suitability

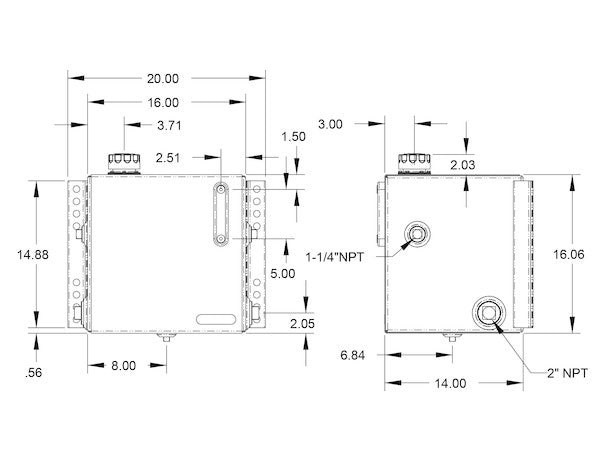

This 15-gallon side-mount reservoir is specifically designed for versatile integration into mobile hydraulic applications, particularly those found on 1-ton trucks and other utility vehicles. Its compact rectangular footprint (Depth: 14.50 inches, Height: 16.1 inches, Width: 19.58 inches) allows for efficient utilization of chassis space, typically mounted alongside the vehicle frame. The nominal 15-gallon capacity, with an advertised usable capacity of 11 gallons, provides sufficient fluid volume for a wide range of small to medium-duty intermittent hydraulic functions. The difference between total and usable capacity accounts for necessary air space, thermal expansion, and the volume below the suction port designed for contaminant settling.
The porting configuration is optimized for typical mobile hydraulic circuits:
- Suction Port Size: 2 NPT: The 2-inch National Pipe Taper (NPT) suction port is generously sized to minimize pressure drop at the pump inlet, crucial for preventing cavitation and ensuring optimal pump performance, especially under varying flow demands. Proper sizing of the suction line and its components is critical.
- Additional Port Size: 1 1/4 NPT (Style 2 Port Diameter): This 1.25-inch NPT port provides flexibility for return lines or auxiliary connections, accommodating various system configurations.
- Style 1 Port Diameter: 2: While not explicitly defined as suction or return in the specifications, a second 2-inch port (likely an additional return or perhaps a drain/fill port) offers further plumbing versatility, allowing designers to optimize flow paths and minimize turbulence.
- Salt and Sand Spreaders: Providing hydraulic power for augers, spinner motors, and various control functions for winter road maintenance.
- Dump Bodies: Supplying fluid for hydraulic cylinders that lift and lower the dump bed on municipal or construction vehicles.
- Lift Gates: Powering the hydraulic cylinders on rear-mounted lift gates for cargo loading and unloading on delivery trucks.
- Snow Plows: Supporting hydraulic circuits for blade angle, lift, and down-pressure functions.
- Small Cranes or Articulating Booms: Providing fluid for modest lifting and positioning tasks on utility service vehicles.
- Agricultural Implements: Supplying hydraulic power for functions like seeders, sprayers, or small loader attachments.
The side-mount configuration is particularly advantageous for vehicle chassis integration, allowing the reservoir to be positioned along the frame rails, minimizing interference with other vehicle systems and optimizing weight distribution.
Installation and Maintenance Best Practices
While the reservoir is designed for ease of integration, proper installation and ongoing maintenance are critical to realizing its full benefits:
- Mounting: Utilize the integral welded brackets to securely fasten the reservoir to a rigid part of the vehicle frame. Ensure adequate clearance for plumbing, maintenance access, and ventilation for heat dissipation.
- Plumbing: Use appropriately sized hydraulic hoses and fittings to connect the reservoir to the pump and return lines. Minimize bends and sharp turns to reduce pressure drops and turbulence. Ensure suction lines are airtight to prevent air ingestion.
- Initial Fill: Fill the reservoir with the recommended type and viscosity of hydraulic fluid, ensuring it is clean and free of contaminants. Fill to the appropriate level indicated by the sight gauge.
- Breather Maintenance: Periodically inspect and clean or replace the filler breather element to ensure proper tank ventilation and prevent contaminant ingress. A clogged breather can lead to vacuum formation, potentially causing pump cavitation or seal damage.
- Filter Replacement: Adhere to a regular schedule for replacing the 25-micron return filter element (or 10-micron if upgraded). The frequency will depend on system operating hours, fluid cleanliness, and environmental conditions. Monitoring filter differential pressure can indicate when a change is needed.
- Fluid Level and Temperature Checks: Regularly check the fluid level via the sight gauge and maintain it within the specified operating range. Monitor the temperature gauge to ensure the system is operating within optimal thermal limits.
- Magnetic Drain Plug Inspection: During scheduled fluid changes, remove and inspect the magnetic drain plug for accumulated ferrous particles. A significant increase in metallic debris can signal accelerated wear in a component and prompt proactive investigation.
- Fluid Analysis: For critical applications, periodic hydraulic fluid analysis can provide detailed insights into fluid degradation, wear particle analysis, and overall system health, enabling predictive maintenance.
Conclusion
The 15 Gallon Side Mount Steel Hydraulic Reservoir with 25 Micron Filter is a robust, thoughtfully engineered solution for effective hydraulic fluid management. Its combination of durable 13 Ga HRPO steel construction with a corrosion-resistant powder coat, integrated 25-micron return filtration, multi-functional filler breather, sight level/temperature gauge, internal baffle for fluid conditioning, and a magnetic drain plug, collectively ensures a reliable foundation for any hydraulic system. By optimizing fluid cleanliness, temperature, and de-aeration, this reservoir significantly contributes to extending the lifespan of hydraulic components, enhancing operational efficiency, and reducing overall maintenance costs. It is an indispensable component for demanding applications on 1-ton trucks and similar small hydraulic machinery, embodying a commitment to performance, durability, and system protection.
