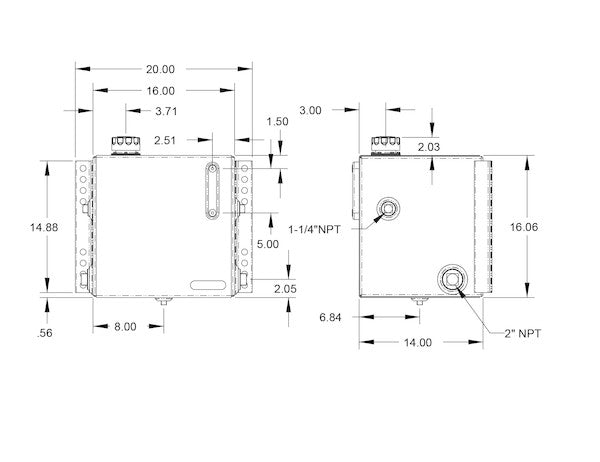

SMR15SSF25 - 15 Gallon Stainless Steel Bulkhead Hydraulic Reservoir With 25 Micron Filter

Advanced Engineering of the 15 Gallon Stainless Steel Bulkhead Hydraulic Reservoir with 25 Micron Filter

The 15 Gallon Stainless Steel Bulkhead Hydraulic Reservoir with an integrated 25 Micron Filter represents a pinnacle of fluid power component design, meticulously engineered for demanding mobile and industrial hydraulic applications. This reservoir is not merely a container for hydraulic fluid; it is a critical subsystem designed to optimize the performance, longevity, and efficiency of the entire hydraulic circuit. Constructed from premium 304 stainless steel and integrating a comprehensive suite of features for fluid conditioning and monitoring, this unit offers unparalleled reliability and resistance to the most aggressive operational environments.

At the core of this reservoir's superior performance is its material construction. Fabricated from high-quality 304 stainless steel, this unit provides exceptional resistance to corrosion, pitting, and oxidation. Unlike standard carbon steel reservoirs, 304 stainless steel, an austenitic alloy containing 18% chromium and 8% nickel, offers inherent properties that make it ideal for applications exposed to harsh weather, corrosive chemicals, and high-salinity environments, such as those encountered in winter spreader operations, marine applications, or chemical processing. The polished finish not only contributes to its aesthetic appeal but also provides an additional layer of surface passivation, further enhancing its durability and ease of cleaning. The use of 14-gauge stainless steel for the reservoir body ensures robust structural integrity, resisting physical deformation and fatigue over extended periods of operation. The mounting brackets, though specified as welded-on carbon steel, are strategically integrated to provide secure and stable side mounting, ensuring the reservoir remains firmly affixed even under dynamic loads and vibrations typical of mobile equipment.

The function of a hydraulic reservoir extends far beyond simple storage. It serves multiple vital roles in a hydraulic system: it provides a volume for fluid expansion and contraction due to temperature changes, allows for air entrainment to separate, facilitates heat dissipation, and enables the settling of solid contaminants. With a total capacity of 15 gallons and a usable capacity of 11 gallons, this reservoir is appropriately sized for a wide range of hydraulic systems, ensuring an adequate fluid reserve to prevent cavitation and accommodate system variations. The distinction between total and usable capacity is crucial, as the usable volume ensures that the pump suction line remains submerged under various operational conditions, including system retraction and fluid thermal expansion, thereby preventing air ingestion and subsequent pump damage.

One of the most critical aspects of this reservoir's design is its commitment to fluid cleanliness, highlighted by the integral 25 micron return line filter. Hydraulic fluid contamination is the leading cause of hydraulic component failure, contributing to wear, erosion, and system inefficiency. The included tank-mounted HFA5S series return filter, with its 25-micron rating, is engineered to capture particulate matter as small as 25 micrometers (µm) from the fluid returning from the system. This level of filtration is paramount for protecting sensitive components such as pumps, valves, and actuators from abrasive wear. The aluminum filter head material provides a lightweight yet durable housing for the filter element, capable of withstanding operational pressures. Positioning the filter in the return line ensures that fluid is cleaned before it re-enters the main reservoir volume, effectively reducing the overall contamination level within the system and safeguarding the pump's suction side from recirculated debris. For applications demanding even finer filtration, the option of a 10-micron filter (shipped separately) is available, offering enhanced protection for ultra-sensitive hydraulic circuits.

Further enhancing contamination control is the inclusion of a magnetic drain plug. This feature strategically positions a powerful magnet at the lowest point of the reservoir, attracting and holding ferrous metallic particles that have settled out of the hydraulic fluid. These particles, often generated from the wear of internal pump components, valves, or cylinders, are highly abrasive and can accelerate system degradation if allowed to recirculate. The magnetic drain plug acts as a secondary, passive filtration mechanism, working in conjunction with the primary micron filter to remove these harmful contaminants, thereby extending fluid life and protecting critical system components. During routine maintenance, the magnetic plug can be easily removed and cleaned, providing a direct indication of internal system wear and allowing for efficient removal of accumulated metallic debris.

Thermal management is another critical function of a well-designed hydraulic reservoir, and this unit excels in this regard through its internal baffle. The baffle strategically separates the fluid returning from the system (discharge) from the fluid being drawn by the pump (suction). This separation increases the fluid's residence time within the reservoir, allowing for more effective heat dissipation through the reservoir walls. By extending the fluid's path, the baffle also promotes the settling of solid contaminants and encourages the disengagement of entrained air bubbles. Air in hydraulic fluid can lead to cavitation, a destructive phenomenon that causes pump damage, noise, and erratic system operation. The baffle's design thus contributes significantly to both thermal stability and fluid de-aeration, ensuring a cooler, cleaner, and more stable fluid supply to the hydraulic pump.

Operational monitoring is made convenient and efficient with the integrated sight fluid level and temperature gauge. Maintaining proper fluid levels is essential to prevent pump cavitation and ensure adequate heat transfer. The sight gauge provides a clear visual indication of the fluid level, allowing operators to quickly assess the reservoir's fill status and top off as needed. Concurrently, the integrated temperature gauge allows for real-time monitoring of the hydraulic fluid's temperature. Elevated fluid temperatures can degrade hydraulic fluid properties, reduce component life, and decrease system efficiency. By providing immediate temperature feedback, this gauge enables operators to identify potential overheating issues early, prompting corrective actions before significant damage occurs. This dual-function gauge is an integral component for proactive maintenance and optimal system performance.

Fluid introduction and air exchange are managed by a quarter-turn chrome filler breather equipped with a wire basket strainer. The filler breather cap serves several purposes: it provides an easily accessible port for adding or replenishing hydraulic fluid, and its breather function allows atmospheric air to enter and exit the reservoir as fluid levels fluctuate during system operation. This prevents the formation of a vacuum or excessive pressure within the reservoir. The integrated wire basket strainer provides a coarse, initial filtration step during fluid addition, preventing larger debris or contaminants from entering the system, thereby reducing the load on the finer return line filter. The chrome finish on the filler breather enhances its resistance to environmental factors, maintaining its functionality and appearance over time.

The reservoir's porting design is engineered for straightforward system integration. It features a 2 NPT suction port, which is generously sized to minimize pressure drop and prevent cavitation at the pump inlet, even under high flow conditions. A 1 1/4 NPT additional port offers versatility for various system configurations, potentially serving as an auxiliary return, a dedicated drain port, or for the installation of additional sensing equipment. The "bulkhead" designation in the product title implies that these ports are robustly engineered for through-wall connections, providing secure and leak-free interfaces for hydraulic lines. The pre-drilled provision for the HFA5S series return filter further simplifies installation, ensuring a precise fit for the included filtration unit without requiring complex modifications.

This 15 Gallon Stainless Steel Bulkhead Hydraulic Reservoir is explicitly designed for a wide array of demanding applications. Its robust construction and corrosion-resistant properties make it an ideal choice for mobile hydraulic systems operating in harsh outdoor environments, such as construction equipment, agricultural machinery, and especially winter spreader applications where exposure to corrosive salts and extreme temperatures is commonplace. Beyond mobile use, its technical specifications and advanced fluid conditioning features also make it highly suitable for stationary industrial hydraulic power units where reliability and fluid cleanliness are paramount. The meticulous attention to detail in its design, from the choice of 304 stainless steel to the integration of a multi-stage contamination control system and comprehensive fluid monitoring capabilities, underscores its position as a premium component for any high-performance hydraulic system. This reservoir is an investment in the long-term health and efficiency of your hydraulic equipment, minimizing downtime, extending component life, and ensuring consistent operational output.
