SMR15VESS - 15 Gallon Stainless Steel Hydraulic Reservoir

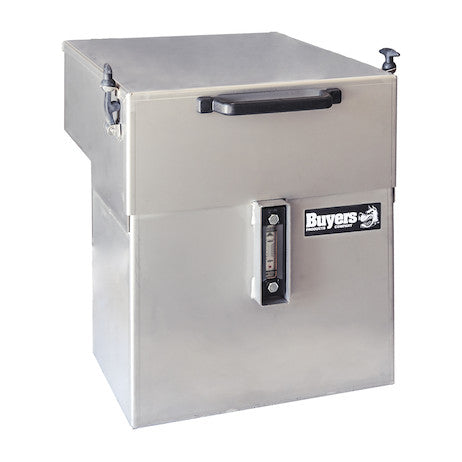

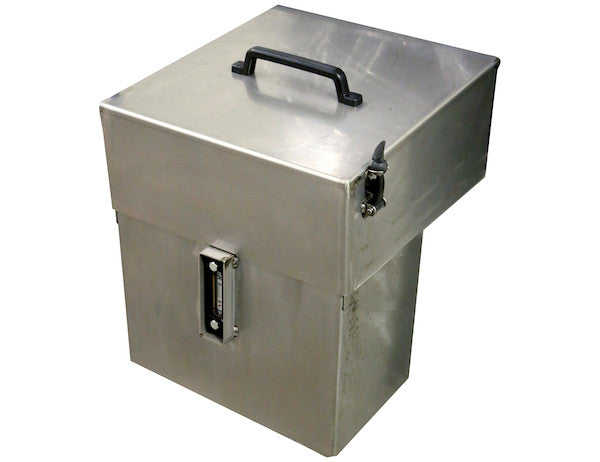

15 Gallon Stainless Steel Reservoirs with Valve Enclosure from Buyers Products includes a water-resistant stainless enclosure for the valve. This all-in-one design has a small footprint that makes it easy to remove, access, and install on a new truck. The reservoir is constructed of high-quality 10 Ga, 304 stainless steel. Its sleek, polished appearance will stand up to salt and weather for long-lasting use. It also features a tank-mounted 50 GPM return line filter, a nylon rust-free filler/breather and a fluid level and temperature sight gauge.

Specifications

The 15 Gallon Stainless Steel Hydraulic Reservoir by Buyers Products represents a pinnacle of engineering and robust design, specifically tailored for demanding mobile and industrial hydraulic applications. This sophisticated reservoir is not merely a container for hydraulic fluid; it is a meticulously designed component engineered to optimize system performance, extend fluid life, and enhance the longevity of the entire hydraulic circuit. Its comprehensive feature set, encapsulated within a durable and compact form factor, makes it an ideal choice for operations requiring uncompromising reliability and efficiency in challenging environments.

Advanced Material Science: 304 Stainless Steel Construction

At the core of this hydraulic reservoir's exceptional durability lies its construction from high-quality 304 stainless steel. The primary tank body is fabricated from 10-gauge (approximately 0.1345 inches or 3.42 mm) 304 stainless steel, a material renowned for its superior mechanical properties and environmental resistance. While certain integrated components, such as the valve enclosure, may utilize 14-gauge (approximately 0.0747 inches or 1.90 mm) stainless steel for optimal weight distribution and structural integrity where less extreme stresses are encountered, the fundamental strength of the main reservoir body ensures steadfast performance under dynamic loads and vibrations inherent in mobile hydraulic systems.

Grade 304 stainless steel is an austenitic alloy containing a minimum of 18% chromium and 8% nickel, along with minor amounts of carbon, manganese, and silicon. This specific composition confers several critical advantages:

• Exceptional Corrosion Resistance: The high chromium content forms a passive oxide layer on the surface, providing outstanding resistance to rust, oxidation, and corrosive agents, including road salts, atmospheric pollutants, and a wide range of chemicals. This characteristic is particularly vital for vehicles operating in harsh climates or industrial settings where exposure to corrosive elements is common.
• Superior Mechanical Strength: The 10-gauge thickness of the stainless steel provides substantial structural rigidity, preventing deformation or rupture under the internal pressures of the hydraulic system and external impacts. This robust construction ensures the reservoir maintains its integrity throughout its operational lifespan, even in strenuous applications.
• Temperature Stability: 304 stainless steel exhibits excellent performance across a broad range of operating temperatures, from cryogenic to elevated heat conditions, without significant degradation in mechanical properties. This ensures the reservoir's structural stability regardless of hydraulic fluid temperature fluctuations.
• Hygienic Properties: Its non-porous surface makes it easy to clean and resistant to microbial growth, which can be an advantage in certain applications requiring stringent cleanliness, although the primary benefit in hydraulic systems is the prevention of internal surface corrosion and scale buildup.
• Aesthetic Longevity: The natural, smooth, and polished finish of 304 stainless steel maintains its sleek appearance over time, resisting dulling, staining, and pitting. This ensures a professional and well-maintained look for equipment, contributing to perceived quality and value.

Integrated Valve Enclosure: Protection and Efficiency

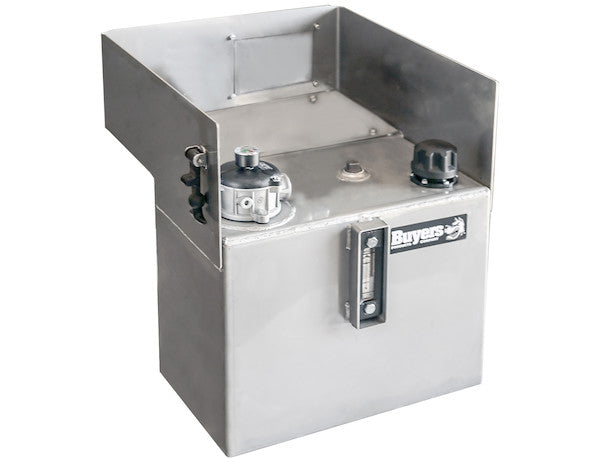

A distinctive feature of this 15-gallon reservoir is its seamlessly integrated, water-resistant stainless steel enclosure for hydraulic valves. This innovative "all-in-one" design offers several operational and maintenance advantages:

• Environmental Protection: The enclosure safeguards critical hydraulic valves from adverse external conditions, including moisture, dust, dirt, road debris, and corrosive elements. This protection minimizes wear, prevents contamination ingress into sensitive valve components, and significantly extends the operational life of the valves, thereby reducing costly repairs and downtime.
• Reduced Footprint and Streamlined Installation: By integrating the valve housing directly into the reservoir's architecture, the overall system footprint is minimized. This compact design is particularly beneficial for mobile applications where mounting space is often at a premium. The integrated nature also simplifies the plumbing and wiring of the hydraulic circuit, leading to faster, more efficient installation processes.
• Enhanced Accessibility and Maintenance: Despite its integrated nature, the design prioritizes ease of access. The strategic placement and design of the enclosure allow for convenient inspection, maintenance, and replacement of valves without requiring extensive disassembly of surrounding components. This translates to reduced service times and improved operational availability.
• Aesthetic Integration: The stainless steel enclosure contributes to the reservoir's overall sleek and polished appearance, ensuring a cohesive and professional look for the hydraulic system.

Advanced Fluid Management and Filtration System

The integrity and performance of a hydraulic system are profoundly dependent on the cleanliness and condition of the hydraulic fluid. This reservoir incorporates critical components designed for superior fluid management and contamination control:

• Tank-Mounted 50 GPM Return Line Filter: Hydraulic fluid is continuously circulated through the system, and during this process, it picks up wear particles, environmental contaminants, and oxidation byproducts. The integrated 50 gallons per minute (GPM) return line filter is a vital component for maintaining fluid purity. Positioned on the return line, it captures contaminants before the fluid re-enters the reservoir, thus preventing their recirculation through the pump and other sensitive components. The aluminum filter head ensures durability and resistance to hydraulic pressures.

  Key benefits of the 50 GPM return line filter include:

  • Contamination Control: Effectively removes particulate matter, reducing abrasive wear on pumps, valves, and cylinders. This is crucial for maintaining the precise tolerances within these components.
  • Extended Fluid Life: By keeping the fluid clean, the filter prevents premature degradation of the hydraulic oil, extending its service interval and reducing fluid replacement costs.
  • System Longevity: Clean fluid directly correlates with a longer operational life for the entire hydraulic system, minimizing failures and maximizing uptime.
  • Optimized Performance: Prevents blockages and ensures smooth operation of hydraulic components, maintaining system efficiency and responsiveness.
• Nylon Rust-Free Filler/Breather: The filler/breather assembly serves a dual purpose: it allows for the introduction of new hydraulic fluid into the reservoir and facilitates the exchange of air as the fluid level fluctuates during system operation. The use of nylon for this component offers distinct advantages:
  • Contamination Prevention: Equipped with an air filter, the breather prevents airborne particulates from entering the reservoir, a common source of contamination in hydraulic systems.
  • Moisture Management: Helps to mitigate moisture ingress, which can lead to water contamination, fluid degradation, and corrosion within the system.
  • Rust-Free Operation: Being constructed from nylon, the filler/breather is inherently resistant to rust and corrosion, ensuring long-term reliability even in humid or aggressive environments.
  • Pressure Equalization: Allows the reservoir to breathe, preventing the buildup of vacuum or excessive pressure, which can negatively impact pump performance and seal integrity.
• Fluid Level and Temperature Sight Gauge: Real-time monitoring of hydraulic fluid condition is paramount for proactive maintenance and operational safety. This reservoir includes an integral sight gauge that provides immediate visual feedback on both fluid level and temperature.
  • Fluid Level Monitoring: Maintaining the correct fluid level is critical to prevent cavitation in the pump (due to low fluid) or overflow (due to overfilling or thermal expansion). The sight gauge enables operators to quickly ascertain if the fluid level is within the optimal operating range, indicated by clear markings.
  • Temperature Monitoring: Hydraulic fluid temperature is a direct indicator of system health. Excessive temperatures accelerate fluid degradation, reduce viscosity, and can damage seals and other components. The integrated temperature gauge allows operators to monitor for overheating conditions, enabling timely intervention to prevent system damage or fluid breakdown.
  • Preventive Maintenance: Together, these gauges provide essential data for scheduled maintenance checks, helping to identify potential issues before they escalate into costly failures.

Optimized Design for Installation and Serviceability

The engineering philosophy behind this 15-gallon stainless steel reservoir extends to its practical application, focusing on ease of integration and long-term serviceability:

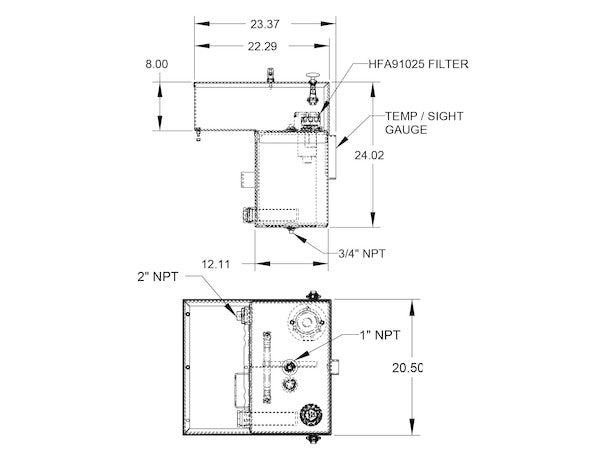

• Compact Footprint: The intelligent "all-in-one" design, which integrates the valve enclosure, minimizes the overall space requirement for the hydraulic system. This compact form factor (Depth: 22.5 inches, Height: 24.0 inches, Width: 20.50 inches) is a significant advantage for side-mount applications on trucks and other mobile equipment where mounting space is often severely constrained.
• Easy Removal, Access, and Installation: The thoughtful design ensures that the reservoir can be easily removed, accessed for maintenance, and installed on new or existing trucks. This modularity reduces labor time and costs associated with system setup and component replacement. The inclusion of integral brackets simplifies mounting procedures, providing a secure and stable attachment point for side-mount configurations.
• Strategic Port Configuration: The reservoir features a well-considered array of port sizes to accommodate various hydraulic system requirements.
  • Suction Port: A 2 NPT suction port ensures adequate flow capacity to the hydraulic pump, minimizing the risk of cavitation and ensuring efficient fluid intake even under high demand.
  • Additional Ports: Multiple auxiliary ports (1 1/4 NPT, 1 NPT, 3/4 NPT) offer flexibility for connecting return lines, drain lines, or ancillary hydraulic circuits, simplifying plumbing and customization for diverse applications.
• Usable Capacity: With a total capacity of 15 gallons and a usable capacity of 11 gallons, the reservoir is sized to provide sufficient fluid volume for heat dissipation and de-aeration, crucial factors for maintaining fluid stability and system performance. The difference between total and usable capacity accounts for factors like expansion space and sediment collection.

Applications and Operational Excellence

This 15 Gallon Stainless Steel Hydraulic Reservoir is engineered to excel in a wide array of demanding hydraulic applications where durability, reliability, and efficient fluid management are paramount. Typical applications include:

• Commercial Trucking: Powering hydraulic systems on dump trucks, refuse vehicles, snowplows, and other vocational trucks that experience harsh operating conditions.
• Construction Equipment: Used in loaders, excavators, and other machinery requiring robust hydraulic power.
• Agricultural Machinery: Providing reliable hydraulic fluid storage for tractors, harvesters, and implements operating in varied environmental conditions.
• Industrial Power Units: Serving stationary hydraulic power units in manufacturing plants, material handling systems, and processing facilities where system integrity and longevity are critical.

Its natural, smooth finish not only contributes to its aesthetic appeal but also simplifies external cleaning and inspection, promoting overall system hygiene and quick identification of potential issues. The robust 10 Ga 304 stainless steel construction, combined with the comprehensive fluid management features, ensures a lower total cost of ownership by reducing maintenance frequency, extending component lifespans, and minimizing unscheduled downtime.

Conclusion

The Buyers Products 15 Gallon Stainless Steel Hydraulic Reservoir stands as a testament to engineering excellence, offering a superior solution for critical hydraulic fluid storage and management. Its construction from heavy-gauge 304 stainless steel provides unparalleled corrosion resistance and structural integrity. The integrated valve enclosure protects vital components, while the high-capacity return line filter, rust-free filler/breather, and real-time level and temperature gauges ensure optimal fluid condition and proactive system monitoring. Designed for compact installation, ease of access, and long-lasting performance, this reservoir is an investment in the reliability, efficiency, and longevity of any demanding hydraulic system. It represents a commitment to maximizing operational uptime and minimizing maintenance expenditures across a broad spectrum of heavy-duty applications.
