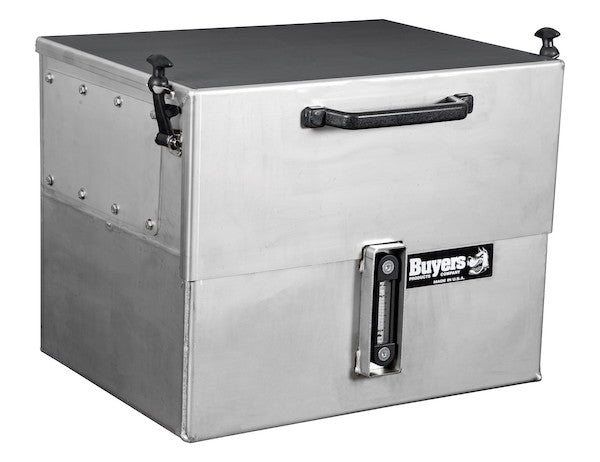

15 Gallon Stainless Steel Reservoirs with Valve Enclosure from Buyers Products includes a water-resistant stainless enclosure for the valve. This all-in-one design has a small footprint that makes it easy to remove, access, and install on a new truck. The reservoir is constructed of high-quality 10 Ga, 304 stainless steel. Its sleek, polished appearance will stand up to salt and weather for long-lasting use. It also features a tank-mounted 50 GPM return line filter, a nylon rust-free filler/breather and a fluid level and temperature sight gauge.
Specifications
| Additional Port Size | 3/4 NPT; 1 NPT; 1 1/4 NPT |
|---|---|
| Capacity | 15 |
| Color | Natural |
| Depth | 17.75 |
| Diffuser Included (y/n) | No |
| Finish | Smooth |
| Hardware and Brackets Included (y/n) | No |
| Height | 19 |
| Included Valve (y/n) | No |
| Integral Brackets (y/n) | Yes |
| Integral Level Gauge (y/n) | Yes |
| Material | Stainless Steel |
| Material Gauge | 14 |
| Mount Position | Side Mount |
| Oil Level Gauge (y/n) | Yes |
| Reservoir Shape | Rectangle |
| Return Line Filter Included (y/n) | Yes |
| Suction Port Size | 2 NPT |
| Temperature Gauge (y/n) | Yes |
| Usable Capacity | 11 |
| Width | 24.25 |
Advanced Hydraulic System Integration with the 15 Gallon Stainless Steel Hydraulic Reservoir - Compact Version
The 15 Gallon Stainless Steel Hydraulic Reservoir - Compact Version represents a pinnacle of engineering for demanding mobile and industrial hydraulic applications. Designed by Buyers Products, this unit is more than just a fluid storage tank; it is a meticulously engineered component that contributes significantly to the longevity, efficiency, and reliability of an entire hydraulic system. Its compact design, superior material construction, and integrated features make it an indispensable choice for professionals seeking uncompromised performance in challenging environments.
Unparalleled Material Integrity: 304 Stainless Steel Construction
At the core of this hydraulic reservoir's exceptional performance and durability lies its construction from high-quality 304 stainless steel. This austenitic stainless steel grade is renowned for its outstanding corrosion resistance, particularly against atmospheric exposure, freshwater, and various chemicals. For hydraulic systems operating in outdoor or harsh conditions, such as those found on municipal trucks, construction equipment, or agricultural machinery, resistance to road salts, industrial chemicals, and corrosive contaminants is paramount. The 304 stainless steel material ensures the integrity of the reservoir walls, preventing rust, pitting, and material degradation that could compromise the hydraulic fluid or structural stability over time.
The material gauge, specified at 14, provides an optimal balance between structural rigidity and manufacturing feasibility. While the initial description mentioned 10 Ga, the 14-gauge stainless steel still offers substantial mechanical strength, ensuring the reservoir can withstand the stresses of dynamic fluid loads, external impacts, and vibrational forces inherent in mobile applications. Its inherent strength prevents deformation and maintains the critical internal volume and port alignments. Furthermore, the smooth, polished finish of the stainless steel not only contributes to a superior aesthetic appearance but also facilitates easier cleaning and inspection, promoting better maintenance practices and preventing the accumulation of dirt and corrosive agents on the exterior surfaces.
The choice of 304 stainless steel also inherently contributes to thermal management. While not its primary function, the metallic properties of stainless steel allow for a certain degree of heat dissipation from the hydraulic fluid to the ambient environment. This passive cooling effect, combined with the overall design, aids in maintaining optimal operating temperatures for the hydraulic oil, which is critical for preserving fluid viscosity and preventing thermal degradation of seals and other system components.
Intelligent Design for Space-Constrained Applications: The Compact Advantage

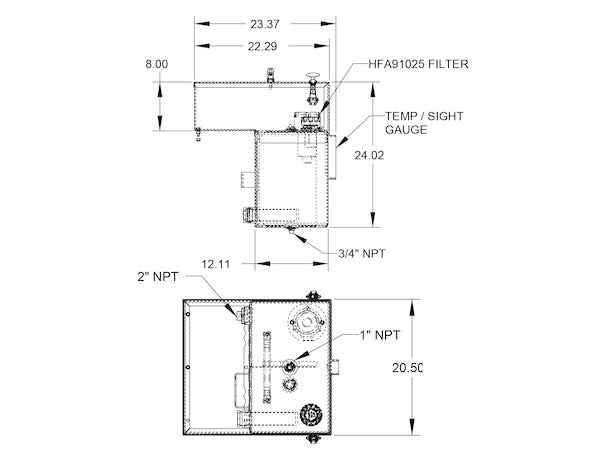

The "Compact Version" designation is a fundamental aspect of this reservoir's design philosophy. With nominal dimensions of 24.25 inches in width, 17.75 inches in depth, and 19 inches in height, this 15-gallon unit is engineered for efficient space utilization. In mobile equipment, where mounting real estate is often severely limited, a compact footprint is a significant advantage. The integrated side mount position and integral brackets simplify the installation process, allowing for secure attachment to vehicle chassis or equipment frames without requiring extensive custom fabrication of mounting hardware.
This all-in-one design streamlines integration into existing hydraulic systems, reducing installation time and complexity. The ability to easily remove, access, and install the reservoir on a new or existing truck minimizes downtime for maintenance or system upgrades. Such modularity enhances fleet management capabilities, allowing for quicker turnaround times for vehicle outfitting and repairs. The compact form factor does not compromise on essential functionality but rather optimizes the spatial relationship of critical components, making it an ideal solution for applications requiring high performance within restricted physical envelopes.
Integrated Valve Enclosure: Protection and Modularity

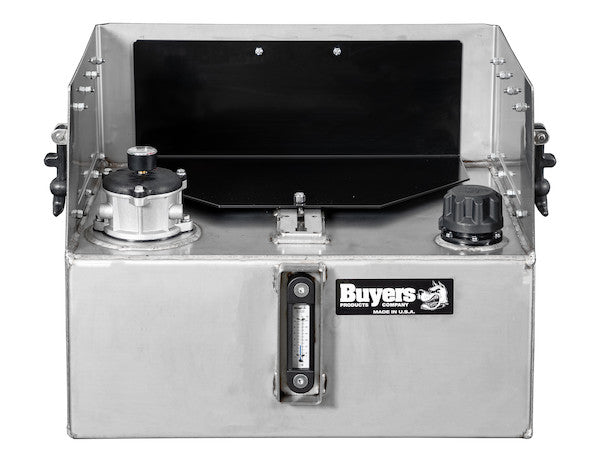

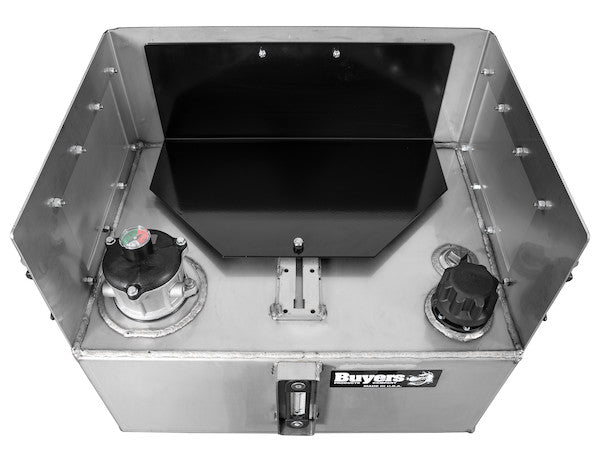

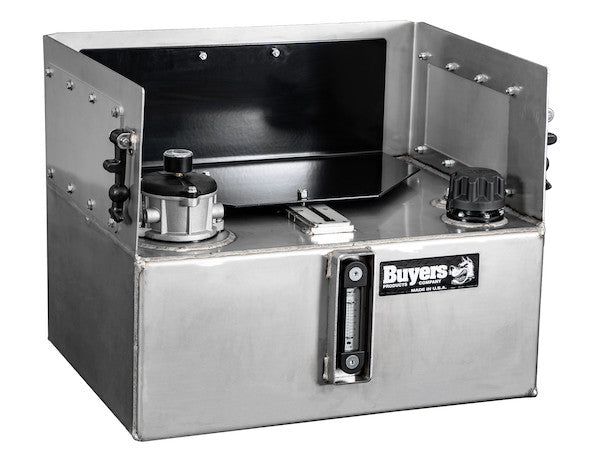

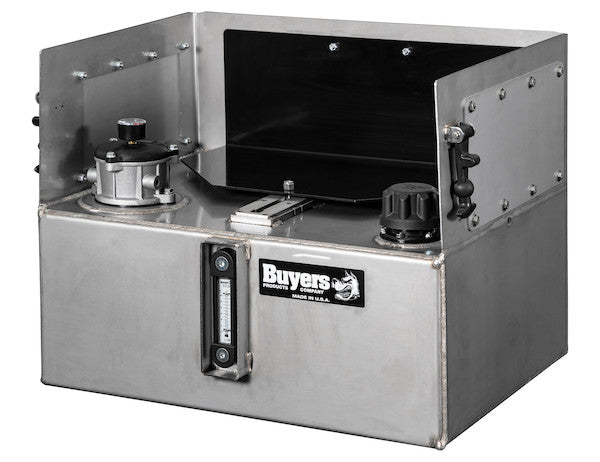

A distinctive feature of this hydraulic reservoir is its integrated, water-resistant stainless steel enclosure specifically designed for hydraulic control valves. This enclosure provides critical protection for the valve assembly from environmental hazards such as dirt, debris, moisture, road spray, and corrosive agents. In mobile applications, where valves are constantly exposed to the elements, this protective housing significantly extends the operational life of sensitive hydraulic components, reducing the likelihood of premature failure due to contamination or mechanical damage.
The integration of the valve enclosure into the reservoir's design represents a holistic approach to hydraulic system architecture. By incorporating this feature, the overall system gains a cleaner, more organized appearance, and reduces the need for external, often cumbersome, protective solutions. This integrated approach not only safeguards the valve but also minimizes potential leak points and simplifies plumbing, contributing to a more reliable and easier-to-maintain hydraulic circuit. The stainless steel construction of the enclosure perfectly matches the reservoir, ensuring consistent aesthetic quality and uniform resistance to environmental stressors.
Comprehensive Fluid Management and Contamination Control
The health and longevity of any hydraulic system are directly proportional to the quality and cleanliness of its hydraulic fluid. This 15 Gallon Stainless Steel Hydraulic Reservoir is equipped with several features aimed at superior fluid management and contamination control.
Return Line Filtration: 50 GPM Tank-Mounted Filter
A critical component for maintaining fluid cleanliness is the tank-mounted 50 GPM (gallons per minute) return line filter. This high-capacity filter is strategically positioned to capture contaminants as hydraulic fluid returns from the system's actuators and other components before it re-enters the main reservoir for recirculation. A 50 GPM flow rate ensures efficient filtration even under high flow conditions, crucial for preventing particulate matter, wear debris, and other contaminants from circulating throughout the system.
Effective filtration at the return line protects the hydraulic pump and other sensitive components downstream from abrasive wear, premature failure, and reduced efficiency. By removing contaminants, the filter contributes to extended fluid life, reduced maintenance intervals, and ultimately, a lower total cost of ownership for the hydraulic system. The inclusion of this filter as a standard, integrated feature underscores the commitment to optimizing hydraulic system performance and reliability.
Nylon Rust-Free Filler/Breather Assembly
The reservoir incorporates a rust-free filler/breather assembly, constructed from durable nylon. The filler cap provides a convenient access point for adding hydraulic fluid, while the integrated breather element is crucial for maintaining proper atmospheric pressure within the reservoir. As fluid levels fluctuate during system operation, air must enter and exit the reservoir. The breather filters this incoming air, preventing airborne particulate matter and moisture from entering the hydraulic fluid. This is vital because even microscopic particles can cause significant wear in pumps, valves, and cylinders, while moisture can lead to corrosion and fluid degradation.
The nylon construction of the filler/breather ensures resistance to corrosion, a common issue with metallic breathers in humid or saline environments. Its robust design provides long-lasting service, contributing to the overall cleanliness and integrity of the hydraulic fluid over the lifetime of the system.
Fluid Conditioning and De-aeration Considerations
While the specification notes that a diffuser is not included, the rectangular shape and internal design of the reservoir still play a role in promoting de-aeration and contaminant settlement. The volume of the 15-gallon tank (with 11 gallons usable capacity) provides sufficient residence time for the hydraulic fluid to allow entrained air to escape and heavier particulate matter to settle at the bottom, away from the suction line. Proper de-aeration prevents cavitation in the pump, reduces noise, and maintains fluid compressibility, which is essential for precise system control. The design considers the need to minimize turbulence and provide a relatively calm environment for effective fluid conditioning, even within a compact footprint.
Advanced Monitoring for Operational Excellence
To facilitate proactive maintenance and ensure optimal operating conditions, this hydraulic reservoir integrates essential monitoring tools:
Fluid Level and Temperature Sight Gauge
An integral fluid level and temperature sight gauge provides operators and maintenance personnel with immediate visual feedback on two critical parameters of the hydraulic fluid. The fluid level gauge allows for quick checks of the hydraulic oil volume, ensuring it remains within the manufacturer's recommended operating range. Maintaining correct fluid levels is crucial to prevent pump cavitation (due to low fluid) or overflow (due to overfilling or thermal expansion). The usable capacity of 11 gallons indicates the operational range for optimal performance, allowing for thermal expansion and proper air gap.
Simultaneously, the integrated temperature gauge monitors the hydraulic fluid's thermal state. Elevated fluid temperatures can lead to accelerated fluid degradation, reduced viscosity (impacting lubrication and efficiency), and damage to seals and other components. By providing real-time temperature readings, the gauge enables operators to identify potential overheating issues early, prompting corrective actions before significant damage occurs. This dual-purpose gauge is strategically located for easy visibility, empowering operators with the information needed for safe and efficient system operation.
Optimized Port Configuration for Seamless System Integration
The reservoir is equipped with a comprehensive array of ports, designed for maximum compatibility and ease of integration into diverse hydraulic circuits.
- Suction Port: A generous 2 NPT suction port ensures an unrestricted flow of hydraulic fluid to the pump. Proper sizing of the suction line is critical to prevent cavitation, which can severely damage the pump and introduce air into the system. The 2 NPT size supports a wide range of pump flow requirements for the 15-gallon capacity.
- Additional Port Sizes: Multiple additional NPT ports – 3/4 NPT, 1 NPT, and 1 1/4 NPT – offer versatile connection points for return lines, drain lines, auxiliary circuits, or sensor installations. This flexibility allows system designers to configure the hydraulic circuit efficiently, without the need for extensive custom manifolding or adapters.
The strategic placement and sizing of these ports contribute to efficient fluid dynamics within the reservoir, minimizing turbulence and promoting effective fluid conditioning before the oil is recirculated through the system.
Robustness and Longevity in Challenging Environments
The design and material selection for this 15 Gallon Stainless Steel Hydraulic Reservoir are geared towards exceptional robustness and extended service life, particularly in environments where standard steel reservoirs would rapidly deteriorate.
The 304 stainless steel construction, combined with the smooth finish, provides outstanding resistance to salt, chemicals, and varying weather conditions. This makes it an ideal choice for vehicles operating in coastal regions, areas with heavy road salt application, or industrial settings exposed to corrosive fumes. Unlike painted steel reservoirs that can chip, scratch, and eventually rust, the inherent corrosion resistance of stainless steel ensures that its protective properties are maintained even if the surface is abraded.
Integral brackets provide a secure and stable mounting solution, capable of withstanding the vibrations and dynamic loads typical of mobile applications. The overall robust construction minimizes the risk of fatigue failures, cracking, or leakage over time, ensuring the reservoir remains a reliable component throughout its operational lifespan. This commitment to durability translates directly into reduced replacement costs and higher operational uptime for the equipment.
Installation, Maintenance, and Usability
Beyond its technical specifications, the design emphasizes practical considerations for installation and long-term maintenance. The compact dimensions (Width 24.25", Depth 17.75", Height 19") coupled with integral brackets facilitate straightforward side mounting on various vehicle chassis or equipment frames. The all-in-one approach, integrating the valve enclosure and key monitoring features, simplifies plumbing and wiring during initial setup.
Maintenance is made easier by the easy accessibility of the tank-mounted return line filter and the filler/breather assembly, allowing for routine filter element changes and fluid top-offs. The clear sight gauge for fluid level and temperature enables quick visual inspections, reducing the need for intrusive diagnostic tools for basic checks. The smooth finish of the stainless steel exterior also simplifies cleaning, ensuring the reservoir maintains its professional appearance and allowing for easier detection of potential issues like external leaks.
The absence of an included valve or additional hardware/brackets (beyond the integral ones) provides flexibility for system integrators. This allows customers to select specific hydraulic valves and external mounting hardware (if desired for specific installations) that best suit their unique application requirements, while still benefiting from the reservoir's integrated protection and features.
Conclusion: A Strategic Investment for Hydraulic System Performance
The 15 Gallon Stainless Steel Hydraulic Reservoir - Compact Version from Buyers Products is an advanced, technically superior solution for hydraulic fluid storage and conditioning. Its deliberate engineering focuses on leveraging the exceptional properties of 304 stainless steel, a compact and integrated design, and essential fluid management and monitoring features. From its robust construction designed to withstand corrosive environments and dynamic stresses, to its sophisticated filtration and intelligent monitoring capabilities, every aspect of this reservoir is optimized for enhancing the reliability, efficiency, and longevity of the hydraulic systems it supports.
For professionals in industries requiring durable, high-performance hydraulic components – including but not limited to trucking, construction, waste management, and agriculture – this reservoir represents a strategic investment. It not only fulfills the fundamental requirements of a hydraulic tank but elevates the standard through its meticulous attention to material science, system integration, and proactive maintenance facilitation. Choosing this compact stainless steel reservoir means opting for a component that contributes significantly to the overall operational excellence and extended service life of your valuable hydraulic equipment.
