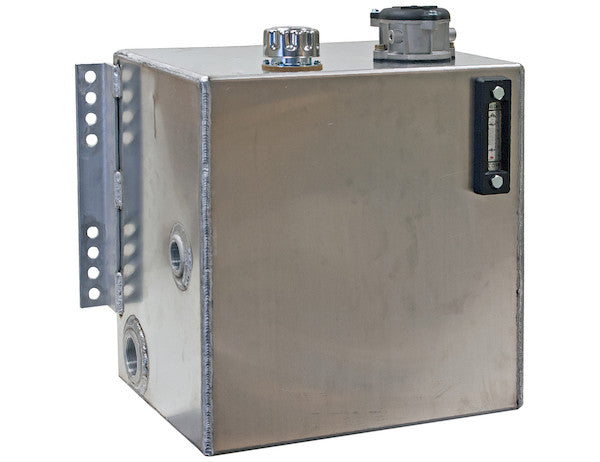

The 25 Gallon Side Mount Aluminum Reservoir with Micron Filter from Buyers Products features .125 thick aluminum construction to resist corrosion and provide good heat dissipation, and an integral welded-on aluminum bracket for mounting to the truck frame. Lightweight and high quality, it's ideal for running small applications such as landscaping or smaller city plows. The reservoir has several features for optimal fluid operation, including: - a quarter-turn chrome filler breather with a wire basket strainer - a sight fluid level and temperature gauge - an interior baffle between suction and discharge to aid in fluid cooling - a magnetic drain plug to aid in preventing metallic particle contamination The reservoir comes pre-drilled for an included tank-mounted HFA5S series return filter. Choose from a 10 or 25 micron filter (shipped separately). It comes fully tested.
Specifications
| Additional Port Size | 1 1/4 NPT |
|---|---|
| Capacity | 25 |
| Color | Silver |
| Depth | 15.04 |
| Diffuser Included (y/n) | No |
| Filter Head Material_1 | Aluminum |
| Finish | Smooth |
| Hardware and Brackets Included (y/n) | No |
| Height | 20.15 |
| Included Valve (y/n) | No |
| Integral Brackets (y/n) | Yes |
| Integral Level Gauge (y/n) | Yes |
| Magnetic Drain Plug (y/n) | Yes |
| Material | Aluminum |
| Material Gauge | 8 |
| Mount Position | Side Mount |
| Mount Style | Side |
| Oil Level Gauge (y/n) | Yes |
| Reservoir Shape | Rectangle |
| Return Line Filter Included (y/n) | Yes |
| Return Line Filter Rating | 10 |
| Style 1 Port Diameter | 2 |
| Style 2 Port Diameter | 1-1/4 |
| Suction Port Size | 2 NPT |
| Temperature Gauge (y/n) | Yes |
| Usable Capacity | 25 |
| Width | 24.00 |
The 25 Gallon Side Mount Aluminum Hydraulic Reservoir with 10 Micron Filter represents a pinnacle of fluid storage and conditioning technology, meticulously engineered for mobile hydraulic applications demanding reliability, efficiency, and prolonged system longevity. Designed for robust performance, this unit integrates a suite of advanced features to optimize hydraulic fluid integrity and operational parameters, making it an indispensable component for a wide array of industrial and commercial vehicles.
At its core, a hydraulic reservoir serves as the central hub for the hydraulic fluid, performing multiple critical functions beyond mere storage. It facilitates heat dissipation, allowing the fluid to cool down after circulating through the system, thereby preventing thermal degradation. It also provides a crucial quiescent zone for air to separate from the fluid, preventing cavitation and spongy system responses, and for solid contaminants to settle out before reaching sensitive components. The 25-gallon usable capacity of this reservoir is thoughtfully selected to provide sufficient fluid volume for heat exchange and de-aeration, ensuring a stable operating environment for hydraulic pumps, valves, and actuators.
Advanced Aluminum Construction for Superior Performance
The reservoir's construction from .125 inch (approximately 8 gauge) thick aluminum is a deliberate engineering choice, offering significant advantages over traditional steel alternatives. Aluminum, known for its high strength-to-weight ratio, contributes to a lighter overall vehicle weight, which can translate to improved fuel efficiency and increased payload capacity—critical considerations for mobile equipment. Furthermore, aluminum exhibits exceptional inherent corrosion resistance due to the formation of a passive oxide layer on its surface, greatly extending the service life of the reservoir, particularly in harsh operating environments exposed to road salts, moisture, and various industrial chemicals. This robust resistance minimizes the risk of internal corrosion contaminating the hydraulic fluid, a common cause of system failures. Beyond its corrosion-resistant properties, aluminum boasts superior thermal conductivity compared to steel. This characteristic is paramount for effective heat dissipation, allowing the hydraulic fluid to shed heat more efficiently into the ambient air, maintaining optimal operating temperatures and mitigating the risk of fluid breakdown and component damage. The integral welded-on aluminum bracket further enhances structural integrity and simplifies installation by providing a secure, dedicated mounting point directly to the vehicle's frame, ensuring stability and vibration resistance during operation. The smooth finish not only contributes to the aesthetic appeal but also simplifies cleaning and maintenance.
Integrated Filtration for Uncompromised Fluid Cleanliness
The inclusion of a 10-micron return line filter is a cornerstone of this reservoir's design, emphasizing proactive fluid contamination control. In hydraulic systems, microscopic particulate contamination is the leading cause of wear and premature failure of components such as pumps, valves, and cylinders. A 10-micron filter element effectively captures particles down to 10 micrometers in size, a critical threshold for protecting precision hydraulic components. For context, the human eye can typically only perceive particles larger than 40 microns. This level of filtration ensures that fluid returning from the system's actuators and other components is thoroughly cleaned before re-entering the main fluid stream for recirculation, thereby significantly improving the overall ISO fluid cleanliness code. The pre-drilled port for the HFA5S series return filter simplifies the integration of this essential component, ensuring optimal placement for effective contaminant removal. While the choice between a 10 or 25 micron filter is offered (shipped separately), the inherent design supports robust filtration standards, allowing operators to tailor the cleanliness level to their specific application and component sensitivity requirements. Implementing such high-efficiency filtration directly within the reservoir reduces the likelihood of abrasive wear, prolongs the lifespan of costly hydraulic components, minimizes unscheduled downtime, and ultimately reduces operational costs associated with repairs and fluid replacement.
Comprehensive Fluid Management Features
Beyond filtration, this reservoir integrates several other sophisticated features designed to ensure optimal fluid condition and system performance:
- Quarter-Turn Chrome Filler Breather with Wire Basket Strainer: The filler breather performs a dual function. Firstly, it provides a convenient access point for adding new hydraulic fluid, and the quarter-turn design ensures quick and secure sealing. Secondly, it allows the reservoir to "breathe," equalizing internal and external atmospheric pressure during fluid level fluctuations (as cylinders extend and retract) while preventing the ingress of airborne contaminants like dust, moisture, and debris. The integrated wire basket strainer acts as a preliminary filter, capturing larger particles during fluid addition, preventing them from entering the reservoir and overloading the main return line filter. The chrome finish enhances durability and aesthetic appeal.
- Sight Fluid Level and Temperature Gauge: This combined gauge provides critical real-time operational data. The sight glass allows for immediate visual verification of the hydraulic fluid level, preventing costly errors associated with under-filling (leading to cavitation and pump damage) or over-filling (which can lead to leaks and overheating). The integrated temperature gauge monitors the fluid's thermal state, enabling operators to identify potential overheating issues before they cause fluid degradation or component failure. Maintaining fluid within its optimal temperature range is crucial for preserving its viscosity, lubrication properties, and overall efficacy.
-
Interior Baffle between Suction and Discharge: The strategically placed interior baffle is an often-underestimated yet vital component of reservoir design. Its primary role is to separate the incoming return fluid (discharge) from the outgoing fluid being drawn by the pump (suction). This separation increases the fluid's residence time within the reservoir, providing ample opportunity for several critical processes:
- Heat Dissipation: The extended path encourages greater exposure to the reservoir walls, enhancing convective heat transfer to the ambient environment.
- De-aeration: It allows trapped air bubbles, which are common in hydraulic systems, to rise to the surface and escape, preventing cavitation in the pump and maintaining fluid compressibility.
- Contaminant Settling: The reduced turbulence in segregated chambers allows heavier particulate contaminants to settle to the bottom, where they can be captured by the magnetic drain plug or simply remain out of the main fluid flow.
- Magnetic Drain Plug: Positioned at the lowest point of the reservoir, the magnetic drain plug serves as an additional layer of protection against metallic contamination. As hydraulic systems operate, microscopic metallic particles are inevitably generated through wear of internal components (pumps, motors, cylinders). The powerful magnet embedded within the drain plug attracts and holds these ferrous particles, preventing them from recirculating and causing further abrasive wear. This feature not only enhances fluid cleanliness but also provides a valuable diagnostic tool, as accumulated particles can indicate the health and wear patterns of the system's components during routine maintenance.
Optimized Port Configuration for Versatile Integration
The reservoir features a well-considered port configuration to facilitate seamless integration into various hydraulic systems. A 2 NPT (National Pipe Taper) suction port is provided, engineered to accommodate the flow requirements of hydraulic pumps typically associated with a 25-gallon system capacity, minimizing pressure drop and preventing cavitation at the pump inlet. Additionally, a 1 1/4 NPT port is included, offering versatility for return lines, auxiliary circuits, or other system connections. This design ensures that the reservoir can interface effectively with a broad range of hydraulic components and system architectures, enhancing its adaptability for diverse mobile equipment applications.
Application Suitability and Operational Benefits

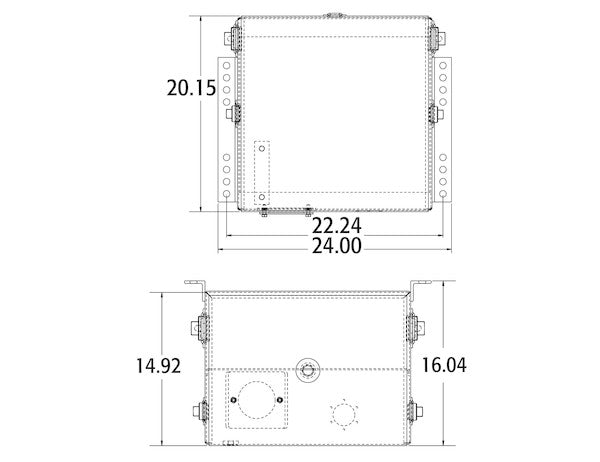

With its 25-gallon capacity and robust feature set, this side-mount aluminum hydraulic reservoir is ideally suited for small to medium-sized mobile hydraulic applications. Its lightweight design and compact dimensions (Depth: 15.04", Height: 20.15", Width: 24.00") make it particularly well-suited for vehicle installations where space and weight are critical considerations, such as landscaping equipment, smaller municipal plows, tow trucks, utility vehicles, and various agricultural implements. The side-mount style with integral brackets simplifies mounting to truck frames, ensuring a secure and stable installation that withstands the dynamic forces encountered in mobile operations. The pre-tested nature of the product further assures reliability and immediate operational readiness upon installation.
The collective benefits of these meticulously engineered features translate directly into tangible operational advantages for the end-user:
- Extended Component Life: Superior fluid cleanliness and stable operating temperatures dramatically reduce wear and tear on pumps, motors, valves, and cylinders.
- Reduced Maintenance Costs: Fewer component failures mean less downtime, lower repair expenses, and extended intervals for fluid changes.
- Enhanced System Efficiency: Proper de-aeration prevents cavitation, ensuring consistent pump performance and responsive control. Optimal fluid temperatures maintain viscosity, leading to efficient power transfer.
- Improved Reliability: Robust aluminum construction and comprehensive contamination control contribute to a more dependable hydraulic system, critical for demanding applications.
- Compliance and Safety: By helping maintain fluid within recommended parameters, the reservoir contributes to overall system safety and adherence to operational guidelines.
In conclusion, the 25 Gallon Side Mount Aluminum Hydraulic Reservoir with 10 Micron Filter is more than just a fluid storage unit; it is a meticulously engineered hydraulic system component designed to be a cornerstone of mobile equipment reliability. Through its advanced aluminum construction, integrated 10-micron filtration system, and comprehensive suite of fluid conditioning features—including a high-quality filler breather, sight level/temperature gauge, internal baffle, and magnetic drain plug—it ensures optimal hydraulic fluid health. This robust and efficient reservoir is poised to deliver exceptional performance, extend the operational life of hydraulic systems, and provide significant long-term value in demanding commercial and industrial applications.
