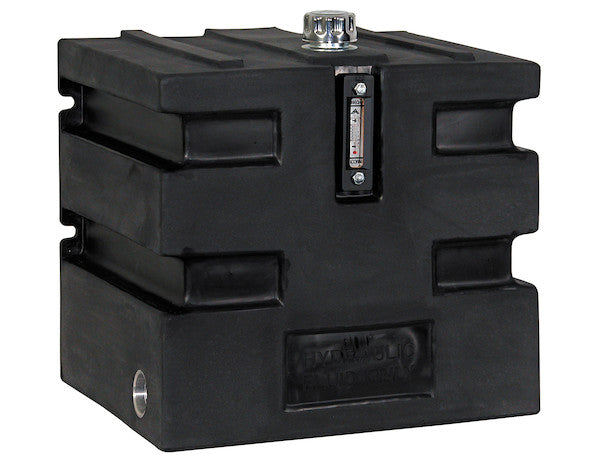

The 25 Gallon Side Mount Polymer Reservoir from Buyers Products is made of durable, rustproof polymer. Its .375 in. minimum thickness heavy duty polymer is great for any short-cycle use such as dump applications. It features a quarter-turn 40 micron chrome filter cap and a sight fluid level and thermometer gauge. The reservoir easily adapts to two or three lines for most dump trailer applications. Mounting hardware and brackets are included.
Specifications
| Additional Port Size | 2 NPT |
|---|---|
| Capacity | 25 |
| Color | Black |
| Depth | 18.50 |
| Filter Head Material_1 | Aluminum |
| Finish | Bead Blasted |
| Hardware and Brackets Included (y/n) | Yes |
| Height | 21.8 |
| Included Valve (y/n) | No |
| Integral Brackets (y/n) | Yes |
| Integral Level Gauge (y/n) | Yes |
| Material | Polyethylene |
| Material Gauge | 37 |
| Mount Position | Side Mount |
| Mount Style | Side |
| Oil Level Gauge (y/n) | Yes |
| Reservoir Shape | Rectangle |
| Return Line Filter Included (y/n) | No |
| Style 1 Port Diameter | 2 |
| Suction Port Size | 2 NPT |
| Temperature Gauge (y/n) | Yes |
| Usable Capacity | 25 |
| Width | 22.50 |
The 25 Gallon Side-Mount Polymer Reservoir: Engineered for Demanding Hydraulic Systems
In the realm of modern hydraulic systems, the reservoir serves as far more than a mere fluid storage tank; it is a critical component influencing overall system efficiency, longevity, and operational integrity. The 25 Gallon Side-Mount Polymer Reservoir from Buyers Products exemplifies this principle, meticulously engineered to meet the rigorous demands of heavy-duty, short-cycle applications, particularly within the commercial dump trailer sector. This advanced unit combines superior material science with intelligent design features, ensuring optimal performance and extended service life for hydraulic systems operating under challenging conditions.
Advanced Polymer Construction: A Paradigm Shift in Durability and Performance
The foundation of this reservoir's exceptional performance lies in its robust polymer construction, specifically high-grade polyethylene. Unlike traditional metal reservoirs, polymer offers inherent advantages that translate into significant operational benefits. Foremost among these is its complete immunity to rust and galvanic corrosion, a critical factor in environments where exposure to moisture, road salts, chemicals, and varying atmospheric conditions is commonplace. Metal reservoirs, even when coated, remain susceptible to internal and external corrosion, which can lead to structural compromise, fluid contamination, and premature system failure. The rustproof nature of this polyethylene reservoir eradicates these concerns, ensuring a pristine internal environment for hydraulic fluid and a long-lasting external structure.
The material's specified minimum thickness of 0.375 inches (approximately 3/8 inch), indicated by the "Material Gauge 37" specification, underscores its heavy-duty design. This substantial wall thickness provides exceptional structural rigidity and impact resistance, protecting against accidental damage from debris, impacts, and vibrations encountered during vehicle operation. Such robust construction is paramount for mobile hydraulic applications where the reservoir is subjected to constant dynamic stresses. Furthermore, polyethylene exhibits superior vibration dampening characteristics compared to steel, which can contribute to reduced noise levels and mitigate stress on mounting points and connected hydraulic lines, thereby enhancing the overall reliability of the hydraulic circuit.
Beyond corrosion and impact resistance, polyethylene boasts excellent chemical compatibility with a wide range of hydraulic fluids, ensuring that the reservoir material will not degrade or leach contaminants into the fluid over time. This chemical inertness is vital for maintaining fluid purity, which directly impacts the lifespan and efficiency of hydraulic pumps, valves, and cylinders. The inherent thermal properties of the polymer also contribute to the reservoir's performance, offering good insulation that can help maintain more stable fluid temperatures, reducing heat transfer from external sources and aiding in the overall thermal management of the hydraulic system.
Optimal Capacity and Application Focus: Tailored for Short-Cycle Operations
With a generous 25-gallon usable capacity, this side-mount reservoir is specifically optimized for short-cycle applications, such as those found in dump truck and trailer hydraulic systems. In these applications, hydraulic fluid is rapidly cycled between the reservoir, pump, control valve, and lifting cylinders. The 25-gallon volume is carefully selected to ensure an adequate supply of fluid to prevent cavitation at the pump inlet, while also providing sufficient surface area and dwell time for critical hydraulic fluid conditioning processes to occur. Proper sizing is crucial; an undersized reservoir can lead to premature fluid degradation due to insufficient cooling and aeration, while an oversized reservoir can be inefficient in terms of space and weight.
The term "short-cycle use" implies frequent, repetitive operations where the hydraulic system experiences rapid pressure changes and significant fluid movement. During these cycles, the fluid returns to the reservoir hot and often aerated. The reservoir's design, including its internal baffling (though not explicitly stated, implied for proper function), facilitates heat dissipation by maximizing contact with the reservoir walls and ambient air, and promotes the release of entrained air from the fluid before it is recirculated. This prevents aeration-induced pump damage, reduces noise, and ensures consistent system performance. The adaptability to two or three lines further highlights its versatility, accommodating various hydraulic system configurations prevalent in dump trailer applications, whether utilizing a single pressure line and multiple return lines, or more complex arrangements requiring distinct suction and return pathways.
Integrated Fluid Management: The Critical Role of Filtration and Monitoring
Hydraulic fluid contamination is a leading cause of component failure in hydraulic systems. The 25 Gallon Side-Mount Polymer Reservoir addresses this proactively with an integrated quarter-turn 40-micron chrome filter cap. This cap serves a dual purpose: it acts as a breather, allowing air to enter and exit the reservoir as the fluid level fluctuates during operation and temperature changes, and it filters this ingress air to a 40-micron particulate level. A 40-micron rating indicates that particles larger than 40 micrometers (µm) are effectively captured, preventing airborne dust and debris – a common source of contamination in mobile applications – from entering the hydraulic system. Maintaining a clean internal environment is paramount for protecting sensitive components like pumps, valves, and cylinders from abrasive wear.
The chrome finish on the filter cap not only provides corrosion resistance and an aesthetic appeal but also contributes to its durability in harsh operating conditions. The filter head, manufactured from aluminum and featuring a bead-blasted finish, ensures a robust and tightly sealed connection to the reservoir, preventing leaks and maintaining the integrity of the filtration system. While a separate return line filter is not included (as per specifications), the emphasis on clean air intake through the breather cap significantly reduces the initial particulate burden on the hydraulic fluid, complementing any in-line or pressure filters present elsewhere in the system.
Beyond filtration, effective monitoring of hydraulic fluid conditions is indispensable for preventative maintenance and troubleshooting. This reservoir is equipped with both a sight fluid level gauge and a thermometer gauge, critical tools for operational oversight. The sight fluid level gauge provides a quick and accurate visual indication of the fluid volume within the reservoir. Maintaining the correct fluid level is essential to prevent pump cavitation (caused by insufficient fluid) or overflow (caused by overfilling or thermal expansion). Low fluid levels can lead to air ingestion into the pump, resulting in noise, wear, and potential catastrophic failure. Conversely, overfilling can lead to fluid leakage and reduced efficiency of air separation.
The integrated thermometer gauge allows operators to monitor the hydraulic fluid's temperature in real-time. Optimal hydraulic system performance is achieved within a specific temperature range. Excessive fluid temperature can lead to accelerated fluid degradation, breakdown of lubricants, damage to seals and hoses, and reduced component efficiency. Conversely, extremely low temperatures can increase fluid viscosity, hindering flow and increasing power consumption. By providing immediate temperature feedback, the gauge enables operators to identify potential overheating issues early, allowing for corrective actions to be taken before severe damage occurs, thus significantly extending the life of the hydraulic fluid and system components.
Robust Mounting and Ergonomics: Engineered for Seamless Integration
The "Side-Mount" design of this reservoir is a strategic choice for mobile equipment, offering optimal space utilization and accessibility on the chassis of dump trailers and other vehicles. This mounting style allows for secure attachment along the frame, minimizing interference with other vehicle systems and providing a low center of gravity for enhanced vehicle stability. The inclusion of mounting hardware and integral brackets simplifies installation, ensuring that the reservoir can be securely fastened to the vehicle's frame without the need for custom fabrication or additional components. Integral brackets, molded directly into the reservoir structure or robustly attached, offer superior strength and resistance to the dynamic forces and vibrations inherent in mobile applications, minimizing the risk of detachment or structural fatigue over time.

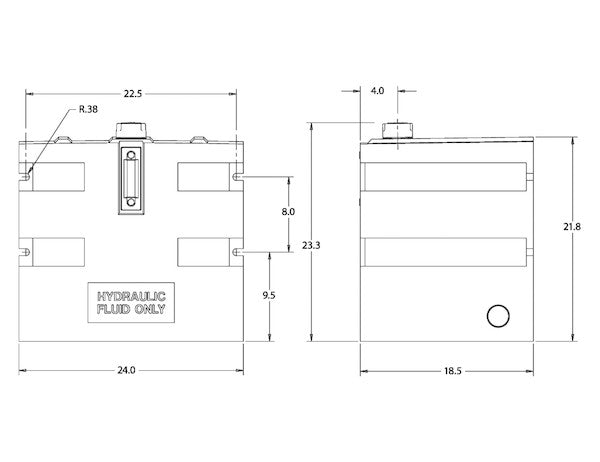

The rectangular shape of the reservoir is not merely aesthetic; it is a functional design choice that optimizes fluid dynamics within the tank, promoting efficient heat transfer and air separation. Its dimensions (Depth: 18.50 inches, Height: 21.8 inches, Width: 22.50 inches) are carefully calibrated to provide the 25-gallon capacity while maintaining a compact footprint suitable for integration into various vehicle chassis designs. The black color of the polymer is also functional, providing inherent UV resistance and contributing to passive heat dissipation by absorbing and radiating thermal energy away from the fluid.
Connectivity and System Compatibility: Facilitating Efficient Hydraulic Flow
The reservoir features a 2 NPT suction port and an additional 2 NPT port, emphasizing its compatibility with standard hydraulic plumbing components. The National Pipe Tapered (NPT) thread standard is widely used in hydraulic systems for its robust, leak-resistant connection when properly sealed. The 2-inch diameter of these ports is crucial for accommodating the high flow rates typically encountered in dump applications, particularly on the suction side where the pump draws fluid from the reservoir. Appropriately sized suction lines are vital to prevent cavitation, which occurs when the fluid velocity at the pump inlet is too high, causing a localized pressure drop below the fluid's vapor pressure, leading to the formation and collapse of vapor bubbles. This phenomenon can severely damage the pump and degrade fluid quality.
The presence of an "additional port" further enhances the reservoir's versatility, allowing for flexible integration into various hydraulic schematics. This port can serve as a primary return line entry, an auxiliary suction line for a secondary pump, a drain port, or for the connection of specific filtration or cooling circuits. This adaptability ensures that the 25 Gallon Side-Mount Polymer Reservoir can be seamlessly integrated into diverse hydraulic systems, ranging from simple power-up/gravity-down dump systems to more complex hydraulic circuits requiring multiple fluid paths.
Operational Advantages, Efficiency, and Longevity
Investing in a high-quality hydraulic reservoir like the 25 Gallon Side-Mount Polymer Reservoir from Buyers Products yields substantial operational advantages and contributes significantly to the overall return on investment of hydraulic equipment. Its durable, rustproof polymer construction minimizes downtime associated with corrosion-related failures and reduces maintenance efforts. The integrated 40-micron filter cap safeguards the hydraulic fluid from external contamination, extending the life of expensive pumps, valves, and cylinders. Real-time monitoring of fluid level and temperature through the integrated gauges empowers operators and maintenance personnel to proactively manage the hydraulic system, preventing catastrophic failures and optimizing performance.
The thoughtful design, from the integral mounting brackets to the precisely sized NPT ports, ensures reliable and efficient operation. By maintaining fluid cleanliness and optimal operating temperatures, the reservoir plays a pivotal role in preserving the integrity of the hydraulic fluid itself, reducing the frequency of fluid changes and disposal costs. This comprehensive approach to hydraulic fluid management translates directly into lower operating costs, increased equipment reliability, and an extended operational lifespan for the entire hydraulic system, making it an indispensable component for any demanding mobile hydraulic application.
Comprehensive Technical Specifications Overview
A closer look at the detailed specifications reaffirms the reservoir's professional-grade engineering. Its 25-gallon usable capacity is precisely matched with its compact rectangular form factor of 18.50" Depth, 21.8" Height, and 22.50" Width. The primary construction material is high-density polyethylene, known for its superior strength and chemical resistance, with a robust wall thickness of 0.375 inches. Both suction and additional ports are standardized at 2 NPT for universal compatibility. The integrated monitoring suite includes an oil level gauge and a temperature gauge, providing essential operational insights. The reservoir is supplied in a durable black finish, offering UV protection and a professional appearance, and crucially, all necessary mounting hardware and brackets are included for immediate, secure installation. While advanced features like an included valve or return line filter are not standard, this allows for greater customization and integration with existing or preferred auxiliary components.
Maintenance Considerations and Best Practices for Polymer Reservoirs
While the polymer construction significantly reduces maintenance compared to metal counterparts, routine checks are still essential to ensure peak performance. Operators should regularly inspect the sight fluid level gauge to confirm the hydraulic fluid is within optimal operating parameters. The thermometer gauge should be monitored to prevent overheating or extremely cold operation. The 40-micron filter cap should be periodically inspected for dirt accumulation and cleaned or replaced as per manufacturer recommendations to ensure proper air filtration. General cleanliness of the reservoir exterior and connections will also contribute to its longevity. Adhering to manufacturer guidelines for hydraulic fluid type and change intervals is also critical for system health.
Conclusion: The Definitive Choice for Demanding Applications
The 25 Gallon Side-Mount Polymer Reservoir from Buyers Products stands as a testament to engineering excellence in hydraulic system components. Its combination of advanced polymer material, precise capacity, integrated fluid conditioning and monitoring features, and robust mounting solutions makes it an ideal choice for the most demanding short-cycle, dump trailer, and other mobile hydraulic applications. By providing a clean, properly conditioned, and efficiently managed supply of hydraulic fluid, this reservoir ensures unparalleled system reliability, extended component life, and ultimately, a superior operational experience.
