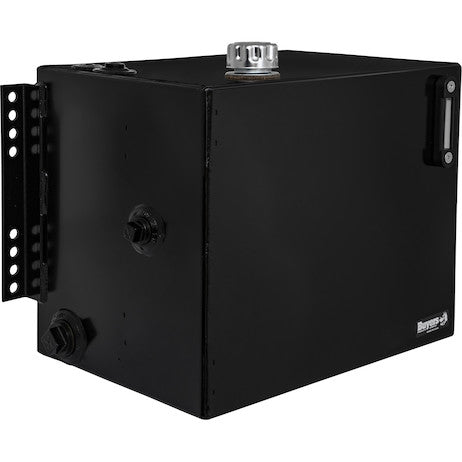

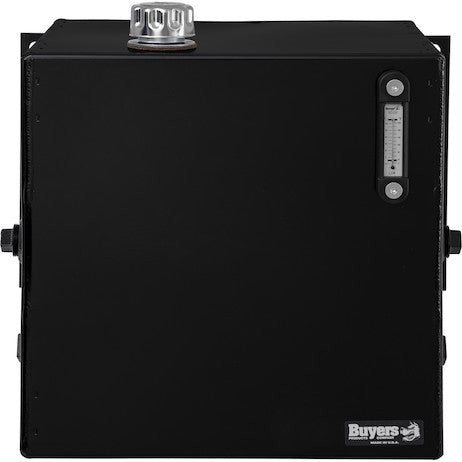

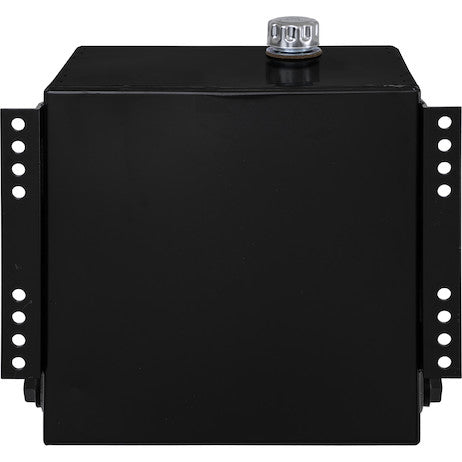

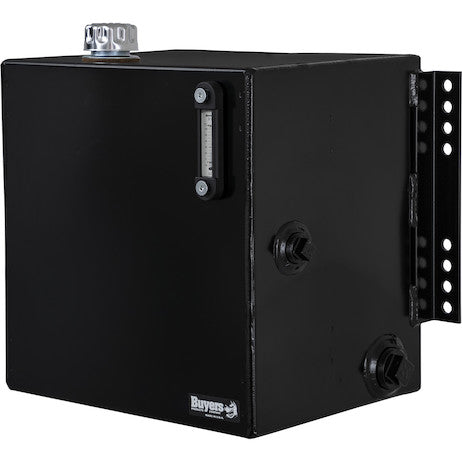

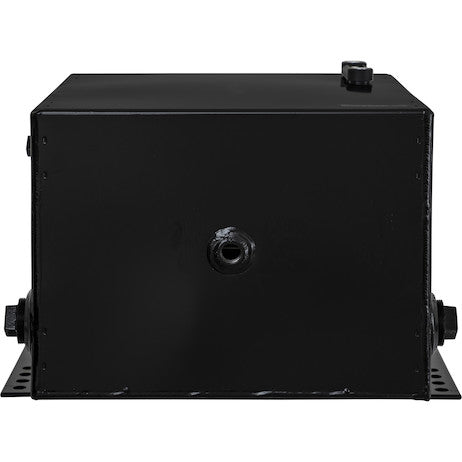

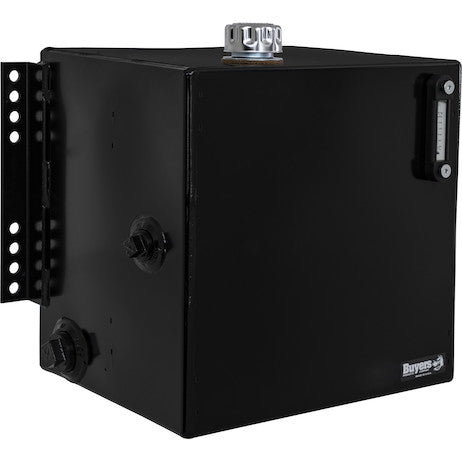

SMR25S - 25 Gallon Side Mount Steel Reservoir

The 25 Gallon Side Mount Steel Reservoir from Buyers Products features tough, 13 Ga HRPO steel construction with a welded-on bracket for easy installation to your truck frame. It's ideal for 1 ton trucks and smaller dump, landscaping, and similar applications. The reservoir has been factory powder-coated for corrosion resistance. System-protective features include: - a quarter-turn chrome filler breather with a wire basket strainer - a sight fluid level and temperature gauge - an interior baffle between suction and discharge to aid in fluid cooling - a magnetic drain plug to aid in preventing metallic particle contamination

Specifications

The 25 Gallon Side Mount Steel Reservoir: Engineered for Demanding Mobile Hydraulic Applications

In the realm of mobile hydraulic systems, the reservoir serves as far more than a mere storage vessel for hydraulic fluid. It is a critical component influencing system efficiency, fluid longevity, and overall operational reliability. The 25 Gallon Side Mount Steel Reservoir from Buyers Products has been meticulously engineered to meet these rigorous demands, offering a robust and intelligently designed solution for a wide array of mobile applications, particularly those found on 1-ton trucks, smaller dump bodies, and various landscaping equipment.

Advanced Construction and Material Science: The Foundation of Durability

The structural integrity and longevity of any hydraulic component begin with its material selection and construction methodology. This reservoir is fabricated from 13 Gauge HRPO (Hot Rolled, Pickled, and Oiled) steel. Understanding the implications of this specification is crucial for appreciating the product's superior design:

• 13 Gauge Steel: In the industrial standard gauge system, 13 gauge corresponds to a thickness of approximately 0.0897 inches (or 2.278 mm). This material thickness strikes an optimal balance between robust structural rigidity, resistance to impact and vibration, and manageable weight. For mobile applications where dynamic stresses and potential external impacts are common, a 13-gauge steel construction ensures the reservoir can withstand the rigors of continuous operation without compromise to its structural integrity. Thinner gauges would risk deformation and potential leaks, while significantly thicker gauges would add unnecessary weight and cost without proportional gains in performance for this capacity range.
• HRPO Steel: Hot Rolled, Pickled, and Oiled (HRPO) steel represents a premium choice for fabricated components requiring a clean, uniform surface and excellent workability.
  • Hot Rolled: The "hot rolled" process involves rolling steel at high temperatures, which creates a more ductile and formable material. This allows for easier shaping and welding, which is essential for manufacturing complex structures like hydraulic reservoirs with multiple ports and internal baffling.
  • Pickled: The "pickling" process involves immersing the hot-rolled steel in an acid solution to remove mill scale and surface impurities. This chemical cleaning ensures a smooth, clean surface, which is critical for subsequent finishing processes. For hydraulic reservoirs, a clean steel surface is paramount not only for aesthetic quality but also to prevent contaminants from flaking off the internal surfaces into the hydraulic fluid, thereby preserving fluid purity and system health.
  • Oiled: The "oiled" aspect refers to a light layer of oil applied to the pickled steel to protect it from rust and corrosion during storage and transport prior to fabrication and coating. This ensures that the material arrives in optimal condition for manufacturing, contributing to the overall quality of the finished product.
• Welded-On Bracket: The integration of a welded-on bracket for installation directly to the truck frame is a testament to the robust design philosophy. Welding provides a superior mechanical bond compared to bolted attachments, offering exceptional strength and resistance to vibrational fatigue. This integral bracket simplifies installation for vehicle upfitters and ensures a secure, long-lasting mount, reducing the potential for loosening over time that can occur with separate, bolted bracket assemblies. The "Integral Brackets (y/n): Yes" specification confirms this design advantage.
• Powder-Coat Finish: Post-fabrication, the reservoir undergoes a factory powder-coating process, resulting in a durable black finish. Powder coating offers several advantages over conventional liquid paints:
  • Superior Corrosion Resistance: Powder coatings create a thicker, more uniform layer than liquid paints, providing an excellent barrier against environmental factors such as moisture, road salts, chemicals, and abrasion. This is particularly vital for side-mounted components on commercial vehicles, which are continuously exposed to harsh outdoor conditions.
  • Enhanced Durability: The thermoset polymer resins used in powder coating are inherently more resistant to chipping, scratching, fading, and general wear and tear, ensuring the reservoir maintains its aesthetic and protective qualities over an extended service life.
  • Environmental Benefits: Powder coating is an environmentally responsible choice, as it contains no volatile organic compounds (VOCs), contributing to cleaner manufacturing processes.

Optimized Fluid Management and System Protection

The efficiency and longevity of a hydraulic system are inextricably linked to the condition of its hydraulic fluid. The 25 Gallon Side Mount Steel Reservoir incorporates several design features specifically aimed at maintaining fluid integrity and protecting critical system components:

• 25 Gallon Capacity with 18 Gallon Usable Capacity: The total capacity of 25 gallons is thoughtfully balanced with a specified usable capacity of 18 gallons. This distinction is important: the total volume defines the physical size, while the usable capacity typically accounts for the fluid volume available to the pump without introducing air into the suction line, even under dynamic operating conditions. A properly sized reservoir ensures sufficient fluid volume to:
  • Dissipate Heat: Hydraulic systems generate heat through various inefficiencies. A larger fluid volume acts as a natural heat sink, allowing the fluid more time to cool before recirculation, reducing the thermal load on the system and potentially extending the life of the fluid and seals.
  • Settle Contaminants: A larger volume provides a longer residence time for the fluid, allowing heavier particulate contaminants to settle to the bottom of the tank before being drawn into the pump.
  • De-aerate Fluid: Entrained air can severely damage hydraulic pumps and reduce system efficiency. A sufficient fluid volume and residence time facilitate the release of air bubbles from the fluid.
• Quarter-Turn Chrome Filler Breather with Wire Basket Strainer: This integrated component serves multiple crucial functions:
  • Atmospheric Venting: As the hydraulic fluid level fluctuates during system operation (e.g., cylinder extension/retraction), the reservoir needs to "breathe" to prevent vacuum or pressure build-up. The breather allows for controlled air exchange.
  • Air Filtration: The primary function of the breather element (often a filter media) is to prevent airborne particulate contaminants from entering the hydraulic fluid during air intake.
  • Wire Basket Strainer: The integrated wire basket strainer provides a coarse level of filtration when adding new hydraulic fluid to the reservoir. It captures larger debris and contaminants that might be present in the transfer container or the fluid itself, preventing them from entering the main reservoir and subsequently the hydraulic system. This is a critical first line of defense against contamination.
  • Quarter-Turn Design: A quarter-turn mechanism ensures quick and easy access for fluid filling and routine maintenance of the breather element, promoting proper service intervals. The chrome finish enhances durability and corrosion resistance of this exposed component.
• Interior Baffle between Suction and Discharge: This is a sophisticated and essential design element for optimal reservoir performance. The baffle is a physical barrier strategically placed within the reservoir, separating the return line (discharge) from the pump suction line. Its primary functions include:
  • Enhanced Fluid Cooling: By forcing the returned fluid to travel a longer, circuitous path around the baffle before reaching the suction port, the baffle increases the fluid's residence time within the tank. This extended path maximizes the surface area exposure to the reservoir walls, facilitating more effective heat dissipation to the ambient environment.
  • Improved De-aeration: A longer, less turbulent path also gives entrained air bubbles more time to rise to the surface and escape, preventing cavitation in the pump and maintaining fluid compressibility.
  • Contaminant Settling: The baffle reduces fluid velocity and turbulence, promoting the gravitational settling of heavier particulate contaminants to the reservoir bottom, away from the suction port.
  • Prevents Short-Circuiting: Without a baffle, fluid returning from the system could directly enter the suction line, leading to hot, aerated, and potentially contaminated fluid being immediately recirculated, negating the benefits of the reservoir's volume.
• Magnetic Drain Plug: The inclusion of a magnetic drain plug is a highly effective, proactive measure for maintaining fluid cleanliness and diagnosing potential system wear. Located at the lowest point of the reservoir, this plug features a powerful magnet that attracts and holds ferrous metallic particles. These particles, often microscopic, are by-products of wear from components such as pumps, motors, and valves. By capturing them:
  • Prevents Abrasive Wear: It removes abrasive ferrous particles from circulation, preventing them from causing further damage to precision components within the hydraulic system.
  • Early Diagnostic Indicator: Regular inspection of the magnetic drain plug during fluid changes provides valuable insights into the health of the hydraulic system. An excessive accumulation of metallic particles can indicate accelerated wear in specific components, allowing for proactive maintenance before catastrophic failure occurs.

Comprehensive Monitoring and Maintenance Accessibility

Effective hydraulic system management requires continuous monitoring of critical parameters. This reservoir integrates features that facilitate easy inspection and maintenance:

• Sight Fluid Level and Temperature Gauge (Integral Level Gauge (y/n): Yes, Oil Level Gauge (y/n): Yes, Temperature Gauge (y/n): Yes): This combined gauge provides immediate visual feedback on two vital fluid properties:
  • Fluid Level: Maintaining the correct fluid level is paramount. Low levels can lead to pump cavitation, air entrainment, and overheating, while excessively high levels can lead to spillage or inadequate air space. The sight gauge allows operators to quickly verify the fluid is within the optimal operating range.
  • Fluid Temperature: Hydraulic fluid operating temperature directly impacts its viscosity, lubricating properties, and seal life. Excessive temperatures accelerate fluid degradation, increase wear, and can damage seals. The integrated temperature gauge allows operators to monitor system thermal performance and identify potential overheating issues before they cause significant damage. This facilitates timely intervention, such as inspecting coolers or reducing workload.
• Strategically Sized Ports: The reservoir features a 2 NPT suction port and a 1 1/4 NPT additional port, typically utilized as a return line.
  • Suction Port (2 NPT): The 2-inch NPT (National Pipe Taper) suction port is generously sized to ensure an unrestricted flow of hydraulic fluid to the pump. Proper sizing of the suction line is critical to prevent cavitation, which occurs when the pump struggles to draw fluid, leading to the formation and collapse of vapor bubbles that severely damage pump internals.
  • Additional Port (1 1/4 NPT): This port serves as the return line connection, where fluid re-enters the reservoir after performing work in the system. The 1 1/4-inch NPT size is appropriate for managing the return flow without creating excessive back pressure, which can hinder system performance. The "Filter Head Material_1: Aluminum" specification suggests that this port is designed to accommodate or integrate with an external return line filter, although a return line filter is not included with the reservoir itself. This provides flexibility for system designers to add additional filtration for enhanced fluid cleanliness.

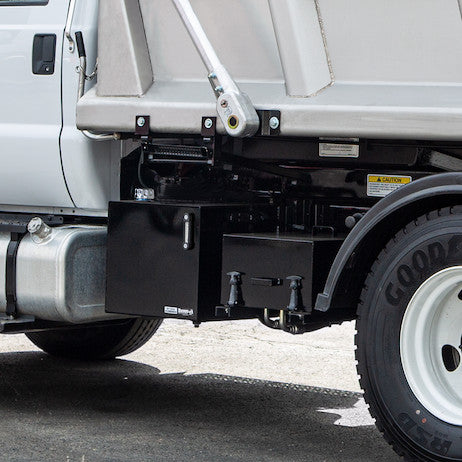

Applications and Versatility

The 25 Gallon Side Mount Steel Reservoir is specifically designed for mobile hydraulic systems requiring a balance of compact size and adequate fluid volume. Its "Side Mount" position and "Side" mount style with integral brackets make it ideal for integration into vehicle chassis, where space is often at a premium. Common applications include:

• 1-Ton Trucks: These vehicles often serve as platforms for various work attachments, such as snowplows, salt spreaders, utility bodies with cranes, and small dump inserts. The 25-gallon capacity provides sufficient hydraulic fluid for these intermittently operated systems, ensuring reliable power delivery.
• Smaller Dump Trucks/Trailers: For light-duty dump applications in construction, waste management, or landscaping, this reservoir offers the necessary fluid volume for consistent operation of the dump cylinder.
• Landscaping Equipment: Many professional landscaping vehicles utilize hydraulic systems for operating loaders, lift gates, chippers, or other attachments. The reservoir's robust construction and protective features are well-suited to the demanding, often dirty environments encountered in landscaping.
• Utility and Service Vehicles: Trucks equipped with auxiliary hydraulic functions, such as lift gates, winches, or small aerial lifts, can benefit from this compact and durable reservoir.

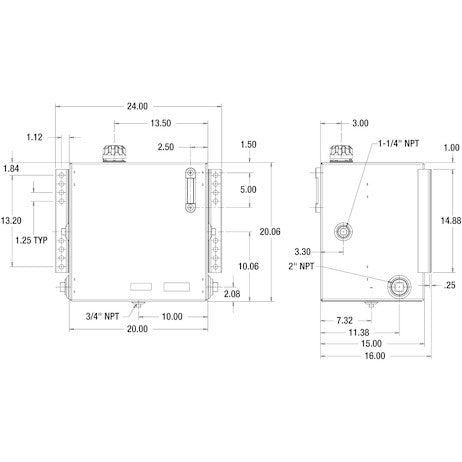

Its rectangular shape (16.00" Depth, 20" Height, 22.35" Width) is optimized for efficient use of available frame space on commercial vehicles, ensuring a clean and professional installation.

Conclusion

The 25 Gallon Side Mount Steel Reservoir from Buyers Products stands as a testament to intelligent engineering in hydraulic system design. From its heavy-duty 13 Ga HRPO steel construction and protective powder-coat finish to its integrated features for fluid management, contamination control, and system monitoring, every aspect has been considered to deliver a reliable, durable, and high-performance component. By promoting optimal fluid conditions through internal baffling, comprehensive filtration (breather and strainer), and magnetic particle capture, this reservoir actively contributes to extending the lifespan of hydraulic fluid and critical system components. Its ease of installation, coupled with its robust design, makes it an indispensable asset for a wide range of mobile hydraulic applications, ensuring operational efficiency and minimizing downtime in demanding work environments.
