Specifications
| Additional Port Size | 3/4 NPT; 1 1/4 NPT |
|---|---|
| Capacity | 30 |
| Color | Black |
| Depth | 17.00 |
| Filter Head Material_1 | Aluminum |
| Finish | Powder-Coat |
| Hardware and Brackets Included (y/n) | No |
| Height | 22 |
| Included Valve (y/n) | No |
| Integral Brackets (y/n) | Yes |
| Integral Level Gauge (y/n) | Yes |
| Magnetic Drain Plug (y/n) | Yes |
| Material | Carbon Steel |
| Material Gauge | 13 |
| Mount Position | Side Mount |
| Mount Style | Side |
| Oil Level Gauge (y/n) | Yes |
| Reservoir Shape | Rectangle |
| Return Line Filter Included (y/n) | No |
| Style 1 Port Diameter | 2 |
| Style 2 Port Diameter | 1 |
| Style 3 Port Diameter | 1/4 |
| Suction Port Size | 2 NPT |
| Temperature Gauge (y/n) | Yes |
| Usable Capacity | 30 |
| Width | 28.35 |

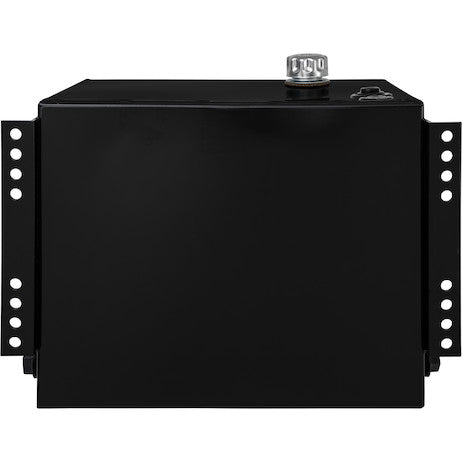

The 30 Gallon Side Mount Steel Reservoir represents a pinnacle of engineering and robust construction, meticulously designed to serve as an indispensable component within demanding hydraulic systems. This industrial-grade reservoir is specifically tailored for mobile applications requiring a substantial yet efficiently packaged hydraulic fluid storage solution. Its design priority is not merely containment, but also the critical functions of heat dissipation, de-aeration, and contaminant control, all vital for the longevity and optimal performance of hydraulic machinery.
At the core of this reservoir's formidable strength is its construction from Hot Rolled Pickled and Oiled (HRPO) steel. HRPO steel is a superior material choice, beginning as hot-rolled steel which then undergoes a pickling process to remove scale and impurities, followed by an oil coating to prevent rust during storage and transport. This results in a cleaner, smoother surface finish compared to standard hot-rolled steel, enhancing its suitability for precision fabrication and subsequent coating applications. The use of 13 gauge material for the reservoir walls provides an exceptional balance of structural rigidity and manageable weight. This specific gauge is engineered to withstand the dynamic stresses encountered in mobile environments, including continuous vibration, shock loads, and varying internal pressures, ensuring the reservoir maintains its structural integrity over an extended operational lifespan. The material's inherent strength contributes significantly to the reservoir's resilience against physical damage and deformation, crucial for maintaining operational safety and preventing fluid leaks in rigorous working conditions.
The construction methodology emphasizes unparalleled durability and reliability. Each reservoir features rugged, fully welded HRPO steel construction, ensuring leak-proof operation and structural coherence. The integration of welded-on brackets for mounting directly to the truck frame is a deliberate design choice that enhances stability and simplifies installation. Unlike bolt-on brackets that can loosen over time due to vibration or require precise alignment, the integral welded brackets offer a permanent, robust connection point. This method of attachment distributes stress more effectively across the reservoir's structure and the vehicle frame, mitigating the risk of fatigue cracks and ensuring a secure mount even under severe operating conditions. The precision welding processes adhere to stringent quality control standards, resulting in strong, consistent seams that can endure the thermal and mechanical stresses inherent in hydraulic applications.
To further fortify its resistance against the harsh outdoor and industrial elements, the reservoir undergoes a meticulous powder-coating process, resulting in a durable black finish. Powder coating is a superior finishing technique that involves electrostatically applying a dry powder onto the prepared steel surface, which is then cured under heat to form a hard, protective layer. This advanced coating provides exceptional resistance to abrasion, chipping, and fading, far surpassing traditional liquid paint applications. Critically, the black powder coat significantly enhances corrosion resistance, a vital attribute for equipment exposed to moisture, road salts, chemicals, and other corrosive agents. The finish not only contributes to the aesthetic appeal of the unit but, more importantly, provides a long-lasting barrier that safeguards the underlying steel from environmental degradation, thereby extending the reservoir's service life and reducing the need for premature replacements or costly refurbishments.
Optimal fluid management is paramount for any high-performance hydraulic system, and this 30-gallon reservoir is engineered with this principle in mind. Internally, the reservoir is fitted with baffles, which are strategically positioned partitions designed to manage the hydraulic fluid's flow characteristics. These baffles serve several critical functions: firstly, they reduce fluid sloshing during vehicle movement, preventing excessive aeration and maintaining a stable fluid level around the suction port, thereby averting pump cavitation. Secondly, baffling promotes a longer, more circuitous path for the returning oil, allowing more time for entrained air bubbles to escape to the surface, a process known as de-aeration. Thirdly, by encouraging fluid circulation across a larger surface area, baffles significantly contribute to heat dissipation, helping to keep oil temperatures within optimal operating ranges. Maintaining stable oil temperatures is crucial for preserving the hydraulic fluid's viscosity and chemical properties, preventing thermal degradation which can lead to premature wear of pumps, valves, and cylinders.
The fluid capacity of 30 gallons is carefully chosen to provide adequate reserve for various demanding applications. The 'usable capacity' being equal to the 'total capacity' indicates efficient internal design that maximizes the functional volume. Proper reservoir sizing is essential for efficient heat dissipation, allowing sufficient dwell time for de-aeration, and ensuring enough volume to accommodate system fluctuations (e.g., cylinder extension/retraction) without exposing the pump to air or overfilling the tank. This 30-gallon capacity is particularly well-suited for smaller dump trucks, landscaping equipment, and various spreader applications where sustained hydraulic power is required, and operational cycles generate moderate heat loads. The generous volume allows the fluid to rest, cool, and release air, thereby protecting the integrity and efficiency of the entire hydraulic circuit.
Contamination control is a cornerstone of hydraulic system reliability, and this reservoir incorporates several features to maintain fluid purity. A prominent feature is the quarter-turn chrome filler/breather unit. This dual-purpose component facilitates convenient and clean fluid replenishment while also allowing the reservoir to "breathe" – equalizing internal pressure with atmospheric pressure as the fluid level changes due to system operation or temperature fluctuations. The integrated basket strainer within the filler opening acts as a primary filter, preventing larger particulate contaminants from entering the reservoir during the filling process. Its chrome finish not only provides a professional appearance but also offers enhanced durability and corrosion resistance to this frequently accessed component. Furthermore, a crucial element for proactive maintenance is the inclusion of a magnetic drain plug. Positioned at the lowest point of the reservoir, this plug is designed to attract and retain ferrous metallic particles that may be circulating in the hydraulic fluid due to wear from pumps, motors, or other components. Regular inspection and cleaning of the magnetic drain plug can provide valuable insights into the internal health of the hydraulic system, enabling early detection of potential wear issues and preventing these abrasive particles from causing further damage to sensitive components.

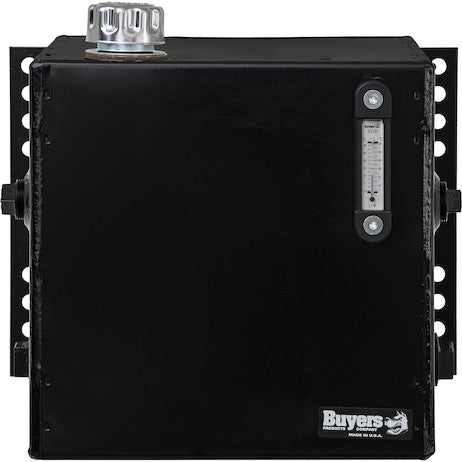

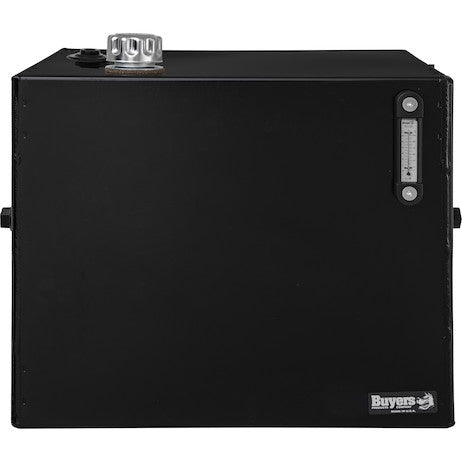

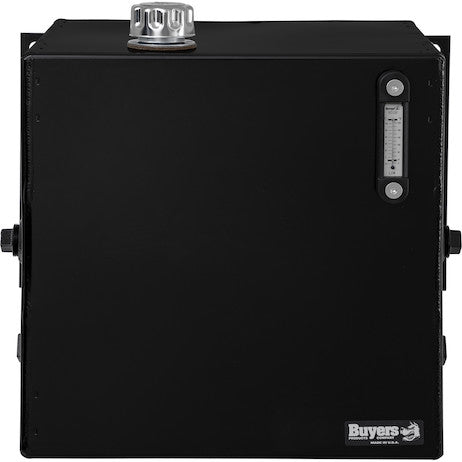

Monitoring critical fluid parameters is made straightforward with integrated gauges. The fluid level gauge provides operators and maintenance personnel with an immediate visual indication of the hydraulic oil volume. Maintaining the correct fluid level is paramount; insufficient fluid can lead to pump cavitation, air ingestion, and overheating, while overfilling can cause leakage and aeration. The included temperature gauge offers real-time monitoring of the hydraulic fluid's thermal state. Elevated oil temperatures can rapidly degrade hydraulic fluid, leading to reduced viscosity, oxidation, and the formation of sludge and varnish, all of which compromise system performance and component life. By continuously monitoring temperature, operators can take corrective action, such as reducing load or checking cooling systems, to prevent thermal damage and ensure the fluid operates within its optimal temperature window. These integral monitoring tools empower users with essential information for preventative maintenance and operational efficiency.

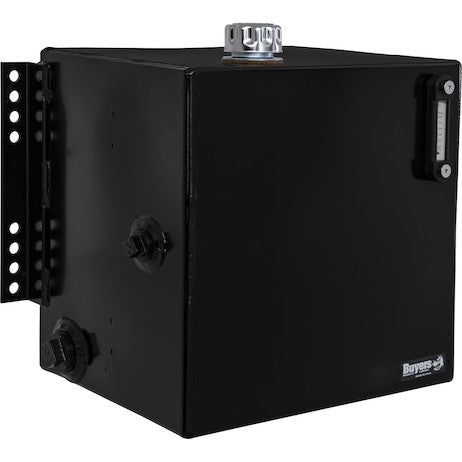

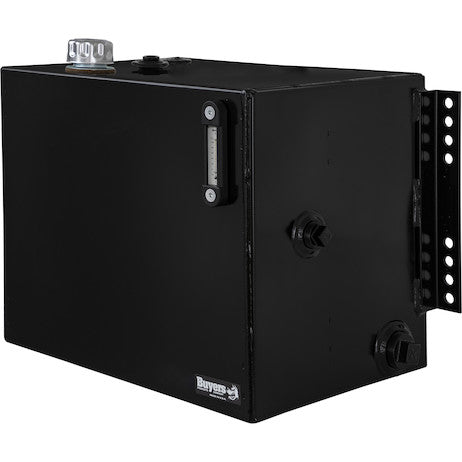

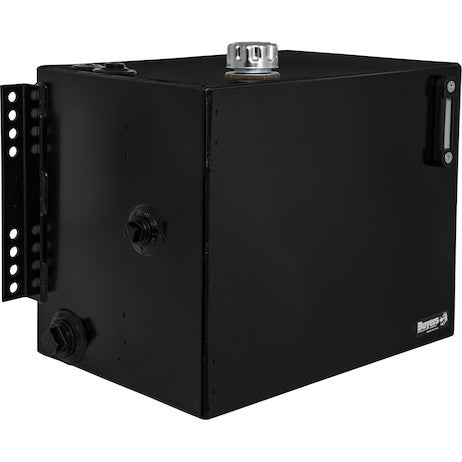

Connectivity within the hydraulic circuit is facilitated by precisely engineered port configurations. The reservoir features a 2-inch NPT (National Pipe Taper) suction/return port. The NPT standard ensures a robust, leak-tight seal, crucial for hydraulic systems operating under pressure. This dual-function port provides flexibility for various system designs, allowing it to serve as either the main suction line to the pump or a primary return line for hydraulic fluid flowing back into the reservoir. Additionally, a dedicated 1-1/4 inch NPT return port is provided, offering a separate, adequately sized pathway for fluid returning from the hydraulic system. This separate return port ensures that fluid can flow freely back into the reservoir without creating excessive back pressure, which could otherwise hinder system performance or cause damage. For enhanced versatility, the reservoir also includes additional port sizes, specifically 3/4 inch NPT and another 1-1/4 inch NPT. These auxiliary ports are invaluable for integrating smaller return lines, pressure transducers, temperature sensors, or other ancillary hydraulic components, allowing for greater customization and system expansion without compromising the integrity of the main fluid pathways.
The "Side Mount" designation underscores a deliberate design choice optimized for specific vehicle architectures. Side mounting on a truck frame offers several advantages: it conserves valuable chassis space, particularly in applications where frame rail space is limited; it contributes to optimal weight distribution, which is crucial for vehicle stability and handling; and it provides a degree of protection from road debris and potential impacts while remaining accessible for routine checks and maintenance. The integral, welded brackets are key to this mounting strategy, ensuring a secure and durable attachment to the vehicle's frame. While the product specifications clarify that external hardware and brackets are not included, the presence of the integral brackets means the reservoir is ready for direct installation onto suitable mounting points on the truck frame, requiring only the appropriate bolts and fasteners for a complete setup.
This 30-gallon steel reservoir is engineered for a diverse range of mobile hydraulic applications. It is ideally suited for smaller dump trucks, where hydraulic power is essential for lifting and lowering beds efficiently and reliably. In the landscaping sector, it finds utility in equipment such as chippers, stump grinders, and various utility vehicles requiring auxiliary hydraulic functions. For spreader applications, including salt spreaders for winter maintenance or agricultural spreaders, the reservoir provides the necessary hydraulic fluid storage for consistent operation of motors and actuators. Beyond these specific examples, its robust construction and thoughtful features make it suitable for a broad spectrum of utility vehicles, light construction equipment, and municipal fleet operations where dependable hydraulic power is a fundamental requirement. The availability in multiple capacities (7, 15, 25, 30 gal) highlights a product line designed to meet varying hydraulic power demands, with the 30-gallon model providing a significant capacity for systems with moderate to high flow rates and heat generation.

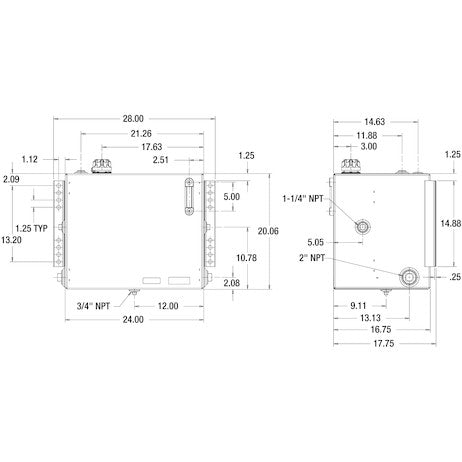

Reviewing the technical specifications further elucidates the product's engineering merits. The stated depth of 17.00 inches, height of 22 inches, and width of 28.35 inches outline a compact yet capacious rectangular form factor that is optimized for side-mount integration without excessive protrusion or interference with other vehicle components. The "Material: Carbon Steel" specification confirms the use of a robust, widely adopted alloy known for its strength and weldability, perfectly complemented by the 13 gauge thickness for structural resilience. The "Finish: Powder-Coat" and "Color: Black" reiterate the superior protective coating and aesthetic. The presence of an "Integral Level Gauge (y/n): Yes," "Oil Level Gauge (y/n): Yes," and "Temperature Gauge (y/n): Yes" underscores the commitment to operational oversight and preventative maintenance, providing essential visual indicators for fluid health. The "Magnetic Drain Plug (y/n): Yes" is another critical feature for extending fluid and component life by passively removing ferrous contaminants. The "Filter Head Material_1: Aluminum" likely refers to a component within the filler/breather assembly, leveraging aluminum's lightweight and corrosion-resistant properties for precision parts. While a "Return Line Filter Included (y/n): No" indicates that external filtration may be needed for certain high-precision systems, the internal design focuses on foundational fluid management and cleanliness.
In summary, the 30 Gallon Side Mount Steel Reservoir is a testament to purposeful design and manufacturing excellence. Its selection of HRPO steel, 13 gauge material thickness, superior welded construction with integral brackets, and advanced powder-coat finish ensures exceptional durability and resistance to the most arduous operating conditions. The sophisticated internal baffling system, combined with comprehensive fluid monitoring tools such as the level and temperature gauges, actively contributes to optimal fluid health, de-aeration, and heat dissipation. Furthermore, the meticulous contamination control features, including the chrome filler/breather with a basket strainer and the magnetic drain plug, safeguard the hydraulic system's integrity against damaging particulates. The versatile NPT porting configuration provides flexible connectivity for various system requirements. By integrating this reservoir into your mobile hydraulic system, you are investing in a component that not only performs its primary function of fluid storage but also actively enhances system reliability, extends component lifespan, minimizes maintenance requirements, and ultimately improves the operational efficiency and safety of your heavy-duty equipment across diverse applications.
