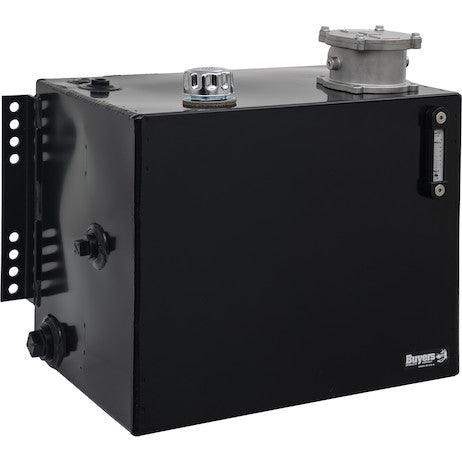

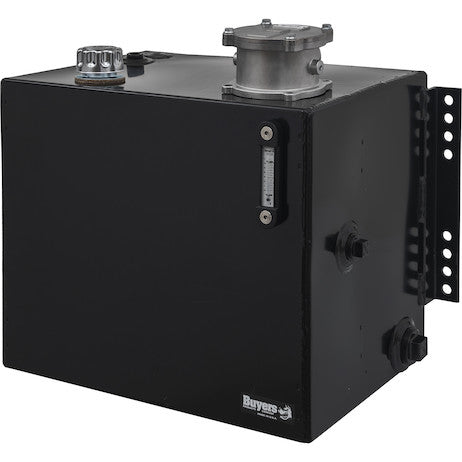

SMR30SF10 - 30 Gallon Steel Reservoir with 10 Micron Filter

The 30 Gallon Side Mount Steel Reservoir with Micron Filter features tough, durable construction and a system-protective filter for lasting performance. It's ideal for dump applications. The reservoir features 13 Ga HRPO steel with a corrosion resistant black powder-coated finish. Internal baffles between suction and discharge aid in fluid cooling. A welded-on bracket makes it easy to mount the tank to your truck frame. The reservoir comes pre-drilled for an included HFA5S series return filter. Choose from a 10 or 25 micron filter depending on your needs. Other protective features include a quarter-turn chrome filler breather with a wire basket strainer, a sight fluid level and temperature gauge, and a magnetic drain plug that helps prevent metallic particle contamination.

Specifications

Advanced Engineering: The 30 Gallon Steel Reservoir with 10 Micron Filter for Optimal Hydraulic System Performance

In the demanding world of mobile and industrial hydraulics, the integrity and longevity of a hydraulic system are paramount. Central to achieving these objectives is the hydraulic reservoir, which functions as more than just a mere fluid storage tank. It is a critical component responsible for thermal management, contamination control, and ensuring a stable supply of conditioned fluid to the pump. The 30 Gallon Side Mount Steel Reservoir with an integrated 10 Micron Filter represents a meticulously engineered solution designed to meet these rigorous requirements, particularly excelling in high-demand applications such such as dump trucks and trailers. This comprehensive description delves into the technical specifications and advanced features that position this reservoir as an indispensable asset for any hydraulic system prioritizing reliability, efficiency, and extended service life.

Robust Construction and Material Science: The Foundation of Durability

The foundation of this reservoir's exceptional performance lies in its construction. Fabricated from 13 Gauge Hot Rolled Pickled and Oiled (HRPO) steel, the tank is engineered for maximum durability and resistance to the harsh operational environments typical of heavy-duty mobile applications. The choice of 13 Gauge steel, equivalent to approximately 0.09 inches (or 2.286 mm) in thickness, provides a substantial structural integrity that resists deformation from internal fluid pressures, external impacts, and vibrations encountered during vehicle operation. This robust material thickness ensures a significantly longer lifespan compared to lighter gauge alternatives, minimizing the risk of premature failure and associated downtime.

HRPO steel is selected for its superior surface quality and enhanced corrosion resistance. "Hot Rolled" signifies that the steel has been processed at high temperatures, resulting in a material with excellent formability and strength. The "Pickled and Oiled" treatment further refines the steel by chemically removing mill scale (pickling), which is an iron oxide layer formed during hot rolling, followed by oiling to prevent rust during storage and transportation. This pre-treatment not only improves the steel's inherent resistance to corrosion but also creates an ideal surface for the subsequent application of the powder-coated finish, ensuring superior adhesion and a flawless, long-lasting protective layer. The fabrication process includes precision welding, crucial for creating a leak-proof containment vessel capable of withstanding dynamic stresses without compromising structural integrity. Each weld joint is designed to provide maximum strength and fluid containment, contributing to the overall reliability of the reservoir.

Advanced Corrosion Protection: Black Powder-Coated Finish

Beyond the inherent properties of HRPO steel, this reservoir features a premium corrosion-resistant black powder-coated finish. Powder coating is an advanced dry finishing process that involves electrostatically applying a fine powder made of polymer resins, pigments, and curing agents to the metal surface. The coated item is then cured under heat, causing the powder to melt and flow into a smooth, uniform, and extremely durable film. This finish is significantly more resilient than traditional liquid paints, offering superior resistance to chipping, scratching, fading, and general wear and tear. In the context of a hydraulic reservoir exposed to varied weather conditions, road debris, and potential chemical splashes, this level of protection is indispensable. The black finish also contributes to thermal emissivity, potentially aiding in the passive dissipation of heat from the fluid within the reservoir, further supporting the cooling function. The aesthetic appeal of the matte black finish also provides a professional and integrated look when mounted on equipment.

Integrated Filtration System: The 10 Micron Advantage

One of the most critical features distinguishing this reservoir is its integrated filtration system, specifically designed for an HFA5S series return filter with a 10-micron rating. Hydraulic fluid contamination is the leading cause of premature failure in hydraulic components, accounting for up to 80% of system malfunctions. Particulates as small as 5-10 microns can cause abrasive wear in pumps, motors, valves, and cylinders, leading to reduced efficiency, increased power consumption, and eventual component breakdown. A human hair, for reference, is typically 70 microns in diameter, illustrating the microscopic scale of the contaminants targeted by this filter.

The 10-micron filter element ensures a high level of fluid cleanliness, effectively capturing fine particulate matter before it can re-enter the hydraulic circuit. Located in the return line, this filter treats the fluid after it has passed through the system's components and before it returns to the reservoir. This strategic placement ensures that any contaminants generated within the system (e.g., wear particles from pumps or cylinders, ingress through seals, breakdown products of the fluid itself) are removed, preventing their recirculation and mitigating cumulative damage. While the option for a 25-micron filter is available for less sensitive or less demanding applications, the 10-micron configuration, as specified in the product title, provides a significantly enhanced level of protection, aligning with best practices for modern hydraulic systems requiring high reliability and extended component life. The HFA5S series filter housing is pre-drilled and integrated, simplifying installation and ensuring a proper, secure fit, thereby minimizing potential leak points and maintaining system integrity.

Optimized Thermal Management and Contaminant Settling: The Role of Internal Baffles

Effective thermal management and fluid conditioning are vital for the longevity of hydraulic fluid and system components. This 30-gallon reservoir incorporates strategically placed internal baffles between the suction and discharge ports. These baffles serve multiple critical functions. Firstly, they increase the path length of the fluid as it circulates through the reservoir, promoting a longer residence time. This extended dwell time allows for more efficient heat dissipation from the fluid to the reservoir walls and subsequently to the ambient air, thereby aiding in fluid cooling. Proper cooling is essential to prevent thermal degradation of the hydraulic fluid, which can lead to a reduction in viscosity, loss of lubrication properties, and accelerated component wear.

Secondly, the baffles facilitate the settling of solid contaminants to the bottom of the reservoir, away from the suction line. By creating a calm zone and reducing fluid turbulence, heavier particles have an opportunity to precipitate out of suspension, preventing them from being drawn back into the pump. This passive filtration mechanism complements the active 10-micron return line filter, enhancing overall fluid cleanliness. Thirdly, baffles aid in de-aeration. Entrained air in hydraulic fluid can lead to cavitation in pumps, which causes significant noise, vibration, and damage to pump components. By forcing the fluid to flow around the baffles, air bubbles are given more time to rise to the surface and escape, ensuring that the fluid supplied to the pump is as free of air as possible, thereby protecting the pump and maintaining system efficiency.

Effortless Integration and Maintenance: Mounting and Accessibility Features

The design of this 30 Gallon Steel Reservoir prioritizes ease of installation and ongoing maintenance. Integral, welded-on brackets are provided for convenient and secure side mounting to a truck frame or other suitable structural member. This eliminates the need for complex custom fabrication of mounting hardware, significantly reducing installation time and cost. The side-mount configuration is particularly advantageous in mobile applications where chassis space is often at a premium, allowing for optimal weight distribution and accessibility.

Maintenance access is further enhanced by several key features. The quarter-turn chrome filler breather, complete with an internal wire basket strainer, provides a large, accessible opening for quick and clean fluid replenishment. The quarter-turn mechanism ensures rapid access without the need for tools, while the chrome finish offers excellent corrosion resistance and an appealing aesthetic. The integrated wire basket strainer acts as a preliminary filter, preventing larger debris, dust, or foreign objects from entering the reservoir during refilling, serving as a crucial first line of defense against external contamination.

For critical system monitoring, the reservoir is equipped with a combined sight fluid level and temperature gauge. This integrated gauge allows for immediate visual inspection of both the hydraulic fluid level and its temperature. Maintaining the correct fluid level is paramount to prevent pump cavitation and ensure adequate heat transfer. Monitoring fluid temperature is equally important, as excessive heat can degrade fluid properties and accelerate seal wear. The clear, easily readable gauge empowers operators and maintenance personnel to perform quick pre-operational checks and ongoing surveillance, facilitating proactive intervention before minor issues escalate into major system failures. This integral monitoring capability is a significant advantage over systems requiring separate, externally mounted gauges, enhancing both functionality and installation simplicity.

Enhanced Contamination Control: The Magnetic Drain Plug

A often-overlooked yet critically important feature for contamination control is the magnetic drain plug. Located at the lowest point of the reservoir, this plug contains a powerful magnet designed to attract and retain ferrous metallic particles that accumulate in the hydraulic fluid. These particles are typically generated from the normal wear and tear of hydraulic components such as pumps, motors, and valves. By capturing these metallic contaminants, the magnetic drain plug prevents their recirculation through the system, thereby reducing abrasive wear on sensitive components and extending the overall lifespan of the hydraulic fluid and equipment. During routine maintenance or fluid changes, the magnetic drain plug can be easily removed, allowing for the inspection and removal of collected particles. The presence of significant metallic debris on the plug can also serve as an early indicator of accelerated component wear, enabling predictive maintenance actions before a catastrophic failure occurs.

Application Suitability: Engineered for Demanding Operations

While versatile enough for a broad range of hydraulic systems, this 30 Gallon Steel Reservoir with 10 Micron Filter is particularly well-suited for dump applications. Dump trucks, trailers, and similar heavy-duty equipment operate under severe conditions, including high load cycles, significant pressure variations, and exposure to dirt, dust, and extreme temperatures. The reservoir's robust 13 Ga HRPO steel construction, corrosion-resistant powder coat, and comprehensive contamination control features (10-micron filter, baffles, magnetic drain plug, filler breather strainer) are precisely engineered to thrive in such environments. The 30-gallon capacity ensures sufficient fluid volume to meet the demands of large hydraulic cylinders, while the internal baffles and external surface area contribute to managing the heat generated during frequent operation, maintaining optimal fluid viscosity and preventing overheating.

The specification of a 2 NPT suction port ensures an adequate flow path for the hydraulic pump, minimizing the risk of cavitation, especially during high-demand operations. The 1 1/4 NPT additional port provides valuable flexibility for integrating supplementary components such as pressure sensors, auxiliary return lines, or remote fluid sampling points, enhancing the system's adaptability and monitoring capabilities. The overall dimensions (Depth: 17.00", Height: 22", Width: 28.35") are optimized for side-mount installation, providing a balance between fluid capacity and practical mounting space on commercial vehicles.

Conclusion: An Investment in Hydraulic System Reliability

The 30 Gallon Side Mount Steel Reservoir with a 10 Micron Filter is more than just a storage tank; it is a meticulously engineered component that plays a foundational role in the overall health and performance of any hydraulic system. By integrating robust 13 Ga HRPO steel construction, advanced corrosion protection through powder coating, a high-efficiency 10-micron return filter, intelligent thermal and contamination management via internal baffles and a magnetic drain plug, and user-friendly monitoring and maintenance features, this reservoir delivers unparalleled reliability and operational efficiency. Its design minimizes the risk of fluid contamination, mitigates thermal degradation, and provides a stable, conditioned fluid supply to the hydraulic pump and actuators. For operators and fleet managers in industries where hydraulic system uptime and component longevity are critical, investing in this professionally engineered reservoir represents a strategic decision that translates directly into reduced maintenance costs, extended equipment life, and sustained peak performance in the most demanding applications.
