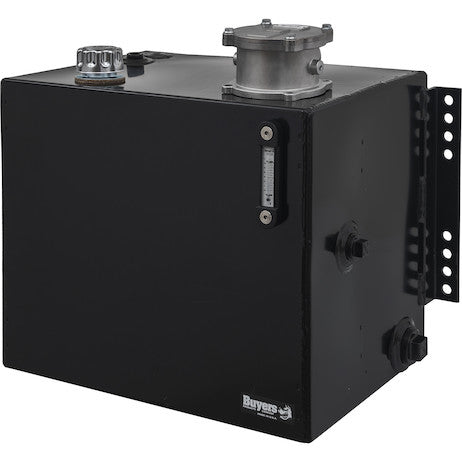

SMR30SF25 - 30 Gallon Steel Reservoir with 25 Micron Filter

The 30 Gallon Side Mount Steel Reservoir with Micron Filter features tough, durable construction and a system-protective filter for lasting performance. It's ideal for dump applications. The reservoir features 13 Ga HRPO steel with a corrosion resistant black powder-coated finish. Internal baffles between suction and discharge aid in fluid cooling. A welded-on bracket makes it easy to mount the tank to your truck frame. The reservoir comes pre-drilled for an included HFA5S series return filter. Choose from a 10 or 25 micron filter depending on your needs. Other protective features include a quarter-turn chrome filler breather with a wire basket strainer, a sight fluid level and temperature gauge, and a magnetic drain plug that helps prevent metallic particle contamination.

Specifications

The 30 Gallon Side Mount Steel Reservoir with 25 Micron Filter represents a robust and meticulously engineered component designed for the most demanding hydraulic applications. This unit is not merely a fluid storage container; it is an integral part of a sophisticated hydraulic system, optimized for performance, longevity, and ease of maintenance, particularly in mobile contexts such as dump truck operations. Its design philosophy centers on maximizing hydraulic system efficiency and component lifespan through superior construction, effective fluid conditioning, and comprehensive monitoring capabilities.

Constructed from 13 Gauge HRPO (Hot Rolled Pickled and Oiled) steel, this reservoir offers exceptional structural integrity and material purity. The 13 Ga designation signifies a specific thickness that provides a high strength-to-weight ratio, crucial for resisting deformation and mechanical stress in dynamic environments. HRPO steel undergoes a pickling process to remove scale and impurities, followed by an oil coating to prevent rust during storage and fabrication. This meticulous material preparation ensures superior weldability, resulting in strong, leak-proof seams essential for hydraulic fluid containment, and provides an ideal surface for the subsequent application of a protective coating.

The exterior of the reservoir is treated with a corrosion-resistant black powder-coated finish. This advanced coating technology involves electrostatically applying a dry powder to the steel, which is then cured under heat to form a durable, uniform layer. Unlike traditional liquid paints, powder coating offers significantly enhanced resistance to chipping, scratching, fading, and chemical degradation, which are common challenges in harsh operational environments. The black finish contributes to the aesthetic integration with heavy machinery while also providing a degree of thermal emissivity beneficial for heat dissipation. This superior finish directly contributes to the reservoir's "tough, durable construction" and ensures "lasting performance" by protecting against environmental factors such as moisture, road salts, and abrasive elements.

Central to the reservoir's performance and the longevity of the entire hydraulic system is its integrated filtration capability. The unit comes pre-drilled for an HFA5S series return filter, and this particular model is equipped with a 25-micron filter element. Understanding filtration is paramount: a micron is one-millionth of a meter. A 25-micron filter is designed to capture solid particulate contaminants equal to or larger than 25 microns, preventing them from recirculating within the hydraulic system. For perspective, the naked eye can typically discern particles down to about 40 microns, meaning a 25-micron filter removes particles invisible to the unaided eye.

Hydraulic systems are highly susceptible to contamination, which is the leading cause of component wear and failure. Particulate matter, often generated internally through wear or ingested externally through seals and breathers, can cause abrasive wear in pumps, valves, and cylinders, leading to reduced efficiency, increased heat generation, and ultimately, catastrophic failure. The strategically placed return filter, an HFA5S series unit, cleans the fluid as it returns from the system's actuators and motors before it re-enters the main fluid stream for recirculation. While a 25-micron filter provides excellent general protection for many industrial and mobile applications, the option to select a 10-micron filter (for systems requiring a higher level of fluid cleanliness, such as those with sensitive servo or proportional valves) underscores the system's adaptability to varying operational demands and fluid cleanliness standards, such as ISO 4406. This commitment to active contamination control significantly extends the service life of hydraulic components, reduces unscheduled downtime, and optimizes operational costs.

Effective thermal management is another critical aspect addressed by this reservoir's design. The incorporation of internal baffles between the suction and discharge lines serves multiple engineering functions. Primarily, these baffles increase the fluid's path length, promoting laminar flow and increasing the residence time of the hydraulic fluid within the reservoir. This extended path length facilitates passive cooling by allowing more time for heat to dissipate from the fluid into the reservoir walls and surrounding air. Furthermore, the baffles prevent fluid short-circuiting, ensuring that the fluid has sufficient time to settle, de-aerate, and cool before being drawn back into the pump's suction port. This de-aeration process is vital as entrained air in hydraulic fluid can cause cavitation in pumps, leading to noise, vibration, and severe component damage. By separating the turbulent return flow from the calm suction zone, baffles contribute significantly to maintaining optimal fluid conditions.

Monitoring fluid conditions is made convenient and precise with integrated features. A sight fluid level and temperature gauge is prominently positioned, providing operators with immediate visual feedback on two critical parameters. The fluid level gauge allows for quick checks to ensure adequate fluid volume, preventing cavitation due to low levels and ensuring proper system fill. The integrated temperature gauge is equally important, as hydraulic fluid temperature directly impacts viscosity, lubricant properties, and degradation rates. Operating within the recommended temperature range prevents premature fluid breakdown, which can lead to varnish and sludge formation, thereby protecting sensitive components and maintaining system efficiency. Early detection of abnormal temperatures can also indicate system inefficiencies or component malfunctions, allowing for proactive maintenance.

Further enhancing contamination control and ease of maintenance are the reservoir's specialized filler breather and drain plug. The quarter-turn chrome filler breather, equipped with a wire basket strainer, performs a dual role. Firstly, as a breather, it allows air to freely enter and exit the reservoir as the fluid level fluctuates during system operation, preventing vacuum formation or excessive pressure build-up. This is critical for maintaining proper atmospheric pressure within the reservoir and preventing pump cavitation. Secondly, the breather incorporates an air filter, preventing airborne particulates from entering the hydraulic fluid, a common source of external contamination. The integrated wire basket strainer acts as a coarse filter during fluid top-offs, preventing larger debris, tools, or accidental foreign objects from contaminating the system during refilling. The chrome finish ensures durability and resistance to corrosion, while the quarter-turn mechanism allows for quick and tool-free access.

The magnetic drain plug is a particularly insightful inclusion for proactive maintenance. Positioned at the lowest point of the reservoir, this plug features a strong magnet designed to attract and retain ferrous metallic particles suspended in the hydraulic fluid. The presence of such particles is a clear indicator of internal component wear – typically from pumps, motors, cylinders, or valves. Regular inspection of the magnetic drain plug during fluid changes or routine maintenance can provide early warning signs of developing mechanical issues, allowing for timely intervention before minor wear escalates into major system failure. This feature transforms a routine maintenance point into a valuable diagnostic tool, contributing significantly to predictive maintenance strategies.

Mounting and integration are streamlined by the reservoir's pragmatic design. A robust, welded-on bracket facilitates secure attachment to a truck frame or other mobile equipment chassis. Welding the bracket directly to the reservoir provides superior strength and rigidity compared to bolted alternatives, ensuring the reservoir remains securely in place even under severe vibration and dynamic loads inherent in mobile applications. The side-mount configuration is specifically engineered for optimal space utilization and weight distribution on vehicles such as dump trucks, where chassis space is often at a premium. This design ensures that the reservoir can be integrated efficiently without compromising the vehicle's structural integrity or operational footprint.

The declaration that this reservoir is "ideal for dump applications" highlights its suitability for environments characterized by high cyclical loads, shock, vibration, and significant hydraulic power demands. Dump trucks rely on powerful hydraulic cylinders for lifting heavy loads, requiring a stable, clean, and properly conditioned hydraulic fluid supply. The reservoir's 30-gallon capacity is well-matched to the typical flow rates and thermal demands of such systems, ensuring sufficient fluid volume for proper heat dissipation and contaminant settling. Its robust steel construction, advanced corrosion protection, comprehensive filtration, and fluid conditioning features directly address the rigorous operational requirements and harsh conditions encountered in construction, mining, and waste management industries.

Delving deeper into the specifications:

• Capacity (30 Gallons) and Usable Capacity (30 Gallons): A 30-gallon capacity is a significant volume for mobile hydraulic systems. The "Usable Capacity" matching the total capacity indicates that the reservoir's design maximizes the effective fluid volume for cooling, de-aeration, and contamination control. Proper reservoir sizing is critical, typically aiming for a volume of 3 to 5 times the pump's flow rate per minute to ensure adequate fluid residence time for heat dissipation and contaminant settling. For dump applications, where intermittent high flow rates are common, this capacity ensures system stability and longevity.
• Additional Port Size (1 1/4 NPT) and Suction Port Size (2 NPT): The sizing of hydraulic ports is crucial for minimizing pressure drop, preventing cavitation, and ensuring efficient fluid transfer. A 2 NPT (National Pipe Taper) suction port is generously sized to minimize velocity and pressure drop at the pump inlet, preventing cavitation, which can severely damage pumps. The 1 1/4 NPT additional port offers flexibility for integrating return lines, auxiliary functions, or future system expansions, adhering to common industry standards for threaded connections.
• Dimensions (Depth 17.00", Height 22", Width 28.35"): These precise dimensions are critical for seamless integration into vehicle chassis. The rectangular shape is space-efficient, allowing for optimal placement along a truck frame or other heavy equipment, balancing volume requirements with physical constraints.
• Finish (Powder-Coat) and Material (Carbon Steel, Material Gauge 13): Reiteration of these specifications underscores the foundational strength and corrosion resistance. Carbon steel provides the necessary structural integrity for dynamic mobile applications, and the 13 Ga ensures it can withstand operational stresses and external impacts.
• Mount Position (Side Mount) and Integral Brackets (Yes): These features confirm the product's design intent for easy and secure installation on the side of a vehicle chassis, a standard practice for many mobile hydraulic power units.
• Integral Level Gauge (Yes), Oil Level Gauge (Yes), and Temperature Gauge (Yes): These repeated entries in the specifications highlight the comprehensive nature of the built-in monitoring capabilities. The redundancy emphasizes the importance placed on providing operators with complete visual data regarding the fluid's volume and thermal state, essential for preventive maintenance and operational safety.
• Reservoir Shape (Rectangle): The rectangular geometry is not just for space efficiency; it also aids in the manufacturing process and contributes to structural stability, minimizing internal stresses and maximizing internal volume for a given external footprint.

In conclusion, the 30 Gallon Side Mount Steel Reservoir with 25 Micron Filter is a prime example of hydraulic component design where robustness meets advanced fluid conditioning. Its heavy-duty 13 Ga HRPO steel construction, fortified by a superior black powder-coated finish, guarantees exceptional durability and resistance to harsh operating conditions. The integrated HFA5S series 25-micron return filter is a testament to its commitment to fluid cleanliness, directly extending the life of pumps, valves, and cylinders. Thoughtful features such as internal baffles for cooling and de-aeration, a comprehensive sight fluid level and temperature gauge, a contamination-preventing filler breather with a strainer, and a magnetic drain plug for early wear detection, all combine to create a hydraulic reservoir that significantly contributes to the overall reliability, efficiency, and longevity of any mobile hydraulic system. For operators in demanding sectors like dump truck applications, this reservoir is not just a component; it is an investment in sustained performance and reduced operational expenditure.
