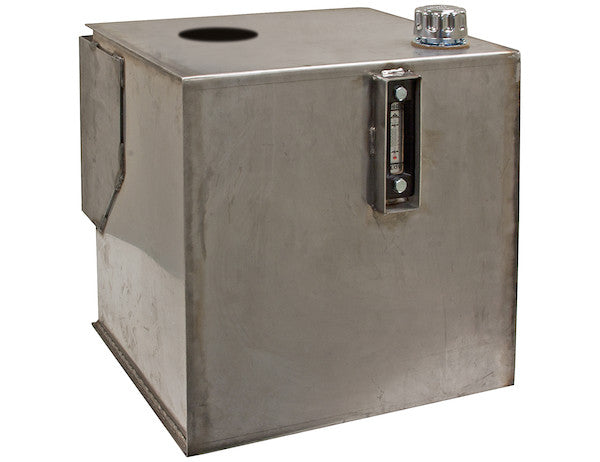

The 30 Gallon Stainless Steel Reservoir from Buyers Products is made of high-quality 304 stainless steel with welded-on carbon steel mounting brackets. Its sleek, polished appearance will stand up to salt and weather for long lasting use. Great for winter road applications, this reservoir comes fully tested. The reservoir has several features for optimal fluid operation, including: - a quarter-turn chrome filler breather with a wire basket strainer - a sight fluid level and temperature gauge - an interior baffle between suction and discharge to aid in fluid cooling - a magnetic drain plug to aid in preventing metallic particle contamination The reservoir comes pre-drilled for a tank-mounted HFA5S series return filter (sold separately).
Specifications
| Additional Port Size | 1 1/4 NPT; 3/4 NPT |
|---|---|
| Capacity | 30 |
| Color | Natural |
| Depth | 18.38 |
| Filter Head Material_1 | Aluminum |
| Finish | Smooth |
| Hardware and Brackets Included (y/n) | No |
| Height | 20 |
| Included Valve (y/n) | No |
| Integral Brackets (y/n) | Yes |
| Integral Level Gauge (y/n) | Yes |
| Magnetic Drain Plug (y/n) | Yes |
| Material | Stainless Steel |
| Material Gauge | 13 |
| Mount Position | Side Mount |
| Mount Style | Side |
| Oil Level Gauge (y/n) | Yes |
| Reservoir Shape | Rectangle |
| Return Line Filter Included (y/n) | No |
| Style 1 Port Diameter | 1-1/4 |
| Suction Port Size | 2 NPT |
| Temperature Gauge (y/n) | Yes |
| Usable Capacity | 30 |
| Width | 20.75 |
The 30 Gallon Stainless Steel Bulkhead Hydraulic Reservoir from Buyers Products represents a pinnacle of engineering and material science designed for the most demanding hydraulic applications. This comprehensive description delves into the technical attributes, operational benefits, and strategic advantages of integrating this robust component into your hydraulic system.
At its core, this reservoir is constructed from high-quality 304 stainless steel. This material choice is not arbitrary; 304 stainless steel is an austenitic alloy renowned for its exceptional corrosion resistance, particularly against oxidation and a wide array of corrosive agents encountered in industrial and mobile environments. Its chromium content (typically 18-20%) provides a passive oxide layer that self-repairs when scratched, offering superior protection compared to painted or coated carbon steel reservoirs, which are susceptible to chipping and rust propagation. The inherent resistance to salt and harsh weather conditions makes this reservoir an indispensable component for applications exposed to challenging elements, such as those in winter road maintenance, marine operations, or chemical processing environments. The sleek, polished finish is not merely aesthetic; it contributes to a more hygienic surface, easier cleaning, and enhanced resistance to adherence of contaminants, further prolonging the life and efficiency of the hydraulic system.
The structural integrity of the reservoir is further reinforced by its 13-gauge material thickness. Gauge refers to the sheet metal thickness, where a lower number indicates a thicker, more durable material. A 13-gauge stainless steel construction provides substantial mechanical strength, ensuring the reservoir can withstand internal fluid pressures, external impacts, and the vibrational stresses common in heavy-duty machinery. This robust construction minimizes the risk of deformation, cracking, or leakage, safeguarding the critical hydraulic fluid and ensuring reliable operation over an extended service life. The integration of welded-on carbon steel mounting brackets, while distinct in material from the reservoir body, are engineered to provide secure attachment points, distributing loads effectively and contributing to the overall stability of the installed unit. These integral brackets eliminate the need for custom fabrication, simplifying installation and reducing potential points of failure often associated with bolt-on alternatives. The entire unit undergoes rigorous testing, affirming its compliance with stringent quality standards and ensuring dependable performance upon deployment.
The volumetric capacity of 30 gallons is a crucial specification, directly influencing the thermal management and operational stability of a hydraulic system. A properly sized reservoir acts as a heat exchanger, allowing the hydraulic fluid to cool as it returns from the system before being recirculated by the pump. It also provides a volume large enough to accommodate changes in fluid level due to cylinder extension and retraction, as well as thermal expansion. The "usable capacity" matching the "capacity" at 30 gallons indicates efficient design, maximizing the active fluid volume for system operation. This ample capacity contributes significantly to maintaining optimal fluid temperatures and minimizing the risk of thermal degradation of the hydraulic oil, which can lead to premature component wear and system inefficiencies.
Effective fluid management and contamination control are paramount for the longevity and performance of any hydraulic system. This reservoir incorporates several features explicitly designed to address these critical aspects. The quarter-turn chrome filler breather, equipped with a wire basket strainer, serves a dual purpose. Firstly, the breather allows air to enter and exit the reservoir as fluid levels fluctuate, preventing vacuum or pressure buildup that could damage the tank or impede pump operation. The chrome finish on the filler breather enhances its resistance to corrosion and ensures a long-lasting, clean appearance. Secondly, the integrated wire basket strainer acts as a primary defense against macroscopic contaminants entering the hydraulic fluid during replenishment. This initial filtration step is vital in preventing large debris, dust, or other foreign particles from being introduced into the system, thereby protecting the pump and other sensitive components from abrasive wear.
Monitoring the condition of the hydraulic fluid is made convenient and precise through the integrated sight fluid level and temperature gauge. This combined gauge provides immediate visual feedback on two critical parameters. The fluid level indicator ensures that the system operates within its prescribed volume, preventing cavitation due to low fluid levels or spillage from overfilling. The temperature gauge is equally important, as excessive fluid temperatures are a leading cause of hydraulic system failure. High temperatures accelerate oil degradation, reducing its lubricity and increasing the likelihood of seal failures and component damage. By providing real-time temperature readings, operators can identify potential overheating issues promptly, allowing for corrective actions before system damage occurs, thus enabling proactive maintenance and extending component life.
An often-underestimated feature contributing to the thermal efficiency and de-aeration of hydraulic fluid is the interior baffle. Positioned strategically between the suction and discharge lines, this baffle serves multiple crucial functions. As hydraulic fluid returns from the system, it often contains entrained air bubbles and is at an elevated temperature. The baffle forces the returning fluid to follow a longer, circuitous path within the reservoir, increasing the residence time. This extended travel allows for several beneficial processes:
- Fluid Cooling: The increased surface area exposure and longer path enable more efficient heat dissipation from the fluid to the reservoir walls and surrounding air, contributing significantly to maintaining optimal operating temperatures.
- De-aeration: The slower, less turbulent flow path facilitates the release of entrained air bubbles, preventing them from being drawn back into the pump, where they can cause cavitation, noise, and reduced volumetric efficiency.
- Particle Settling: The reduced fluid velocity also encourages heavier contaminant particles to settle at the bottom of the reservoir, away from the suction line, thus reducing the particulate load on the system filter and pump.
Further enhancing contamination control is the magnetic drain plug. While conventional filters remove particulate matter, metallic particles generated from normal wear or early component failure can be particularly detrimental. The magnetic drain plug utilizes a powerful magnet to attract and hold ferrous particles, such as iron and steel shavings, preventing them from recirculating through the system. During routine maintenance or fluid changes, these accumulated particles can be easily removed, providing valuable diagnostic information about the internal wear of components. This proactive measure significantly reduces abrasive wear on pumps, valves, and actuators, extending their service life and minimizing costly downtime for repairs.
The reservoir's porting design emphasizes versatility and secure integration. The term "bulkhead hydraulic reservoir" specifically denotes that the ports are designed for direct hose or pipe connection through the reservoir wall, providing a clean, leak-resistant interface. The primary suction port, sized at 2 NPT (National Pipe Taper), is dimensioned to accommodate the volumetric flow requirements of most hydraulic pumps compatible with a 30-gallon system. Proper sizing of the suction line is critical to prevent cavitation, a phenomenon where insufficient pressure at the pump inlet causes vapor bubbles to form and collapse, leading to significant pump damage and noise. The NPT threading ensures a robust, tapered seal for reliable fluid transfer.
Beyond the main suction line, the reservoir offers additional porting flexibility with sizes of 1 1/4 NPT and 3/4 NPT. These additional ports are typically utilized for return lines, allowing hydraulic fluid to flow back to the reservoir after performing work within the system. The inclusion of multiple return port sizes provides adaptability for various circuit designs and flow rates. For instance, a larger return port (1 1/4 NPT) might be used for the primary return from a high-flow valve bank, while a smaller port (3/4 NPT) could accommodate auxiliary returns or pilot line drainage. This design foresight allows for a more organized and efficient hydraulic plumbing layout.
A notable feature, simplifying system integration and upholding filtration standards, is the reservoir's pre-drilled configuration for a tank-mounted HFA5S series return filter. While the return line filter itself (and its aluminum head material) is sold separately, the pre-drilled holes eliminate the need for costly and time-consuming modifications, ensuring a perfect fit and seal for compatible filters. Return line filtration is paramount for capturing contaminants generated within the system (e.g., wear particles from pumps or cylinders, ingress from cylinder rod seals) before the fluid returns to the main reservoir for recirculation. The ease of integrating a dedicated, high-efficiency return filter like the HFA5S series underscores a commitment to maintaining ISO fluid cleanliness standards, which directly translates to extended component life, reduced maintenance intervals, and improved system reliability. The choice of aluminum for the filter head material is logical, offering a balance of strength, lightweight properties, and corrosion resistance, compatible with the overall system's robust design.

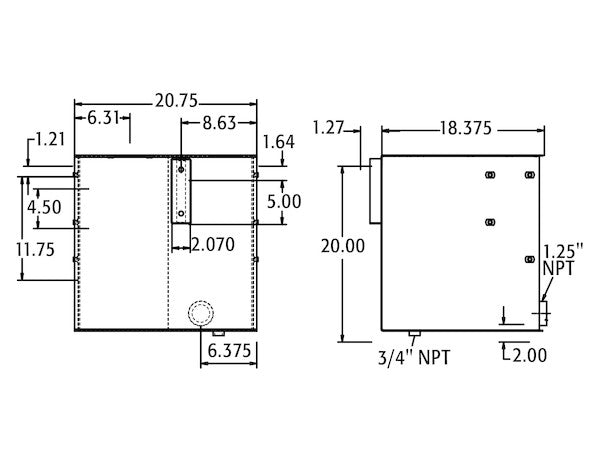

The physical dimensions and mounting strategy are also optimized for practical deployment. With a depth of 18.38 inches, a height of 20 inches, and a width of 20.75 inches, the rectangular shape of this reservoir offers a compact footprint relative to its capacity, making it suitable for installations where space is a premium. The "Side Mount" position and style, facilitated by the integral carbon steel brackets, provide a common and secure method for attaching the reservoir to vehicle chassis, equipment frames, or industrial platforms. While the product explicitly states "Hardware and Brackets Included (y/n): No," this is a standard practice as the specific mounting hardware (e.g., bolts, washers, nuts) required will vary based on the application's unique structural requirements and the material to which the reservoir is being mounted. The integral brackets themselves are robustly welded to the reservoir, signifying a permanent and durable attachment method.
The "Natural" color and "Smooth" finish are characteristic of the polished 304 stainless steel. This natural finish not only contributes to the aesthetic appeal but also highlights the material's inherent cleanliness and resistance to environmental factors. Unlike painted surfaces that can chip, scratch, or fade, stainless steel maintains its appearance and protective qualities over long periods, even in challenging conditions. This smooth surface also makes it easier to inspect for leaks or external damage and facilitates cleaning.
This 30 Gallon Stainless Steel Bulkhead Hydraulic Reservoir is exceptionally well-suited for a diverse range of heavy-duty hydraulic applications. Beyond the specifically mentioned "winter road applications" (which entail extreme exposure to salt, de-icing chemicals, and abrasive road debris), its features make it ideal for:
- Construction Equipment: Excavators, loaders, dozers, and cranes where robust construction and corrosion resistance are critical due to exposure to dirt, mud, and weather.
- Agricultural Machinery: Tractors, harvesters, and implements that operate in varying weather conditions and often encounter corrosive fertilizers or pesticides.
- Waste Management Vehicles: Refuse trucks and compactors exposed to harsh chemicals and constant environmental stress.
- Marine Applications: Fishing vessels, tugboats, and offshore equipment where saltwater corrosion is a primary concern.
- Industrial Power Units: Stationary hydraulic systems in factories or processing plants requiring high reliability and low maintenance in challenging environments.
- Utility and Municipal Vehicles: Service trucks, snowplows, and street sweepers demanding equipment that can withstand severe operational conditions.
In summary, the 30 Gallon Stainless Steel Bulkhead Hydraulic Reservoir from Buyers Products is a meticulously engineered component that prioritizes durability, fluid integrity, and ease of integration. Its 304 stainless steel construction provides unparalleled corrosion resistance and a sleek, maintainable finish. The 13-gauge material thickness and welded carbon steel brackets ensure structural resilience. Critical features such as the chrome filler breather with strainer, sight fluid level and temperature gauge, internal baffle for cooling and de-aeration, and magnetic drain plug collectively work to optimize fluid health, extend component life, and minimize contamination. The strategic porting, including a 2 NPT suction port and versatile auxiliary ports, alongside the pre-drilled provision for a tank-mounted return filter, allows for seamless integration into complex hydraulic systems. Fully tested and designed for severe duty, this reservoir stands as a reliable foundation for high-performance hydraulic operations, delivering consistent performance and peace of mind in the most demanding environments.
