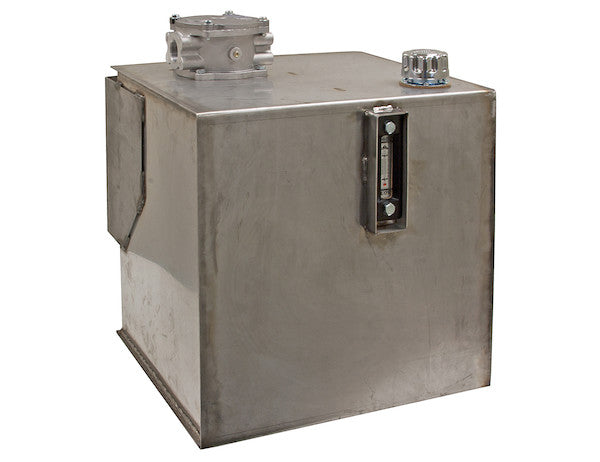

The 30 Gallon Stainless Steel Reservoir with Micron Filter from Buyers Products is made of high-quality 304 stainless steel with welded-on stainless steel mounting brackets. Its sleek, polished appearance will stand up to salt and weather for long lasting use. Great for winter road applications, this reservoir comes fully tested. The reservoir has several features for optimal fluid operation, including: - a quarter-turn chrome filler breather with a wire basket strainer - a sight fluid level and temperature gauge - an interior baffle between suction and discharge to aid in fluid cooling - a magnetic drain plug to aid in preventing metallic particle contamination The reservoir comes pre-drilled for an included tank-mounted HFA5S series return filter. Choose from a 10 micron or 25 micron filter (shipped separately).
Specifications
| Additional Port Size | 3/4 NPT; 1 1/4 NPT |
|---|---|
| Capacity | 30 |
| Color | Natural |
| Depth | 17.00 |
| Filter Head Material_1 | Aluminum |
| Finish | Smooth |
| Hardware and Brackets Included (y/n) | No |
| Height | 22 |
| Included Valve (y/n) | No |
| Integral Brackets (y/n) | Yes |
| Integral Level Gauge (y/n) | Yes |
| Magnetic Drain Plug (y/n) | Yes |
| Material | Stainless Steel |
| Material Gauge | 13 |
| Mount Position | Side Mount |
| Mount Style | Side |
| Oil Level Gauge (y/n) | Yes |
| Reservoir Shape | Rectangle |
| Return Line Filter Included (y/n) | Yes |
| Return Line Filter Rating | 10 |
| Style 1 Port Diameter | 1-1/4 |
| Suction Port Size | 2 NPT |
| Temperature Gauge (y/n) | Yes |
| Usable Capacity | 30 |
| Width | 28.35 |
The 30 Gallon Stainless Steel Bulkhead Hydraulic Reservoir with 10 Micron Filter: An Engineered Solution for Demanding Hydraulic Systems
In the realm of hydraulic power systems, the reservoir serves as far more than a mere storage tank for hydraulic fluid. It is a critical component influencing the overall efficiency, longevity, and reliability of the entire system. The 30 Gallon Stainless Steel Bulkhead Hydraulic Reservoir from Buyers Products, equipped with a 10 Micron Filter, represents a meticulously engineered solution designed to meet the rigorous demands of industrial, mobile, and specialized applications, particularly excelling in harsh environmental conditions such as winter road maintenance. This product integrates superior material science with advanced fluid management features, ensuring optimal performance and extending the operational lifespan of hydraulic machinery.
Unrivaled Material Construction: 304 Stainless Steel Excellence
At the core of this hydraulic reservoir's exceptional durability lies its construction from high-quality 304 stainless steel, precisely a 13-gauge thickness. This material choice is not arbitrary; 304 stainless steel is an austenitic alloy renowned for its outstanding properties that are critical for hydraulic system integrity.
Corrosion Resistance
One of the most significant advantages of 304 stainless steel is its inherent resistance to corrosion. Unlike standard carbon steel, 304 contains a minimum of 18% chromium and 8% nickel, forming a passive oxide layer on its surface. This layer provides superior protection against oxidation, rust, and various corrosive agents, including salts, acids, and alkaline solutions commonly encountered in industrial and outdoor environments. For applications like winter road maintenance, where exposure to de-icing salts and extreme weather is constant, this corrosion resistance is paramount, preventing material degradation that could lead to leaks, contamination, and structural failure. The sleek, polished finish further enhances this protective barrier while providing an aesthetically pleasing appearance that resists staining and tarnishing over time.
Structural Integrity and Durability
The 13-gauge thickness of the stainless steel sheet metal contributes significantly to the reservoir's robust structural integrity. This gauge provides excellent resistance to physical impact, vibration, and deformation, ensuring the reservoir maintains its shape and contains the hydraulic fluid securely under dynamic operating conditions. The use of welded-on stainless steel mounting brackets is a testament to this commitment to durability. Welding creates a monolithic joint that is often stronger than the parent material itself, offering superior load-bearing capacity and vibration resistance compared to bolted or riveted connections. These integral brackets ensure a stable and secure attachment to the vehicle or machinery frame, minimizing stress concentrations and enhancing overall system reliability.
Cleanliness and Maintainability
Stainless steel's non-porous surface makes it inherently hygienic and easy to clean, which is a subtle yet crucial benefit for hydraulic systems. A clean reservoir interior reduces the chances of residual contaminants adhering to surfaces, supporting the overall fluid cleanliness objectives. The smooth finish not only contributes to its aesthetic appeal but also simplifies external cleaning and inspection routines.
Optimized Fluid Management and System Protection
Beyond its robust construction, this 30-gallon reservoir is replete with integrated features designed to optimize hydraulic fluid conditioning, protect critical components, and facilitate efficient system operation. Each feature plays a vital role in upholding the integrity and performance of the hydraulic circuit.
Advanced Air Management: Quarter-Turn Chrome Filler Breather with Wire Basket Strainer
The quarter-turn chrome filler breather is a multi-functional component critical for maintaining atmospheric communication while preventing contaminant ingress. The breather element filters airborne particles that could otherwise enter the reservoir as the fluid level fluctuates due to cylinder extension/retraction and thermal expansion/contraction. Effective air filtration prevents abrasive particles from entering the hydraulic fluid, which is a primary cause of component wear. The chrome finish provides additional corrosion resistance and a professional appearance. Crucially, the integrated wire basket strainer serves as a first line of defense during fluid replenishment. It prevents larger debris, such as shop rags, tools, or other foreign objects, from inadvertently falling into the reservoir during filling, which could lead to immediate system blockage or damage. The quarter-turn mechanism ensures quick, tool-free access for routine fluid checks and topping off, enhancing operational efficiency.
Real-time System Diagnostics: Sight Fluid Level and Temperature Gauge
Integrated into the reservoir is a combination sight fluid level and temperature gauge. This essential diagnostic tool provides operators with immediate, visual feedback on two critical parameters:
- Fluid Level: Maintaining the correct hydraulic fluid level is paramount. Insufficient fluid can lead to cavitation in the pump, severe damage, and premature failure. Excess fluid, conversely, can lead to increased aeration and overheating due to reduced head space for thermal expansion. The sight gauge allows for quick checks to ensure the fluid is within optimal operating limits, preventing costly downtime and component replacement.
- Fluid Temperature: Hydraulic fluid temperature directly impacts its viscosity, lubrication properties, and chemical stability. Operating fluid outside its optimal temperature range (typically too high) accelerates oxidation, degrades additives, and reduces viscosity, leading to increased wear, reduced efficiency, and potential seal damage. The integrated temperature gauge allows operators to monitor fluid thermal conditions, enabling timely intervention to prevent overheating and ensure the fluid maintains its performance characteristics. This is particularly important for demanding applications where heat generation is significant.
Enhanced Fluid Cooling and Contaminant Settling: Interior Baffle Design
A strategically placed interior baffle separates the suction and return lines within the reservoir. This seemingly simple feature has profound implications for fluid conditioning:
- Heat Dissipation: The baffle increases the fluid's flow path and residence time within the reservoir, allowing more time for heat to transfer from the fluid to the reservoir walls and then to the ambient air. This passive cooling mechanism is vital for maintaining optimal fluid temperatures and preventing thermal breakdown.
- Air Separation: By directing the return fluid below the surface and creating a longer, tortuous path to the suction line, the baffle facilitates the separation of entrained air bubbles. Air in hydraulic fluid can cause spongy operation, noise (cavitation), and accelerate fluid degradation.
- Contaminant Settling: The longer residence time and reduced fluid velocity promoted by the baffle allow heavier particulate contaminants to settle to the bottom of the reservoir, away from the suction port, thus reducing the load on the filtration system.
Proactive Metallic Contamination Control: Magnetic Drain Plug
The inclusion of a magnetic drain plug is a crucial feature for proactive contamination control. As hydraulic components wear, they inevitably generate metallic particles, particularly ferrous ones. The magnetic drain plug attracts and holds these ferrous particles, preventing them from recirculating throughout the system where they could cause abrasive wear to pumps, valves, and actuators. During routine maintenance, the magnetic plug can be removed and cleaned, providing a visible indicator of internal wear and effectively removing a significant source of damaging contamination from the system. This directly contributes to extending the life of both the hydraulic fluid and expensive system components.
Integrated High-Performance Filtration: 10 Micron Return Filter
Fluid cleanliness is arguably the most critical factor in the reliability and longevity of any hydraulic system. This reservoir comes pre-drilled for an included tank-mounted HFA5S series return filter, specifically rated at 10 microns.
The Imperative of Hydraulic Filtration
Contamination, whether introduced externally (dirt, dust, water) or generated internally (wear particles, degradation byproducts), is responsible for a vast majority of hydraulic system failures. Filtration removes these contaminants, ensuring the hydraulic fluid maintains its specified cleanliness level, which directly impacts component life and system efficiency.
Strategic Return Line Placement
Mounting the filter on the return line is a strategic choice. This position ensures that all fluid returning from the system's actuators and other components is cleaned *before* it re-enters the main reservoir body and potentially the pump suction line. This prevents contaminants generated within the system (e.g., from cylinder rod seals, valve wear) from circulating and causing further damage. The pre-drilled configuration for the HFA5S series filter simplifies installation and ensures proper integration, reducing the potential for leaks or bypass issues.
The Significance of a 10 Micron Rating
A 10-micron filter rating indicates that the filter element is designed to capture 99% or more of particles 10 micrometers and larger. To put this into perspective, a human hair is about 70 microns thick. Many critical clearances within modern hydraulic components (e.g., between a valve spool and its bore) are often in the range of 5 to 20 microns. Therefore, a 10-micron filter is highly effective at removing the most damaging particulate contaminants, particularly those that can cause abrasive wear and interfere with precise control. This level of filtration significantly enhances the fluid's ISO cleanliness code, directly contributing to extended component lifespan and reducing maintenance requirements. While a 25-micron option is also available, the 10-micron filter specified in the product title offers superior protection for more sensitive systems or those operating in extremely demanding environments.
Aluminum Filter Head
The filter head, the component that interfaces the filter element with the reservoir and fluid lines, is made of aluminum. Aluminum is chosen for its excellent strength-to-weight ratio, good thermal conductivity (aiding in heat dissipation from the fluid as it passes through the filter head), and inherent corrosion resistance, providing a durable and reliable mounting point for the filter element.
Robust Bulkhead Porting for Seamless Integration
The term "bulkhead" in the context of this hydraulic reservoir refers to the integrated, robust connections that pass through the tank wall, providing secure and leak-resistant interfaces for the hydraulic lines. The specification details critical port sizes designed to accommodate the flow requirements of various hydraulic circuits.
- 2 NPT Suction Port: The larger 2 NPT (National Pipe Taper) suction port is crucial for ensuring unrestricted flow of hydraulic fluid to the pump. A sufficiently sized suction line prevents cavitation, which can severely damage the pump. NPT threads provide a conical sealing surface that, when properly assembled with sealant, forms a highly reliable, leak-free connection.
- 3/4 NPT and 1 1/4 NPT Additional Ports: These additional ports offer versatility for connecting return lines, auxiliary circuits, or instrumentation. The 1 1/4 NPT port is particularly well-suited for the main return line, allowing for efficient fluid return to the reservoir without excessive back pressure. The 3/4 NPT port can serve smaller return lines, drain lines, or connections for pressure transducers or other sensors. The use of NPT threads across all ports ensures compatibility with standard hydraulic fittings and facilitates secure, high-pressure connections.
Dimensions, Mounting, and Quality Assurance
With a usable capacity of 30 gallons, this rectangular reservoir (Width: 28.35", Height: 22", Depth: 17.00") is optimally sized for a wide array of mobile and industrial hydraulic systems where space and fluid volume are critical considerations. The side mount position and integral brackets simplify installation, offering a secure attachment point, though it's important to note that additional vehicle-specific mounting hardware is not included, allowing installers the flexibility to choose appropriate hardware for their unique application.
Every unit undergoes rigorous testing to ensure it meets stringent quality and performance standards. "Fully tested" implies a comprehensive quality control process that typically includes pressure testing for weld integrity, leak detection, and functional checks of integrated components like gauges and ports. This commitment to testing ensures that each reservoir delivered is ready for immediate deployment and reliable operation in demanding environments.
Conclusion: A Superior Solution for Hydraulic System Longevity
The 30 Gallon Stainless Steel Bulkhead Hydraulic Reservoir with its integrated 10 Micron Filter is not merely a component; it is a foundational element for a robust and efficient hydraulic system. Its construction from premium 304 stainless steel, engineered for superior corrosion resistance and structural integrity, ensures longevity in the most challenging conditions, including extreme weather and corrosive environments. The comprehensive suite of fluid management features—including advanced air filtration, real-time level and temperature monitoring, an internal baffle for optimized cooling and air separation, and a magnetic drain plug for metallic particle removal—collectively work to maintain fluid cleanliness and operational efficiency. Coupled with its high-performance 10-micron return line filtration system and versatile bulkhead porting, this reservoir provides unparalleled protection for hydraulic pumps, valves, and actuators. For professionals seeking to maximize the reliability, performance, and lifespan of their hydraulic machinery, this reservoir represents a significant investment in system health and operational continuity.
