SMR30SS25 - 30 Gallon Stainless Steel Bulkhead Hydraulic Reservoir With 25 Micron Filter

The 30 Gallon Stainless Steel Reservoir with Micron Filter from Buyers Products is made of high-quality 304 stainless steel with welded-on stainless steel mounting brackets. Its sleek, polished appearance will stand up to salt and weather for long lasting use. Great for winter road applications, this reservoir comes fully tested. The reservoir has several features for optimal fluid operation, including: - a quarter-turn chrome filler breather with a wire basket strainer - a sight fluid level and temperature gauge - an interior baffle between suction and discharge to aid in fluid cooling - a magnetic drain plug to aid in preventing metallic particle contamination The reservoir comes pre-drilled for an included tank-mounted HFA5S series return filter. Choose from a 10 micron or 25 micron filter (shipped separately).

Specifications

30 Gallon Stainless Steel Bulkhead Hydraulic Reservoir with 25 Micron Filter: An Engineered Solution for Demanding Hydraulic Systems

The 30 Gallon Stainless Steel Bulkhead Hydraulic Reservoir with 25 Micron Filter represents a superior solution for hydraulic fluid storage and conditioning, meticulously engineered to meet the rigorous demands of mobile and stationary hydraulic applications. This reservoir is not merely a fluid container; it is an integral component designed to enhance the longevity, efficiency, and reliability of the entire hydraulic system. Constructed from premium 304 stainless steel and featuring a comprehensive suite of integrated fluid management tools, this unit offers unparalleled performance in challenging operational environments, particularly those exposed to harsh weather, corrosive agents, and mechanical stresses.

Uncompromising Material Quality: 304 Stainless Steel Construction

At the core of this reservoir's exceptional durability is its construction from high-quality 304 stainless steel. This material choice is deliberate and critical for applications requiring robust corrosion resistance and structural integrity. 304 stainless steel, an austenitic alloy, is renowned for its excellent resistance to oxidation and corrosion from a wide range of chemicals, atmospheric conditions, and industrial pollutants, including road salts and abrasive materials commonly encountered in winter road maintenance and construction sectors. The inherent properties of 304 stainless steel provide superior mechanical strength, ensuring the reservoir withstands operational vibrations and external impacts without compromising its structural integrity. Furthermore, the smooth, polished finish not only contributes to a clean and professional aesthetic but also facilitates ease of cleaning and maintenance, preventing the accumulation of dirt and debris that could potentially contaminate the hydraulic fluid. The robust 13-gauge material thickness further reinforces its resistance to deformation and punctures, securing the hydraulic fluid in the most arduous conditions. The precision-welded stainless steel mounting brackets integrate seamlessly with the reservoir, forming a cohesive and exceptionally strong unit, eliminating potential weak points often associated with bolted or less durable attachment methods.

Optimized Fluid Capacity and System Integration

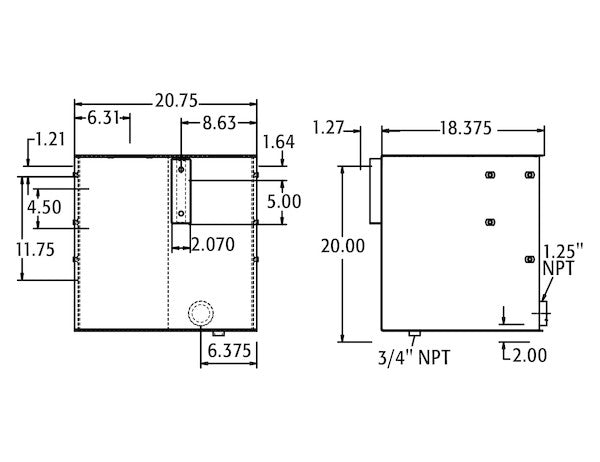

With a generous 30-gallon (113.56-liter) capacity, this hydraulic reservoir is optimally sized for a diverse array of medium to heavy-duty hydraulic systems. The reservoir's capacity is a critical factor in hydraulic system design, directly influencing fluid dwell time, heat dissipation, and the ability to accommodate volume changes due to cylinder extension/retraction and thermal expansion. An adequate fluid volume ensures sufficient time for entrained air to escape, contaminants to settle, and heat to dissipate effectively, thereby preventing fluid degradation and component wear. The rectangular shape, combined with a depth of 17.00 inches, a height of 22 inches, and a width of 28.35 inches, provides an efficient form factor for side-mount installations, making it suitable for integration into various equipment chassis where space optimization is paramount. The design considers not only the physical fit but also the hydraulic principles necessary for stable and efficient system operation. The 'Usable Capacity' matching the total 'Capacity' of 30 gallons indicates that the reservoir is engineered to allow maximum fluid utilization under normal operating parameters, which is a testament to its practical design.

Advanced Fluid Filtration: The 25 Micron Return Line Filter

Hydraulic fluid cleanliness is paramount for the longevity and performance of any hydraulic system. This reservoir integrates an advanced filtration system, featuring a pre-drilled housing for an HFA5S series return filter with a 25-micron rating. The inclusion of a return line filter is strategic, as it captures contaminants introduced into the system or generated through component wear before the fluid returns to the main reservoir for recirculation. A 25-micron filter efficiently removes particulate matter, such as dirt, wear particles, and debris, down to 25 micrometers in size. This level of filtration is crucial for protecting sensitive hydraulic components like pumps, valves, and cylinders from abrasive wear, preventing premature failure and reducing maintenance costs. While a 10-micron option is available (shipped separately) for systems demanding even finer filtration, the standard 25-micron filter provides an excellent balance of filtration efficiency and flow capacity for many demanding applications. The filter head, constructed from durable aluminum, offers robust support for the filter element while resisting corrosion and contributing to efficient heat dissipation.

Comprehensive Fluid Monitoring and Conditioning Features

The design of this reservoir incorporates several key features aimed at optimizing hydraulic fluid conditioning and enabling effective system monitoring:

• Quarter-Turn Chrome Filler Breather with Wire Basket Strainer: The filler breather serves a dual purpose: it allows for clean replenishment of hydraulic fluid and facilitates air exchange between the reservoir and the ambient environment. The quarter-turn design ensures quick and secure access, while the chrome finish provides enhanced durability and corrosion resistance. The integrated wire basket strainer acts as a primary barrier against larger contaminants during fluid addition, preventing their entry into the hydraulic system. This initial filtration step is critical in maintaining overall fluid cleanliness and extending the life of the primary return filter.
• Sight Fluid Level and Temperature Gauge: Integrated prominently on the reservoir is a combined sight fluid level and temperature gauge. This critical instrument provides operators with immediate visual feedback on two vital fluid parameters. Monitoring the fluid level prevents potential issues such as pump cavitation due to insufficient fluid volume or overflow during thermal expansion. The temperature gauge allows for real-time assessment of fluid thermal conditions. Elevated fluid temperatures can lead to accelerated fluid degradation, reduced viscosity, and compromised lubrication properties, ultimately shortening component lifespan. By monitoring temperature, operators can identify potential system inefficiencies, blockages, or excessive heat generation, enabling proactive maintenance.
• Interior Baffle between Suction and Discharge: A strategically placed interior baffle is an engineering marvel designed to optimize fluid dynamics within the reservoir. This baffle separates the return line (discharge) flow from the pump suction line, forcing the fluid to circulate through a longer path before being drawn into the pump. This extended dwell time achieves several critical objectives: it promotes effective heat dissipation by maximizing contact with the reservoir walls, allows entrained air bubbles to rise and escape, and facilitates the gravitational settling of particulate contaminants to the bottom of the tank. The result is cooler, cleaner, and de-aerated fluid delivered to the pump, significantly improving system efficiency and component longevity.
• Magnetic Drain Plug: The inclusion of a magnetic drain plug is a simple yet highly effective contamination control measure. Positioned at the lowest point of the reservoir, this plug is designed to attract and retain ferrous metallic particles that may be present in the hydraulic fluid. These particles are typically indicative of wear within the hydraulic components (e.g., pumps, motors, valves). By capturing these wear particles, the magnetic plug prevents them from recirculating and causing further abrasive damage throughout the system. It also serves as a diagnostic tool, allowing maintenance personnel to inspect the collected debris during fluid changes to gauge the health of internal components.

Robust Bulkhead Porting and Connectivity

The term "bulkhead" in the product title signifies a design philosophy focused on robust, sealed, and integrated connections for hydraulic lines. This reservoir features pre-drilled and securely fitted bulkhead ports, which offer superior sealing and durability compared to threaded connections made directly into the tank wall. This design minimizes stress concentrations and potential leak paths, enhancing the overall reliability of the hydraulic system. The various port sizes cater to typical hydraulic system requirements: a substantial 2 NPT suction port ensures unrestricted flow to the pump, crucial for preventing cavitation. The 1-1/4 inch Style 1 port diameter likely accommodates a primary return line, allowing efficient fluid flow back to the reservoir. Additionally, auxiliary port sizes of 1/4 NPT and 3/4 NPT provide flexibility for connecting pressure gauges, sensors, auxiliary return lines, or remote drain connections, enabling customized system configurations and expanded diagnostic capabilities.

Installation and Operational Considerations

Designed for side mounting, the reservoir’s integral welded brackets provide a secure and stable attachment point to the equipment chassis. While the reservoir comes with integral brackets, it is important to note from the specifications that mounting hardware itself is not included. This allows installers to select appropriate hardware specific to their application, considering factors such as vibration isolation and structural support. The "Natural" color and "Smooth" finish of the stainless steel require no additional painting or protective coatings, further simplifying installation and maintenance. Every unit undergoes rigorous testing to ensure leak-free operation and adherence to stringent quality standards, providing confidence in its performance from the moment of installation.

Applications and Long-Term Value

This 30 Gallon Stainless Steel Bulkhead Hydraulic Reservoir with 25 Micron Filter is an ideal choice for a wide array of demanding applications, including municipal utility vehicles, snowplows and salt spreaders (where resistance to corrosive agents is paramount), heavy construction equipment, agricultural machinery, and various industrial hydraulic power units. Its robust design and comprehensive feature set translate into significant long-term value: reduced downtime due to component failure, extended service life of hydraulic fluid, lower maintenance costs, and enhanced overall system performance and reliability. By investing in such a high-quality reservoir, operators and fleet managers can ensure their hydraulic systems operate at peak efficiency, even in the most challenging and critical environments.

In conclusion, the 30 Gallon Stainless Steel Bulkhead Hydraulic Reservoir with 25 Micron Filter is a meticulously engineered component that surpasses industry standards for durability, functionality, and performance. Its premium 304 stainless steel construction, integrated fluid conditioning features, advanced filtration, and robust porting design collectively make it an indispensable asset for any hydraulic system requiring unwavering reliability and longevity.
