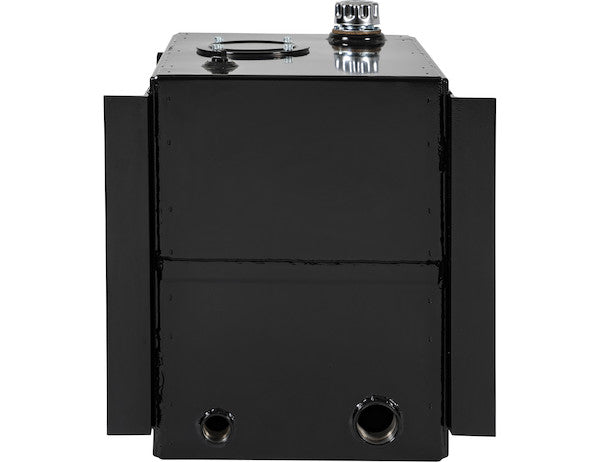

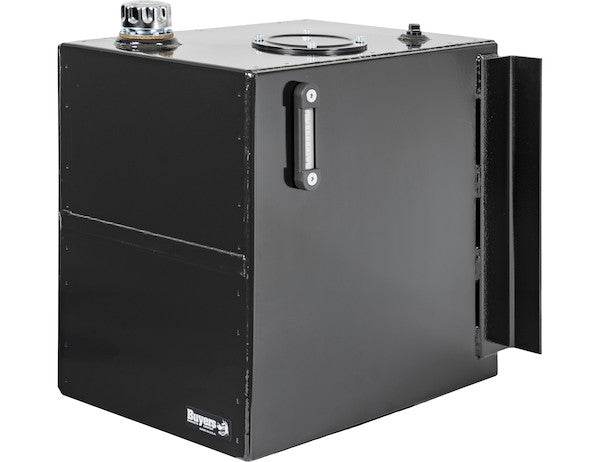

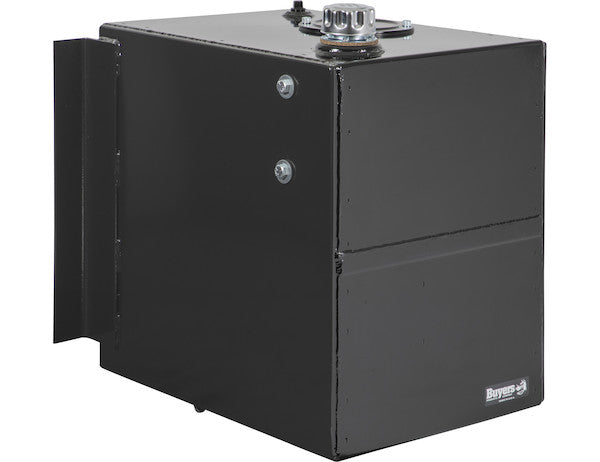

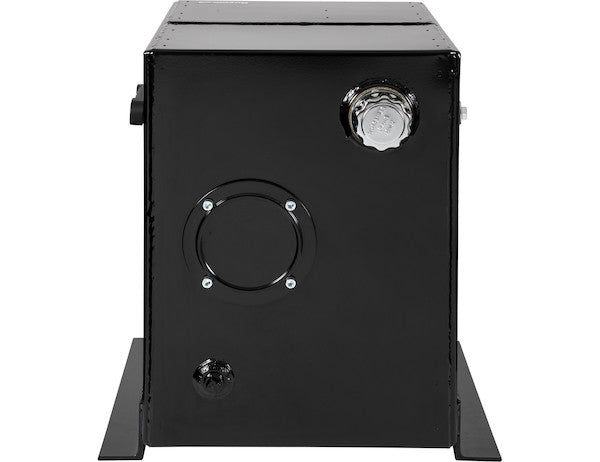

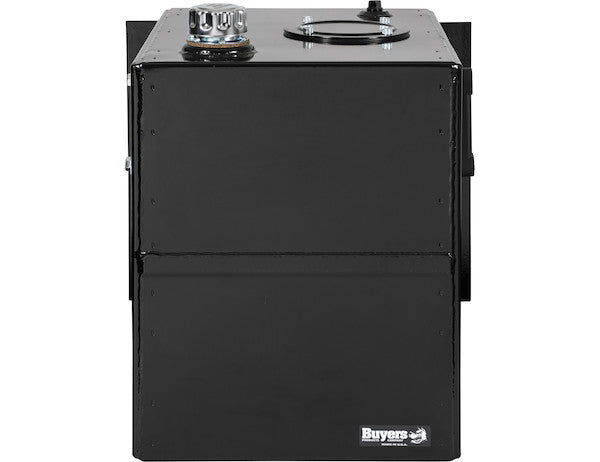

SMR37SQ - 37 Gallon Steel Hydraulic Reservoir

The 37 Gallon Steel Reservoir from Buyers Products has welded, integral brackets for mounting to the truck frame. It's ideal for dump applications with a durable 12 Ga HRPO steel build and a corrosion resistant black powder-coated finish. High quality robotic welds ensure consistent and rugged structural strength. The reservoir has several features for optimal fluid operation. It's internally baffled between suction and discharge to help with cooling, and includes a magnetic drain plug with sump to help prevent metallic particle contamination. This will increase the lifespan of your fluids and your system as a whole. The reservoir also accepts a tank-mounted HFA5S series return filter on top, saving you space that would be taken by an external filter. The reservoir comes with a 2 in. NPT suction port, a 1-1/4 in. NPT return, and a 3/4 in. NPT load-sensing pump drain port. A quarter-turn chrome filler breather with a wire basket strainer and sight fluid level gauge are also included.

Specifications

Comprehensive Technical Overview: 37 Gallon Steel Hydraulic Reservoir for Demanding Applications

This technical product description provides an in-depth analysis of the 37 Gallon Steel Hydraulic Reservoir, meticulously engineered by Buyers Products to meet the rigorous demands of heavy-duty mobile hydraulic systems, particularly within challenging dump applications. This reservoir is not merely a fluid storage tank; it represents a critical component designed to optimize hydraulic system performance, extend component lifespan, and minimize operational downtime through a combination of robust construction, intelligent fluid management features, and thoughtful integration capabilities.

Unparalleled Structural Integrity and Material Science

The foundation of this hydraulic reservoir's exceptional performance lies in its construction. Fabricated from 12 Gauge HRPO steel, it offers a superior blend of strength, durability, and resistance to environmental stressors. HRPO, or Hot Rolled Pickled and Oiled steel, signifies a material that has undergone specific processing steps. Hot rolling provides excellent structural properties and formability. The pickling process removes mill scale and surface impurities, yielding a cleaner, more uniform surface. The subsequent oiling provides temporary corrosion protection, crucial for maintaining surface quality prior to fabrication and finishing. This meticulous material selection ensures that the reservoir can withstand the significant mechanical stresses, vibrations, and potential impacts inherent in mobile equipment operations, particularly those encountered on construction sites, agricultural fields, or municipal service routes where dump trucks are prevalent.

Further enhancing its structural integrity are the high-quality robotic welds. Robotic welding represents an advanced manufacturing process that ensures unparalleled consistency, precision, and penetration in every weld seam. Unlike manual welding, robotic systems eliminate human variability, reducing the potential for defects such as porosity, incomplete fusion, or cracking. This results in leak-proof seams that maintain their structural integrity over the reservoir's extended service life, even under dynamic pressure fluctuations and continuous vibration. The robust welding also contributes significantly to the overall rigidity of the reservoir, preventing deformation and ensuring dimensional stability under full load conditions. The integral, welded brackets are a testament to this robust design philosophy, providing a secure and permanent mounting solution directly to the truck frame. This direct frame mounting minimizes flex and vibration transfer, safeguarding both the reservoir and the entire hydraulic system from undue stress.

The exterior of the reservoir is finished with a corrosion-resistant black powder coat. Powder coating is a highly durable finishing process where dry powder is electrostatically applied and then cured under heat to form a hard, protective layer. This finish offers superior resistance to abrasion, chipping, and a wide array of chemical exposures common in industrial and outdoor environments, including road salts, oils, and other corrosive agents. The black finish also contributes to a professional aesthetic, seamlessly integrating with the vehicle's appearance while offering an additional layer of thermal radiation, assisting in heat dissipation. This combination of premium material and advanced protective coating ensures the reservoir maintains its functional and aesthetic qualities for many years, even in the most demanding operational scenarios.

Advanced Fluid Dynamics and Contamination Control

Effective hydraulic fluid management is paramount for the longevity and efficiency of any hydraulic system. This 37-gallon reservoir incorporates several sophisticated features to optimize fluid condition and mitigate common issues that lead to system degradation. Internally, the reservoir is equipped with strategically placed baffles that serve multiple critical functions. These baffles create an extended flow path for the hydraulic fluid, separating the suction and return lines. This separation is vital for preventing fluid "short-circuiting," where heated, aerated return fluid is immediately drawn back into the suction line without adequate time for conditioning. By forcing the fluid to circulate around the baffles, several benefits are achieved:

• Heat Dissipation: The increased surface area and longer flow path allow the fluid more time to cool by transferring heat to the reservoir walls, which then dissipate it to the ambient air. This helps maintain optimal operating temperatures, preventing thermal degradation of the hydraulic fluid and protecting heat-sensitive components.
• Aeration Control: Baffles promote de-aeration by allowing entrained air bubbles, introduced by the return flow, to rise to the fluid surface and escape. This prevents cavitation in the pump, which can cause significant damage, reduce volumetric efficiency, and generate undesirable noise and vibration.
• Contaminant Settling: The reduced fluid velocity within the baffled sections provides an environment where solid particulate contaminants, heavier than the fluid, can settle to the bottom of the reservoir, preventing them from being recirculated through the system.

Complementing the baffling system is an integral magnetic drain plug with a dedicated sump. This feature is a cornerstone of proactive contamination control. The magnetic drain plug is designed to attract and capture ferrous metallic particles that are invariably generated within a hydraulic system through wear of pumps, motors, valves, and cylinders. By magnetically retaining these particles, it prevents them from circulating further and causing secondary damage to precision components. The integrated sump provides a recessed area where these metallic particles, along with other heavier contaminants, can accumulate, ensuring they are effectively captured and removed during routine maintenance procedures. This simple yet highly effective mechanism significantly extends the lifespan of the hydraulic fluid and, consequently, all hydraulic components, reducing maintenance intervals and associated costs.

Integrated Filtration and Port Configuration for Optimal Performance

The reservoir's design incorporates the crucial capability to accept a tank-mounted HFA5S series return filter on its top surface. This integrated filtration solution offers substantial advantages over externally mounted filters. By positioning the filter directly on the reservoir, valuable space on the vehicle chassis is conserved, which is particularly beneficial in space-constrained mobile applications. More importantly, it ensures that all return fluid is thoroughly filtered before it re-enters the main reservoir volume and is subsequently drawn back into the pump. This continuous, high-efficiency filtration of the entire system volume is critical for maintaining ISO cleanliness levels, protecting downstream components from wear caused by particulate contamination. While the filter itself is not included, the provision for an HFA5S series filter highlights the system-centric design, allowing users to select a filter element appropriate for their specific contamination control requirements and hydraulic fluid type.

Connectivity to the hydraulic system is managed through a carefully selected array of NPT (National Pipe Tapered) ports, ensuring robust and leak-free connections. The reservoir features a 2-inch NPT suction port. The generously sized suction port is engineered to minimize pressure drop at the pump inlet, a critical factor in preventing cavitation, especially in systems with high flow rates or viscous fluids. Adequate suction port sizing ensures the pump receives a continuous, unrestricted supply of fluid, optimizing its volumetric efficiency and extending its service life. The 1-1/4 inch NPT return port facilitates the efficient return of fluid from the system back into the reservoir after filtration. Its sizing is balanced to accommodate the return flow without creating excessive back pressure.

A dedicated 3/4 inch NPT load-sensing pump drain port is also provided. This port is specifically designed for hydraulic systems employing load-sensing pumps, which are commonly found in modern, energy-efficient mobile equipment. Load-sensing pumps feature internal control mechanisms that require a separate drain line to return internal leakage fluid and to manage control pressures. The inclusion of this dedicated port ensures proper integration and optimal performance of sophisticated load-sensing hydraulic circuits, preventing potential pressure build-up or inadequate cooling within the pump's casing. Furthermore, the specifications indicate additional port sizes including 3/4 NPT, 1/2 NPT, and 1-1/4 NPT. These auxiliary ports offer versatile connection points for various system components such as auxiliary return lines, pressure transducers, temperature sensors, breather lines, or additional diagnostic equipment, providing flexibility for complex hydraulic configurations and future system upgrades.

Comprehensive Monitoring and Maintenance Features

Ease of monitoring and maintenance is crucial for operational efficiency and system reliability. This reservoir is equipped with several features that simplify these processes. A quarter-turn chrome filler breather with an integrated wire basket strainer provides a convenient and secure means for adding hydraulic fluid. The quarter-turn design allows for quick and tool-free access, minimizing downtime during refills. The breather cap itself plays a vital role by allowing air to enter and exit the reservoir as the fluid level fluctuates during system operation, preventing a vacuum or pressure buildup. Crucially, the breather also features an air filter element to prevent airborne contaminants (dust, dirt, moisture) from entering the reservoir, maintaining fluid cleanliness. The integrated wire basket strainer acts as a preliminary filter during the fluid filling process, catching larger particulate contaminants from the dispensed fluid before it enters the reservoir, thereby providing a critical first line of defense against external contamination.

Visibility into the fluid status is provided by an integral sight fluid level gauge. This visual indicator allows operators and maintenance personnel to quickly and accurately assess the hydraulic fluid level without opening the reservoir, preventing both overfilling and underfilling. Maintaining the correct fluid level is critical to prevent pump cavitation (due to low fluid) and ensure adequate air space for de-aeration and heat transfer. The inclusion of an integral temperature gauge is equally important. Elevated hydraulic fluid temperatures can drastically accelerate fluid degradation, reducing its lubricity and increasing the risk of component wear and seal failure. By providing a clear indication of the fluid's thermal state, the temperature gauge enables proactive intervention, such as checking heat exchangers, reducing system load, or addressing potential inefficiencies, thereby preventing costly overheating issues and extending the life of both the fluid and the system components.

Application-Specific Advantages for Dump Systems

The design philosophy of this 37 Gallon Steel Hydraulic Reservoir is particularly well-suited for demanding dump applications. Dump trucks and similar heavy equipment operate under intermittent, high-power cycles, often in harsh environments characterized by dirt, dust, and significant temperature variations. The robust 12 Ga HRPO steel construction and corrosion-resistant powder coat are designed to withstand these conditions, offering exceptional durability against mechanical shock and environmental degradation. The integral brackets provide a secure, vibration-resistant mounting solution vital for vehicles operating over uneven terrain.

The sophisticated fluid management features – internal baffling, magnetic drain plug, and integrated return filter capability – are critical for maintaining fluid cleanliness and temperature stability in high-duty cycle applications. Dump systems often experience rapid fluid transfers and significant heat generation. The reservoir’s ability to promote cooling and mitigate aeration directly translates to reduced wear on hydraulic pumps and cylinders, which are frequently exercised components in dump operations. Furthermore, the capacity of 37 gallons is carefully dimensioned to provide sufficient fluid volume for the operational requirements of many dump systems, ensuring ample reserve for varying cylinder extensions and preventing fluid starvation during peak demands, while also offering adequate dwell time for cooling and de-aeration.

Conclusion: A Foundation for Reliable Hydraulic Performance

In summary, the 37 Gallon Steel Hydraulic Reservoir from Buyers Products is an expertly engineered component designed to be the cornerstone of a high-performance, long-lasting mobile hydraulic system. Its adherence to superior material specifications, advanced manufacturing techniques, and integrated fluid conditioning features significantly contribute to the overall reliability and efficiency of the equipment it serves. From its robust 12 Ga HRPO steel construction and robotic welds to its internal baffling, magnetic drain plug, integrated filter accommodation, and comprehensive monitoring capabilities, every aspect of this reservoir is optimized for durability, fluid cleanliness, and thermal management. For professional users in industries relying on heavy-duty mobile hydraulics, particularly those in challenging dump applications, this reservoir represents a strategic investment that delivers tangible benefits in terms of extended component life, reduced maintenance, minimized downtime, and ultimately, a lower total cost of ownership. Its careful design ensures that the heart of your hydraulic system – the fluid – remains in optimal condition, enabling sustained peak performance even in the most arduous operational environments. The 22.0-inch depth, 23.0-inch height, and 23.0-inch width, coupled with its cube shape and side mount position, offer practical dimensions for integration into a wide array of chassis configurations, making it a versatile and indispensable component for any robust hydraulic setup.
