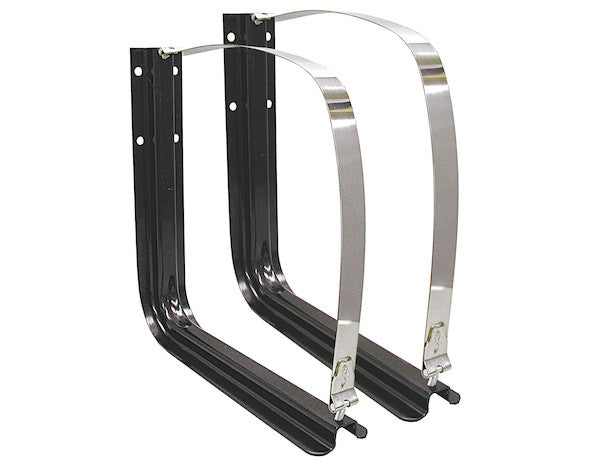

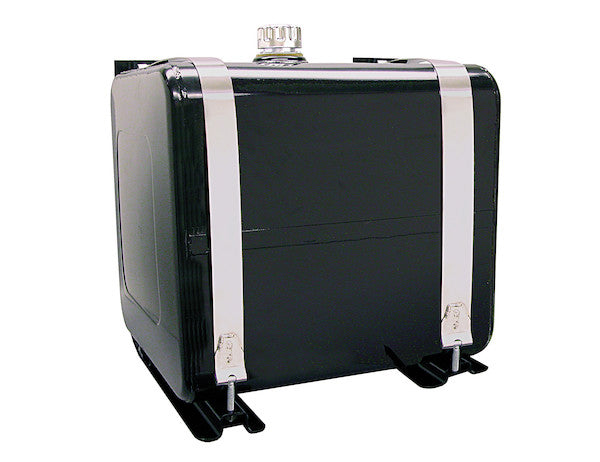

Buyers Products Side Mount Bracket Kit for SMS50 and SMS70S Reservoirs includes two black powder-coated mounting brackets with stainless steel straps. The kit works for both the 50 and 70 gal reservoirs. Reservoirs sold separately.
Specifications
| For Use With | SMS50S |
|---|
Advanced Technical Overview: Buyers Products Side Mount Bracket Kit for SMS50S and SMS70S Hydraulic Reservoirs
This document provides an in-depth technical description of the Buyers Products Side Mount Bracket Kit, specifically engineered for the secure installation of SMS50S and SMS70S series steel hydraulic reservoirs. Designed for robust performance and longevity in demanding mobile and industrial hydraulic applications, this bracket kit represents a critical component in ensuring the structural integrity and operational efficiency of hydraulic systems.
Product Overview and Application
The Buyers Products Side Mount Bracket Kit is a purpose-built accessory designed to facilitate the reliable side-mounting of Buyers Products SMS50S (50-gallon) and SMS70S (70-gallon) steel hydraulic reservoirs. These reservoirs are commonly employed in a wide array of heavy-duty applications, including but not limited to, vocational trucks, agricultural machinery, construction equipment, waste management vehicles, and various stationary industrial hydraulic power units. The side-mount configuration offers distinct advantages in terms of space utilization, weight distribution, and accessibility for maintenance in many vehicle chassis and equipment designs.
Key Components and Material Science
The kit comprises two primary components: two meticulously fabricated mounting brackets and a set of corresponding stainless steel straps. Each component is selected and processed to meet rigorous performance and durability standards.
1. Mounting Brackets:
- Material: The mounting brackets are constructed from high-grade steel. The selection of steel as the base material is paramount due to its inherent strength-to-weight ratio, excellent fatigue resistance, and weldability. These properties are critical for supporting the substantial weight of a full hydraulic reservoir, which, when filled, can exert significant static and dynamic loads.
-
Coating: Each steel bracket undergoes a comprehensive surface treatment process involving a black powder coat finish. Powder coating is a superior finishing technique compared to traditional wet painting, offering several distinct advantages relevant to this application:
- Corrosion Resistance: The powder coat creates a durable barrier that effectively protects the underlying steel from environmental degradation, including exposure to moisture, road salts, hydraulic fluids, chemicals, and abrasive particles. This is crucial for components exposed to harsh outdoor conditions typical of mobile equipment.
- Impact and Abrasion Resistance: The polymeric layer formed by powder coating provides enhanced resistance to chipping, scratching, and abrasion, which can occur during installation, operation, or routine maintenance. This contributes significantly to the aesthetic longevity and protective integrity of the brackets.
- UV Resistance: Modern powder coatings often incorporate UV stabilizers, ensuring the finish retains its color and protective qualities even under prolonged exposure to sunlight, preventing chalking and fading.
- Environmental Compliance: Powder coating is an environmentally friendly process, as it involves no volatile organic compounds (VOCs), making it a preferred choice for sustainable manufacturing.
- Design and Fabrication: The brackets are precision-formed to conform to the curvature and structural requirements of the SMS series reservoirs. Their design incorporates appropriate bolt patterns and structural reinforcements to distribute loads effectively, minimize stress concentrations, and prevent flexing or deformation under dynamic operating conditions. The engineering ensures a snug fit, preventing movement and vibration that could lead to wear, fatigue, or operational noise.
2. Stainless Steel Straps:
-
Material: The straps provided with the kit are manufactured from high-quality stainless steel. Stainless steel is chosen for its exceptional properties, which are particularly advantageous for securing critical components like hydraulic reservoirs:
- Superior Corrosion Resistance: Stainless steel, specifically grades like 304 or 316 (common in industrial applications), contains chromium, which forms a passive oxide layer on its surface. This layer provides unparalleled resistance to rust, oxidation, and chemical attack, far surpassing that of carbon steel. In applications involving exposure to water, salt spray, various chemicals, and fluctuating temperatures, stainless steel ensures the straps maintain their structural integrity and appearance over extended periods.
- High Tensile Strength: Despite its excellent corrosion resistance, stainless steel also boasts high tensile strength, providing the necessary clamping force to secure the reservoir firmly without stretching or yielding.
- Durability and Longevity: The inherent properties of stainless steel contribute to the straps' long operational life, reducing the need for premature replacement due to material degradation.
- Functionality: The straps are designed to work in conjunction with the mounting brackets, wrapping around the reservoir and attaching to the brackets to create a secure, circumferential clamping force. This two-point attachment system, combined with the underlying support from the brackets, minimizes the potential for rotational or translational movement of the reservoir, even under severe acceleration, deceleration, or vibration.
Technical Compatibility and Integration
This bracket kit exhibits explicit compatibility with two specific Buyers Products hydraulic reservoir models:
- SMS50S (50 Gallon Steel Side Mount Reservoir): This reservoir typically has dimensions optimized for a 50-gallon capacity, common in medium to heavy-duty hydraulic applications.
- SMS70S (70 Gallon Steel Side Mount Reservoir): The larger 70-gallon capacity reservoir offers extended fluid volume for systems requiring greater hydraulic fluid reserves or enhanced cooling capabilities.
The "S" designation in SMS50S and SMS70S typically signifies a steel construction, which aligns with the robust nature of this bracket kit. The universal fit for both sizes indicates a clever design that accommodates variations in reservoir circumference or mounting point geometry between the two models, likely achieved through adjustable strap lengths or adaptable bracket configurations.
It is imperative to note that the reservoirs themselves are sold separately. This modular approach allows end-users or system integrators to select the appropriate reservoir capacity independently, providing flexibility in system design and procurement.
Installation Considerations and Best Practices
Proper installation of the bracket kit is paramount to ensure the safe and reliable operation of the hydraulic system. While the kit provides the necessary components, the quality of the installation directly impacts performance and longevity.
- Structural Mounting Surface: The chassis or frame member onto which the brackets are mounted must possess adequate structural integrity to support the combined weight of the reservoir (empty and full) and the dynamic loads it will experience. This typically involves reinforcing the frame or selecting pre-engineered mounting points on the vehicle chassis.
- Fasteners: High-grade fasteners (bolts, nuts, washers) of appropriate size and material (e.g., Grade 8 or equivalent for demanding applications) are crucial for attaching the brackets to the mounting surface. These should be specified based on engineering calculations considering shear, tensile, and fatigue loads. Torque specifications for all fasteners should be strictly adhered to, often utilizing torque wrenches to ensure proper clamping force without over-stressing components.
- Vibration Isolation: While the kit itself provides robust securing, supplementary vibration isolators or rubber pads between the brackets and the mounting surface or between the straps and the reservoir can further reduce wear, noise, and fatigue in extreme vibration environments. This can also help protect the reservoir's finish.
- Clearance: Ensure sufficient clearance around the reservoir for proper air circulation (essential for heat dissipation), access for routine maintenance (e.g., checking fluid levels, filter replacement), and to prevent interference with other vehicle components during dynamic operation.
- Weight Distribution: For mobile applications, consideration must be given to the weight distribution on the vehicle chassis. The placement of a fully loaded hydraulic reservoir significantly impacts vehicle stability, axle loading, and compliance with gross vehicle weight ratings (GVWR).
- Pre-load and Tensioning: When securing the stainless steel straps, it is important to apply adequate tension to prevent any relative movement between the reservoir and the brackets. However, over-tensioning should be avoided as it can deform the reservoir or induce excessive stress. The design of the straps typically allows for a secure, tight fit without requiring extreme forces.
- Regular Inspection: Post-installation, a routine inspection schedule should be established to check the tightness of all fasteners, the condition of the brackets and straps, and for any signs of wear, corrosion, or fatigue, especially after initial operational hours and subsequently at prescribed service intervals.
Engineering Advantages and Benefits
The Buyers Products Side Mount Bracket Kit offers several significant engineering and operational advantages:
- Enhanced System Reliability: By providing a secure and stable mounting platform, the kit mitigates the risk of reservoir displacement, vibration-induced damage to the reservoir or connected hydraulic lines, and potential fluid leaks. This directly contributes to the overall reliability and uptime of the hydraulic system.
- Optimized Space Utilization: Side-mounting allows for efficient use of available chassis space, particularly on vehicles where top-mounting or other configurations are impractical due to cab design, exhaust systems, or other auxiliary equipment.
- Durability in Harsh Environments: The combination of powder-coated steel brackets and stainless steel straps ensures exceptional resistance to environmental factors, extending the service life of the mounting system even in corrosive and abrasive conditions.
- Simplified Installation: Designed specifically for the SMS50S and SMS70S reservoirs, the kit offers a straightforward installation process, reducing labor time and complexity compared to custom fabrication solutions.
- Compliance and Safety: A properly installed, purpose-built mounting system ensures that the hydraulic reservoir is secured in accordance with industry best practices, contributing to operational safety and potentially aiding in compliance with relevant vehicle and equipment safety standards.
- Cost-Effectiveness: While an initial investment, the longevity and reliability afforded by this robust mounting kit ultimately translate into reduced maintenance costs, fewer unscheduled downtimes, and a longer operational lifespan for the hydraulic reservoir.
Conclusion
The Buyers Products Side Mount Bracket Kit for SMS50S and SMS70S Hydraulic Reservoirs is an expertly engineered solution providing a secure, durable, and reliable method for integrating critical hydraulic fluid storage into various mobile and industrial applications. Its meticulous design, selection of high-performance materials (powder-coated steel and stainless steel), and attention to environmental protection underscore its value as an essential component for any hydraulic system utilizing these specific reservoirs. Understanding its technical specifications, installation requirements, and inherent advantages is key to maximizing the performance and longevity of the complete hydraulic power unit.
