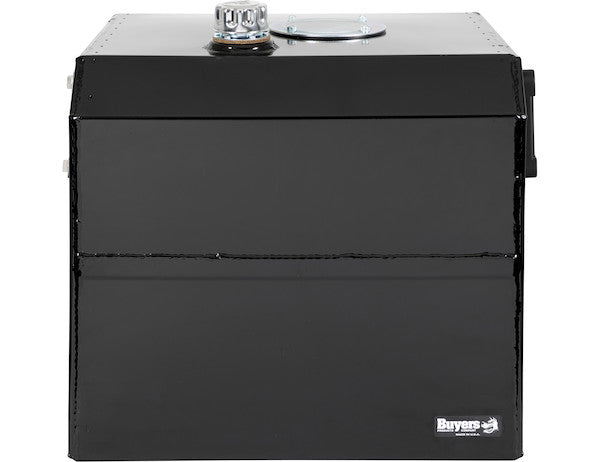

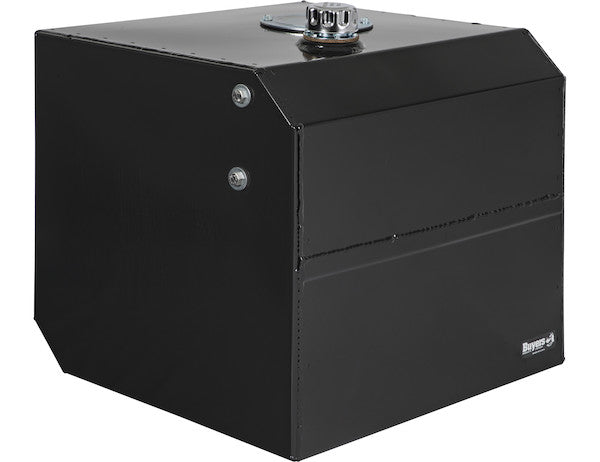

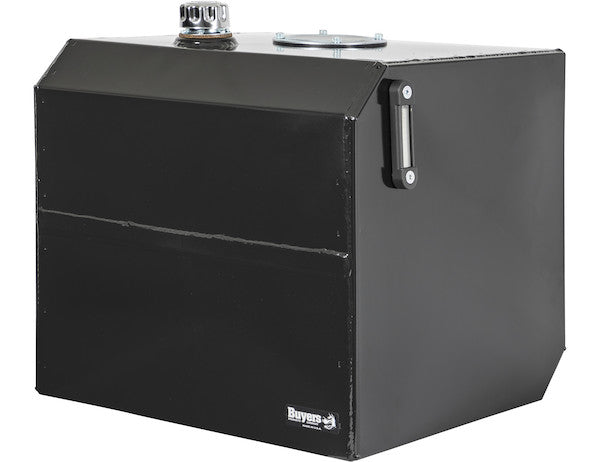

The Side Mount Steel Reservoir from Buyers Products is built of tough 13 Ga steel and is designed to install on the side of your truck. The reservoir is fully baffled to control fluid movement and keep things cool. It features a black powder-coated finish for enhanced corrosion resistance. The tank has a 2 in. NPT return port/drain on its bottom. Each unit includes a sight level and temperature gauge and a quarter turn filler breather unit. Mounting brackets are sold separately (see "Accessories" below).
Specifications
| Capacity | 50 |
|---|---|
| Color | Black |
| Depth | 25 |
| Finish | Powder-Coat |
| Hardware and Brackets Included (y/n) | No |
| Height | 23 |
| Included Valve (y/n) | No |
| Integral Brackets (y/n) | Yes |
| Integral Level Gauge (y/n) | Yes |
| Material | Carbon Steel |
| Material Gauge | 13 |
| Mount Position | Upright |
| Oil Level Gauge (y/n) | Yes |
| Reservoir Shape | Rectangle |
| Suction Port Size | 2 NPT |
| Temperature Gauge (y/n) | Yes |
| Usable Capacity | 50 |
| Width | 23 |
Technical Overview: 50 Gallon Side Mount Steel Hydraulic Reservoir
The 50 Gallon Side Mount Steel Hydraulic Reservoir represents a critical component in the design and operation of mobile and stationary hydraulic systems requiring substantial fluid capacity and robust construction. Engineered for the demanding environments characteristic of heavy-duty trucks and industrial equipment, this reservoir is meticulously designed to ensure the longevity, efficiency, and reliability of the hydraulic circuits it supports. Its side-mount configuration, robust material specification, advanced fluid management features, and integrated monitoring capabilities make it an optimal choice for a wide array of applications, including dump trucks, snowplows, cranes, refuse vehicles, and various utility and agricultural machinery.
Fundamental Role of the Hydraulic Reservoir
A hydraulic reservoir serves several indispensable functions within a hydraulic system. Beyond merely storing hydraulic fluid, it plays a vital role in heat dissipation, contaminant settling, and air separation—processes crucial for maintaining fluid integrity and system performance. The fluid within the reservoir experiences a cycle of heating and cooling, agitation, and rest, necessitating a design that optimizes these phases. By providing an ample volume, the 50-gallon capacity of this reservoir ensures sufficient residence time for the fluid to cool, de-aerate, and allow particulate matter to settle, thereby protecting the hydraulic pump and other sensitive components from premature wear and degradation. A properly sized reservoir like this one also accommodates fluid volume changes due to cylinder extension/retraction and thermal expansion/contraction, preventing system over-pressurization or vacuum conditions.
Material Science and Structural Integrity: 13 Gauge Carbon Steel
The selection of 13-gauge carbon steel for this hydraulic reservoir underscores a commitment to durability and structural robustness. Carbon steel is widely recognized in industrial applications for its superior strength-to-weight ratio, excellent fatigue resistance, and inherent capability to withstand significant mechanical stresses and vibrations commonly encountered in mobile applications. The 13-gauge (approximately 0.090 inch or 2.286 mm) thickness provides a critical balance between weight optimization and structural rigidity, preventing deformation under dynamic loads and internal fluid pressures, while also ensuring robust protection against external impacts and abrasions. The use of carbon steel further facilitates high-quality welding, resulting in leak-proof seams and a monolithic structural integrity essential for containing hydraulic fluid effectively. The material’s properties contribute significantly to the reservoir’s long operational lifespan, minimizing the risk of costly failures and downtime.
Capacity and System Sizing: The 50-Gallon Advantage
The generous 50-gallon (approximately 189.27 liters) usable capacity of this reservoir is a significant attribute, particularly for medium to heavy-duty hydraulic systems. Proper reservoir sizing is a critical engineering consideration, typically determined by factors such as pump flow rate, system operating pressure, heat generation, and the volume of fluid required by actuators. A general rule of thumb suggests a reservoir capacity of 3 to 5 times the pump's flow rate per minute. For systems with pumps delivering up to 10-16 GPM, a 50-gallon reservoir provides an ideal volume to facilitate adequate fluid cooling and de-aeration, preventing thermal breakdown of the hydraulic fluid and cavitation in the pump. This ample capacity enhances the system's ability to maintain stable operating temperatures, extend fluid service life, and ensure consistent hydraulic performance across varying load conditions and duty cycles.
Optimized Mounting and Form Factor: Side Mount Upright Rectangle
Designed for side mounting in an upright position, this rectangular reservoir offers a highly efficient utilization of space on vehicle chassis or equipment frames. The dimensions—25 inches in depth, 23 inches in height, and 23 inches in width—are carefully proportioned to accommodate a substantial fluid volume while minimizing intrusion into valuable chassis space. The rectangular form factor is inherently robust and simplifies fabrication, contributing to manufacturing consistency. The specification "Integral Brackets (y/n) Yes" indicates that the reservoir itself incorporates attachment points or structural elements designed to interface with external mounting hardware. While the reservoir features these integral attachment provisions, it is important to note that the primary mounting brackets, which secure the reservoir to the vehicle frame, are sold separately. This modular approach allows for customization of mounting solutions to suit specific vehicle configurations and installation requirements, ensuring secure and stable integration into the hydraulic system.
Advanced Fluid Dynamics: The Role of Baffling
A key engineering feature of this reservoir is its fully baffled interior. Baffles are internal plates strategically placed within the reservoir to manage fluid flow paths and enhance critical fluid conditioning processes. Their primary functions include:
- **Promoting Heat Dissipation:** Baffles force the returning hot fluid to travel a longer, circuitous path through the reservoir, maximizing its exposure to the cooler reservoir walls. This increased surface contact area facilitates efficient heat transfer to the ambient air, aiding in the passive cooling of the hydraulic fluid.
- **Facilitating Air Separation:** By extending the fluid's travel path and reducing its velocity, baffles encourage entrained air bubbles to rise to the surface and escape. This prevents air ingestion by the pump, which can lead to cavitation, reduced system efficiency, and accelerated wear on components.
- **Allowing Contaminant Settling:** The controlled, slower flow created by baffles allows heavier particulate contaminants to settle to the bottom of the reservoir, away from the pump suction inlet. This helps maintain fluid cleanliness and extends the life of filters and other hydraulic components.
- **Preventing Sloshing and Turbulence:** In mobile applications, baffles minimize fluid sloshing during vehicle movement, preventing excessive aeration and maintaining a stable fluid level at the pump inlet, even on uneven terrain.
Superior Surface Protection: Black Powder-Coated Finish
The exterior of the 50 Gallon Side Mount Steel Hydraulic Reservoir is treated with a durable black powder-coated finish. This advanced coating technology offers significantly enhanced protection compared to traditional liquid paints. The powder coating process involves electrostatically applying a dry powder, typically a blend of polymer resins, curatives, leveling agents, and pigments, to the reservoir surface. The reservoir is then cured under heat, causing the powder to melt, flow, and chemically cross-link into a solid, durable coating. The benefits of this finish are manifold:
- **Exceptional Corrosion Resistance:** The uniform, non-porous layer of powder coat provides an excellent barrier against moisture, road salts, chemicals, and other corrosive agents prevalent in harsh operating environments.
- **Enhanced Durability:** It is highly resistant to chipping, scratching, fading, and abrasion, ensuring the reservoir maintains its aesthetic and protective qualities over extended periods of heavy use.
- **Environmental Advantage:** Powder coating is an environmentally friendly process, as it typically emits zero or near-zero volatile organic compounds (VOCs).
- **Aesthetic Appeal:** The sleek black finish provides a professional and integrated appearance, complementing the aesthetics of modern heavy equipment.
Optimized Connectivity: NPT Ports

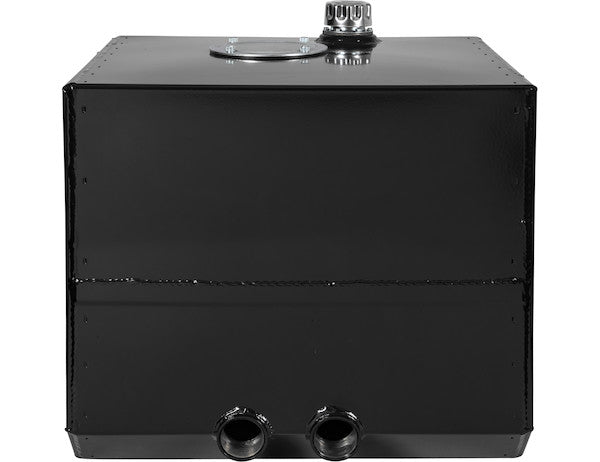

The reservoir features a 2-inch NPT (National Pipe Taper) return port/drain on its bottom and a 2-inch NPT suction port. NPT threading is a widely adopted standard for industrial fluid power connections, known for creating robust, leak-resistant seals due to its tapered design.
- **2-inch NPT Return Port/Drain:** Located at the bottom, this port serves a dual function. As a return port, it allows fluid returning from the hydraulic system to re-enter the reservoir after completing its work cycle. Its position aids in directing fluid flow effectively within the baffled interior. As a drain port, its bottom location is ideal for complete fluid evacuation during routine maintenance or fluid replacement, preventing the accumulation of settled contaminants. Proper sizing of the return line and port minimizes back pressure and turbulence.
- **2-inch NPT Suction Port:** This port is critical for the pump to draw fluid from the reservoir. The 2-inch size ensures minimal pressure drop in the suction line, which is crucial for preventing cavitation at the pump inlet. The suction port is typically strategically placed to draw clean, de-aerated fluid from a quiescent zone within the reservoir, away from the return flow and settled contaminants, often elevated slightly from the very bottom to avoid ingesting debris.
Integrated Monitoring and Maintenance: Sight Level, Temperature Gauge, and Filler Breather
Effective hydraulic system management relies on continuous monitoring and ease of maintenance. This reservoir is equipped with essential features to facilitate both:

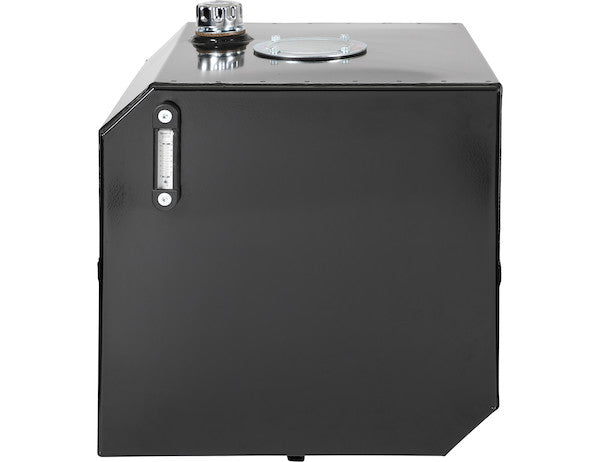

- **Sight Level and Temperature Gauge:** An integrated sight level gauge provides a clear visual indication of the hydraulic fluid level. Maintaining the correct fluid level is paramount to prevent pump cavitation (due to low fluid) and ensure sufficient volume for heat dissipation and air separation. Simultaneously, the integrated temperature gauge allows operators to monitor the fluid’s operating temperature. Excessive temperatures can degrade hydraulic fluid, reduce its lubricity, and damage seals, leading to premature component failure. This combined gauge offers immediate, at-a-glance assessment of two critical system health parameters.

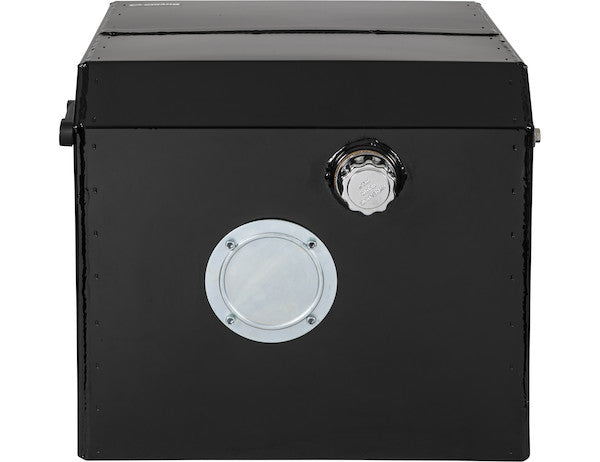

- **Quarter Turn Filler Breather Unit:** This multi-functional component serves three vital roles:
- **Fluid Filling:** The filler cap provides a convenient and clean access point for adding or topping off hydraulic fluid, ensuring system integrity during servicing.
- **Breathing Function:** As the fluid level within the reservoir fluctuates due to cylinder movement or temperature changes, air must be allowed to enter or exit the tank. The breather element permits this atmospheric exchange, preventing the build-up of vacuum or pressure that could impede pump operation or damage seals.
- **Air Filtration:** Crucially, the breather unit incorporates a filter element designed to remove airborne contaminants (dust, moisture, particulates) from the incoming air. This prevents external impurities from entering the hydraulic system, a primary cause of fluid contamination and component wear. The "quarter turn" mechanism indicates a design for quick and easy access for fluid addition or breather element replacement, streamlining routine maintenance tasks.
Comprehensive System Integration and Application
This 50-gallon side-mount steel hydraulic reservoir is engineered to be a foundational element for complex hydraulic systems across diverse industries. Its robust design and feature set make it suitable for applications where reliability and durability are paramount. Beyond the mechanical specifications, the careful consideration of fluid dynamics, thermal management, and ease of maintenance during its design ensures that it integrates seamlessly into high-performance hydraulic circuits. Whether providing power for a heavy-duty truck's auxiliary functions, enabling the precision movements of construction equipment, or ensuring the consistent operation of refuse collection systems, this reservoir offers the volumetric capacity, material resilience, and operational intelligence required to meet stringent industry demands. The rectangular profile and side-mount capability facilitate efficient packaging within the limited space constraints of mobile equipment, while the black powder-coat finish ensures resistance to environmental degradation, preserving both functionality and appearance in challenging outdoor conditions. By investing in such a meticulously designed component, operators ensure their hydraulic systems benefit from a stable, well-conditioned fluid supply, leading to reduced operational costs, prolonged equipment life, and enhanced overall productivity.
