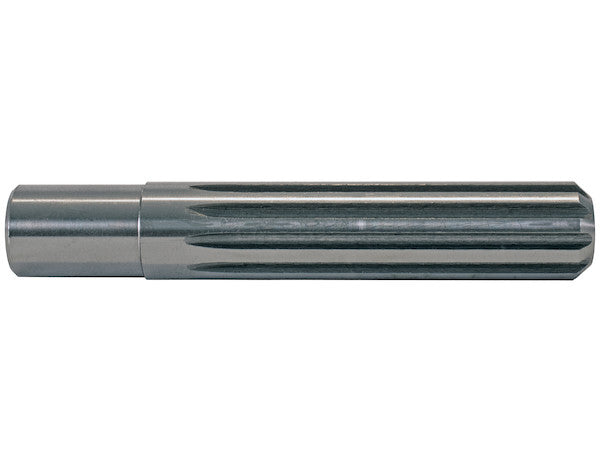

SS - Solid 1-1/8 -10 Splined Stub Insert

Buyers Products Splined Stub Insert allows you to add a 10 spline stub on 1-1/4 in. diameter tubing with .095 in. wall. It features durable forged solid steel construction.

Specifications

The Solid 1-1/8 -10 Splined Stub Insert represents a critical component engineered for robust power transmission and structural integrity in demanding mechanical systems. Designed and manufactured by Buyers Products, this insert provides a meticulously crafted solution for integrating a high-strength splined connection into specific tubular structures. Its primary function is to enable the addition of a 10-spline stub with an outer diameter of 1-1/8 inches onto 1-1/4 inch diameter tubing featuring a .095 inch wall thickness, facilitating the creation of custom driveshafts, power take-off (PTO) extensions, or other torque-transferring assemblies.

At the core of this component's superior performance is its construction from durable forged solid steel. The forging process, a metallurgical technique involving the shaping of metal through localized compressive forces, inherently enhances the material's structural integrity. Unlike casting or machining from raw bar stock, forging refines the grain structure of the steel, eliminating internal voids and porosity, and aligning the grain flow with the component's contours. This results in a finished product with significantly improved tensile strength, yield strength, fatigue resistance, and impact toughness, making it exceptionally well-suited for applications subjected to high torsional loads, shock, and cyclical stresses. The "solid" designation further underscores its robust nature, ensuring maximum material cross-section for superior strength and load-bearing capacity compared to hollow or fabricated alternatives.

Technical Analysis of Spline Geometry and Functionality

The "1-1/8 -10" spline specification denotes a critical aspect of this insert's design. The 1-1/8 inch refers to the nominal major diameter of the splined shaft, while "10" indicates the number of teeth or splines present. Splines are precision-machined grooves on a shaft designed to mate with corresponding grooves in a hub or coupling. This interlocking mechanism facilitates the efficient and positive transmission of rotational torque, ensuring synchronous rotation between connected components. Compared to other shaft-to-hub connection methods, such as keyways or press fits, splined connections offer several distinct advantages:

• **Superior Torque Capacity:** The distributed load across multiple teeth allows for significantly higher torque transmission capabilities compared to a single keyway, which concentrates stress at one point.
• **Reduced Stress Concentration:** By distributing the load evenly over a larger surface area, splines minimize localized stress concentrations, enhancing fatigue life and preventing premature failure.
• **Improved Alignment and Concentricity:** The multiple engagement points of a spline provide inherent self-centering properties, promoting better alignment between coupled shafts and reducing run-out. This is crucial for minimizing vibration and extending the lifespan of bearings and other rotating components.
• **Enhanced Dynamic Performance:** The tight fit and multiple load paths contribute to a more rigid connection, reducing backlash and improving response in dynamic applications.
• **Ease of Assembly and Disassembly:** While providing a robust connection, splines typically allow for easier assembly and disassembly than permanent welding or extremely tight press fits, simplifying maintenance and service.

The precise geometry of the 10 splines, including their pressure angle, tooth thickness, and root diameter (though not explicitly detailed, these are standard parameters for involute splines), is engineered to meet specific industry standards for power transmission. This ensures compatibility with a wide range of standard mating components, providing versatility for various industrial and mobile equipment applications. The 4.000-inch splined stub length is optimized to provide ample engagement with the mating component, ensuring secure and reliable torque transfer while maintaining a compact overall design.

Integration with Tubing: Engineering Considerations

This splined stub insert is specifically designed for integration with 1-1/4 inch diameter tubing featuring a .095 inch wall thickness. This precise dimensional compatibility is paramount for achieving a strong, concentric, and enduring connection. The internal diameter of the tubing (1.250" - 2 * 0.095" = 1.060") indicates that the insert is designed for a very close fit, potentially requiring a light press fit or to be secured by welding. For typical high-torque applications, welding is the preferred method, creating a metallurgical bond between the insert and the tubing.

When integrating the insert into the tubing, several engineering principles must be adhered to:

• **Surface Preparation:** Both the insert and the internal surface of the tubing must be thoroughly cleaned to remove oil, grease, rust, and other contaminants that could compromise weld quality.
• **Fit-Up and Alignment:** Maintaining concentricity and axial alignment between the splined insert and the tubing is critical. Any misalignment can induce undesirable bending moments, vibration, and premature wear on the splines and associated bearings. Precision fixturing or jigging during the welding process is highly recommended.
• **Welding Procedure Specification (WPS):** A well-defined WPS is essential for ensuring a strong and consistent weld. For forged steel components and mild or low-alloy steel tubing, common welding processes such as Gas Metal Arc Welding (GMAW/MIG), Shielded Metal Arc Welding (SMAW/Stick), or Gas Tungsten Arc Welding (GTAW/TIG) can be employed. Considerations include:
  • **Preheat:** Depending on the specific steel alloy of the insert and tubing, preheating may be necessary to prevent cracking, especially in thicker sections or high-carbon steels.
  • **Filler Metal Selection:** The choice of filler metal should be compatible with both the insert and the tubing material, ensuring adequate strength and ductility in the weldment.
  • **Heat Input Control:** Controlling heat input during welding is vital to minimize distortion and prevent degradation of the steel's mechanical properties in the heat-affected zone (HAZ).
  • **Multi-Pass Welding:** For full penetration and adequate strength, multi-pass welding techniques may be required, allowing for interpass cooling.
  • **Post-Weld Treatment:** Stress relieving or other post-weld heat treatments might be beneficial for critical applications to reduce residual stresses and improve ductility.

The .095 inch wall thickness of the tubing is a critical parameter. It ensures adequate material for the weld joint while providing sufficient structural rigidity for the application. The combination of the solid forged insert and appropriately sized tubing results in a composite structure capable of transmitting significant power without buckling, twisting, or fracturing.

Material Science and Manufacturing Excellence

The "forged solid steel construction" is not merely a descriptive phrase but a fundamental testament to the product's engineering integrity. Steel, as a material, offers an exceptional balance of strength, ductility, and cost-effectiveness. The forging process, by applying immense pressure, consolidates the material, eliminating internal flaws and refining its microstructure. This results in:

• **Enhanced Grain Structure:** Forging breaks up cast grains and works the steel into a fine-grained, directional flow that follows the component's shape. This flow line orientation enhances resistance to fatigue and impact by aligning the grains in the direction of the greatest stress.
• **Increased Strength-to-Weight Ratio:** Forged components can often be designed with thinner sections for a given strength requirement, leading to weight savings without compromising performance.
• **Improved Toughness and Ductility:** The refined grain structure and absence of internal defects contribute to superior toughness, meaning the material can absorb more energy before fracturing, and improved ductility, allowing for some plastic deformation before failure.
• **Predictable Performance:** The consistency and homogeneity of forged steel lead to more predictable mechanical properties, which is crucial for safety-critical applications.

While the specific steel alloy is not detailed, it can be inferred that a suitable grade of carbon or low-alloy steel is employed, selected for its balance of machinability, weldability, and mechanical properties. Common choices for such demanding components include AISI 1045 for good strength and toughness, or potentially alloy steels like 4140 or 8620 if higher ultimate tensile strength, yield strength, or hardenability is required (often achieved through subsequent heat treatment processes). These alloy steels contain elements such as chromium, molybdenum, or nickel, which enhance properties like wear resistance, hardenability, and high-temperature strength.

Furthermore, the inherent characteristics of solid construction mean that the entire cross-section of the splined stub is actively engaged in resisting torsional loads. This eliminates concerns about buckling, localized stress points in hollow sections, or potential collapse that might be associated with less robust designs, ensuring maximum power delivery and longevity under continuous operation.

Applications Across Diverse Industries

The Solid 1-1/8 -10 Splined Stub Insert is a versatile component, finding application across a broad spectrum of industries where reliable power transmission and structural integrity are paramount. Its robust design makes it ideal for:

• **Agricultural Machinery:** Essential for fabricating or repairing PTO shafts, drive systems for implements (e.g., tillers, mowers, spreaders), and custom linkages where heavy-duty torque transfer is required. The ability to create custom lengths and configurations is highly advantageous for specialized farm equipment.
• **Construction Equipment:** Used in driveshafts for mixers, conveyors, small trenchers, or as repair components for hydraulic power units and other rotating machinery where reliability under harsh conditions is critical.
• **Off-Highway Vehicles:** Customizing axle components, transfer cases, or driveline modifications for utility vehicles, ATVs, and specialized industrial carts where standard components may not fit specific design requirements.
• **Industrial Machinery:** Integration into conveyor systems, packaging machinery, textile equipment, and various processing lines where precise and consistent rotational power needs to be transmitted. It can serve as a splice point, an adapter, or a custom shaft end.
• **Custom Fabrication and Prototyping:** Provides a standardized, high-strength solution for engineers and fabricators developing new machinery or modifying existing systems, offering flexibility in design without compromising on critical mechanical properties.
• **Repair and Maintenance:** An invaluable asset for maintenance departments seeking to repair worn or damaged splined shafts on older equipment, where OEM parts may be unavailable or costly, allowing for cost-effective and durable solutions.

Quality Assurance and Performance Reliability

Buyers Products is committed to manufacturing components that meet stringent quality standards. The production of the Solid 1-1/8 -10 Splined Stub Insert involves rigorous quality control measures at every stage, from material selection and forging to precision machining of the splines. Dimensional accuracy, particularly concerning the spline profile and concentricity, is meticulously checked to ensure proper mating with standard components and to minimize backlash. Material certifications typically accompany the steel used, verifying its chemical composition and mechanical properties. This commitment to quality assurance directly translates into a product that offers:

• **Extended Service Life:** The combination of forged solid steel and precise engineering results in a component built to withstand prolonged periods of heavy use and harsh operating environments.
• **Reduced Downtime:** High reliability minimizes the risk of premature failure, reducing costly unplanned maintenance and operational interruptions.
• **Optimal Performance:** Consistent torque transmission, minimal vibration, and excellent alignment contribute to the overall efficiency and smooth operation of connected systems.
• **Cost-Effectiveness:** While representing a premium component, its durability and reliability translate into long-term cost savings by reducing the need for frequent replacements and associated labor.

Conclusion

The Solid 1-1/8 -10 Splined Stub Insert from Buyers Products is a meticulously engineered component, specifically designed to address the demanding requirements of power transmission applications within a tubular framework. Its forged solid steel construction provides unparalleled strength, fatigue resistance, and impact toughness, surpassing alternative manufacturing methods. The precision-machined 10-spline profile ensures efficient, positive torque transfer, superior alignment, and reduced stress concentrations, thereby enhancing the operational lifespan of the entire mechanical system. Engineered for seamless integration with 1-1/4 inch diameter tubing with a .095 inch wall, this stub insert offers a robust, reliable, and versatile solution for original equipment manufacturers (OEMs), custom fabricators, and maintenance professionals across a multitude of industries. Investing in this component means investing in a foundation of durability, performance, and long-term operational efficiency.
