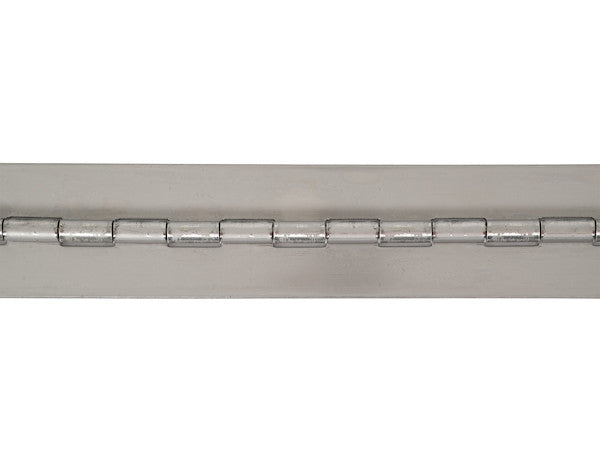

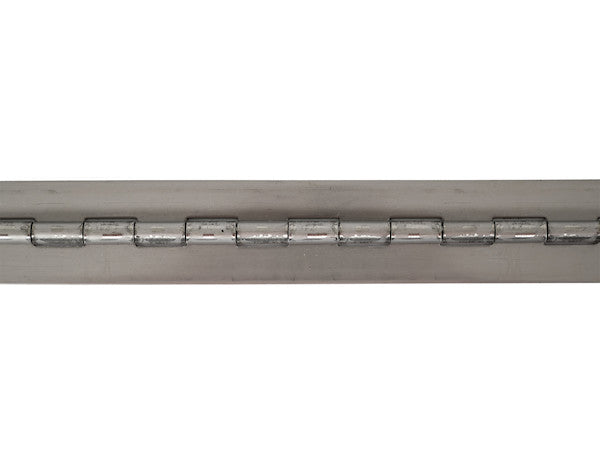

SS15 - Stainless Continuous Hinge .075 x 72 Inch Long with 1/4 Pin and 2.0 Open Width

The Stainless Steel Continuous Hinge from Buyers Products is ideal for any application that sees frequent use or more potential for wear and tear. The hinge evenly distributes weight down the length of the lid or door, keeping it in position and minimizing stress. The 302 stainless steel hinge features equal leaves and comes stocked in 72 in. lengths and a variety of widths, thicknesses, and gauges to meet your needs. They can be cut to size as needed. Longer (96 in.) lengths are available by special order. Please contact Customer Service for further information. Stainless steel pins are standard with the hinge.

Specifications

Advanced Technical Overview: Stainless Continuous Hinge .075 x 72 Inch Long with 1/4 Pin and 2.0 Open Width

The Stainless Continuous Hinge, specifically engineered with a .075 inch (14 gauge) thickness, a 72-inch operational length, a 1/4-inch pin diameter, and a 2.0-inch open width, represents a pinnacle of mechanical design for applications demanding superior strength, durability, and corrosion resistance. This product is meticulously crafted from 302 stainless steel, a material renowned for its exceptional properties, positioning it as an indispensable component in environments characterized by frequent use, heavy loads, and exposure to corrosive agents. This comprehensive technical description will delve into the material science, engineering principles, precise specifications, manufacturing excellence, installation considerations, and a diverse array of applications that underscore the unparalleled value proposition of this continuous hinge.

Material Science: The Robustness of 302 Stainless Steel

The selection of 302 stainless steel for this continuous hinge is a critical factor in its superior performance. ASTM A240 Grade 302 is an austenitic chromium-nickel stainless steel, closely related to the more common 304 grade but typically possessing slightly higher carbon content, contributing to increased strength. Its elemental composition generally includes 17-19% Chromium, 8-10% Nickel, and a maximum of 0.15% Carbon, alongside minor amounts of Manganese, Silicon, Phosphorus, and Sulfur. This alloy structure imparts a unique combination of physical and mechanical properties:

• Corrosion Resistance: The high chromium content forms a passive oxide layer on the surface, providing excellent resistance to atmospheric corrosion, many organic and inorganic chemicals, and various aqueous environments. This makes the hinge ideal for outdoor use, marine applications, food processing facilities, and chemical plants where exposure to moisture, salt spray, or certain mild acids is common. The passive layer is self-repairing, ensuring long-term protection even if scratched.
• Mechanical Strength: 302 stainless steel exhibits commendable tensile strength (typically 75 ksi / 515 MPa minimum) and yield strength (typically 30 ksi / 205 MPa minimum). This inherent strength ensures the hinge can withstand significant shear, tensile, and compressive forces without plastic deformation, making it suitable for supporting heavy doors, lids, and panels. The work-hardening rate of 302 also contributes to its robust nature under dynamic loads.
• Ductility and Formability: Despite its strength, 302 stainless steel retains good ductility, allowing it to be cold-formed into the precise leaf and knuckle configurations necessary for a continuous hinge without compromising its structural integrity. This ensures the uniform bending and robust interconnection of the knuckles that define a high-quality continuous hinge.
• Temperature Performance: 302 stainless steel maintains its mechanical properties across a wide range of temperatures, from cryogenic to moderately elevated temperatures. It resists embrittlement at low temperatures and retains a substantial portion of its strength at service temperatures up to approximately 800°F (425°C), expanding its applicability in diverse climatic and operational conditions.
• Aesthetics and Hygiene: The inherent bright, metallic finish of stainless steel contributes to a clean and professional appearance. Its non-porous surface also makes it easy to clean and sanitize, a critical advantage in hygienic environments such as medical facilities, laboratories, and food preparation areas.

Engineering Principles: The Advantages of Continuous Hinge Design

The continuous hinge, often referred to as a piano hinge due to its historical application, offers distinct mechanical and structural advantages over traditional butt hinges. Its design philosophy centers on distributing the load uniformly along the entire length of the hinged component, thereby mitigating stress concentrations and enhancing overall system integrity. The .075 inch (14 gauge) thickness of this particular hinge augments these inherent benefits:

• Superior Load Distribution: Unlike intermittent butt hinges that concentrate stress at discrete points, the continuous nature of this hinge ensures that the weight of the attached door, lid, or panel is evenly spread across the full 72-inch length. This even distribution prevents warping, sagging, and twisting of the hinged member, significantly extending its lifespan and maintaining its functional alignment. The substantial surface area of the hinge also minimizes localized pressure points on the mounting substrate.
• Enhanced Structural Rigidity and Stability: By providing a continuous connection, the hinge effectively integrates the hinged component with its frame, creating a more rigid and stable assembly. This rigidity is crucial for applications where the hinged element is subjected to dynamic forces, vibrations, or frequent opening and closing cycles. The .075-inch thickness further contributes to this by resisting deformation and maintaining a precise pivot axis.
• Reduced Wear and Tear: The uniform load distribution not only prevents structural fatigue in the hinged component but also in the hinge itself. Stress is not localized to individual knuckles or pin segments, leading to reduced friction, abrasion, and premature wear. This translates into a longer operational life and lower maintenance requirements, particularly in high-cycle applications.
• Improved Security: The full-length design inherently offers enhanced security. It eliminates potential pry points that are common with spaced butt hinges, making it significantly more resistant to forced entry or tampering. When properly installed with robust fasteners along its entire length, the continuous hinge creates a formidable barrier.
• Controlled Kinematics: The tightly interlocked knuckles and precisely toleranced 1/4-inch pin diameter provide a consistent and smooth pivot action. This controlled kinematics ensures that the hinged component operates with minimal play and predictable movement throughout its range of motion, which is vital for applications requiring precise alignment or sealing.

Detailed Specifications and Their Functional Implications

Each specification of this Stainless Continuous Hinge is meticulously defined to ensure optimal performance for its intended heavy-duty applications:

Thickness: .075 inches (14 Gauge)

The thickness of a continuous hinge is paramount to its load-bearing capacity and resistance to deformation. At .075 inches, this hinge is classified as 14 gauge (using the US Standard Gauge for sheet metal). This is a heavy-duty gauge that significantly surpasses the capabilities of lighter gauge hinges commonly found in less demanding applications. The implications of this thickness include:

• Exceptional Load-Bearing Capacity: A .075-inch thickness provides substantial material cross-section, enabling the hinge to support heavy doors, panels, and access covers without bending or fracturing. It is engineered for applications where the hinged component might weigh hundreds of pounds or where the hinge itself will be subjected to significant external forces.
• High Rigidity and Stiffness: The material thickness contributes directly to the hinge's resistance to flexure and torsion. This rigidity is essential for maintaining a consistent seal, ensuring alignment in complex assemblies, and preventing the accumulation of stress that can lead to fatigue over time.
• Enhanced Fatigue Resistance: Thicker material generally exhibits superior fatigue resistance, especially when combined with the excellent mechanical properties of 302 stainless steel. This hinge is designed to withstand millions of operational cycles without material degradation.
• Durability in Harsh Environments: In environments where impact, abrasion, or localized stress might occur, the .075-inch thickness provides a robust buffer, protecting the hinge from damage and ensuring continuous functionality.

Hinge Length: 72 Inches

The standard 72-inch (6-foot) length is a versatile dimension suitable for a wide range of industrial and commercial applications. This length ensures comprehensive support for most standard door and lid sizes, guaranteeing the benefits of continuous load distribution. Key aspects related to length include:

• Full-Length Support: A 72-inch hinge provides continuous support along the entire edge of many common panels, preventing sagging and warping effectively.
• Customization Capability: While provided at 72 inches, the hinge can be readily cut to shorter lengths using appropriate metalworking tools (e.g., abrasive saws, band saws, or shears designed for stainless steel). When cutting, care must be taken to deburr edges and, ideally, re-passivate the cut surface to restore optimal corrosion resistance.
• Special Order for Extended Lengths: The availability of 96-inch (8-foot) lengths by special order caters to exceptionally large or specialized applications, such as very tall doors, long access panels, or custom enclosures, where a single, uninterrupted hinge is critical for structural integrity and aesthetics.

Pin Diameter: 1/4 Inch

The hinge pin is the central pivot around which the leaves rotate. Its material and diameter are critical to the hinge's structural integrity and operational smoothness. This hinge features a 1/4-inch diameter pin, specifically manufactured from stainless steel, ensuring material compatibility and enhanced performance:

• High Shear Strength: A 1/4-inch diameter stainless steel pin offers substantial shear strength, resisting forces that would attempt to cut or deform the pin during hinge operation or under heavy loads. This diameter is well-matched to the .075-inch leaf thickness and the hinge's overall heavy-duty design.
• Corrosion Resistance of Pin: Using a stainless steel pin ensures that this critical component shares the same excellent corrosion resistance as the leaves, preventing rust, seizing, or degradation of the pivot mechanism in corrosive environments.
• Smooth Operation and Reduced Play: The precise manufacturing tolerance between the pin and the knuckles minimizes rotational play, ensuring a smooth, consistent, and predictable swing arc. This precision reduces friction and wear within the knuckle joints, contributing to longevity.
• Permanent or Removable Pin Options: While typically a fixed (non-removable) pin in continuous hinges for maximum security and structural integrity, some specialized applications might require a removable pin for disassembly. This particular model is designed with a standard, integrated stainless steel pin for maximal durability.

Open Width: 2.0 Inches (with 1.0 Inch Leaf Width)

The open width refers to the total dimension of the hinge when laid flat and fully extended. With an open width of 2.0 inches and equal leaves, each leaf measures 1.0 inch. This dimension is crucial for mounting and operational clearance:

• Adequate Mounting Surface: A 1.0-inch leaf width provides sufficient surface area for secure fastening to the mating components (e.g., door and frame). This allows for multiple fastener points along the length of each leaf, distributing mounting stress effectively.
• Application Clearance: The 2.0-inch open width, combined with the hinge's knuckle design, dictates the offset and clearance required for the hinged component to swing freely without binding against the frame or adjacent structures. Engineers must consider this dimension when designing enclosures or selecting hinges for existing structures.
• Balanced Design (Equal Leaves): The equal leaf width simplifies installation and ensures a balanced distribution of stress across the mounting surfaces. This symmetry also often contributes to a cleaner aesthetic finish.

Knuckle Length: 1.00 Inch

The knuckle is the cylindrical, curled portion of the hinge leaf through which the pin passes. A 1.00-inch knuckle length indicates the axial length of each individual knuckle segment. Longer knuckles generally mean fewer knuckles per unit length but can offer increased surface area for the pin to bear against, potentially distributing shear stress over a larger area. However, the cumulative effect of many well-formed, shorter knuckles is also effective in continuous hinges, providing uniform flex along the entire length.

Manufacturing Precision and Quality Assurance

The fabrication of this Stainless Continuous Hinge involves several critical manufacturing processes, all subject to stringent quality control to ensure consistency and performance:

• Precision Stamping and Forming: High-grade 302 stainless steel sheets are precision stamped and formed to create the individual leaves with accurate dimensions, uniform thickness, and perfectly aligned knuckles. Advanced tooling ensures minimal material stress during formation, preserving the alloy's inherent strength.
• Punching and Hole Alignment: Mounting holes are precisely punched or drilled at regular intervals along each leaf. The accuracy of these holes is paramount for ease of installation and ensuring the hinge is mounted without introducing unwanted stresses or misalignment.
• Pin Insertion: The 1/4-inch stainless steel pin is carefully inserted through the aligned knuckles. This process requires precise tooling to ensure a snug fit that allows smooth rotation without excessive play, which could lead to premature wear or sloppy operation.
• Surface Finish and Deburring: After forming, the hinges undergo processes to ensure clean edges, free from burrs or sharp points, which could impede operation or pose safety risks. The characteristic bright finish of stainless steel is maintained through appropriate cleaning and, if necessary, passivation treatments to maximize corrosion resistance.
• Quality Control and Inspection: Throughout the manufacturing cycle, the hinges are subjected to rigorous quality checks. This includes dimensional verification (thickness, length, width, pin diameter), material composition analysis, visual inspection for defects, and functional testing to ensure smooth articulation and robust construction.

Installation Guidelines and Best Practices

Proper installation is crucial to realize the full benefits of this heavy-duty continuous hinge. Adherence to best practices ensures optimal performance and longevity:

• Mounting Surface Preparation: Ensure that the surfaces where the hinge will be mounted are flat, clean, and free of obstructions. Any irregularities can induce bending stress on the hinge leaves or prevent flush mounting.
• Fastener Selection: Utilize fasteners appropriate for the substrate material and the expected load. For stainless steel hinges, stainless steel fasteners (screws, bolts, or rivets) are highly recommended to prevent galvanic corrosion between dissimilar metals and to maintain the overall corrosion resistance of the assembly. Fasteners should be sized correctly for the pre-punched holes and provide sufficient thread engagement or clamping force.
• Accurate Alignment: Carefully align the hinge before fastening. Incorrect alignment can cause binding, excessive wear, or uneven load distribution. For long hinges, it is often beneficial to temporarily clamp the hinge in position and mark all fastener points before drilling pilot holes, if necessary.
• Cutting to Size (If Applicable): If cutting the 72-inch hinge to a shorter length, use appropriate metal cutting tools (e.g., a cold saw with a carbide-tipped blade or a band saw with a bi-metal blade) to minimize heat generation and burring. After cutting, deburr all edges thoroughly. For optimal corrosion resistance, particularly in harsh environments, it is recommended to clean the cut edge and potentially apply a passivation treatment to restore the passive oxide layer.
• Regular Inspection: While designed for minimal maintenance, periodic inspection of the hinge and fasteners in high-stress or critical applications can help identify and address any signs of wear, loosening, or damage, thus ensuring continued reliable operation.

Diverse Application Spectrum

The robust construction and material properties of this Stainless Continuous Hinge make it suitable for a vast array of demanding applications across numerous industries:

• Industrial Enclosures and Cabinets: For electrical control panels, machinery guards, industrial ovens, and secure storage cabinets where heavy doors and frequent access are common.
• Commercial Food Service Equipment: Ovens, refrigerators, freezers, warming cabinets, and work surfaces in commercial kitchens and processing plants, benefiting from stainless steel's hygiene and corrosion resistance.
• Transportation Industry: Truck and trailer bodies, cargo compartments, emergency vehicle doors, and marine vessel hatches, where resistance to vibration, impact, and environmental corrosion (saltwater) is critical.
• Architectural and Construction: Heavy-duty access panels, security doors, institutional doors, cleanroom entrances, and custom furniture that require robust, long-lasting articulation.
• Medical and Laboratory Equipment: Sterilization chambers, pharmaceutical storage, and laboratory casework, where strict hygiene standards and resistance to sterilizing agents are paramount.
• Utility and Outdoor Infrastructure: Access covers for underground utilities, outdoor storage units, and public facility gates exposed to varying weather conditions.
• Aerospace and Defense: Access panels for ground support equipment, specialized enclosures, and non-flight critical structural elements requiring high strength and corrosion resistance.

Conclusion

The Stainless Continuous Hinge, featuring a .075-inch thickness, 72-inch length, 1/4-inch pin, and 2.0-inch open width, is not merely a component but a foundational element of superior mechanical design. Its construction from 302 stainless steel provides an unparalleled combination of corrosion resistance, mechanical strength, and aesthetic appeal. The inherent engineering advantages of a continuous hinge design — including even load distribution, enhanced structural rigidity, and minimized wear — are amplified by its robust specifications. From demanding industrial machinery to critical architectural installations and corrosive marine environments, this hinge offers a reliable, durable, and high-performance solution. Designed for engineers, fabricators, and contractors who prioritize longevity, safety, and operational excellence, it stands as a testament to precision engineering and material science, ready to elevate the integrity and functionality of any application it serves. For specialized requirements or extended lengths, our customer service team remains available to provide tailored solutions that meet the most stringent project specifications.
