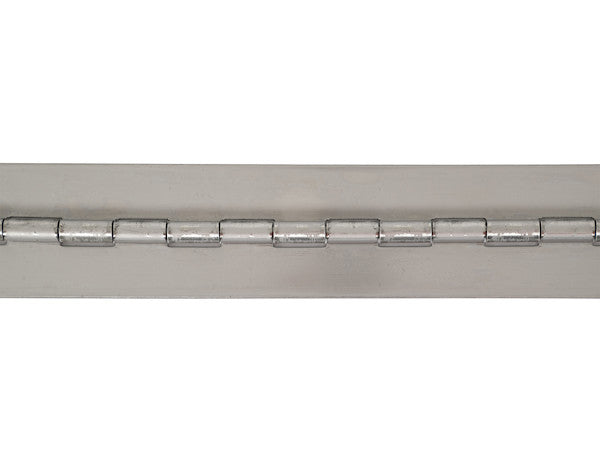

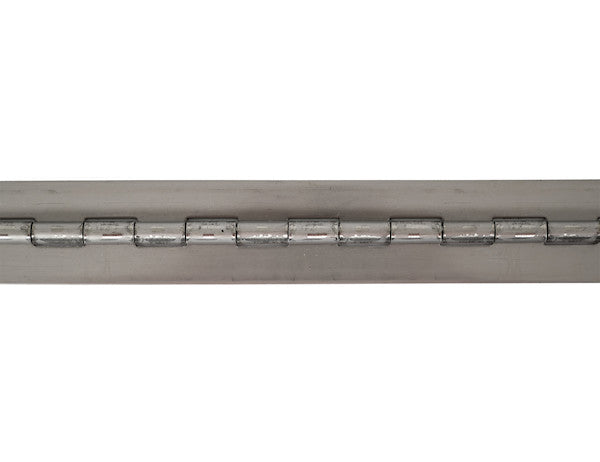

The Stainless Steel Continuous Hinge from Buyers Products is ideal for any application that sees frequent use or more potential for wear and tear. The hinge evenly distributes weight down the length of the lid or door, keeping it in position and minimizing stress. The 302 stainless steel hinge features equal leaves and comes stocked in 72 in. lengths and a variety of widths, thicknesses, and gauges to meet your needs. They can be cut to size as needed. Longer (96 in.) lengths are available by special order. Please contact Customer Service for further information. Stainless steel pins are standard with the hinge.
Specifications
| Gauge | 14 |
|---|---|
| Hinge Length | 72.0 |
| Hinge Width | 2.50 |
| Knuckle Length (in.) | 1.00 |
| Leaf Width | 1.25 |
| Open Width (in.) | 2.50 |
| Pin Diameter (in.) | .25 |
| Thickness (in.) | .075 |
The Stainless Continuous Hinge, meticulously engineered with a .075 inch thickness, a substantial 72-inch length, a robust 1/4-inch pin, and a functional 2.5-inch open width, represents a pinnacle of mechanical design for applications demanding superior durability, uniform load distribution, and exceptional resistance to environmental degradation. Manufactured by Buyers Products, this continuous hinge is specifically tailored to address the stringent requirements of frequently operated mechanisms and environments prone to significant wear and tear, making it an indispensable component in a multitude of industrial, commercial, and specialty vehicle applications.
Advanced Material Science: The Prowess of 302 Stainless Steel
The selection of 302 stainless steel as the primary material for this continuous hinge is a deliberate choice rooted in its superior metallurgical properties. 302 stainless steel is an austenitic chromium-nickel alloy, part of the 300 series, renowned for its excellent corrosion resistance and mechanical characteristics. Its typical composition includes approximately 17-19% Chromium and 8-10% Nickel, with trace amounts of Manganese, Silicon, and Carbon. The presence of Chromium forms a passive oxide layer on the surface, which is self-repairing and provides remarkable resistance to oxidation and various corrosive agents. This passive layer is the fundamental mechanism behind stainless steel's enduring performance in challenging conditions.
Compared to other common stainless steel grades, 302 offers a robust balance of strength, formability, and corrosion resistance. While 304 stainless steel is more widely used due to its slightly higher chromium and nickel content offering marginally better corrosion resistance, 302 provides a cost-effective alternative that still delivers exceptional performance for the intended applications of this hinge. It exhibits good ductility, allowing for the precise forming required during the manufacturing of continuous hinge leaves and knuckles, while maintaining high tensile strength and yield strength to withstand significant operational loads without deformation. Furthermore, 302 stainless steel possesses good weldability, a non-magnetic character in its annealed condition, and maintains its mechanical properties across a broad range of temperatures, from cryogenic to moderately high, without becoming brittle or excessively soft.
The inherent resistance of 302 stainless steel to rust, pitting, and crevice corrosion is critical for outdoor applications, marine environments, and situations where exposure to moisture, chemicals, or abrasive elements is frequent. This material choice ensures that the hinge will retain its structural integrity and aesthetic appeal over an extended service life, significantly reducing maintenance requirements and replacement costs associated with lesser materials. The use of stainless steel pins, matching the leaves, further ensures galvanic compatibility, preventing localized corrosion often seen when dissimilar metals are in contact, thus guaranteeing uniform material integrity across the entire hinge assembly.
Engineering Superiority: The Mechanics and Advantages of Continuous Hinge Design
The continuous hinge, often referred to as a piano hinge due to its historical use on piano lids, is a marvel of mechanical simplicity and engineering effectiveness. Unlike traditional butt hinges that support a load at two or three isolated points, a continuous hinge distributes the load uniformly across the entire length of the attached component, whether it be a door, lid, panel, or gate. This fundamental design principle offers a plethora of advantages that are particularly critical in demanding environments:
- Unparalleled Load Distribution: The most significant benefit is the even distribution of weight. By spreading the stress over a 72-inch lineal span, the hinge prevents localized stress concentrations that can lead to sagging, warping, or premature failure of the attached components. This is paramount for heavy doors, long lids, or panels that must maintain precise alignment and structural rigidity over time.
- Enhanced Structural Integrity: The full-length engagement of the hinge effectively reinforces the structural integrity of the entire assembly. It acts as a continuous brace, mitigating racking and twisting forces that might otherwise compromise the stability of the mounted element.
- Superior Security: With no gaps between knuckles along its length, a continuous hinge offers an inherent level of security against prying attempts. This makes it an excellent choice for toolboxes, secure storage units, vehicle compartments, and any application where unauthorized access is a concern.
- Aesthetic Integration: The clean, uninterrupted line of a continuous hinge provides a sleek, professional appearance. It seamlessly integrates into the design of the equipment, contributing to a modern and finished look, which is often desirable in commercial and industrial settings.
- Reduced Wear and Tear: By distributing the load, the continuous hinge minimizes stress on both the hinge itself and the mounting surfaces. This significantly extends the lifespan of the entire assembly, reducing the frequency of repairs and replacements. The consistent pivot point ensures smooth, fluid operation throughout the hinge's cycle.
- Improved Sealing Capabilities: The full-length nature of the hinge can facilitate better sealing against environmental ingress. When properly installed, it helps to create a continuous barrier against dust, moisture, and other contaminants, which is vital for protecting sensitive contents or maintaining internal environmental conditions in enclosures.
- Prevention of Misalignment: The inherent rigidity of a full-length hinge prevents the misalignment that can occur with multiple smaller hinges, ensuring that doors and lids open and close consistently and correctly every time.
Precision Dimensional Analysis: Key Specifications and Their Impact
The specific dimensions of this Stainless Continuous Hinge are not arbitrary; they are carefully chosen to optimize performance for heavy-duty applications. Each parameter plays a crucial role in the hinge's overall functionality, strength, and suitability.
Thickness (.075 inches / 14 Gauge)
A thickness of .075 inches, equivalent to 14 gauge steel, signifies a heavy-duty construction. The gauge system, though somewhat archaic, remains common in the metal industry; a lower gauge number indicates a thicker material. At 14 gauge, this hinge offers substantial rigidity and resistance to bending and warping under significant loads. This thickness is critical for applications where the hinge itself must withstand considerable stress, providing a robust pivot point that will not deform or fatigue prematurely. It ensures the hinge can handle the dynamic forces associated with frequent opening and closing cycles, as well as static loads from heavy doors or lids.
Length (72 inches)
The 72-inch (6-foot) length is a standard and highly versatile dimension. This length ensures that the hinge can accommodate a vast array of common panel and door sizes, providing full-length support in most scenarios. The ability to be cut to size as needed allows for immense flexibility in custom fabrication, ensuring that precise fitment can be achieved for any application, minimizing waste and simplifying inventory management for fabricators and end-users alike. For projects requiring even greater spans, the availability of 96-inch (8-foot) lengths by special order underscores the product's adaptability to larger-scale industrial requirements, eliminating the need for splicing or multiple hinge segments.
Open Width (2.5 inches) and Leaf Width (1.25 inches)
The 2.5-inch open width refers to the total dimension of the hinge when laid flat and fully extended. With equal leaves, this means each leaf measures 1.25 inches. This width is crucial for determining the surface area available for mounting fasteners and for assessing the clearance required for the hinged component. The 1.25-inch leaf width provides ample space for secure attachment to various substrates using appropriate fasteners, distributing the attachment forces effectively. It also influences the potential maximum opening angle and the offset of the hinged component relative to the mounting surface, aspects critical for design and functionality.
Pin Diameter (1/4 inch / .25 inches)
The 1/4-inch (.25-inch) pin diameter is a significant indicator of the hinge's strength and shear resistance. The pin is the central pivot around which the leaves articulate, and its diameter directly correlates with the hinge's ability to resist shear forces that arise during operation. A 1/4-inch stainless steel pin is robust enough to handle the stresses of heavy-duty applications without bending or breaking, ensuring smooth, consistent articulation and long-term durability. The stainless steel composition of the pin, matching that of the leaves, prevents electrochemical corrosion and ensures uniform wear characteristics across the entire hinge assembly.
Knuckle Length (1.00 inch)
The 1.00-inch knuckle length refers to the individual segment of the hinge that forms the cylindrical barrel around the pin. A consistent knuckle length, combined with the overall length, dictates the number of knuckles along the hinge. Shorter knuckles, like 1-inch, result in a greater number of pivot points per linear foot, which translates to a more robust and rigid hinge structure. This increased number of engagement points around the pin further enhances load distribution and minimizes localized stress on the pin and leaves during articulation, contributing to the hinge's smooth operation and extended service life.
Equal Leaves
The design featuring equal leaves ensures balanced mounting and aesthetics. Equal leaves simplify installation as there is no specific "top" or "bottom" leaf, and they distribute the mounting forces symmetrically. This design is versatile for applications where the hinge needs to be mounted centrally, or where both leaves will bear similar stress levels. From an aesthetic perspective, equal leaves present a uniform appearance, which is often preferred in visible installations.
Manufacturing Excellence and Quality Assurance
Buyers Products is committed to precision manufacturing, ensuring that each Stainless Continuous Hinge meets rigorous quality standards. The production process involves sophisticated stamping and forming operations to create the precise geometry of the leaves and knuckles. Advanced tooling ensures consistent dimensions, critical for smooth articulation and reliable performance. Piercing operations create accurate holes for the stainless steel pin, minimizing play and maximizing the hinge's structural integrity. Each hinge undergoes strict quality control checks for dimensional accuracy, material integrity, and finish, guaranteeing that the product delivered will perform as expected in the most demanding environments. The use of high-grade 302 stainless steel, coupled with robust manufacturing techniques, culminates in a hinge that offers unparalleled reliability and longevity.
Versatile Applications Across Industries
The robust construction and superior material properties of this Stainless Continuous Hinge make it suitable for an expansive range of applications across various sectors:
- Heavy-Duty Vehicle Manufacturing: Indispensable for truck bodies, utility trailers, service vehicle toolboxes, storage compartments, and access doors where durability and resistance to road salt, weather, and constant vibration are paramount.
- Industrial Equipment and Machinery: Ideal for machinery guards, access panels, heavy enclosure doors, inspection covers, and industrial workbenches, providing reliable operation in harsh factory or outdoor industrial environments.
- Marine and Coastal Environments: Given its 302 stainless steel composition, it offers exceptional resistance to saltwater corrosion, making it perfect for boat hatches, marine enclosures, dock boxes, and other maritime applications.
- Commercial and Architectural Applications: Suitable for heavy-duty commercial doors, gates, large cabinets, and fixtures where longevity, security, and consistent operation are critical.
- Custom Fabrication and OEM Projects: Its adaptable length and robust design make it a preferred component for original equipment manufacturers and custom fabricators building specialized equipment or structural elements.
- Agricultural Equipment: For tractor hoods, equipment access panels, and storage bins that are exposed to outdoor elements, dirt, and demanding use.
The hinge's ability to withstand "frequent use or more potential for wear and tear" is not merely a claim but a direct consequence of its design and material selection, ensuring peak performance even in the most challenging operational contexts.
Installation and Maintenance Guidance
Installing the Stainless Continuous Hinge is straightforward, yet proper technique ensures optimal performance. For secure mounting, corrosion-resistant fasteners, such as stainless steel screws, bolts, or rivets, are recommended to maintain galvanic compatibility and prevent localized corrosion. Fastener spacing should be appropriate for the load, typically at consistent intervals along the leaf to maximize load distribution. When cutting the 72-inch hinge to a custom length, standard metal cutting tools suitable for stainless steel can be used. Care should be taken to deburr edges and, if desired, to refinish the cut edge to maintain aesthetic consistency and prevent potential snags or injuries. The inherent corrosion resistance of 302 stainless steel means that minimal maintenance is required. Regular cleaning with mild soap and water can remove surface dirt and contaminants, helping to preserve the passive layer and maintain the hinge's pristine appearance and functionality. Avoid abrasive cleaners or tools that could scratch the surface and compromise the passive layer.
Conclusion
The Stainless Continuous Hinge from Buyers Products, with its precise dimensions of .075-inch thickness, 72-inch length, 1/4-inch pin, and 2.5-inch open width, stands as a testament to superior engineering and material science. Crafted from robust 302 stainless steel, it delivers unmatched durability, exceptional corrosion resistance, and unparalleled load distribution capabilities. This hinge is not merely a component; it is a critical investment in the longevity, security, and operational reliability of any assembly subjected to frequent use or demanding environmental conditions. Its technical specifications are optimized for high-performance applications, offering a solution that minimizes stress, prevents wear, and provides a continuous, secure pivot point. For applications requiring an extended span, the availability of 96-inch lengths by special order further enhances its versatility. Choose this Stainless Continuous Hinge for an uncompromising solution that embodies strength, endurance, and precision in every articulation.
