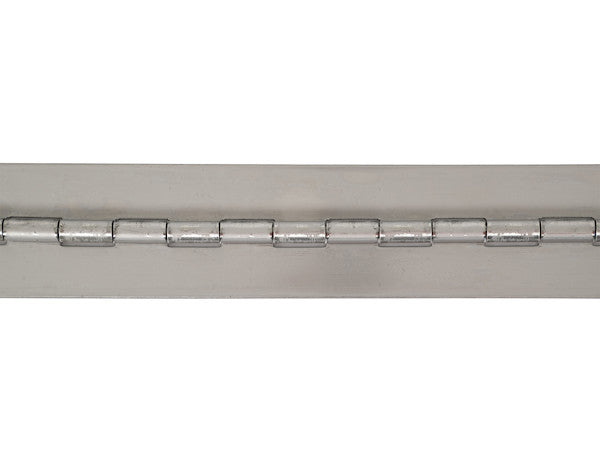

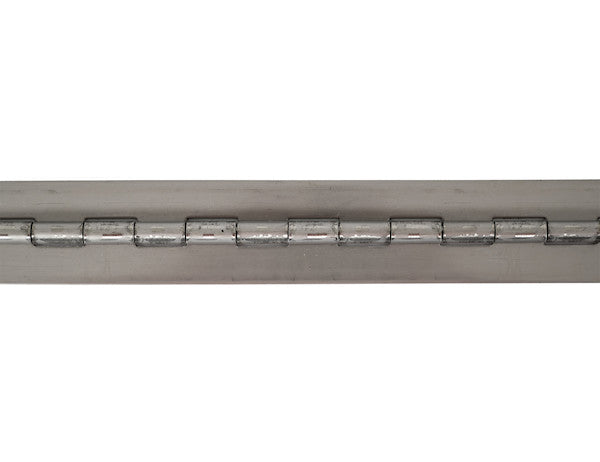

The Stainless Steel Continuous Hinge from Buyers Products is ideal for any application that sees frequent use or more potential for wear and tear. The hinge evenly distributes weight down the length of the lid or door, keeping it in position and minimizing stress. The 302 stainless steel hinge features equal leaves and comes stocked in 72 in. lengths and a variety of widths, thicknesses, and gauges to meet your needs. They can be cut to size as needed. Longer (96 in.) lengths are available by special order. Please contact Customer Service for further information. Stainless steel pins are standard with the hinge.
Specifications
| Gauge | 16 |
|---|---|
| Hinge Length | 72.0 |
| Hinge Width | 1.50 |
| Knuckle Length (in.) | .50 |
| Leaf Width | 0.75 |
| Open Width (in.) | 1.50 |
| Pin Diameter (in.) | .128 |
| Thickness (in.) | .062 |
Advanced Technical Overview: Stainless Steel Continuous Hinge for Demanding Applications
The Stainless Continuous Hinge, specified as .062 x 72 Inches Long with a 1/8 Pin and 1.5 Inch Open Width, represents a robust and highly durable mechanical joint solution engineered for applications requiring superior load distribution, consistent performance, and exceptional resistance to environmental degradation. Manufactured from high-grade 302 stainless steel and adhering to precise dimensional tolerances, this continuous hinge is designed to significantly outperform conventional butt hinges in environments subject to frequent actuation cycles, substantial weight loads, or corrosive elements.
Material Science: The Superiority of 302 Stainless Steel
The selection of 302 stainless steel as the primary material for this continuous hinge is a critical factor in its performance characteristics. AISI 302 is an austenitic chromium-nickel stainless steel, closely related to 304 stainless steel, but with a slightly higher carbon content, typically ranging from 0.08% to 0.15%. Its composition includes approximately 17-19% chromium and 8-10% nickel, which are the primary alloying elements contributing to its renowned properties.
Corrosion Resistance:
The chromium content in 302 stainless steel facilitates the formation of a passive, self-healing oxide layer on its surface. This layer provides excellent resistance to atmospheric corrosion, fresh water, and a wide array of chemical environments. For applications in general industrial settings, food processing equipment, and certain architectural installations, 302 stainless steel offers a reliable barrier against rust and pitting. While it provides good resistance to many corrosive agents, it is important to note that for highly aggressive environments, such as exposure to strong acids or marine environments with high chloride concentrations, alternative grades like 316 stainless steel might be considered. However, for the vast majority of demanding applications where wear and tear are the primary concerns, 302 stainless steel offers a compelling balance of corrosion resistance and mechanical strength.
Mechanical Properties:
302 stainless steel exhibits excellent mechanical properties critical for a high-performance hinge. It possesses a typical tensile strength ranging from 515 to 690 MPa (75 to 100 ksi) and a yield strength (0.2% offset) of approximately 205 to 310 MPa (30 to 45 ksi). Its high ductility, with an elongation at break typically between 40% and 60%, allows for significant deformation before fracture, making it highly resistant to impact and bending stresses. The material's good formability is essential during the manufacturing process of the hinge, ensuring the precise formation of knuckles and leaves without compromising structural integrity. Furthermore, 302 stainless steel maintains its mechanical integrity across a broad temperature range, from cryogenic conditions up to approximately 870°C (1600°F) for intermittent service, although continuous service above 425°C (800°F) may lead to carbide precipitation, potentially affecting its corrosion resistance in certain media.
Hygienic and Aesthetic Properties:
The smooth, non-porous surface of 302 stainless steel makes it inherently hygienic and easy to clean, a critical attribute for applications in food service, medical, and pharmaceutical industries. Its attractive, bright finish also contributes to the overall aesthetic appeal of the final product, seamlessly integrating into various designs without requiring additional finishing treatments.
Design and Construction: The Continuous Hinge Advantage
The fundamental principle of a continuous hinge, often referred to as a piano hinge due to its historical application on piano lids, is its ability to provide uniform support along the entire length of the joined components. Unlike traditional butt hinges which concentrate stress at a few discrete pivot points, a continuous hinge distributes the load evenly, mitigating stress concentrations and preventing phenomena such as sagging, warping, or premature failure of the door or lid.
Uniform Load Distribution and Stress Minimization:
The inherent design of a continuous hinge, with its extended length of intermeshing knuckles and a single, continuous pin, ensures that the weight of the hinged component is effectively spread across the entire joint. This even distribution minimizes localized stress points that are common with butt hinges, which often bear the full load at just two or three points. By minimizing stress, the continuous hinge significantly extends the operational lifespan of both the hinge itself and the surrounding structural components, thereby reducing maintenance requirements and replacement costs over time.
Enhanced Structural Integrity:
The design of this specific continuous hinge incorporates equal leaves, each measuring 0.75 inches, contributing to a total open width of 1.50 inches. Equal leaves are advantageous for balanced load distribution and provide symmetrical mounting surfaces, simplifying installation. The continuous nature of the hinge also inherently adds rigidity to the structure it supports, acting as a continuous reinforcement member. This is particularly beneficial in applications where the hinged component might be subject to torsional forces or vibrations, as the hinge helps to stiffen the assembly against deformation.
Security and Sealing Capabilities:
From a security perspective, continuous hinges offer superior protection compared to multiple butt hinges. The absence of gaps along the hinge line makes it exceedingly difficult to pry open with tools, providing a robust barrier against unauthorized access. Additionally, the continuous nature of the hinge creates a tighter seal when the door or lid is closed, which can be critical for environmental control, dust exclusion, or noise reduction in sensitive applications.
Key Dimensional Specifications and Their Implications
The precise dimensions of this continuous hinge are critical to its performance and suitability for various applications. Understanding these specifications provides insight into its engineering and functional attributes.
Thickness: .062 Inches (16 Gauge)
The material thickness of .062 inches, corresponding to a 16 gauge, is a strategic choice for balancing strength, weight, and formability. This gauge provides substantial rigidity and load-bearing capacity, making the hinge resistant to bending, warping, and fatigue under repeated stress. It is thick enough to withstand significant operational forces without excessive deformation, yet thin enough to be economically processed and allow for a relatively compact profile. This thickness is well-suited for medium to heavy-duty applications where structural integrity is paramount.
Hinge Length: 72.0 Inches
A standard length of 72 inches (6 feet) provides considerable versatility for a wide range of industrial, commercial, and architectural applications. This length is sufficient for many standard doors, panels, and enclosures. The provision that these hinges can be "cut to size as needed" offers significant design flexibility, allowing installers to customize the hinge length to perfectly match specific application requirements, thereby minimizing waste and ensuring a precise fit. For larger installations, the availability of 96-inch (8 feet) lengths by special order further extends the utility of this product to larger-scale projects.
Open Width: 1.50 Inches (Leaf Width: 0.75 Inches)
The open width of 1.50 inches refers to the total dimension of the hinge when laid flat and fully extended. With equal leaf widths of 0.75 inches, this configuration provides a balanced and robust mounting surface. The leaf width dictates the area available for attachment to the door/lid and the frame/body. A 0.75-inch leaf offers ample surface area for securing fasteners (screws, rivets) or for welding, ensuring a strong and stable connection. The balanced design also ensures that the hinge operates symmetrically, without imparting uneven forces on the mounting surfaces.
Pin Diameter: .128 Inches (Approximately 1/8 Inch)
The pin diameter of .128 inches (nominally 1/8 inch) is a crucial component of the hinge's structural integrity and smooth operation. The pin, also made of stainless steel, passes through the intermeshing knuckles, forming the pivot axis. A stainless steel pin ensures consistent corrosion resistance throughout the hinge assembly and provides superior wear resistance compared to pins made from softer materials. The diameter is sized to provide sufficient shear strength to support the intended loads while allowing for smooth rotational movement with minimal friction. The precision fit between the pin and the knuckles is vital for reducing play and ensuring a tight, reliable hinge action.
Knuckle Length: .50 Inches
The knuckle length of .50 inches refers to the individual segments that interlock along the hinge’s length. A consistent knuckle length contributes to the hinge's overall rigidity and smooth articulation. Shorter, more numerous knuckles (relative to a given length) tend to provide greater flexibility and a tighter radius of rotation, while longer knuckles offer increased stiffness. The 0.50-inch knuckle length strikes an optimal balance, providing robust interlock strength and ensuring a consistent pivot point across the entire hinge. The tight manufacturing tolerances on knuckle length and alignment are essential for minimizing friction and wear during operation, thereby extending the life of the hinge.
Performance Characteristics and Operational Advantages
The synergistic combination of 302 stainless steel material, continuous design, and precise dimensional specifications results in a hinge with outstanding performance attributes:
- Exceptional Durability and Longevity: The robust 16-gauge 302 stainless steel construction and continuous design provide inherent resistance to fatigue, wear, and environmental degradation, leading to a significantly extended operational life even under demanding conditions.
- Superior Load Distribution: By spreading the load across the entire length of the hinge, stress points are eliminated, preventing sagging, warping, and premature failure of hinged components, particularly those under heavy loads.
- Smooth and Consistent Operation: The continuous stainless steel pin moving within precisely formed knuckles ensures a uniform pivot axis, resulting in fluid, quiet, and reliable opening and closing cycles over countless actuations.
- Enhanced Security: The absence of gaps along the hinge line makes it exceedingly difficult for external forces to compromise the integrity of the door or panel, offering a higher level of security than traditional multi-point hinge systems.
- Aesthetic Integration: The clean, continuous line and bright finish of the stainless steel provide a professional and integrated appearance, enhancing the overall design of the equipment or structure.
- Reduced Maintenance Requirements: The inherent corrosion resistance and robust construction of the hinge minimize the need for frequent inspection, lubrication, or replacement, translating to lower operational costs.
Versatile Application Spectrum
The Stainless Continuous Hinge is an ideal solution for a diverse array of demanding applications across various industries:
- Industrial Equipment and Machinery: Access panels, safety guards, enclosure doors for manufacturing equipment, control cabinets, and utility vehicles where frequent access and robust operation are paramount.
- Commercial and Food Service Equipment: Doors for commercial ovens, refrigerators, freezers, stainless steel countertops, and other food preparation and storage units that require high hygiene standards and resistance to cleaning agents.
- Automotive and Transportation: Toolboxes, truck body doors, trailer ramps, recreational vehicle (RV) compartment doors, and other applications exposed to road grime, vibrations, and weather elements.
- Marine Applications (Freshwater/Protected Saltwater): For components on boats, docks, and marine infrastructure that require corrosion resistance, though for direct, continuous immersion in saltwater, a higher grade like 316 stainless steel may be preferred.
- Architectural and Security Systems: Specialty doors, security gates, safes, vault doors, and heavy-duty access panels where tamper resistance and robust operation are essential.
- Medical and Laboratory Facilities: Cabinetry, instrument covers, and other applications requiring sterile environments and resistance to chemical cleaning agents.
Installation and Customization Considerations
The design of this continuous hinge facilitates straightforward installation, whether through welding or mechanical fasteners. For welding applications, 302 stainless steel is generally weldable using common methods such as TIG or MIG, though specific procedures for stainless steel must be followed to maintain corrosion resistance and mechanical properties. When using mechanical fasteners, the uniform 0.75-inch leaf width provides ample space for drilling or punching holes for screws or rivets, ensuring a secure attachment. While the hinge is supplied undrilled for maximum flexibility, standard drilling patterns can be easily applied by the end-user. The ability to cut the 72-inch length to precise dimensions using standard metalworking tools further enhances its adaptability to bespoke projects.
Conclusion
The Stainless Continuous Hinge, meticulously engineered with .062-inch (16 gauge) 302 stainless steel, a 72-inch length, a 1/8-inch pin, and a 1.5-inch open width, stands as an exemplary solution for high-performance mechanical articulation. Its robust material composition, coupled with its inherent continuous design advantages, ensures unparalleled durability, superior load distribution, enhanced security, and reliable operation in the most demanding environments. This product represents a strategic investment for designers and engineers seeking a long-lasting, low-maintenance, and aesthetically pleasing hinge solution capable of withstanding frequent use and severe wear and tear, thereby delivering exceptional value and operational efficiency across a vast spectrum of industrial, commercial, and specialty applications.
