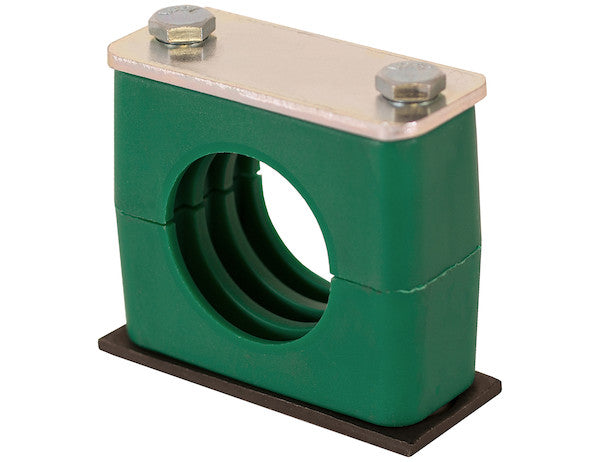

SSCH050 - Standard Series Clamp For Hose 1/2 Inch I.D.

The Weldable Hose Clamp from Buyers Products keeps pipes organized and in place in your truck's hydraulic system. It's easy to assemble and disassemble when needed.

Specifications

The Standard Series Clamp for 1/2 Inch I.D. Hoses: Precision Engineering for Hydraulic System Integrity

In the demanding world of hydraulic systems, particularly within commercial trucking and heavy equipment applications, the secure management of fluid transfer lines is paramount. The Standard Series Clamp, specifically engineered for 1/2 Inch I.D. hoses, represents a critical component in ensuring the longevity, safety, and operational efficiency of these complex systems. Manufactured by Buyers Products, this weldable hose clamp is not merely an accessory but a foundational element designed to withstand the rigorous conditions inherent in dynamic hydraulic environments.

Engineering Precision: Tailored for 1/2 Inch I.D. Hoses

The core functionality of this Standard Series Clamp revolves around its precise fit for hoses with a 1/2 inch Inner Diameter (I.D.). This specification, consistently indicated by the "Inner Diameter: 0.500" and "Tubing Size: 0.500" entries, denotes the internal passage dimension of the hose the clamp is designed to secure. While the hose's internal diameter dictates fluid flow characteristics, it is the hose's Outer Diameter (O.D.) that the clamp physically grips. The "Clamp Inner Diameter (in.): .87" specification refers to the internal dimension of the clamp's cradle, which perfectly accommodates the typical O.D. of a 1/2 inch I.D. hydraulic hose. This precise matching is critical. A clamp that is too large allows for excessive movement and vibration, leading to abrasion and fatigue failure of the hose. Conversely, a clamp that is too small can crush the hose, restricting flow, damaging its internal structure, and compromising its pressure rating. The careful engineering of this clamp ensures a snug, vibration-dampening fit that cradles the hose without deforming it, thereby preserving the hose's structural integrity and preventing premature wear.

The "Single" configuration further emphasizes its role in individual line management. While twin clamps are suitable for parallel routing of multiple lines, the single design allows for independent support, which can be advantageous in complex routing scenarios, or where varying line pressures and dynamics necessitate isolated mounting points. This independent support minimizes sympathetic vibration transfer between lines and provides greater flexibility in system design and maintenance.

Material Science Excellence: The Strength and Durability of 1080 Steel

The choice of material is a cornerstone of any component designed for heavy-duty applications, and the Standard Series Clamp distinguishes itself through its construction from 1080 Steel. This is a high-carbon steel renowned for its exceptional mechanical properties, which are critical for the stresses encountered in hydraulic systems.

1080 Steel typically contains between 0.75% and 0.88% carbon, along with other alloying elements such as manganese, silicon, and trace amounts of phosphorus and sulfur. This high carbon content is pivotal in endowing the steel with superior hardness, strength, and wear resistance compared to lower carbon steels. When properly heat-treated (though in this application, its inherent strength as-rolled or as-fabricated is the primary benefit), 1080 Steel exhibits impressive tensile strength and yield strength, meaning it can withstand substantial pulling forces and resist permanent deformation under load. For a hose clamp, this translates directly into the ability to maintain its structural integrity and clamping force over extended periods, even under constant vibration and dynamic loads.

Furthermore, the fatigue resistance of 1080 Steel is excellent. In environments characterized by repetitive stress, such as a truck's chassis experiencing constant road vibrations, components are subject to cyclic loading that can lead to fatigue cracks and eventual failure. The inherent toughness and fatigue strength of 1080 Steel significantly mitigate this risk, ensuring the clamp remains secure and functional throughout the operational life of the hydraulic system. Its composition also allows for good weldability, a crucial factor given the "weldable" nature of the bottom plate, ensuring a strong, permanent bond to the vehicle's frame or mounting surface. This robust material selection directly contributes to the clamp's reliability and the overall safety and longevity of the hydraulic lines it supports.

Protective Finishes: Optimized for Performance and Durability

The Standard Series Clamp features a thoughtful application of distinct finishes to its two primary components: a plain finish for the bottom plate and a zinc-plated finish for the top plate. This deliberate design choice maximizes both weldability and corrosion resistance, addressing the specific needs of each part.

Bottom Plate: Plain Finish for Superior Weldability
The bottom plate, designed for direct welding to the vehicle chassis or mounting structure, features a "Plain" finish. This typically means the steel is uncoated or may have a very light protective oil film that is easily removed prior to welding. The absence of a thick, non-conductive, or chemically reactive coating is crucial for achieving high-quality, strong welds. Coatings like zinc plating, while protective, can introduce issues during welding, such as porosity, fume generation, and reduced weld strength due to the vaporization of the coating. By leaving the bottom plate plain, the clamp facilitates a clean, metallurgical bond between the 1080 Steel and the parent material, ensuring maximum structural integrity and load transfer. This weldable characteristic allows for seamless integration into the vehicle's frame, offering a highly robust and permanent mounting solution that resists the extreme forces and vibrations encountered in mobile hydraulic applications.

Top Plate: Zinc Plated for Enhanced Corrosion Resistance
In contrast, the top plate of the clamp is "Zinc Plated." Zinc plating is an electrochemical process that deposits a thin layer of zinc onto the steel surface. This finish serves multiple critical functions. Firstly, it provides excellent barrier protection, shielding the underlying 1080 Steel from direct exposure to corrosive elements such as moisture, road salts, chemicals, and industrial pollutants. Secondly, and perhaps more importantly, zinc acts as a sacrificial anode. In the event of minor scratches or damage to the coating, the zinc preferentially corrodes, protecting the underlying steel (cathode) from rusting. This galvanic protection significantly extends the lifespan of the top plate, maintaining its structural integrity and aesthetic appearance even in harsh outdoor environments.

The combination of these two finishes represents an optimized engineering solution. The plain bottom plate ensures the strongest possible mechanical connection to the supporting structure, leveraging the inherent strength and weldability of 1080 Steel. The zinc-plated top plate provides superior external corrosion protection, safeguarding the most exposed part of the clamp from environmental degradation. This synergistic approach maximizes both the functional reliability and the long-term durability of the entire clamp assembly.

Robust Design and Ergonomic Engineering

The design of the Standard Series Clamp is a testament to functional engineering, balancing robust construction with ease of use. Every dimension and feature has been considered to deliver optimal performance in securing hydraulic hoses.

Weldable Design Philosophy: Permanent and Secure Integration
The core design principle of being "weldable" is a significant advantage. Unlike clamps that rely on bolt-on brackets or through-hole mounting, this design allows for a direct, permanent integration into the vehicle's chassis or equipment frame. This direct welding creates an exceptionally rigid and stable mounting point, significantly reducing the likelihood of loosening over time, even under extreme vibration and shock loads. It minimizes potential points of failure and simplifies the overall system architecture by removing the need for additional mounting hardware and brackets. The strength of the weld, when executed correctly, becomes an integral part of the supporting structure, making the hose clamp an extension of the frame itself, thereby enhancing the overall structural integrity of the hydraulic line routing.

Modular Assembly and Disassembly: Ease of Installation and Maintenance
Despite its permanent welded base, the clamp is engineered for "easy assembly and disassembly when needed." This critical feature translates into substantial practical benefits for installation technicians and maintenance personnel. The two-piece design, typically comprising the weldable bottom plate and a removable top plate secured by bolts, allows for the hose to be placed or removed without disturbing the welded base. This modularity streamlines initial installation, allowing the bottom plate to be welded in place first, and the hose subsequently secured. More importantly, it greatly simplifies maintenance, repair, or routing modifications. A faulty hose can be replaced, or the system can be upgraded, with minimal downtime and labor, as only the top plate needs to be unbolted, without requiring re-welding or structural modifications. This ease of serviceability contributes to reduced operational costs and increased equipment uptime.

Detailed Dimensional Analysis: Precision for Performance
The provided specifications offer insight into the precise engineering behind this clamp:

• Depth (1.18 inches): This dimension contributes to the overall stability and footprint of the clamp. A sufficient depth ensures that the clamp body can effectively distribute loads and forces, preventing tilting or undue stress concentrations on the weld joint.
• Height (1.61 inches): The height provides adequate clearance for the hose and ensures that the clamping mechanism has sufficient leverage to securely hold the hose without being overly bulky. It also allows for effective vibration isolation within the clamp's structure.
• Width (2.17 inches): This width dimension indicates a robust structure, providing ample material for strength and stability. It ensures that the clamping force is applied evenly across the hose's outer surface, minimizing localized stress points and potential hose damage.
• Distance between bolt holes (center to center): 1.30 inches: This specific measurement for the bolt holes on the top plate is crucial for consistent clamping force and compatibility. It dictates the spacing of the bolts that secure the top plate to the bottom assembly. This precise spacing ensures that the clamping force is applied uniformly around the hose, critical for preventing slippage and maintaining the hose's round profile. It also aligns with common engineering practices for structural fastening, potentially allowing for standardized hardware.

The overall compact footprint, combined with these precise dimensions, ensures that the clamp delivers maximum securing capability with minimal space intrusion, a vital consideration in space-constrained applications like truck chassis routing.

Application Spectrum: Beyond the Truck's Hydraulic System

While explicitly designed for "truck's hydraulic systems," the robust nature and precise engineering of the Standard Series Clamp make it suitable for a far wider range of demanding applications where 1/2 inch I.D. hoses require secure and reliable anchoring.

Primary Application: Truck Hydraulic Systems
Commercial trucks, particularly those equipped with hydraulic power take-offs (PTOs) for dump beds, cranes, snowplows, refuse compactors, and other auxiliary equipment, operate in exceptionally harsh conditions. These systems are constantly exposed to:

• Severe Vibration: Engine vibration, road irregularities, and operational shocks create a dynamic environment that can quickly degrade unsecured hydraulic lines.
• Temperature Fluctuations: Extreme heat from engine compartments or cold from ambient weather variations can affect hose materials and potentially loosen clamps.
• Exposure to Harsh Elements: Road salts, water, mud, grime, and various chemicals demand components with superior corrosion resistance and material integrity.
• Mechanical Stress: The sheer weight and force of hydraulic components and the dynamic movement of truck bodies place immense stress on all connections.

This clamp is engineered to directly address these challenges. By firmly organizing and securing hoses, it prevents chafing against other components, minimizes the risk of kinks that could restrict flow, and crucially, dampens vibration. Uncontrolled vibration is a leading cause of hydraulic hose fatigue failure, leading to leaks, bursts, and system malfunctions. The robust weldable mount and precise fit ensure that hoses remain stable, reducing wear and tear, maintaining optimal fluid flow, and significantly enhancing the operational safety and reliability of the vehicle.

Expanded Industrial and Mobile Applications
The principles of secure hose management apply universally across various industries. Consequently, the Standard Series Clamp finds invaluable utility in:

• Construction Equipment: Excavators, loaders, bulldozers, and backhoes rely on extensive hydraulic systems. These machines operate in rugged terrain, requiring clamps that can withstand constant jarring and exposure to dirt and debris.
• Agricultural Machinery: Tractors, combines, and various implements use hydraulics for actuation and power. Clamps must endure vibration from field work and exposure to fertilizers, pesticides, and varying weather.
• Material Handling Systems: Forklifts, cranes, and conveyor systems in warehouses and factories utilize hydraulics where precise routing and secure lines are essential for safety and efficiency.
• Marine Vessels: On boats and ships, hydraulic steering, propulsion, and auxiliary systems require corrosion-resistant and robust clamping solutions to withstand saltwater environments and constant motion.
• Industrial Plant Setups: Fixed hydraulic power units, presses, and automated machinery within manufacturing facilities benefit from organized and securely routed hoses to ensure operational continuity and worker safety.
• Forestry Equipment: Harvesters, forwarders, and skidders operate in exceptionally harsh environments, demanding the utmost in component durability and resistance to impact and abrasion.

The "Standard Series" designation implies a design that aligns with common industry requirements for dimensional compatibility and performance. This versatility makes the clamp an ideal choice for any application where 1/2 inch I.D. hydraulic hoses need to be reliably secured, preventing potential failures that could lead to costly downtime, environmental contamination, or safety hazards.

Installation Best Practices and System Integration

Maximizing the benefits of the Standard Series Clamp requires adherence to best practices during installation and a holistic understanding of its role within the hydraulic system.

Welding Procedures: Given the weldable nature of the bottom plate, proper welding techniques are paramount. For 1080 Steel, which is a high-carbon steel, careful attention to preheating (to prevent cracking), appropriate filler material selection, and controlled cooling rates are essential. A qualified welder should perform the welding to ensure a strong, structurally sound bond that can withstand dynamic loads without compromise. The weld joint should be clean and free of contaminants before welding to ensure optimal penetration and strength. Post-weld inspection for defects is also crucial.

Hose Preparation: Before clamping, the hose should be clean, dry, and free of any debris or contaminants. Ensuring the hose is correctly routed, without kinks or sharp bends that could impede flow or stress the hose material, is vital. The clamp should be positioned at regular intervals along the hose length, as per manufacturer or industry guidelines, to provide adequate support and vibration dampening.

Optimal Spacing and Routing: Effective hose management involves more than just individual clamps. Hoses should be routed to minimize stress points, avoid abrasive contact with other components, and allow for natural flex and movement without kinking. The strategic placement of these clamps at critical points – such as transitions, bends, or long unsupported runs – prevents excessive sag, whip, and vibration. Proper spacing ensures even load distribution and extends the service life of both the hose and the clamping system.

Torque Specifications: Once the hose is seated within the clamp's cradle and the top plate is positioned, the securing bolts must be tightened to the manufacturer's specified torque. Under-tightening can lead to insufficient clamping force, allowing the hose to move and vibrate. Over-tightening, conversely, can deform the hose, damage the clamp components, or strip the threads. Correct torque ensures optimal clamping pressure, securing the hose firmly without compromising its integrity or the clamp's structural components.

System Integration: The clamp plays a vital role in maintaining the laminar flow within the hydraulic system. By preventing hose deformation or kinking, it helps ensure that fluid moves efficiently, minimizing pressure drop and heat generation. This contributes directly to the overall efficiency and longevity of the hydraulic pump, valves, and actuators.

By following these installation guidelines, operators can maximize the effectiveness of the Standard Series Clamp, ensuring the highest levels of safety, performance, and reliability for their hydraulic systems.

Longevity, Reliability, and Total Cost of Ownership

The investment in a high-quality component like the Standard Series Clamp from Buyers Products translates directly into substantial long-term benefits concerning longevity, reliability, and total cost of ownership.

Extended Service Life: The robust construction using 1080 Steel, coupled with the protective zinc plating on the top plate and the strategic weldable design, ensures an extended service life for the clamp itself. It resists corrosion, fatigue, and mechanical degradation far better than lesser-quality alternatives. This durability means fewer replacements and less maintenance associated with the clamping hardware.

Enhanced System Reliability: More critically, the clamp directly contributes to the longevity and reliability of the entire hydraulic system. By securely holding 1/2 inch I.D. hoses in place, it prevents the primary causes of hose failure: abrasion, kinking, and fatigue due to vibration. A securely routed and supported hose is significantly less likely to develop leaks, burst, or suffer premature wear. This enhanced reliability means fewer unexpected breakdowns, reduced operational downtime, and a more consistent performance from the hydraulic equipment.

Reduction in Maintenance and Repair Costs: The "easy assembly and disassembly" feature, combined with the clamp's inherent durability, directly lowers maintenance and repair costs. When a hose replacement or system modification is necessary, the process is streamlined, reducing labor hours. More importantly, by preventing hose failures, the clamp avoids the significant costs associated with hydraulic fluid cleanup, environmental fines, component damage from fluid starvation, and emergency repairs.

Mitigation of Risks: Beyond economic considerations, the clamp plays a crucial role in mitigating safety risks. A hydraulic hose burst under pressure can release fluid at extremely high velocity, posing a serious injury hazard to personnel. It can also cause equipment damage or fires. By ensuring hose integrity, the clamp contributes to a safer operating environment.

The initial investment in a technically superior clamp like this Standard Series model is offset many times over by the savings derived from reduced downtime, lower repair costs, extended component life, and improved safety and environmental compliance. It represents a strategic choice for professionals seeking to optimize the performance and operational economics of their hydraulic systems.

Concluding Statement: A Commitment to Performance and Durability

The Standard Series Clamp For Hose 1/2 Inch I.D. by Buyers Products is an indispensable component for any hydraulic system requiring reliable and long-lasting hose management. Its meticulously engineered design, premium 1080 Steel construction, intelligent dual-finish treatment, and practical modularity all converge to deliver a superior solution. From the critical vibration dampening it provides to the seamless integration offered by its weldable base, every aspect of this clamp is optimized for the demanding conditions of commercial trucking and heavy industrial applications. By choosing this clamp, professionals are not just selecting a part; they are investing in the integrity, efficiency, and safety of their hydraulic infrastructure, ensuring organized lines and unwavering performance even in the most challenging operational environments.
