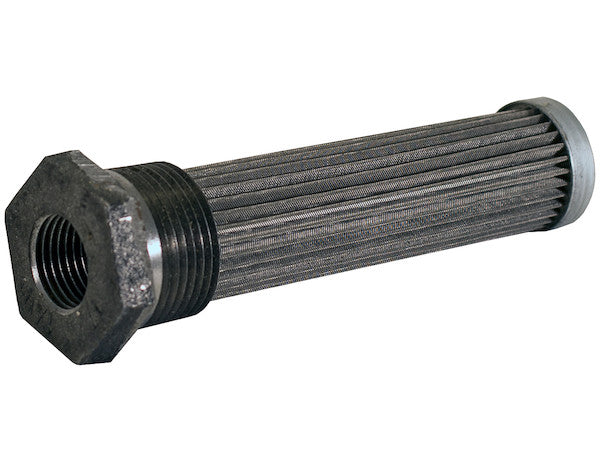

The Thru-Wall Sump Strainer from Buyers Products is designed to stop items from getting back into fluid reservoir and causing damage. The cleanable and reusable strainer can stop items 150 microns or larger at the suction port of your reservoir, using a pleated element of stainless steel wire cloth (100 mesh). It's constructed tough, with bushings and leak-free bonding epoxy. The strainer installs into the wall of the reservoir and is available in a range of port sizes and flow rates.
Specifications
| Element Diameter | 1.56 |
|---|---|
| Element Length | 6.50 |
| Filter Material | 304 Stainless Steel |
| Flow (GPM) | 15 |
| Inlet Port Size | 1 1/2 NPTF |
| Nominal Rating | 150 |
| Outlet Port Size | 1 NPTF |
| Pressure Bypass | 3 |
Thru-Wall Sump Strainer: Precision Filtration for Critical Hydraulic Systems
In the demanding realm of hydraulic and fluid power systems, the integrity and longevity of components are paramount. Unfiltered fluid, even with seemingly innocuous contaminants, can lead to accelerated wear, component failure, and costly downtime. The Thru-Wall Sump Strainer, featuring a 1-1/2 Inch NPT Male Thread Inlet and a 1 Inch NPT Port Thread Outlet, coupled with a robust zinc-plated bushing, represents a critical first line of defense against particulate contamination. Engineered by Buyers Products, this device is meticulously designed to safeguard fluid reservoirs and, by extension, the entire hydraulic circuit, ensuring operational efficiency and extending system lifespan.
This technical exposition delves into the intricate design, material science, operational principles, and comprehensive benefits of this advanced sump strainer. We will explore its role in fluid system hygiene, the specifics of its filtration capabilities, its robust construction, and practical considerations for installation and maintenance.
The Indispensable Role of Sump Strainers in Fluid Power
Hydraulic systems, by their very nature, are susceptible to contamination. Particles can enter the system from external sources (e.g., dirty make-up fluid, ingression through seals and breathers) or be generated internally (e.g., wear debris from pumps and valves, cavitation erosion, degradation of fluid). While main line filters provide fine filtration downstream, sump strainers serve a distinct and vital function: coarse pre-filtration at the fluid reservoir's suction port, directly before the pump. This immediate protection prevents larger, potentially catastrophic particles from entering the pump, which is often the most sensitive and expensive component in the circuit.
Without adequate pre-filtration, pumps are exposed to abrasive wear, leading to reduced volumetric efficiency, increased internal leakage, and eventual failure. Furthermore, larger contaminants can cause blockages in suction lines, leading to pump cavitation – a destructive phenomenon characterized by the formation and collapse of vapor bubbles, resulting in severe erosion and noise. The Thru-Wall Sump Strainer effectively mitigates these risks by intercepting particles exceeding 150 microns, thus preserving pump integrity and overall system reliability.
Technical Deep Dive: Filtration Mechanism and Materials
The core of this sump strainer's efficacy lies in its meticulously engineered filtration element. Employing a pleated design, the element is constructed from 304 stainless steel wire cloth, providing a nominal rating of 150 microns (equivalent to 100 mesh). This combination offers significant advantages:
Pleated Element Design
The pleated geometry of the wire cloth maximizes the effective filtration surface area within a compact volume. This increased surface area allows for higher flow rates with minimal pressure drop and extends the time between cleaning cycles by enhancing dirt-holding capacity. Unlike flat screens, pleated elements distribute the captured particles more efficiently, preventing localized blinding and maintaining consistent flow characteristics over time.
304 Stainless Steel Wire Cloth
The choice of 304 stainless steel for the filter media is critical for its performance and longevity. 304 SS is an austenitic stainless steel renowned for its excellent corrosion resistance across a broad spectrum of industrial fluids, including hydraulic oils, lubricants, and various solvents. Its inherent strength and ductility contribute to the element's mechanical robustness, allowing it to withstand pressure differentials and cyclical stresses without deformation or tearing. The uniform weave of the 100-mesh wire cloth ensures a precise and consistent 150-micron nominal filtration rating, effectively capturing particulates such as metal shavings, rust, gasket material, and environmental debris.
Nominal vs. Absolute Rating
It's important to differentiate between nominal and absolute filtration ratings. A nominal rating, such as the 150 microns for this strainer, indicates that the filter can capture a high percentage (typically 90-98%) of particles at or above the stated size. This is appropriate for a sump strainer, which functions as a pre-filter for larger contaminants. Absolute ratings, typically found in downstream pressure filters, guarantee that all particles above a certain size are removed, often achieved with finer, more complex media.
Robust Construction and Integrated Design
Beyond the filtration element, the overall construction of the Thru-Wall Sump Strainer is engineered for durability, secure installation, and leak-free operation within harsh industrial environments.
Thru-Wall Installation and Port Configuration
The "thru-wall" design signifies that the strainer directly mounts into an aperture in the fluid reservoir wall. This method offers several benefits: it minimizes external plumbing, reduces the risk of leaks associated with multiple connections, and positions the filtration element optimally for direct suction by the pump. The specific port configuration – a 1-1/2 inch NPT (National Pipe Taper) male thread for the inlet and a 1 inch NPT port thread for the outlet – ensures compatibility with standard industrial piping. NPT threads are self-sealing due to their tapered design, creating a robust, leak-resistant connection when properly installed with thread sealant.
The difference in port sizes, with a larger inlet and smaller outlet, can be designed to optimize fluid velocity into the pump suction line, potentially aiding in priming and reducing the likelihood of cavitation by ensuring a consistent flow profile directly to the pump's intake.
Zinc-Plated Bushing
The inclusion of a zinc-plated bushing is a testament to the product's commitment to long-term reliability. Zinc plating provides a sacrificial barrier against corrosion, protecting the underlying steel component from oxidation. In environments where the strainer bushing may be exposed to moisture, chemicals, or galvanic corrosion risks (e.g., dissimilar metals in contact within an electrolyte), zinc plating significantly extends the component's lifespan and maintains its structural integrity. This robust bushing facilitates a secure mounting point and ensures the strainer remains firmly anchored to the reservoir wall.
Leak-Free Bonding Epoxy
Critical to the integrity of any fluid system component is the prevention of leaks. This strainer utilizes leak-free bonding epoxy in its construction. This advanced adhesive technology creates a hermetic seal between the various components, such as the filter media, end caps, and bushing, ensuring that all fluid passes through the filtration element and preventing unfiltered fluid bypass. Such robust bonding also enhances the overall structural stability, allowing the strainer to withstand vibrations, pressure fluctuations, and temperature variations without compromising its sealing or filtration performance.
Operational Specifications and Performance
The detailed specifications provided for this Thru-Wall Sump Strainer underscore its precise engineering and operational capabilities:
- Element Diameter: 1.56 inches
- Element Length: 6.50 inches
- Filter Material: 304 Stainless Steel
- Flow (GPM): 15
- Inlet Port Size: 1 1/2 NPTF
- Outlet Port Size: 1 NPTF
- Nominal Rating: 150 microns
- Pressure Bypass: 3 PSI
These dimensions define the physical size of the filtration element. Combined, they dictate the total filtration area and contribute to the overall dirt-holding capacity and flow characteristics. An optimal element size is crucial for balancing compact installation with effective filtration performance.
As previously discussed, 304 SS ensures excellent corrosion resistance and mechanical strength, vital for longevity and reliability in diverse fluid applications.
A flow rate of 15 Gallons Per Minute (GPM) indicates the maximum recommended fluid volume the strainer can efficiently process without incurring excessive pressure drop. This specification is critical for matching the strainer to the pump's suction requirements. Undersizing a strainer for a given flow rate can lead to cavitation, while oversizing may be an unnecessary expense.
These specifications dictate the plumbing connections required. NPTF (National Pipe Taper Fuel) threads are designed for mechanical sealing without the need for additional sealant in some applications, though sealant is generally recommended for hydraulic systems to ensure zero leakage under pressure.
The 150-micron nominal rating precisely defines the particle size at which the strainer becomes highly effective, performing its role as a coarse pre-filter to protect the pump from larger debris.
The 3 PSI (Pounds per Square Inch) pressure bypass mechanism is a crucial safety feature. In situations where the filtration element becomes excessively clogged, or during cold starts when fluid viscosity is high, the pressure drop across the element can increase significantly. If this pressure drop exceeds 3 PSI, the bypass valve will open, allowing unfiltered fluid to flow directly to the pump. While this momentarily compromises filtration, its primary purpose is to prevent pump cavitation due to flow starvation, which is far more damaging than momentarily unfiltered fluid. This intelligent design ensures continuous pump operation and protects against destructive vacuum conditions.
Applications Across Industries
The robust design and effective filtration capabilities of this Thru-Wall Sump Strainer make it suitable for a wide array of industrial and mobile hydraulic applications, including but not limited to:
- Hydraulic Power Units (HPUs): Essential for protecting pumps in static industrial machinery.
- Construction Equipment: Excavators, loaders, dozers, and cranes benefit from robust pre-filtration in demanding, often dirty, environments.
- Agricultural Machinery: Tractors, harvesters, and sprayers operating in dusty or contaminated conditions.
- Material Handling Equipment: Forklifts, lift tables, and automated storage and retrieval systems.
- Forestry Equipment: Log splitters, skidders, and feller bunchers.
- Truck and Trailer Hydraulics: Dump trucks, refuse vehicles, and utility trucks.
- Marine Applications: Ensuring clean fluid in hydraulic steering, winch, and propulsion systems.
- Industrial Lubrication Systems: Protecting pumps and preventing abrasive wear in circulating oil systems.
Installation and Maintenance Best Practices
Proper installation and regular maintenance are crucial to realizing the full benefits of the Thru-Wall Sump Strainer.
Installation
- Reservoir Preparation: Ensure the reservoir is clean and free of debris. Drill or cut the appropriate sized hole for the bushing, ensuring it is smooth and deburred.
- Sealing: Apply a high-quality thread sealant compatible with hydraulic fluids to the NPT threads of the strainer and the reservoir opening. This ensures a leak-proof connection.
- Secure Mounting: Thread the strainer securely into the reservoir wall using the zinc-plated bushing. Torque to manufacturer specifications to ensure a tight seal without over-stressing the threads or bushing.
- Orientation: Position the strainer suchs that the filtration element is fully submerged in the fluid at the lowest operational fluid level to prevent air ingress and cavitation.
Maintenance and Cleaning
The cleanable and reusable nature of the 304 SS element is a significant advantage, offering cost savings and environmental benefits compared to disposable filters.
- Regular Inspection: Periodically inspect the strainer, especially if the system exhibits signs of reduced flow, increased pump noise (cavitation), or if the bypass valve is observed to be activating (if indicator is present or pressure differential is monitored).
- Removal: Safely drain the reservoir or isolate the section containing the strainer. Carefully unthread and remove the strainer assembly from the reservoir wall.
-
Cleaning Procedure:
- Rinse the element thoroughly with a compatible solvent or cleaning fluid (e.g., diesel fuel, mineral spirits) to remove loose particles.
- Use a soft brush (non-metallic) to gently dislodge stubborn contaminants from the pleated wire mesh.
- For heavily fouled elements, ultrasonic cleaning may be an option, but consult manufacturer guidelines.
- Do NOT use harsh abrasives or wire brushes that could damage the delicate wire mesh.
- Inspection Post-Cleaning: Visually inspect the cleaned element for any signs of damage, tears, or perforations in the wire mesh. Ensure the bonding epoxy and bushing are intact. Replace the element if any damage is detected.
- Reinstallation: Reinstall the cleaned and inspected strainer, applying new thread sealant and torquing appropriately. Refill the reservoir with clean, new fluid, ensuring it meets the system's specifications.
Advantages and Value Proposition
The Thru-Wall Sump Strainer provides a compelling value proposition through its combination of effective filtration, robust construction, and maintainability:
- Pump Protection: Direct, immediate protection for the most critical and expensive component in a hydraulic system.
- Enhanced System Reliability: Prevents premature wear and catastrophic failures, reducing unplanned downtime.
- Cost-Effectiveness: Reusable stainless steel element reduces long-term operational costs associated with consumables.
- Environmental Responsibility: Minimizes waste generated by disposable filter elements.
- Space Efficiency: Thru-wall design integrates directly into the reservoir, saving space and simplifying plumbing.
- Durability: 304 SS, zinc plating, and leak-free epoxy ensure extended service life even in harsh conditions.
- Optimized Flow: Designed for 15 GPM flow, minimizing pressure drop and supporting efficient pump operation.
Conclusion
The Thru-Wall Sump Strainer with its 1-1/2 Inch NPT male inlet, 1 Inch NPT port outlet, and zinc-plated bushing stands as a testament to intelligent engineering in fluid power management. Its precisely woven 100-mesh (150-micron) 304 stainless steel pleated element, coupled with a robust, leak-free construction, provides essential primary filtration for hydraulic reservoirs. By meticulously preventing the ingress of damaging particulates to the pump, this device ensures the longevity, efficiency, and reliability of complex hydraulic systems across a multitude of demanding applications. Investing in such a high-quality, reusable component is not merely a purchase but a strategic decision to safeguard operational continuity and maximize the return on investment in critical machinery.
