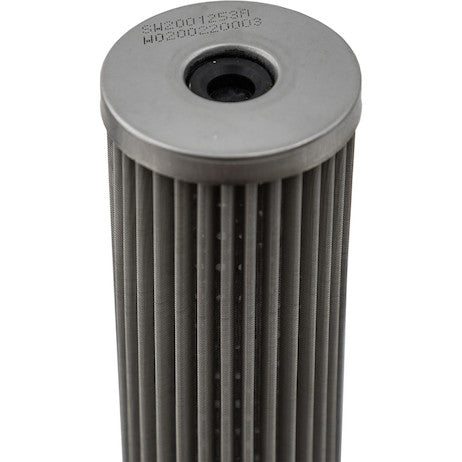

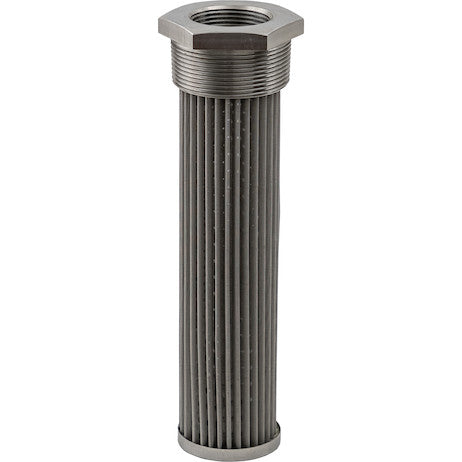

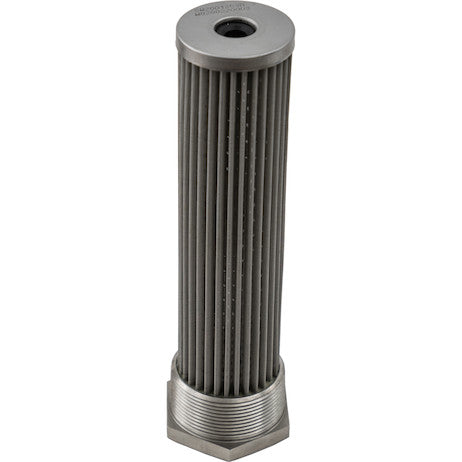

SW2001253SS - Thru-Wall Sump Strainer 2 Inch NPT Male Thread To 1-1/4 Inch NPT Port Thread with Stainless Steel Bushing

The Thru-Wall Sump Strainer from Buyers Products is designed to stop items from getting back into fluid reservoir and causing damage. The cleanable and reusable strainer can stop items 150 microns or larger at the suction port of your reservoir, using a pleated element of stainless steel wire cloth (100 mesh). It's constructed tough, with bushings and leak-free bonding epoxy. The strainer installs into the wall of the reservoir and is available in a range of port sizes and flow rates.

Specifications

Advanced Fluid Reservoir Protection: The Thru-Wall Sump Strainer (2" NPT Male to 1-1/4" NPT Port)

In the demanding world of industrial and mobile hydraulics, the integrity of fluid systems is paramount. Contamination, whether from manufacturing debris, wear particles, or environmental ingress, poses a significant threat to the operational efficiency and longevity of critical components. The Thru-Wall Sump Strainer from Buyers Products represents a meticulously engineered solution designed to offer robust, first-line defense against such detrimental particulate matter. This specific model, featuring a 2-inch NPT male thread for reservoir integration and a 1-1/4-inch NPT port thread for suction line connection, is a testament to precision manufacturing and effective fluid management strategies.

The Critical Role of Sump Strainers in Fluid Systems

Fluid reservoirs are the lifeblood of hydraulic, lubrication, and other industrial fluid power systems. They serve as a storage and heat dissipation point, but also as a collection zone for contaminants. Without adequate protection at the suction port, pumps, which are often the most expensive and critical components, are vulnerable to damage from large particulates. These particulates can cause accelerated wear on pump internals, leading to reduced volumetric efficiency, increased noise, premature failure, and ultimately, costly downtime and repairs.

Sump strainers, by design, are positioned within the reservoir at the pump's suction inlet, providing a coarse, yet essential, level of filtration. Their primary function is to prevent larger, system-damaging particles from reaching the pump. While not intended for fine filtration, which is typically handled by pressure or return line filters, a high-quality sump strainer effectively safeguards the pump from catastrophic damage, ensuring its operational lifespan and the overall reliability of the fluid power system. The Thru-Wall Sump Strainer excels in this protective role, capturing items 150 microns or larger, a crucial capability for safeguarding hydraulic pumps and other sensitive downstream components.

Precision Engineering: Design and Material Superiority

The Thru-Wall Sump Strainer is not merely a screen; it is a precisely engineered component built for durability, efficiency, and seamless integration into demanding industrial environments. Every aspect of its design, from its thru-wall mounting to its material selection, is optimized for superior performance.

Thru-Wall Configuration and Installation

The "Thru-Wall" design is a significant advantage, offering a direct and secure method for integrating the strainer into the reservoir. This configuration ensures that the entire straining element is submerged in the fluid, optimizing flow and preventing air ingress, which can lead to pump cavitation and system inefficiencies. The male NPT thread (2-inch NPTF inlet in this specific model) is designed to pass directly through the reservoir wall, securing the strainer firmly in place. This method of installation simplifies assembly and ensures a robust connection, minimizing the potential for leaks or dislodgement, even under conditions of vibration or pressure fluctuations common in mobile and industrial applications.

Stainless Steel Element (304 SS): The Core of Contamination Control

The filtering element is crafted from 304 Stainless Steel wire cloth, a material chosen for its exceptional properties in challenging fluid environments. 304 SS offers:

• Superior Corrosion Resistance: It provides excellent resistance to rust and corrosion when exposed to a wide range of hydraulic fluids, lubricants, and chemicals, ensuring the strainer's integrity and performance over extended periods.
• High Strength and Durability: The robust nature of stainless steel allows the element to withstand pressure differentials and mechanical stress without deforming or failing, even when loaded with contaminants.
• Thermal Stability: It maintains its mechanical properties across a broad range of operating temperatures, making it suitable for systems where fluid temperatures can fluctuate significantly.
• Chemical Compatibility: 304 SS is compatible with most common hydraulic oils, synthetic lubricants, and industrial fluids, preventing degradation of the element itself and ensuring no unwanted chemical reactions with the fluid.

The element features a 2.00-inch diameter and a substantial 7.50-inch length, contributing to its ample surface area for filtration and dirt holding capacity.

Pleated Wire Cloth (100 Mesh / 150 Micron Rating)

The design incorporates a pleated element of stainless steel wire cloth. Pleating significantly increases the effective surface area of the filter medium within a compact footprint. This enhanced surface area translates directly into:

• Higher Dirt Holding Capacity: The strainer can accumulate more particulate matter before requiring cleaning, extending service intervals and reducing maintenance frequency.
• Lower Pressure Drop: A larger surface area allows fluid to flow more freely through the element, minimizing pressure drop across the strainer and reducing the risk of pump cavitation.
• Extended Service Life: The combination of increased surface area and robust material ensures a longer operational life for the strainer element itself.

The mesh size of the wire cloth is 100 mesh, which corresponds to a nominal rating of 150 microns. To elaborate:

• Mesh Count: "100 mesh" means there are 100 wires per linear inch in both directions, creating tiny square openings.
• Micron Rating: A 150-micron nominal rating indicates that the strainer is designed to capture approximately 98% of particles 150 microns and larger. For context, a human hair is typically 50-70 microns thick. This level of filtration is precisely calibrated to protect the pump's sensitive internal clearances from macroscopic contaminants without impeding necessary flow.

This coarse filtration protects the pump from gravel, rust flakes, large wear particles, and other debris that could otherwise cause immediate and severe damage.

Threaded Connections: Secure and Standardized

The strainer features precise NPT (National Pipe Taper) threads, ensuring compatibility with standard industrial plumbing practices. Specifically:

• Inlet Port Size: 2 NPTF (Male Thread): The 2-inch NPTF male thread is designed for robust connection to the reservoir wall. NPTF (National Pipe Taper Fuel) threads are a variation of NPT threads designed to create a "dryseal" joint, meaning they can seal without the use of thread sealant if correctly manufactured and torqued, though sealant is often recommended for hydraulic applications for added security. This large inlet size ensures ample flow area from the reservoir into the strainer.
• Outlet Port Size: 1 1/4 NPTF (Port Thread): The 1-1/4-inch NPTF port thread provides a secure and leak-free connection for the pump's suction line. The reduction in size from the inlet to the outlet is typical for optimizing the flow path after initial straining, aligning with common pump suction line dimensions for systems of up to 25 GPM flow capacity.

The tapered design of NPT threads ensures a progressively tighter seal as they are engaged, critical for preventing fluid bypass or air leaks that could compromise system performance.

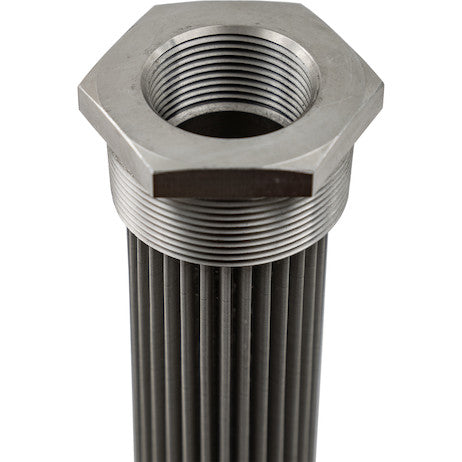

Stainless Steel Bushing and Leak-Free Bonding Epoxy

The robust construction is further enhanced by a stainless steel bushing. This bushing provides structural integrity and a secure mounting point, resisting the mechanical stresses of installation and operation. Its stainless steel composition mirrors the element's durability and corrosion resistance. Complementing this, a specialized leak-free bonding epoxy is utilized in the assembly process. This epoxy creates an impermeable seal between the strainer element and its housing, preventing any fluid from bypassing the filtration media. This attention to detail in sealing is critical; even a small bypass path would render the strainer ineffective, allowing contaminants to reach the pump.

Optimized Performance: Flow Dynamics and Safety Mechanisms

Beyond its robust construction, the Thru-Wall Sump Strainer is engineered for optimal operational performance, incorporating features that enhance system efficiency and protect against potential hazards.

Flow Rate: 25 GPM

With a rated flow capacity of 25 GPM (gallons per minute), this strainer is suitable for a wide range of hydraulic power units, lubrication systems, and other fluid transfer applications. Proper sizing of the strainer's flow capacity to the pump's maximum suction flow rate is crucial to prevent pump cavitation. Cavitation occurs when the pump draws fluid faster than it can be supplied, leading to the formation and collapse of vapor bubbles, which can cause significant damage to pump components, generate excessive noise, and reduce efficiency. The 25 GPM rating, coupled with the generous element dimensions and pleated design, ensures that the strainer can accommodate the required fluid volume without creating excessive restriction, thus safeguarding the pump from starvation.

Pressure Bypass: 3 PSI

An integrated pressure bypass valve, set at 3 PSI (pounds per square inch), is a critical safety feature. Its function is to protect the pump from starvation in the event that the strainer element becomes excessively clogged with contaminants. When the pressure drop across the strainer element exceeds 3 PSI due to particulate accumulation, the bypass valve opens, allowing unfiltered fluid to flow directly to the pump. While bypassing unfiltered fluid is generally undesirable, it is preferable to pump cavitation, which can cause immediate and severe damage. The bypass valve serves as both a protective measure and an indicator:

• Pump Protection: It ensures that the pump continues to receive fluid, preventing the catastrophic damage associated with cavitation.
• Maintenance Indicator: The activation of the bypass valve signals that the strainer element is heavily laden with contaminants and requires immediate cleaning or replacement. Monitoring the operation of a bypass can be a key part of a predictive maintenance strategy.

This feature underscores the thoughtful engineering behind the Buyers Products strainer, balancing optimal filtration with system operational continuity.

Cleanability and Reusability

A significant economic and environmental benefit of this sump strainer is its cleanable and reusable design. Unlike disposable filters, the stainless steel wire cloth element can be removed, cleaned, and reinstalled, dramatically reducing ongoing operational costs and waste. The cleaning process typically involves:

• Mechanical Cleaning: Rinsing with a compatible solvent or detergent, often combined with light brushing or agitation to dislodge trapped particles.
• Backflushing: Forcing clean fluid or air through the element in the reverse direction of normal flow to expel contaminants.
• Ultrasonic Cleaning: For heavily soiled elements, ultrasonic baths can provide a highly effective method for dislodging deeply embedded particles.
• Drying: Thorough drying with clean, compressed air before reinstallation to prevent water contamination in the fluid system.

This reusability makes the Thru-Wall Sump Strainer a highly sustainable and cost-effective choice for long-term fluid system management.

Installation Principles and Maintenance Protocols

Proper installation and regular maintenance are crucial to maximizing the effectiveness and lifespan of the Thru-Wall Sump Strainer.

Installation Guidance

1. Reservoir Preparation: Ensure the reservoir wall is clean, free of burrs, and has a precisely sized opening for the 2-inch NPTF male thread.
2. Thread Sealant: Apply a high-quality, fluid-compatible thread sealant or PTFE tape to the 2-inch NPTF male threads before installation to ensure a leak-free seal between the strainer and the reservoir wall.
3. Tightening: Carefully thread the strainer into the reservoir wall, tightening it to the manufacturer's recommended torque specifications. Avoid overtightening, which can damage threads or the reservoir.
4. Orientation: Ensure the strainer element is fully submerged in the fluid at all operating levels to prevent air ingestion by the pump.
5. Suction Line Connection: Connect the pump's suction line securely to the 1-1/4-inch NPTF port thread, again using appropriate thread sealant.
6. System Flush: After installation, perform a system flush and ensure all connections are leak-free before bringing the system to full operation.

Maintenance Protocols

The cleanable nature of the strainer requires a structured maintenance approach:

1. Monitoring Pressure Drop: If the system is equipped with suction line pressure gauges, monitor for a significant drop in pressure, which indicates a clogged strainer. The activation of the 3 PSI bypass valve is a direct signal for immediate cleaning.
2. Scheduled Inspections: Establish a regular inspection schedule based on operating hours, fluid condition, or system contamination levels.
3. Cleaning Procedure:
   • Isolate the system and drain the reservoir to below the strainer level.
   • Carefully unthread and remove the strainer from the reservoir.
   • Thoroughly clean the stainless steel element using the methods described previously (compatible solvent, backflushing, ultrasonic).
   • Inspect the element for any signs of damage, such as tears in the mesh, bent pleats, or compromised bonding. Replace the strainer if damage is observed.
   • Inspect the stainless steel bushing and the epoxy for any signs of wear or degradation.
   • Ensure the strainer is completely dry before reinstallation.
4. Reinstallation: Reinstall the clean strainer following the initial installation guidelines, including the use of fresh thread sealant.

Diverse Industrial Applications

The robust design, precise filtration, and optimized flow characteristics of this Thru-Wall Sump Strainer make it indispensable across a multitude of industrial and mobile applications where hydraulic or lubrication fluid cleanliness is paramount:

• Mobile Hydraulic Equipment: Construction machinery (excavators, bulldozers), agricultural equipment (tractors, harvesters), material handling equipment (forklifts, cranes), and utility vehicles rely heavily on clean hydraulic fluid to power cylinders, motors, and other actuators. The strainer protects these vital pumps from debris encountered in harsh operating environments.
• Stationary Industrial Machinery: In manufacturing plants, steel mills, plastics injection molding machines, presses, and automated assembly lines, hydraulic power units are the backbone of operations. This strainer ensures the longevity and reliability of these expensive, high-performance systems.
• Lubrication Systems: Large industrial gearboxes, turbines, and compressors utilize lubrication systems that require clean oil to prevent wear on bearings and gears. The sump strainer guards the lubrication pumps against metallic wear particles and other contaminants.
• Power Generation: In power plants, various hydraulic and lubrication circuits (e.g., turbine governor systems, auxiliary drives) demand stringent fluid cleanliness. The strainer provides foundational protection for these critical operations.
• Fluid Transfer and Processing: Any system involving the transfer or processing of industrial fluids where pump protection is necessary can benefit from this robust strainer.

Its ability to handle a 25 GPM flow rate and its durable 304 stainless steel construction make it a versatile choice for a broad spectrum of demanding tasks.

The Strategic Advantages of Implementing the Buyers Products Thru-Wall Sump Strainer

Integrating the Thru-Wall Sump Strainer into your fluid management strategy offers a compelling array of operational and economic benefits:

• Extended Equipment Life: By effectively preventing large particulates from reaching the pump, the strainer significantly reduces wear and tear on critical components, extending their operational lifespan and delaying the need for costly replacements or overhauls.
• Reduced Downtime: Protecting pumps from premature failure translates directly into fewer unexpected breakdowns and reduced unplanned downtime, maximizing operational uptime and productivity.
• Improved System Efficiency: A healthy pump operates at peak volumetric efficiency, ensuring that the system performs as designed without energy waste due to internal leakage or cavitation.
• Cost Savings: The reusability of the stainless steel element eliminates the recurring cost of replacement filters. Furthermore, preventing pump damage avoids expensive repairs, component replacements, and the indirect costs associated with production stoppages.
• Enhanced Safety: Reliable system operation reduces the risk of operational failures that could pose safety hazards to personnel or damage valuable assets.
• Environmental Responsibility: The cleanable and reusable nature of the strainer contributes to sustainable industrial practices by reducing waste generation from disposable filter elements.
• Optimized Maintenance: The presence of a bypass valve acts as an effective indicator for proactive maintenance, allowing operators to schedule cleaning before system performance is critically impacted, shifting from reactive to predictive maintenance strategies.

Commitment to Purity and Performance

The Thru-Wall Sump Strainer from Buyers Products is more than just a component; it is a critical investment in the longevity, efficiency, and reliability of your fluid power systems. Its meticulous design, incorporating a durable 304 stainless steel pleated element with a 150-micron nominal rating, robust NPTF threaded connections, a secure stainless steel bushing, and leak-free epoxy bonding, ensures superior performance. Coupled with a practical 25 GPM flow rate and a protective 3 PSI pressure bypass, this cleanable and reusable strainer provides unparalleled foundational protection for your pumps against damaging contaminants. Choose the Buyers Products Thru-Wall Sump Strainer for a commitment to fluid purity and unwavering operational performance.
