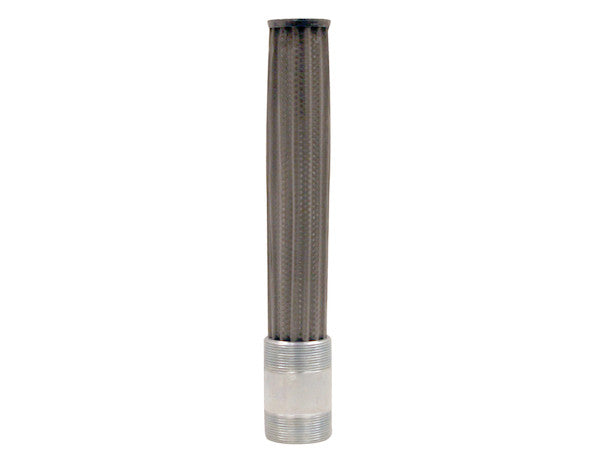

SW2002003 - Thru-Wall Tank Strainer 2 Inch NPT Male Thread To 2 Inch NPT Port Thread

The Thru-Wall Sump Strainer from Buyers Products is designed to stop items from getting back into fluid reservoir and causing damage. The cleanable and reusable strainer can stop items 150 microns or larger at the suction port of your reservoir and keep them from going any farther, without hampering your flow rate. It uses a pleated element of stainless steel wire cloth (100 mesh) and is constructed tough, with cast iron bushings and leak-free bonding epoxy. It fits a standard 2 in. NPTF port and is ideal for larger tanks and applications needing a greater flow rate.

Specifications

Advanced Technical Overview: Thru-Wall Tank Strainer for Optimal Hydraulic System Protection

In contemporary hydraulic and fluid power systems, the integrity of the working fluid is paramount to ensuring operational efficiency, extending component lifespan, and minimizing unscheduled downtime. Contamination, often originating from airborne particles, internal wear, or component degradation, poses a significant threat to these intricate systems. The Thru-Wall Tank Strainer, featuring a 2-inch NPT Male Thread to a 2-inch NPT Port Thread, represents a critical first line of defense against particulate contamination entering the suction side of hydraulic pumps. This device is meticulously engineered to provide robust, reliable, and high-performance pre-filtration, safeguarding sensitive components from detrimental particulate matter while maintaining unimpeded fluid flow.

Fundamental Principle and Operational Significance

The primary function of any suction strainer, including this advanced thru-wall design, is to prevent large contaminants from entering the hydraulic pump, which is often the most vulnerable and expensive component in a hydraulic circuit. Unlike pressure line filters that protect downstream components, the sump strainer acts directly at the fluid reservoir's suction port, intercepting foreign objects and coarser particles before they can be ingested by the pump. The term "thru-wall" signifies its unique installation method, where the strainer element is positioned inside the reservoir, and the connection port extends through the tank wall, allowing for external plumbing and simplified maintenance. This design eliminates the need for internal tank access for connection, streamlining system assembly and subsequent servicing operations.

Precision Filtration: 150 Micron (100 Mesh) Rating

The core of this thru-wall strainer's protective capability lies in its highly efficient pleated element constructed from 304 stainless steel wire cloth, providing a nominal filtration rating of 150 microns, equivalent to a 100 mesh screen. To contextualize, a micron (µm) is one-millionth of a meter, and 150 microns is roughly the diameter of a human hair. This level of filtration is strategically chosen for suction applications; it is fine enough to capture macroscopic contaminants and debris that could cause immediate mechanical damage or block pump inlets, yet coarse enough to minimize pressure drop and prevent pump cavitation, especially during cold starts or high flow demands. The 100 mesh designation refers to the number of openings per linear inch in the wire cloth. A 100-mesh screen indicates 100 wires per inch, creating apertures approximately 150 microns wide. The pleated design significantly increases the effective surface area of the filter media within a compact volume, thereby enhancing dirt-holding capacity and extending service intervals while maintaining a low-pressure drop across the element. The selection of 304 stainless steel for the filter material is critical due to its exceptional corrosion resistance, high tensile strength, and compatibility with a wide range of hydraulic fluids, including petroleum-based oils, synthetic lubricants, and water-glycol solutions. This material ensures the element's structural integrity and filtration performance are maintained even under demanding operating conditions and exposure to various chemical compositions.

Robust Construction for Demanding Environments

Durability and longevity are non-negotiable attributes for components operating within industrial and mobile hydraulic systems. This thru-wall strainer features robust construction characterized by cast iron bushings and leak-free bonding epoxy. Cast iron, known for its high compressive strength, excellent vibration damping properties, and resistance to deformation, forms the structural foundation of the connection port, ensuring a secure and stable interface with the reservoir wall. The use of advanced, leak-free bonding epoxy is vital for permanently securing the stainless steel element to the cast iron fittings, creating a hermetically sealed unit that prevents bypassing of unfiltered fluid and maintains structural integrity against fluid pressure and vibration. This meticulous construction guarantees reliable performance, even in environments subjected to shock, vibration, and temperature fluctuations, effectively preventing fluid bypass and ensuring that all fluid entering the pump is adequately pre-filtered.

Optimized Flow Dynamics: 49 GPM Capacity

A crucial consideration for any suction-side filtration device is its impact on the system's flow rate. The Thru-Wall Tank Strainer is engineered to accommodate a substantial flow rate of up to 49 GPM (Gallons Per Minute) without introducing significant flow restriction or risking pump cavitation. Cavitation occurs when the pressure at the pump inlet drops below the vapor pressure of the hydraulic fluid, leading to the formation and implosion of vapor bubbles. This phenomenon causes noise, erosion of pump components, reduced pump efficiency, and premature pump failure. By employing a large, pleated surface area and an optimized fluid path, this strainer minimizes the pressure differential across the element, ensuring that the pump receives an adequate and continuous supply of fluid. This high flow capacity, coupled with its effective filtration, makes it ideally suited for larger hydraulic systems and applications where maintaining peak pump performance and preventing cavitation are critical for operational continuity and component longevity.

Thru-Wall Design for Enhanced Accessibility and Maintenance

The distinctive "thru-wall" configuration provides significant advantages in terms of installation and maintenance. Rather than requiring the entire strainer assembly to be submerged within the tank and accessed solely through the tank's interior, this design positions the connection port externally. The 2-inch NPT (National Pipe Taper) male thread extends through a corresponding female NPT port in the tank wall, creating a secure, tapered pipe thread seal. This external accessibility simplifies the connection of suction lines, eliminates potential leak paths associated with internal plumbing, and significantly streamlines inspection, cleaning, and replacement procedures. In many industrial and mobile applications, tank access can be restricted, making the thru-wall design an invaluable feature that contributes to reduced maintenance time and labor costs.

Standardized NPTF Port Compatibility

The strainer features a 2-inch NPTF (National Pipe Taper Fuel) thread, both for its male connection and the port it engages. NPTF threads are a specific type of NPT thread designed for dry sealing, meaning they can create a leak-tight connection without the need for additional sealant, though a sealant or thread tape is often still recommended for added security and ease of assembly/disassembly. The tapered design of NPT threads ensures that as the male and female threads are tightened, the flanks of the threads compress, forming a mechanical seal. The 2-inch size is a common standard in medium to large hydraulic systems, facilitating easy integration with existing plumbing and components. This adherence to industry standards ensures broad compatibility and simplifies specification and procurement processes.

Cleanable and Reusable Element: Economic and Environmental Benefits

The design philosophy behind this strainer emphasizes sustainability and cost-effectiveness through its cleanable and reusable element. Unlike disposable filter elements that require periodic replacement and contribute to waste streams, the 304 stainless steel wire cloth element can be removed, thoroughly cleaned of accumulated contaminants, and reinstalled, significantly reducing operational expenses associated with consumable parts. The cleaning process typically involves backflushing with a compatible solvent or detergent, followed by thorough drying. This reusability not only offers a substantial economic advantage over the lifespan of the equipment but also aligns with environmental best practices by minimizing waste generation. The robustness of the stainless steel element ensures that it can withstand multiple cleaning cycles without degrading its filtration performance or structural integrity.

Integrated Pressure Bypass: System Protection and Continuity

A critical safety and operational feature incorporated into this strainer is its 3 PSI (Pounds per Square Inch) pressure bypass. A bypass valve is essential in suction-side filtration to prevent pump starvation in conditions where the filter element becomes excessively clogged or when high-viscosity fluids are encountered, particularly during cold starts. If the pressure differential across the strainer element exceeds 3 PSI due to contaminant loading or fluid viscosity, the bypass valve will automatically open. This allows unfiltered fluid to flow directly to the pump, thereby preventing cavitation and potential pump damage. While allowing unfiltered fluid to bypass is not ideal from a contamination control perspective, it is a necessary safeguard to prevent catastrophic pump failure. The 3 PSI setting is carefully calibrated to ensure that bypass occurs only when absolutely necessary, prioritizing pump protection while still encouraging timely maintenance and cleaning of the element.

Comprehensive Applications Across Diverse Industries

The versatility and robust design of the Thru-Wall Tank Strainer make it an indispensable component across a wide array of hydraulic applications and industries. Its ability to provide primary filtration for high-flow systems renders it suitable for:

• Mobile Hydraulics: Heavy construction equipment (excavators, bulldozers, loaders), agricultural machinery (tractors, harvesters), forestry equipment, and utility vehicles where fluid reservoirs are integral to compact, high-power systems.
• Industrial Machinery: Presses, injection molding machines, machine tools, material handling systems, and other factory automation equipment that rely on clean hydraulic power for precision and reliability.
• Marine Applications: Steering systems, winches, and auxiliary power units on commercial and recreational vessels where robust filtration is critical in often challenging environments.
• Power Generation: Lubrication and hydraulic systems in turbines, generators, and other energy infrastructure equipment.
• Waste Management: Compacting equipment, balers, and lifting mechanisms in refuse vehicles and recycling facilities.
• Mining and Quarrying: Large-scale earth-moving equipment, crushing plants, and drilling rigs that operate in abrasive, high-contamination environments.
• Aerospace Ground Support Equipment: Systems requiring reliable hydraulic power for maintenance, testing, and operation of aircraft and related components.

In all these applications, the strainer serves as a foundational element of the contamination control strategy, preventing large particulates from inflicting immediate mechanical damage on pumps and downstream components, thereby contributing to increased system uptime and reduced maintenance overhead.

Installation and Maintenance Best Practices

Proper installation and routine maintenance are crucial for maximizing the effectiveness and lifespan of the Thru-Wall Tank Strainer. Installation typically involves preparing a correctly sized and threaded port in the hydraulic reservoir wall, ensuring it is free of burrs and welding slag. The strainer's male NPTF thread is then securely engaged with this port. While NPTF threads offer a dry seal, applying an appropriate thread sealant (compatible with hydraulic fluid) is often recommended to ensure a leak-free connection and facilitate future removal. The external connection point allows for easy attachment of the suction line to the pump.

Maintenance primarily involves periodic inspection and cleaning of the stainless steel element. The frequency of cleaning will depend on the operating environment, fluid cleanliness, and system duty cycle. Signs that the strainer requires cleaning include increased pump noise (indicating potential cavitation due to excessive pressure drop across a clogged element) or a decrease in system performance. The cleanable design allows for simple removal of the element, followed by cleaning with a compatible solvent or an ultrasonic cleaner, and subsequent reinstallation. Adhering to a preventative maintenance schedule, based on operating hours or visual inspection, will ensure consistent fluid quality and optimal pump protection.

Conclusion

The Thru-Wall Tank Strainer with its 2-inch NPT Male Thread to 2-inch NPT Port Thread is a meticulously engineered component designed to serve as a high-performance primary filtration solution for demanding hydraulic systems. Its combination of a precise 150-micron (100 mesh) 304 stainless steel pleated element, robust cast iron and epoxy construction, high 49 GPM flow capacity, external thru-wall accessibility, and integrated 3 PSI pressure bypass valve establishes it as an indispensable safeguard against particulate contamination. By effectively preventing damaging debris from reaching the hydraulic pump and maintaining unimpeded fluid flow, this strainer significantly contributes to extended component life, improved system efficiency, reduced operational costs, and maximized equipment uptime across a diverse spectrum of industrial and mobile applications. Its cleanable and reusable design further underscores its economic and environmental advantages, making it a sustainable and reliable choice for proactive hydraulic system maintenance and protection.
