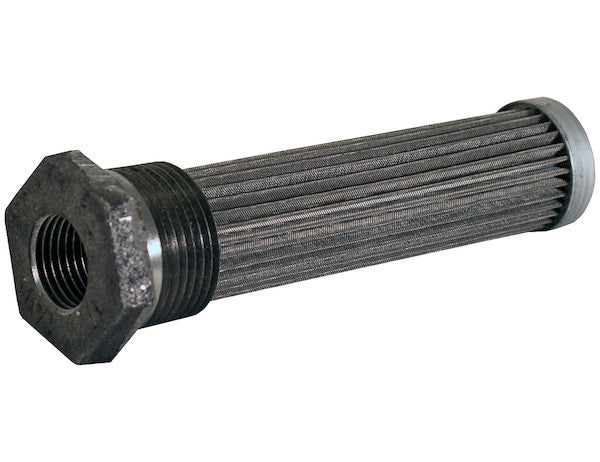

SW3002003 - Thru-Wall Sump Strainer 3 Inch NPT Male Thread To 2 Inch NPT Port Thread with Zinc-Plated Bushing

The Thru-Wall Sump Strainer from Buyers Products is designed to stop items from getting back into fluid reservoir and causing damage. The cleanable and reusable strainer can stop items 150 microns or larger at the suction port of your reservoir, using a pleated element of stainless steel wire cloth (100 mesh). It's constructed tough, with bushings and leak-free bonding epoxy. The strainer installs into the wall of the reservoir and is available in a range of port sizes and flow rates.

Specifications

The Thru-Wall Sump Strainer represents a critical component in the engineering of robust and reliable fluid power systems, acting as an indispensable first line of defense against particulate contamination. Specifically engineered for rigorous industrial and mobile applications, this particular model features a 3-inch NPT male thread for the inlet and a 2-inch NPT port thread for the outlet, encapsulated within a durable assembly featuring a zinc-plated bushing. Its primary function is to intercept solid contaminants before they can enter and compromise the integrity of pumps, valves, and other sensitive hydraulic or lubrication system components, thereby safeguarding operational longevity and system efficiency. Positioned strategically within the fluid reservoir, typically at the suction line, this strainer ensures that fluid drawn into the system is pre-filtered to a nominal rating of 150 microns, effectively removing harmful debris such as metal shavings, dirt, rust particles, and other foreign matter that inevitably find their way into industrial environments.

Fluid contamination is widely recognized as the leading cause of premature failure in hydraulic and lubrication systems, accounting for a significant percentage of system malfunctions and downtime. Even microscopic particles, invisible to the naked eye, can lead to abrasive wear, erosion, fatigue, and ultimately, catastrophic failure of precision components. The Thru-Wall Sump Strainer directly addresses this challenge by providing effective coarse filtration at the most vulnerable point: the pump's suction port. By preventing larger, potentially pump-destroying particles from reaching the pump, the strainer extends the life of the pump and reduces the load on subsequent, finer filtration stages. This preemptive approach to contamination control is not merely a maintenance luxury but a fundamental requirement for achieving optimal system performance and maximizing return on investment in capital equipment.

A core differentiator of this strainer is its construction and the materials employed, chosen for their superior performance and durability in demanding conditions. The filtration element is a pleated design, fabricated from 304 stainless steel wire cloth with a 100-mesh specification, equating to a nominal filtration rating of 150 microns. The pleated configuration significantly increases the effective surface area of the filter media within a compact volume, thereby enhancing dirt-holding capacity and extending service intervals. Stainless steel (304 SS) is selected for its excellent corrosion resistance, high mechanical strength, and compatibility with a wide range of hydraulic fluids, lubricants, and chemicals. This material ensures that the strainer itself does not degrade or contribute contaminants to the fluid over time. Furthermore, its inherent durability allows the element to be thoroughly cleaned and reused multiple times, offering a cost-effective and environmentally conscious alternative to disposable filters. The 100-mesh designation precisely defines the number of openings per linear inch, ensuring consistent and reliable filtration down to the specified micron level, providing robust protection against common industrial contaminants.

The structural integrity of the Thru-Wall Sump Strainer is further reinforced by the inclusion of robust bushings and the application of a leak-free bonding epoxy. The bushings play a critical role in securely mounting the strainer to the reservoir wall, providing mechanical stability and ensuring a rigid connection capable of withstanding system vibrations and pressure fluctuations. In this specific model, the bushing is zinc-plated, a surface treatment chosen for its exceptional corrosion resistance. Zinc plating provides a sacrificial layer that protects the underlying base metal from oxidation and corrosive agents, extending the lifespan of the mounting mechanism even in harsh, moisture-prone environments. The leak-free bonding epoxy is integral to the strainer's performance, meticulously sealing the pleated element within its end caps and to the central core. This advanced bonding agent prevents fluid bypass, ensuring that all fluid flowing through the strainer is compelled to pass through the filtration media, preventing unfiltered fluid from reaching downstream components. The epoxy also contributes to the overall structural rigidity of the element, preventing pleat collapse under high flow conditions or differential pressures, and is formulated to be chemically inert to common hydraulic fluids, maintaining its integrity throughout the strainer's operational life.

The "Thru-Wall" design itself offers distinct advantages over traditional internal or external filtration methods. Unlike internal strainers that are fully submerged and can be difficult to access, or purely external filters that require complex plumbing, the thru-wall configuration allows the filtration element to reside directly within the reservoir while providing an easily accessible port connection on the exterior. This design optimizes space utilization within the reservoir, ensuring maximum fluid volume is available while minimizing the footprint of the filtration apparatus. Crucially, it simplifies installation and maintenance procedures. The external threaded port facilitates straightforward connection of suction lines without requiring technicians to reach inside the fluid reservoir. This translates into reduced labor costs, safer maintenance operations, and less downtime during servicing. Moreover, the thru-wall mounting technique inherently provides a more stable and robust connection to the reservoir, minimizing the risk of detachment or leakage often associated with less secure internal mounting solutions. The precision engineering of the mounting interface ensures a positive seal, preventing any ingress of ambient air or egress of hydraulic fluid.

The specified port threading – a 3-inch NPT male thread for the inlet and a 2-inch NPT port thread for the outlet – is critical to the strainer's integration within diverse hydraulic systems. NPT, or National Pipe Taper, is a widely adopted standard for tapered threads used on pipes and fittings, known for its self-sealing properties when properly assembled with sealant. The 3-inch male NPT inlet thread ensures a secure and robust connection to the fluid intake plumbing, designed to accommodate significant flow rates without restriction. The male thread configuration allows for direct threading into a complementary female NPT port on the suction line or adapter. Conversely, the 2-inch NPT port thread on the outlet is designed to interface directly with the reservoir wall, providing a secure and leak-tight passage for the filtered fluid. The transition from a 3-inch inlet to a 2-inch outlet bore reflects the internal design of the strainer element and is optimized for efficient fluid dynamics at the rated flow. Proper torque application and the use of appropriate thread sealant during installation are paramount to achieving a leak-free and durable connection, essential for maintaining system integrity and preventing fluid loss or air entrainment.

With a nominal flow rate capacity of 50 Gallons Per Minute (GPM), this Thru-Wall Sump Strainer is well-suited for a broad spectrum of medium to high-flow hydraulic and lubrication systems. This flow rating indicates the maximum continuous volume of fluid the strainer can efficiently process under specified conditions without excessive pressure drop. Maintaining an adequate flow rate to the pump is vital; any significant restriction at the suction port can lead to cavitation, a destructive phenomenon where vapor bubbles form and collapse, causing rapid pump erosion, noise, and reduced efficiency. The design of this strainer, including its pleated element and optimized port sizes, is engineered to minimize pressure drop across the filtration media at its rated flow, ensuring consistent and unobstructed fluid delivery to the pump. The nominal rating of 150 microns is carefully balanced to protect the pump from larger, potentially damaging particles while avoiding overly restrictive filtration that could impede flow, especially during cold start-ups when fluid viscosity is higher.

An integrated pressure bypass mechanism, set at 3 PSI, further enhances the operational safety and reliability of this sump strainer. A bypass valve is a critical safety feature in any suction-side filtration device. Its function is to open and allow unfiltered fluid to flow directly to the pump if the pressure differential across the filter element exceeds a predetermined threshold. This condition typically occurs if the strainer becomes excessively clogged with contaminants or if the fluid viscosity is unusually high, such as during cold weather start-ups. Without a bypass, a severely clogged strainer could starve the pump of fluid, leading to cavitation, overheating, and eventual failure. The 3 PSI bypass setting is carefully chosen to provide a balance: it allows for effective filtration under normal operating conditions while ensuring that the pump always receives an adequate supply of fluid, even under adverse circumstances. This protective mechanism prevents costly pump damage, maintaining system uptime and operational continuity, and signaling the need for strainer inspection and cleaning.

The emphasis on the cleanable and reusable nature of this strainer offers significant long-term operational and economic benefits. Unlike disposable filter elements, which contribute to waste streams and necessitate recurring replacement costs, the 304 stainless steel wire cloth element can be thoroughly cleaned and returned to service. Recommended cleaning procedures typically involve backflushing with a compatible solvent, soaking, or even ultrasonic cleaning for stubborn contaminants, followed by visual inspection for any signs of damage or degradation before reinstallation. This reusability not only provides substantial cost savings over the operational lifespan of the equipment but also aligns with modern sustainability initiatives by reducing industrial waste. To optimize the service life of the element and ensure continuous protection, establishing a routine maintenance schedule based on system operating hours, fluid analysis, or differential pressure monitoring is highly recommended. Regular cleaning intervals prevent excessive clogging, maintain consistent flow, and ensure the strainer operates at peak efficiency.

This Thru-Wall Sump Strainer finds indispensable application across a broad spectrum of industries where hydraulic and lubrication systems are central to operations. In mobile hydraulics, such as construction equipment (excavators, loaders), agricultural machinery (tractors, harvesters), and material handling vehicles (forklifts), these strainers protect vital hydraulic pumps from the harsh, dusty, and often unpredictable operating environments. In industrial settings, including manufacturing plants, steel mills, plastics injection molding facilities, and power generation stations, they safeguard complex machinery that relies on clean hydraulic power for precise control and heavy-duty actuation. Furthermore, in lubrication systems for large gearboxes, turbines, and compressors, this strainer ensures that critical bearing surfaces receive a constant supply of clean lubricant, preventing abrasive wear and extending the operational life of expensive rotating equipment. Its robust construction, high flow capacity, and effective micron rating make it an ideal choice for ensuring the reliability and efficiency of critical fluid power applications, directly contributing to reduced maintenance costs and enhanced productivity.

In summary, the Thru-Wall Sump Strainer with its 3-inch NPT male inlet and 2-inch NPT port outlet, complemented by a zinc-plated bushing, stands as a testament to precision engineering for demanding fluid power environments. Its carefully selected 304 stainless steel, 100-mesh (150-micron nominal) pleated element ensures superior contaminant removal, protecting pumps and extending system life. The durable zinc-plated bushing and leak-free epoxy bonding reinforce its structural integrity, while the thru-wall design simplifies installation and maintenance. With a robust 50 GPM flow capacity and a vital 3 PSI pressure bypass, this strainer is engineered to deliver reliable performance, safeguard critical components against damaging particulates, and ensure continuous operation. Its cleanable and reusable nature provides a cost-effective and sustainable solution for contamination control, making it an essential investment for any system prioritizing reliability, longevity, and optimal fluid system health.
