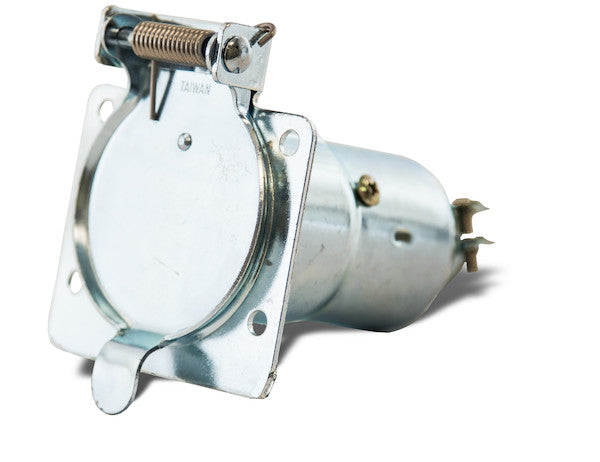

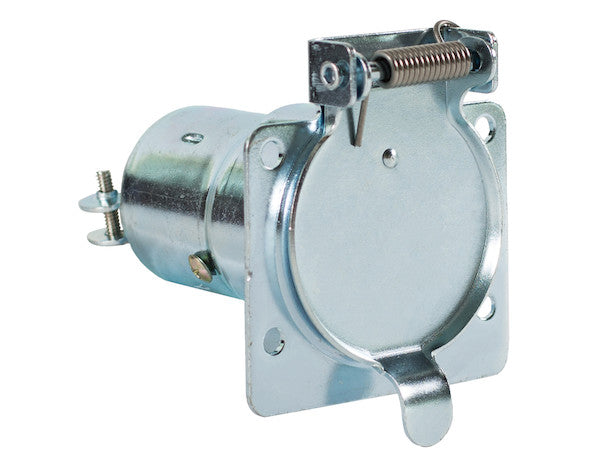

Buyers Products 7-Way Stamped Metal Trailer Connector is a flat terminal pin, truck-side connector. It attaches to your vehicle and is commonly used to make a power connection between the vehicle and a utility or travel trailer. It features a durable zinc finish with a spring-loaded door to protect the flat terminal pins when not in use.
Specifications
| End Way (Number of Pins) | 7 |
|---|---|
| Pin Style | RV Flat |
| Start Way (Number of Pins) | 7 |
| Truck Side/Trailer Side | Truck Side |
The Buyers Products 7-Way Stamped Zinc Trailer Connector, designed specifically for the truck side, represents a critical component in ensuring safe and reliable electrical communication between a towing vehicle and its utility or travel trailer. This robust connector facilitates the transmission of multiple electrical signals and power, essential for the operation of various trailer systems. Engineered for durability and consistent performance, this unit integrates advanced material science with practical design, providing a dependable interface for demanding towing applications.
At the core of its functionality is the 7-way electrical architecture, a standard configuration for trailers requiring more than basic lighting functions. Unlike simpler 4-way or 5-way connectors, the 7-way system provides dedicated circuits for critical safety features and auxiliary power, making it indispensable for larger recreational vehicles (RVs), travel trailers, and commercial utility trailers equipped with electric brakes, interior lighting, and battery charging capabilities. This particular connector utilizes a flat terminal pin design, often referred to as an RV blade style, which is recognized for its superior contact integrity and resistance to environmental degradation compared to traditional round pin connectors.
The comprehensive electrical connection provided by this 7-way system typically encompasses the following functions, adhering to established industry color codes and pin assignments:
- Pin 1 (White Wire): Ground Connection - This is the foundational circuit for all other electrical functions. A robust, low-resistance ground connection is paramount for the reliable operation of every circuit, preventing erratic behavior of lights and brakes due to poor grounding.
- Pin 2 (Blue Wire): Electric Brakes - This dedicated circuit supplies the necessary current to activate the trailer's electric brakes. It is typically controlled by a brake controller installed in the towing vehicle, allowing for proportional braking synchronization between the vehicle and the trailer, significantly enhancing safety.
- Pin 3 (Green Wire): Tail, Running, and Marker Lights - This circuit powers all exterior lights on the trailer that indicate its presence and dimensions, including tail lights, running lights along the sides, and clearance lights, which are active whenever the vehicle's headlights or parking lights are on.
- Pin 4 (Black Wire): 12-Volt Battery Charge Line / Auxiliary Power - This continuous 12V power supply can serve multiple purposes, such as charging the trailer's onboard battery while driving, powering interior lights, or operating small 12V appliances within the trailer, independent of the vehicle's ignition state (though often wired to be active with ignition).
- Pin 5 (Red Wire): Right Turn and Stop Signal - This circuit provides power for the right-side turn indicator and the right-side brake light on the trailer, mirroring the signals from the towing vehicle.
- Pin 6 (Yellow Wire): Left Turn and Stop Signal - Correspondingly, this circuit manages the left-side turn indicator and the left-side brake light on the trailer, ensuring clear communication of turning and stopping intentions.
- Pin 7 (Brown Wire): Reverse Lights / Backup Lights - This circuit powers the trailer's reverse lights, providing illumination when backing up and signaling to others that the trailer is in reverse gear. In some configurations, this pin might be used for other auxiliary functions depending on specific trailer requirements, though reverse lights are the most common application.
The meticulous assignment of each pin to a specific function underscores the complexity and importance of a correctly wired 7-way connector. Any deviation or faulty connection can lead to serious operational issues, ranging from malfunctioning lights to inoperable electric brakes, posing significant safety hazards.
The construction of this connector highlights a commitment to engineering excellence. The use of "stamped metal" for the connector housing offers several advantages. Stamping is a manufacturing process that uses a press to form metal sheets into desired shapes, resulting in components with high dimensional accuracy, excellent repeatability, and superior mechanical strength. This method ensures that each connector housing is uniformly robust, capable of withstanding the mechanical stresses inherent in towing operations, including constant vibration, minor impacts, and repeated connection/disconnection cycles. The inherent rigidity of stamped metal contributes to the overall structural integrity, ensuring that the internal components, particularly the terminal pins, remain securely positioned and properly aligned for optimal electrical contact.
A paramount feature contributing to the connector's longevity and reliability is its "durable zinc finish." Zinc coating, often applied through electroplating or hot-dip galvanizing, provides exceptional corrosion resistance. In the demanding environment of towing, connectors are routinely exposed to moisture, road salt, dirt, grime, and various chemicals, all of which can accelerate corrosion and lead to electrical failures. Zinc acts as a sacrificial anode, meaning it corrodes preferentially to the underlying steel or other base metal, thereby protecting the connector from rust and electrochemical degradation. This sacrificial protection mechanism is particularly vital for electrical components that must maintain consistent contact integrity over extended periods and across diverse climatic conditions. The zinc finish not only enhances the functional lifespan of the connector but also maintains its aesthetic quality, preventing unsightly rust and ensuring ease of operation throughout its service life.

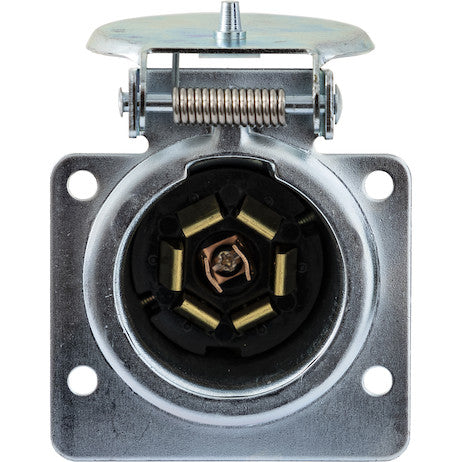

The "flat terminal pin" design, or RV blade style, is a deliberate choice for superior electrical performance. Unlike cylindrical pins that offer point-to-point contact, flat blades provide a larger surface area for electrical contact. This increased contact area results in lower electrical resistance across the connection, which in turn minimizes voltage drop and heat generation. Lower voltage drop ensures that the full electrical potential is delivered to the trailer's systems, optimizing the performance of lights, brakes, and auxiliary equipment. Furthermore, the flat blade design is inherently more resistant to bending and deformation compared to thinner, round pins, enhancing the mechanical robustness of the connection. The wiping action during insertion and removal of flat blades can also contribute to a self-cleaning effect, dislodging minor contaminants and helping to maintain a clean contact surface over time.
A critical protective element integrated into this design is the "spring-loaded door." This feature serves a dual purpose: environmental sealing and mechanical protection. When the connector is not in use, the spring-loaded door automatically snaps shut, creating a barrier against the ingress of moisture, dust, dirt, and road debris. This significantly reduces the risk of corrosion on the exposed terminal pins and prevents the accumulation of conductive contaminants that could lead to short circuits. Mechanically, the door shields the delicate flat pins from accidental damage, such as bending or breakage, which could otherwise render the connector inoperable. The positive closing action of the spring mechanism ensures that the protective door remains securely latched, even under conditions of vibration or movement, maintaining the integrity of the electrical contacts until the next use.
Installation of this truck-side connector requires adherence to proper electrical practices to ensure safety and functionality. The connector is designed to be securely mounted to the towing vehicle, typically on the bumper, hitch assembly, or other designated chassis point, often utilizing a specific mounting bracket to prevent strain on the wiring harness. The wiring process involves connecting each of the vehicle's corresponding circuits (ground, brake, turn, tail, auxiliary, reverse) to the correct pin on the connector. This requires precise crimping or soldering of wire terminals to ensure robust, low-resistance connections. The use of appropriate wire gauges, heat-shrink tubing for insulation, and dielectric grease to protect against moisture at wire junctions is highly recommended to prevent future electrical faults and maintain system reliability. A secure, watertight seal where the wire harness enters the connector body is also vital to prevent moisture ingress along the cables.
The versatility of the 7-way connector makes it suitable for a wide range of towing applications. For utility trailers, it reliably powers essential lighting and, if equipped, electric brakes. For travel trailers and RVs, it becomes a central hub for all electrical needs, from critical braking and signal lights to providing power for interior lighting, refrigeration units, and charging onboard batteries. Boat trailers benefit from the corrosion-resistant zinc finish, which stands up to humid and saltwater environments. Commercial trailers, often carrying heavy loads, rely on the steadfast performance of the 7-way system for their electric brake functionality and comprehensive lighting, ensuring compliance with transportation regulations and enhancing road safety for professional operators.
From an electrical engineering perspective, the design considers factors critical for sustained performance. The ability to handle multiple simultaneous current loads (e.g., all lights, brake activation, and battery charging) without excessive heat buildup or significant voltage drop is a testament to its robust design. The larger contact area of the flat pins directly contributes to lower electrical resistance (R) across the connection. According to Ohm's Law (V=IR), for a given current (I), a lower resistance results in a smaller voltage drop (V) across the connection. This efficiency ensures that components on the trailer receive adequate voltage, preventing dim lights, weak braking, or slow charging. While the connector itself does not provide active circuit protection, its design prevents conditions that could lead to short circuits, and it effectively interfaces with the vehicle's existing fuse and circuit breaker system, which are crucial for protecting against overcurrent events. Maintaining a clean, low-resistance ground path (Pin 1) is especially critical, as it serves as the common return path for all other circuits. A compromised ground can lead to intermittent failures, dim lights, or even damage to sensitive electronic components.
Maintaining the Buyers Products 7-Way Stamped Zinc Trailer Connector is straightforward but essential for prolonged reliability. Regular inspection for any signs of physical damage, corrosion, or debris accumulation within the pin cavities is recommended. Cleaning the pins with a non-abrasive electrical contact cleaner and applying a thin layer of dielectric grease can help to repel moisture, prevent corrosion, and ensure smooth, consistent electrical contact. Periodically checking the functionality of the spring-loaded door to ensure it closes firmly and provides an effective seal is also important. Should any wear or damage be observed, prompt replacement of the connector is advisable to maintain the integrity of the electrical connection and uphold safety standards.
Adherence to safety standards and regulatory compliance is implicit in the design of such a critical towing component. While specific SAE standards exist for trailer connectors (e.g., SAE J2863 for RV-type electrical connectors), the general principles of safe electrical design are paramount. A properly functioning 7-way connector prevents scenarios such as short circuits, which could lead to electrical fires or damage to vehicle electronics. It ensures that vital safety functions like brake lights, turn signals, and electric brakes operate as intended, providing clear communication to other road users and enabling safe control of the trailer. This compliance is not just about meeting technical specifications; it is fundamentally about ensuring the safety of the towing operator, passengers, and other vehicles on the road.
In conclusion, the Buyers Products 7-Way Stamped Zinc Trailer Connector is more than just a simple electrical interface; it is a meticulously engineered component critical to the safe, legal, and efficient operation of trailers requiring comprehensive electrical connectivity. Its stamped metal construction, durable zinc finish, robust flat terminal pins, and protective spring-loaded door collectively deliver a solution characterized by superior durability, reliable performance, and enhanced safety. For any truck-side application requiring a full suite of trailer electrical functions, this connector stands as a testament to thoughtful design and robust manufacturing, providing a dependable link between vehicle and trailer for countless miles of confident towing.
