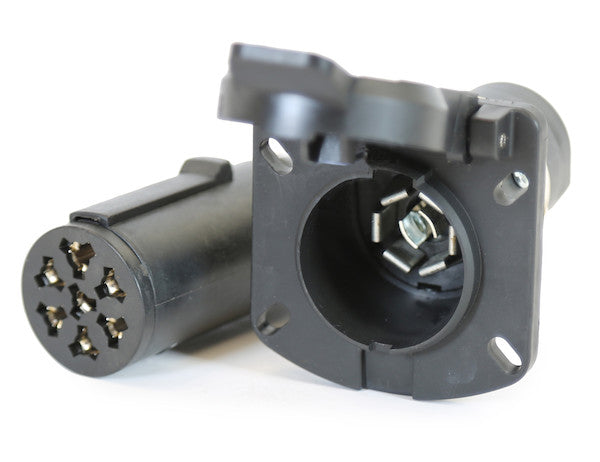

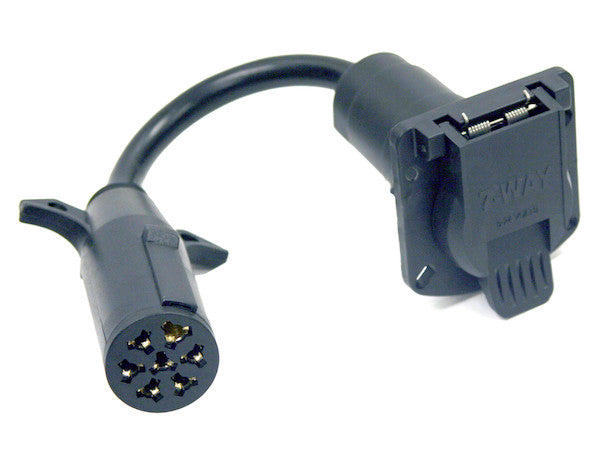

TC1077P - 7-Way Round to 7-Way Flat Trailer Connector Adapter - Prewired 3 Inch Connection

The 7-Way to 7-Way Trailer Connector Adapter from Buyers Products solves a mismatch between your truck-side and trailer-side connector hardware by converting a 7-way flat pin to 7-way flat pin connector. The adapter comes with a pre-wired 3 in. connection and a built-in latch/protective cover.

Specifications

Detailed Technical Overview: The 7-Way Round to 7-Way Flat Trailer Connector Adapter

In the intricate world of towing and trailer operations, seamless electrical communication between the tow vehicle and the trailer is not merely a convenience but a critical safety and operational imperative. The 7-Way Round to 7-Way Flat Trailer Connector Adapter, an engineering solution from Buyers Products, is specifically designed to bridge the compatibility gap that frequently arises due to differing industry standards for trailer connectors. This adapter serves as an indispensable interface, enabling a tow vehicle equipped with a traditional 7-way round connector – often found on heavy-duty trucks or older models – to reliably connect with a trailer featuring the more common 7-way RV blade (flat pin) style connector. Its prewired 3-inch connection and robust construction underscore a commitment to simplified installation, enhanced durability, and unwavering electrical integrity, ensuring that all vital trailer functions, from lighting to braking, operate without compromise.

Understanding Trailer Electrical Connectivity: The Foundation of Safe Towing

Trailer connectors are the conduits for all electrical signals and power transmissions between the tow vehicle and the towed unit. These signals are responsible for a multitude of critical functions: illuminating brake lights, turn signals, and running lights; powering electric trailer brakes; providing auxiliary power for onboard batteries; and sometimes even activating reverse lights. The reliability of these connections directly impacts road safety, compliance with traffic regulations, and the overall operational efficiency of the towing setup. Discrepancies in connector types, while seemingly minor, can render an otherwise capable tow vehicle incompatible with a specific trailer, creating significant logistical hurdles and potential safety hazards if makeshift solutions are attempted. The 7-Way Round to 7-Way Flat Adapter precisely addresses this challenge by providing a professionally engineered and standardized conversion.

Decoding Connector Standards: 7-Way Round vs. 7-Way RV Flat

To fully appreciate the utility of this adapter, it is essential to understand the distinctions between the two primary 7-way connector types it bridges:

7-Way Round (SAE J560 Type)

The 7-way round connector, frequently conforming to SAE J560 standards, is a robust and weather-resistant design often specified for heavy-duty commercial applications, agricultural equipment, and some older recreational vehicles. Its circular arrangement of pins and typically screw-on or bayonet locking mechanisms provides a secure and durable connection suitable for harsh environments. The standard pin assignments for a 7-way round connector are as follows:

• Pin 1 (White): Ground
• Pin 2 (Blue): Electric Brakes
• Pin 3 (Green): Tail/Running Lights
• Pin 4 (Red): Auxiliary/Backup Lights (or sometimes power for accessories)
• Pin 5 (Brown): Right Turn/Stop Light
• Pin 6 (Yellow): Left Turn/Stop Light
• Pin 7 (Black): Battery Charge/Auxiliary Power

Variations exist, especially in older systems or non-standard implementations, but these are the most common functions. The physical design of these pins often includes robust, solid contacts designed for high current loads and resistance to vibration.

7-Way RV Flat Blade (SAE J2863 Type)

The 7-way RV flat blade connector, often adhering to SAE J2863, is the predominant standard for recreational vehicles and many utility trailers in North America. Its flat, blade-style pins are arranged in a specific pattern within a rectangular housing, typically with a locking tab or spring-loaded cover for retention. This design is favored for its ease of connection, compact size, and widespread compatibility. The standard pin assignments for a 7-way RV flat blade connector are:

• Center Pin (White): Ground
• 1 o'clock position (Blue): Electric Brakes
• 3 o'clock position (Green): Tail/Running Lights
• 5 o'clock position (Red): Auxiliary/Reverse Lights
• 7 o'clock position (Brown): Right Turn/Stop Light
• 9 o'clock position (Yellow): Left Turn/Stop Light
• 11 o'clock position (Black): Battery Charge/Auxiliary Power

While the functional assignments are largely consistent between the two types, the physical pin layout and connector mating mechanisms are entirely different, rendering direct connection impossible. The Buyers Products adapter's core function is to intelligently and securely translate these physical differences while maintaining perfect electrical signal integrity.

Core Functionality and Precision Engineering

The 7-Way Round to 7-Way Flat Trailer Connector Adapter is engineered with meticulous attention to detail to ensure reliable signal translation. Its primary role is to accept the standard SAE J560 7-way round output from the tow vehicle and convert it into the SAE J2863 7-way RV blade format, ready for connection to the trailer. This conversion is not merely a matter of changing pin shapes; it involves precise internal wiring that maps each specific electrical function from the round connector's pin assignment to the correct pin location on the flat blade connector. This ensures that when the tow vehicle's brake pedal is depressed, the trailer's brake lights illuminate instantly and correctly, and the trailer's electric brakes receive the appropriate current from the brake controller.

The adapter maintains the discrete electrical pathways for each function – ground, left turn, right turn, tail lights, electric brakes, auxiliary power, and reverse lights. This separation is crucial for preventing signal interference, ensuring that each system operates independently and effectively. The internal electrical architecture prioritizes low-resistance connections, minimizing voltage drop across the adapter and thereby ensuring that sufficient current reaches the trailer's systems, especially critical for electric brakes and battery charging.

Key Features and Engineering Advantages

Buyers Products has integrated several design elements into this adapter that significantly enhance its performance, longevity, and user experience:

Pre-wired 3-Inch Connection

The inclusion of a pre-wired 3-inch connection is a testament to the adapter's thoughtful design aimed at reducing installation complexity and improving reliability. This short, integrated harness eliminates the need for installers to cut, strip, and crimp individual wires, which are common sources of connection failures, especially in demanding outdoor environments. The factory-terminated connections within the adapter are made using precise manufacturing techniques, ensuring optimal electrical contact and mechanical strength. The wires themselves are typically made from high-quality, multi-strand copper, encased in durable, weather-resistant insulation, providing excellent conductivity and flexibility. This pre-wired segment minimizes potential points of failure, such as poorly crimped terminals or inadequate sealing, contributing to a more robust and maintenance-free setup.

Built-in Latch and Protective Cover

The adapter features a robust, built-in latch and a protective cover, addressing critical concerns related to connection security and environmental resilience. The latch mechanism provides a positive, mechanical lock when connecting to the trailer's 7-way flat connector, preventing accidental disconnections caused by road vibrations, sudden movements, or rough terrain. This secure connection is paramount for continuous operation of safety-critical systems like trailer brakes and lighting. The protective cover, often made from high-impact, UV-stabilized polymer, serves multiple vital functions:

• **Environmental Protection:** It shields the internal pins and electrical contacts from ingress of moisture, dirt, dust, road salt, and other contaminants that can lead to corrosion and electrical shorts.
• **UV Resistance:** Protection against ultraviolet radiation prevents material degradation and embrittlement over prolonged exposure to sunlight.
• **Impact Resistance:** The cover provides a degree of physical protection against minor impacts or abrasions, preserving the structural integrity of the connector.
• **Ease of Use:** The cover often includes ergonomic features, such as a textured grip or an easy-open tab, for convenient operation even with gloved hands.

The materials chosen for both the latch and cover are selected for their durability, resistance to temperature extremes, and chemical compatibility with common automotive fluids, ensuring long-term performance in diverse operating conditions.

Robust Construction Materials

The overall construction of the adapter emphasizes durability and electrical performance:

• **Housing Materials:** The connector housings are typically molded from engineered thermoplastics, such as high-grade nylon or ABS polymers. These materials offer excellent impact resistance, chemical stability, and a wide operating temperature range. They are often infused with UV inhibitors to prevent degradation from sun exposure and designed to be resistant to common road chemicals like fuel, oil, and de-icing agents.
• **Terminal Pins:** The electrical contact pins within the connectors are crucial. They are commonly manufactured from brass or phosphor bronze, known for their excellent electrical conductivity and resilience. These pins are frequently tin-plated to enhance corrosion resistance and improve conductivity, particularly in damp or humid conditions. The design of these pins ensures a snug, low-resistance fit that minimizes fretting corrosion and maintains stable electrical contact over time.
• **Sealing Elements:** High-quality gaskets and O-rings are incorporated into the design to create a watertight and dust-tight seal at critical interfaces, further enhancing the adapter's resistance to environmental ingress.

Electrical Performance and Safety Considerations

The electrical integrity provided by the 7-Way Round to 7-Way Flat Trailer Connector Adapter is fundamental to safe towing. This adapter is designed to handle the standard 12-volt DC electrical systems prevalent in modern vehicles and trailers. It facilitates the passage of various current loads: low-amperage signals for lighting, moderate current for auxiliary functions and reverse lights, and higher amperage for electric trailer brakes and battery charging. The design ensures:

• **Minimal Voltage Drop:** High-quality wiring and robust contacts reduce electrical resistance, preventing significant voltage drops that could diminish the performance of trailer lights (making them dimmer) or, more critically, reduce the effectiveness of electric trailer brakes.
• **Secure Grounding:** A reliable ground connection is paramount for any electrical system. The adapter provides a solid, low-resistance ground path, essential for the proper functioning of all trailer electrical components and to prevent stray currents or intermittent operation.
• **Compatibility with Brake Controllers:** Modern trailer brake controllers rely on a stable, uninterrupted signal path through the connector. This adapter ensures seamless communication, allowing the brake controller to accurately sense and activate the trailer's electric brakes, providing proportional and synchronized braking action, which is vital for safety.
• **Compliance with Standards:** The adapter's design and construction align with relevant SAE (Society of Automotive Engineers) standards for trailer connectors, ensuring compatibility and safety across a wide range of vehicles and trailers.

Applications and Versatility

The 7-Way Round to 7-Way Flat Trailer Connector Adapter from Buyers Products is an invaluable tool across a broad spectrum of towing applications:

• **Recreational Vehicles (RVs):** Owners of older tow vehicles or specialized trucks with 7-way round connectors can effortlessly tow newer RVs or travel trailers equipped with the 7-way RV blade standard.
• **Utility and Cargo Trailers:** Ideal for individuals or businesses that need to tow a variety of utility, cargo, or landscape trailers, many of which now commonly use the 7-way RV blade connector.
• **Boat Trailers:** Ensures proper operation of lights and potentially surge brake systems on boat trailers, which are frequently exposed to corrosive marine environments.
• **Commercial Fleets:** Fleet managers operating diverse vehicle and trailer inventories benefit significantly, as it allows for greater flexibility in pairing tow vehicles with various trailer types without requiring costly and time-consuming electrical modifications to individual vehicles.
• **Rental Operations:** Rental companies can offer greater compatibility to their customers, reducing the likelihood of incompatible equipment issues.
• **Agricultural and Industrial Equipment:** While these often use heavy-duty round connectors, this adapter can facilitate temporary connections to other types of trailers when needed.

This adapter eliminates the need for permanent wiring alterations, preserves the original vehicle wiring harness, and provides a clean, professional solution for connectivity challenges.

Installation and Maintenance Recommendations

The installation of the 7-Way Round to 7-Way Flat Trailer Connector Adapter is remarkably straightforward, exemplifying a plug-and-play design philosophy. The adapter typically connects directly to the existing 7-way round receptacle on the tow vehicle, and the 7-way flat blade connector of the trailer then plugs into the adapter's output. The pre-wired 3-inch connection means there are no complex splicing or wiring tasks involved. It is crucial to ensure that both the vehicle-side and trailer-side connectors are clean and free of corrosion before mating them with the adapter to ensure optimal electrical contact.

For long-term reliability and performance, routine maintenance is recommended:

• **Regular Inspection:** Periodically check the adapter and its connections for any signs of wear, damage, or corrosion.
• **Cleaning:** Keep the connector pins and receptacles clean using a non-abrasive electrical contact cleaner.
• **Dielectric Grease:** Applying a thin coat of dielectric grease to the electrical contacts can further enhance corrosion protection and improve electrical conductivity, particularly in environments prone to moisture and salt exposure.
• **Secure Latch:** Always ensure the built-in latch is securely engaged when connecting the trailer to prevent accidental disconnections.

Following these simple guidelines will significantly extend the lifespan and reliability of the adapter and, consequently, the entire towing electrical system.

The Buyers Products Advantage

Buyers Products is renowned for its dedication to producing high-quality, durable, and innovative solutions for the work truck and trailer industries. This 7-Way Round to 7-Way Flat Trailer Connector Adapter is a testament to that legacy. Each adapter undergoes rigorous quality control and testing to ensure it meets demanding performance specifications and industry standards. By choosing a Buyers Products adapter, customers are investing in:

• **Engineered Reliability:** Products designed for consistent performance in challenging environments.
• **Superior Durability:** Constructed from materials selected for their resistance to wear, weather, and common operational stresses.
• **Safety Assurance:** Designed to maintain critical electrical signals, directly contributing to safer towing operations.
• **Ease of Integration:** Solutions that simplify installation and enhance user convenience.

This adapter is more than just a connector; it is a critical component that ensures seamless integration and reliable operation, reflecting Buyers Products' commitment to excellence.

Conclusion

The 7-Way Round to 7-Way Flat Trailer Connector Adapter from Buyers Products represents an essential piece of equipment for any professional or recreational towing enthusiast facing connector incompatibility issues. By expertly converting a 7-way round output to a 7-way RV flat blade input, it eliminates the need for costly vehicle modifications or risky jerry-rigged solutions. Its pre-wired 3-inch connection, robust construction, and integrated latch and protective cover speak volumes about its reliability, durability, and user-centric design. This adapter ensures that all vital electrical signals – from essential lighting and turn signals to critical electric brake control and auxiliary power – are transmitted flawlessly, safeguarding both the tow vehicle and the trailer. For those who demand seamless, safe, and dependable electrical connectivity in their towing operations, this Buyers Products adapter is the definitive, professional-grade solution.
