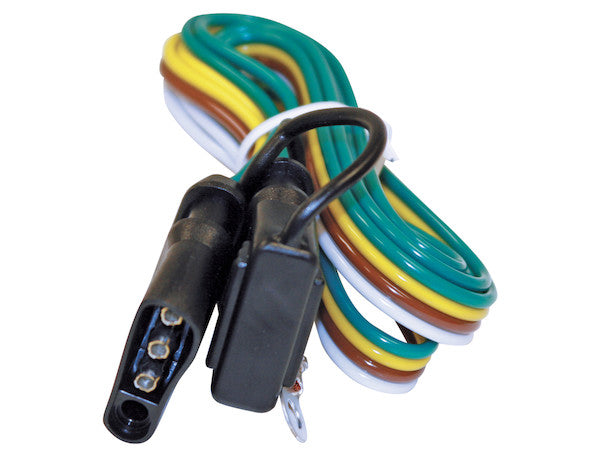

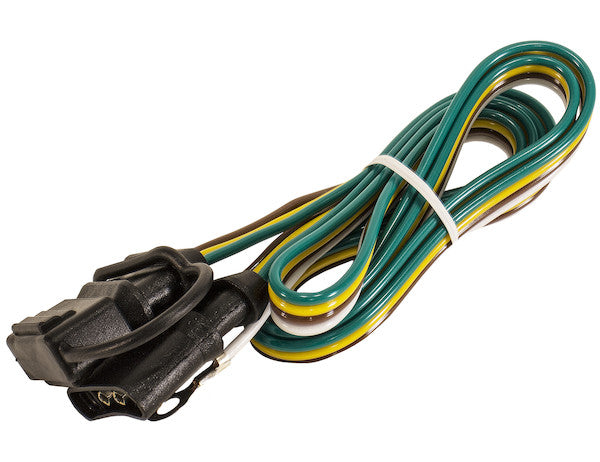

The Pre-wired Loop with a 4-Way Flat Connector from Buyers Products is a 48 in. cable complete with a 4 flat trailer connector. It's ideal for brake lights, tail lights, and turn signals. A dust cap is attached to protect the connectors from dirt and water. The color-coded cable splices to your truck's wiring.
Specifications
| End Way (Number of Pins) | 4 |
|---|---|
| Pin Style | 4 Flat |
| Start Way (Number of Pins) | 4 |
| Truck Side/Trailer Side | Truck Side |
The Buyers Products 48 Inch Prewired Loop with a 4-Way Flat Connector/Cap represents a meticulously engineered solution for establishing essential electrical connectivity between a towing vehicle and a trailer. This product is specifically designed to streamline the installation process of foundational lighting functions, including brake lights, tail lights, and turn signals, which are critical for safe road operation and compliance with Department of Transportation (DOT) regulations. By providing a pre-assembled, 48-inch length of color-coded cable terminated with a standard 4-way flat connector and incorporating an integral dust cap, this unit significantly reduces the complexity and potential for error typically associated with custom wiring harnesses.
Comprehensive Design and Component Analysis
The Prewired Loop: A Foundation of Efficiency
At its core, the 48-inch prewired loop is optimized for efficiency and reliability. The specified length of 48 inches (1.22 meters) is a deliberate engineering choice, providing sufficient reach for a multitude of common trailer applications without introducing excessive slack that could snag or abrade during transit. This length often accommodates the distance from a vehicle's frame-mounted wiring harness to the hitch receiver, ensuring a clean and secure installation. The "prewired" aspect denotes that the conductor wires are factory-integrated into a cohesive cable assembly, eliminating the need for individual wire routing and termination at the connector end. This factory assembly enhances structural integrity and provides a consistent level of quality not always achievable with field-assembled components.
The cable itself is constructed from multi-stranded copper conductors, typically ranging from 16 to 14 AWG (American Wire Gauge), which is appropriate for the current draw of standard incandescent or LED trailer lighting systems within a 12V DC automotive electrical environment. Multi-stranded conductors offer superior flexibility and resistance to fatigue from vibration and repeated bending, crucial characteristics for automotive applications where dynamic stresses are common. Each conductor is encased in a robust thermoplastic insulation, commonly PVC (polyvinyl chloride), which provides excellent dielectric strength, abrasion resistance, and protection against chemical exposure, including oils, greases, and road salts. The outer jacket of the cable assembly further contributes to its durability, offering an additional layer of mechanical protection and UV resistance to prevent degradation from solar radiation.
The 4-Way Flat Connector: Industry Standard for Basic Connectivity
The integrated 4-way flat connector is an industry-standard interface for basic trailer lighting. Its design is characterized by four distinct electrical contacts, each serving a specific function:
- Pin 1 (White Wire): Ground. This connection provides the necessary return path for the electrical current, completing the circuit for all connected lights. A robust ground connection is paramount for the proper functioning of the entire lighting system.
- Pin 2 (Brown Wire): Tail Lights/Running Lights. This circuit powers the rear marker lights, license plate lights, and side marker lights on the trailer, illuminating them whenever the towing vehicle's headlights or parking lights are active.
- Pin 3 (Yellow Wire): Left Turn Signal/Brake Light. This circuit activates the left turn signal and the left brake light on the trailer, synchronizing with the towing vehicle's respective signals.
- Pin 4 (Green Wire): Right Turn Signal/Brake Light. This circuit activates the right turn signal and the right brake light on the trailer, synchronizing with the towing vehicle's respective signals.
The connector body is typically molded from high-impact, weather-resistant thermoplastic or rubberized material, ensuring mechanical resilience and protection against environmental ingress. The internal contacts are precision-stamped from corrosion-resistant conductive materials such as brass or copper alloys, which are then often tin-plated to enhance conductivity and prevent oxidation. These materials ensure consistent electrical contact and minimize voltage drop across the connection, critical for maintaining optimal light intensity and operational reliability. The friction-fit design of the male (truck side) and female (trailer side) connectors provides a secure electrical and mechanical connection, resisting accidental disconnection during towing.
Integrated Dust Cap: Proactive Environmental Protection
A crucial feature for long-term reliability is the attached dust cap. This component, typically fabricated from flexible rubber or PVC, is designed to physically cover the electrical contacts of the 4-way flat connector when it is not in use. Its primary function is to act as a barrier against a wide array of environmental contaminants, including:
- Dirt and Dust: Microscopic particles can accumulate on contact surfaces, leading to increased electrical resistance or complete circuit interruption.
- Moisture: Water ingress, especially from rain, road spray, or even high humidity, can lead to corrosion of the metal contacts.
- Road Salts and Chemicals: Particularly in winter conditions, road salts are highly corrosive to unprotected metal, rapidly degrading electrical connections.
- Debris: Larger debris, such as small rocks or insects, can physically damage contacts or interfere with proper mating.
By protecting the contacts from these elements, the dust cap significantly extends the operational lifespan of the connector, maintains optimal electrical conductivity, and reduces the frequency of maintenance and troubleshooting related to intermittent connections or lighting failures. The tethered design of the cap ensures it remains with the connector, preventing loss and encouraging its consistent use.
Electrical and Material Engineering Principles
Wire Gauge and Current Capacity
The selection of appropriate wire gauge is fundamental to the performance and safety of any electrical system. For the 48-inch prewired loop, the conductors are dimensioned to safely carry the specified current for brake, tail, and turn signal lights without excessive voltage drop or overheating. For typical 12V DC trailer lighting, 16 AWG (approximately 1.3 mm² cross-sectional area) is often sufficient for individual light circuits, while the common brown (tail light) wire might be slightly heavier (e.g., 14 AWG) if it powers multiple marker lights. The 48-inch length is relatively short, minimizing voltage drop, but the cumulative effect of multiple lights on a single circuit (e.g., tail lights) dictates the need for conductors with adequate current-carrying capacity. Buyers Products ensures that the chosen wire gauges meet or exceed industry standards for the intended applications.
Conductor Material and Insulation Technology
The use of stranded copper for the conductors provides superior mechanical properties over solid wire in dynamic environments. Stranded wire is inherently more flexible, making installation easier and reducing the risk of conductor breakage due to vibration or repeated bending cycles commonly experienced by a trailer harness. Copper's excellent electrical conductivity minimizes resistance and heat generation. The insulation material, typically a high-grade PVC or similar thermoplastic, is chosen for its balance of electrical, thermal, and mechanical properties. It must withstand temperature extremes (from sub-zero winter temperatures to hot engine compartment conditions), resist abrasion from rubbing against vehicle components, and maintain its dielectric strength to prevent short circuits even when exposed to moisture or minor physical damage.
Color Coding and SAE Standards
Adherence to standardized color coding is a critical aspect of efficient and safe electrical wiring. The industry-standard color scheme for 4-way flat connectors (White-Ground, Brown-Tail/Running, Yellow-Left Turn/Brake, Green-Right Turn/Brake) is widely recognized and adopted. This standardization, often referenced in SAE (Society of Automotive Engineers) specifications like SAE J1128 for low-tension primary cable, ensures that installers can correctly identify and splice each wire to its corresponding circuit on the towing vehicle. This prevents miswiring, which could lead to malfunctioning lights, electrical shorts, or even safety hazards. For the Buyers Products prewired loop, the color-coded cables facilitate straightforward integration with existing truck-side wiring harnesses, whether through direct splicing or utilizing appropriate connectors.
Installation, Compatibility, and Application
Seamless Integration with Truck Wiring
The "truck side" designation of this prewired loop indicates its role in connecting to the towing vehicle's electrical system. Installation typically involves splicing the color-coded wires of the 48-inch loop to the corresponding wires of the truck's factory or aftermarket wiring harness. Proper splicing techniques are paramount for ensuring a durable, corrosion-resistant, and electrically sound connection. Recommended methods include:
- Crimp Connectors: Utilizing high-quality butt connectors (e.g., heat shrink butt connectors for enhanced weather resistance) and a proper crimping tool ensures a secure mechanical and electrical bond.
- Soldering: For the most robust connection, wires can be soldered and then insulated with heat shrink tubing to prevent corrosion and short circuits.
- Quick-Splice Connectors: While convenient, these should be used with caution in high-moisture or high-vibration environments, as they may not offer the same long-term reliability as crimped or soldered connections.
Regardless of the method, proper sealing against moisture and abrasion is essential for the longevity of the spliced connections. The prewired nature of the Buyers Products loop significantly reduces the installation time, as only the splicing to the truck's main harness is required, rather than individual wire runs and connector termination.
Broad Compatibility
The universal adoption of the 4-way flat connector makes this prewired loop compatible with a vast array of trailers that require basic lighting functions. These commonly include:
- Utility Trailers: Small to medium-sized trailers used for hauling landscaping equipment, construction materials, or general cargo.
- Boat Trailers: Although often exposed to harsh marine environments, many smaller boat trailers utilize 4-way flat connections for their lighting, necessitating the corrosion protection offered by the dust cap.
- Small Recreational Vehicle (RV) Trailers: Pop-up campers and smaller travel trailers often employ this simple wiring standard.
- Snowmobile/ATV Trailers: Trailers designed for recreational vehicle transport.
The "truck side" configuration means this product is installed on the towing vehicle, acting as the interface to which any 4-way flat trailer connector can be plugged in.
Maintenance and Longevity
While the Buyers Products 48 Inch Prewired Loop is engineered for durability, proper maintenance practices can further extend its operational life. Regular inspection of the connector, cable, and dust cap is recommended, particularly after prolonged exposure to harsh weather or off-road conditions. Key maintenance considerations include:
- Visual Inspection: Check for any signs of physical damage to the cable insulation, connector housing, or dust cap, such as cuts, abrasions, cracks, or signs of rodent damage. Inspect the metal contacts for corrosion, bending, or discoloration.
- Cleaning: Periodically clean the electrical contacts using a non-residue electrical contact cleaner to remove accumulated dirt, grease, or oxidation.
- Dielectric Grease Application: Applying a thin layer of dielectric grease (silicone-based, non-conductive grease) to the electrical contacts of the connector can further enhance protection against moisture and corrosion, improving conductivity and ease of connection/disconnection.
- Dust Cap Utilization: Always ensure the dust cap is properly seated over the connector when it is not in use to maximize protection against environmental elements.
Adhering to these simple maintenance routines will ensure consistent and reliable electrical performance over the product's lifespan.
Safety and Regulatory Compliance
The proper functioning of trailer lighting systems is not merely a convenience; it is a critical safety feature mandated by various regulatory bodies. Brake lights, tail lights, and turn signals communicate the towing vehicle's intentions to other road users, significantly reducing the risk of accidents. The Buyers Products prewired loop facilitates compliance with federal and local transportation regulations by ensuring a reliable electrical pathway for these essential safety lights. The use of standardized color coding, appropriate wire gauges, and robust materials contributes directly to a system that performs consistently and predictably.
The Buyers Products Advantage
Buyers Products is renowned for its commitment to manufacturing high-quality, durable components for the truck and trailer industry. This 48 Inch Prewired Loop with a 4-Way Flat Connector/Cap is a testament to that legacy. Every aspect of its design, from the choice of conductor material and insulation to the robust connector housing and protective dust cap, reflects an understanding of the demanding environments in which these products operate. By selecting a Buyers Products solution, users are investing in a product that combines engineering precision, material science expertise, and practical functionality, ultimately providing a reliable and long-lasting electrical connection for their towing needs.
Conclusion
The Buyers Products 48 Inch Prewired Loop with a 4-Way Flat Connector/Cap stands as an exemplary product in its category, offering a highly practical and technically sound solution for establishing critical trailer lighting connections. Its pre-assembled nature dramatically simplifies installation, while its robust construction, incorporating high-quality conductors, a durable 4-way flat connector, and an essential protective dust cap, guarantees sustained performance even under arduous operating conditions. Engineered to industry standards with meticulous attention to detail, this product ensures reliable electrical signal transmission for brake lights, tail lights, and turn signals, thus enhancing operational safety and regulatory compliance. For professionals and enthusiasts alike seeking a dependable, efficient, and long-lasting truck-side wiring solution, the Buyers Products 48 Inch Prewired Loop offers an unparalleled combination of quality, convenience, and performance, solidifying its position as a preferred component for trailer electrical systems.
