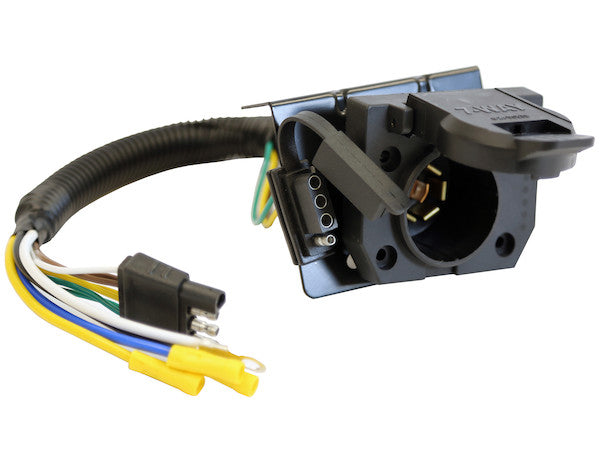

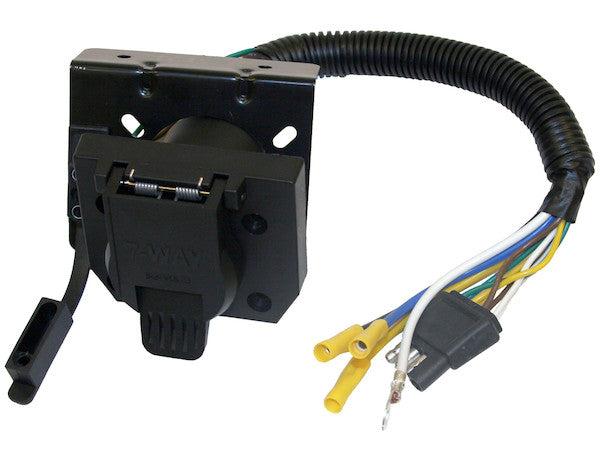

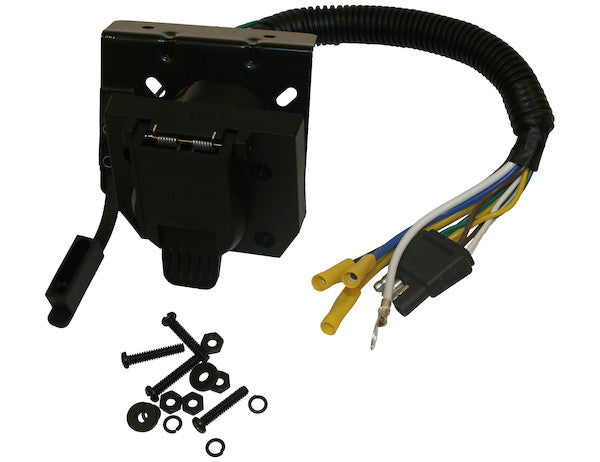

TC1474P - 7-Way Dual-Plug Trailer Connector with 10 Inch Prewired Harness

The 7-Way Dual-Plug Trailer Connector from Buyers Products allows you to connect a trailer with either a 7-way flat pin connector or a 4 flat connector without the need for an adapter. The connector features an OEM adapter at the end of a 10 in. wire for a simple installation on vehicles with a factory installed connector for trailer plugs.

Specifications

The Buyers Products 7-Way Dual-Plug Trailer Connector with 10 Inch Prewired Harness represents a significant advancement in trailer connectivity solutions, engineered to deliver unparalleled versatility, reliability, and ease of installation for a broad spectrum of towing applications. This meticulously designed truck-side connector eliminates the common operational friction associated with disparate trailer wiring standards by integrating compatibility for both the 7-way RV flat pin and the 4-flat connector styles into a single, robust interface. Its prewired nature, coupled with an OEM-style adapter, streamlines the integration process, ensuring a factory-grade electrical connection without the complexities of custom wiring or the inherent vulnerabilities of aftermarket splicing.

Advanced Connectivity: The Dual-Plug Paradigm

The fundamental innovation of this product lies in its dual-plug architecture. Modern towing scenarios frequently involve diverse trailer types, each potentially utilizing a different electrical interface. The 7-way RV flat pin connector is the de facto standard for trailers requiring more complex electrical functions, such as electric brakes, auxiliary 12V power for charging or interior lights, and reverse lights, in addition to the standard stop, turn, and tail lights. Conversely, the 4-flat connector is prevalent on simpler trailers, typically those without brakes or auxiliary power requirements, providing essential lighting functions: ground, running lights, left turn/brake, and right turn/brake.

The 7-way RV flat pin configuration typically adheres to the following pin assignments:

• Pin 1 (White Wire): Ground. Essential for completing all electrical circuits.
• Pin 2 (Blue Wire): Electric Trailer Brakes. Provides power to the trailer's electric brake system, controlled by the vehicle's brake controller.
• Pin 3 (Green Wire): Tail, Running, and Marker Lights. Powers all necessary illumination for visibility.
• Pin 4 (Red Wire): 12 Volt + (Battery Charge Line/Accessory). Supplies constant or switched 12V power to charge a trailer battery or operate auxiliary components.
• Pin 5 (Brown Wire): Right Turn/Brake Light. Activates the right-side turn signal and brake light on the trailer.
• Pin 6 (Yellow Wire): Left Turn/Brake Light. Activates the left-side turn signal and brake light on the trailer.
• Pin 7 (Black Wire): Backup/Reverse Lights or Auxiliary. Powers reverse lights on the trailer or can be utilized for another auxiliary function.

The integration of both the 7-way RV flat pin and the 4-flat connector into a singular housing is achieved through ingenious engineering that mechanically and electrically accommodates both plug types. The outer circumference of the receptacle is designed to accept the 7-way RV plug, while a centrally located, recessed cavity precisely fits the 4-flat connector. This design ensures robust physical retention and optimal electrical contact for both standards, preventing intermittent connections which are a common cause of signal failure and operational hazards. This eliminates the need for users to carry, store, and manually switch between multiple adapters, thereby reducing clutter, minimizing potential points of failure, and improving overall operational efficiency.

The Prewired Harness: Precision and Performance

The inclusion of a 10-inch prewired harness is a critical design feature, meticulously engineered to optimize installation and long-term performance. The length of 10 inches is judiciously chosen to provide sufficient reach for connection to the vehicle's factory wiring harness while minimizing excess cable, which can otherwise lead to messy installations, potential snag hazards, and increased susceptibility to environmental damage. Each conductor within this harness is specified for its intended electrical load, utilizing high-grade, multi-stranded copper wire. The multi-stranded construction is paramount in vehicular applications, offering superior flexibility and enhanced resistance to fatigue from vibration and dynamic stress, which are ubiquitous in towing environments. Solid core wires, while suitable for static installations, would be prone to breakage under such conditions.

The insulation material encasing each conductor is typically a durable thermoplastic polymer, such as PVC (Polyvinyl Chloride) or cross-linked polyethylene (XLPE). These materials are selected for their excellent dielectric strength, resistance to abrasion, oils, fuels, and common automotive chemicals, as well as their ability to withstand a broad range of operating temperatures, from extreme cold to high heat often encountered near exhaust systems or in engine compartments. The wire gauges are carefully matched to the respective current demands of each circuit – for instance, the 12V auxiliary power and electric brake lines will typically employ heavier gauge wires (e.g., 10 or 12 AWG) to minimize voltage drop over the relatively short run and safely handle higher amperages, while signal and running light circuits may utilize lighter gauges (e.g., 14 or 16 AWG). This precise wire gauge selection is critical for maintaining voltage integrity across all circuits, which directly impacts the brightness of lights and the responsiveness of electric brakes.

The factory-applied terminations of the harness wires into the connector are executed with precision, often employing ultrasonic welding or high-pressure crimping techniques. These methods create highly reliable, low-resistance electrical connections that are superior to hand-crimped or soldered connections in terms of consistency and durability. The integrity of these internal connections is fundamental to preventing intermittent faults, corrosion ingress, and eventual circuit failure, all of which are common issues in less robustly manufactured connectors.

Seamless OEM Integration

A standout feature of this Buyers Products connector is its integration with an OEM-style adapter at the terminus of the 10-inch harness. This design choice fundamentally transforms the installation process from a complex wiring task into a straightforward, plug-and-play operation. For vehicles equipped with a factory-installed connector for trailer plugs, this eliminates the need for cutting, stripping, and splicing wires, which are labor-intensive, introduce potential points of failure, and can void vehicle warranties if not executed flawlessly. The OEM adapter ensures compatibility with the vehicle's existing electrical architecture, guaranteeing proper signaling and power delivery as intended by the vehicle manufacturer.

The benefits of OEM integration extend beyond mere installation convenience. It significantly enhances the overall reliability and safety of the towing setup. Spliced connections, if not properly sealed and insulated, are highly susceptible to corrosion from moisture, road salt, and contaminants, leading to increased electrical resistance, intermittent failures, or complete circuit breakdown. The OEM adapter, by contrast, provides a sealed, factory-engineered connection that maintains the vehicle's original wiring integrity. This not only safeguards the electrical system but also ensures consistent performance of critical safety features such as turn signals, brake lights, and electric trailer brakes, thereby contributing to safer towing operations on public roadways.

Robust Construction and Material Science

The durability and long-term reliability of any trailer connector are directly attributable to its material selection and construction methodology. This Buyers Products dual-plug connector is fabricated from high-grade materials chosen for their resilience in demanding external environments.

• Housing: The outer housing is typically constructed from high-impact, UV-stabilized thermoplastics such as ABS (Acrylonitrile Butadiene Styrene) or reinforced nylon. These materials offer exceptional resistance to physical impact, abrasion, and the degradation caused by prolonged exposure to ultraviolet radiation from sunlight, preventing embrittlement and cracking. Their chemical resistance also protects against common automotive fluids, road salts, and cleaning agents.
• Electrical Contacts: The internal electrical contacts are engineered from highly conductive, corrosion-resistant alloys, commonly brass or phosphor bronze. These materials provide superior electrical conductivity and mechanical spring properties to maintain consistent contact pressure. To further enhance corrosion resistance and reduce contact resistance, these contacts are frequently plated with nickel or tin. The design incorporates robust spring-loaded mechanisms to ensure a secure, low-resistance connection with the mating trailer plug, even under conditions of vibration or thermal cycling.
• Sealing and Ingress Protection: Effective sealing is paramount for outdoor electrical connectors. The design integrates high-quality elastomeric gaskets and seals around cable entry points and between mating surfaces to achieve a high level of Ingress Protection (IP rating), typically IP67. This rating signifies that the connector is dust-tight and can withstand immersion in water up to 1 meter for 30 minutes, crucial for preventing moisture, dirt, and debris from compromising electrical integrity. Strategic drain holes may also be incorporated to prevent water pooling within the connector housing.
• Strain Relief: At the point where the prewired harness exits the connector housing, robust strain relief mechanisms are incorporated. These prevent excessive bending or pulling forces on the individual wires, thereby protecting the delicate internal connections and extending the operational life of the harness.

Operational Performance and Safety

The design and construction of this dual-plug connector directly contribute to enhanced operational performance and safety for towing applications. The consistent and reliable electrical connections ensure that all trailer functions – including stop, turn, tail, and marker lights – operate as intended, providing clear communication to other road users and complying with Department of Transportation (DOT) regulations. For trailers equipped with electric brakes, the robust 7-way connection facilitates precise and instantaneous activation of the braking system via the vehicle's brake controller, which is critical for safe deceleration and stopping, especially with heavy loads.

Furthermore, the dedicated 12V auxiliary power line provides a stable power source for charging trailer batteries, operating internal lights, refrigerators, or other accessories, ensuring that these systems remain functional during transit or when parked. The high-quality wiring and low-resistance contacts minimize voltage drop, ensuring that all electrical components on the trailer receive adequate power, preventing dim lights or inefficient operation of powered accessories.

Applications and Economic Benefits

The 7-Way Dual-Plug Trailer Connector is an indispensable component for a wide array of towing operations, offering significant economic and logistical advantages:

• Commercial Fleets: For businesses managing diverse fleets that utilize various trailer types, this connector eliminates the logistical headache and inventory costs associated with stocking multiple adapter types. It simplifies driver training and reduces downtime caused by incompatible connectors or lost adapters.
• Rental Agencies: Trailer rental companies can provide a more streamlined experience to customers, as the connector accommodates a broader range of tow vehicles and trailers, reducing friction at the point of rental.
• Construction and Utility Services: These sectors often employ a mix of utility trailers, equipment trailers, and specialty units, making the universal compatibility of this connector highly valuable for seamless transitions between tasks.
• Recreational Users: Individuals who tow different trailers, such as a boat trailer (often 4-flat) and a travel trailer (7-way RV), benefit immensely from the single, versatile connection point, eliminating the need for adapters and simplifying their towing setup.

Beyond convenience, the inherent durability and reliability of this product translate into reduced maintenance costs and extended service life. By mitigating common failure points associated with adapters and inferior wiring, users experience fewer electrical issues, less downtime for repairs, and a lower total cost of ownership over the lifespan of their towing equipment.

Installation and Maintenance Protocols

While the OEM adapter significantly simplifies installation, adherence to best practices ensures optimal long-term performance. The connector should be securely mounted to the vehicle's frame or bumper in a location that protects it from direct impact and excessive road debris, typically utilizing standard mounting brackets. The 10-inch harness should be routed away from sharp edges, extreme heat sources (e.g., exhaust components), and moving parts, secured with cable ties at appropriate intervals to prevent chafing or snagging. After connection, it is imperative to test all trailer functions – lights, brakes, and auxiliary power – to verify proper operation before towing.

For ongoing maintenance, periodic inspection of the connector for signs of wear, corrosion, or damage is recommended. Application of dielectric grease to the electrical contacts can further enhance protection against moisture and corrosion, particularly in harsh climates. Regular cleaning of the connector ensures optimal electrical contact and prevents accumulation of dirt or debris that could impede proper function.

Conclusion

The Buyers Products 7-Way Dual-Plug Trailer Connector with 10 Inch Prewired Harness is a meticulously engineered solution that addresses critical challenges in modern trailer connectivity. By seamlessly integrating compatibility for both 7-way RV flat pin and 4-flat connectors, providing a robust prewired harness, and facilitating OEM-level integration, it sets a new standard for versatility, reliability, and ease of use. Its superior material science, precise construction, and focus on electrical integrity ensure exceptional performance and safety in the most demanding towing environments. This product is an essential upgrade for any vehicle frequently engaged in towing diverse trailers, promising enhanced operational efficiency, reduced maintenance overhead, and a safer, more dependable towing experience.
