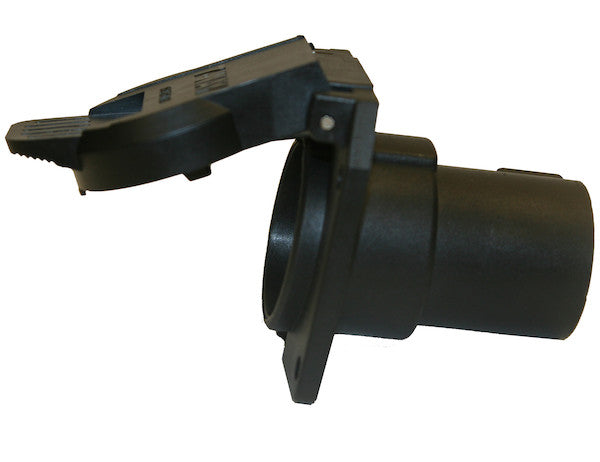

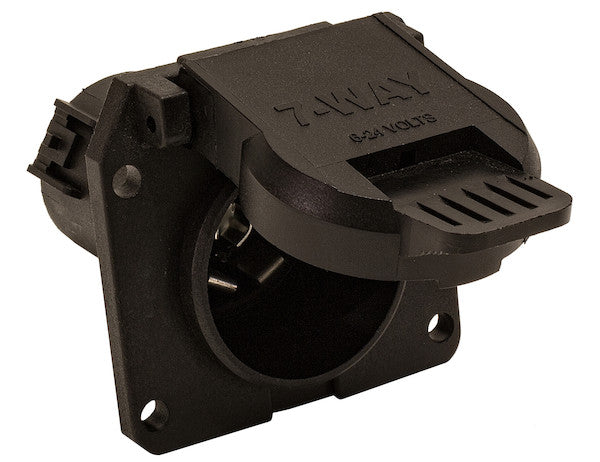

TC1770P - Bulk TC1770P 7-Way Black Plastic Flat Pin Truck Receptable

The 7-Way Flat Pin Trailer Connector from Buyers Products connects your trailer's lights, brakes, turn signals and more. It plugs easily into your OEM tow package wiring harness -- no extra splicing needed. It features weather-resistant plastic housing and a spring-loaded door that keeps dirt and moisture out of the connector when it's not in use. Order either the bolt-on version or the twist-lock version.

Specifications

The TC1770P 7-Way Black Plastic Flat Pin Truck Receptacle represents a pinnacle of towing electrical connectivity, engineered to deliver robust, reliable, and compliant performance for a vast array of towing applications. As a critical interface between the tow vehicle and its trailer, this truck-side receptacle is designed not only for the transmission of essential lighting and braking signals but also for auxiliary power, ensuring comprehensive and safe trailer operation. Its designation as a "Bulk" item underscores its suitability for fleet operators, manufacturers, and professional installers who prioritize consistent quality, standardized components, and efficient inventory management.

At the core of its functionality lies the 7-way "RV Flat" pin configuration, a widely adopted standard in North America for recreational vehicles, utility trailers, and various commercial towing setups. This specific pin arrangement facilitates a comprehensive range of electrical functions, crucial for modern trailer systems. The standard pin assignments typically include:

1. **White Wire (Ground):** Provides the necessary ground return for all circuits, essential for stable electrical operation. A robust ground connection is paramount for preventing electrical issues and ensuring consistent signal integrity.
2. **Brown Wire (Tail/Running Lights):** Powers the trailer's tail lights, marker lights, and license plate lights, crucial for nighttime visibility and legal compliance.
3. **Yellow Wire (Left Turn/Brake):** Activates the left turn signal and left brake light on the trailer, providing critical communication to following vehicles.
4. **Green Wire (Right Turn/Brake):** Activates the right turn signal and right brake light on the trailer, completing the directional and stopping signal array.
5. **Blue Wire (Electric Brakes):** Transmits the signal from the tow vehicle's brake controller to the trailer's electric brakes. This proportional signal is vital for synchronized braking and optimal stopping power, significantly enhancing towing safety.
6. **Red or Black Wire (12V Auxiliary Power/Battery Charge):** Provides constant 12-volt power from the tow vehicle's battery. This circuit is often used to charge the trailer's onboard battery, power interior lights, or operate other 12V accessories when parked or in transit.
7. **Purple or Black Wire (Reverse Lights/Auxiliary):** Typically used for trailer reverse lights, activating when the tow vehicle is shifted into reverse. In some configurations, it may serve other auxiliary functions.

This comprehensive wiring scheme ensures that all safety-critical and convenience functions are seamlessly integrated, meeting or exceeding regulatory requirements such as those set forth by SAE J2863 for 7-Way Trailer Connections and relevant Department of Transportation (DOT) standards for vehicle lighting and braking.

The engineering philosophy behind the TC1770P is centered on durability and resilience in harsh operating environments. The "Black Plastic" housing is not merely an aesthetic choice but a deliberate selection of advanced polymer compounds. Typically, this involves high-impact, UV-stabilized thermoplastic materials such as ABS (Acrylonitrile Butadiene Styrene) or a reinforced nylon blend. These materials are chosen for their exceptional resistance to:

• **Impact:** Withstanding mechanical shocks and abrasions common during coupling/uncoupling and road debris exposure.
• **Temperature Extremes:** Maintaining structural integrity and functional performance across wide temperature fluctuations, from sub-zero winters to scorching desert summers, without becoming brittle or deforming.
• **UV Radiation:** Prolonged exposure to sunlight without degradation, chalking, or discoloration, ensuring long-term aesthetic and structural stability.
• **Chemical Exposure:** Resistance to common automotive fluids such as gasoline, diesel, oil, road salts, de-icing agents, and cleaning solvents.
• **Corrosion:** Unlike metallic housings, plastic inherently resists rust and electrochemical corrosion, a significant advantage in environments exposed to moisture and salt spray.

The internal contacts are precision-engineered from high-conductivity brass or copper alloys, chosen for their superior electrical conductivity and mechanical strength. These pins are typically plated with a corrosion-resistant layer, often nickel or tin, to prevent oxidation and ensure stable, low-resistance electrical connections over extended periods. The terminal block design within the receptacle is optimized for secure wire retention and vibration resistance, preventing intermittency or disconnection under dynamic towing conditions. Compatibility with various wire gauges, typically ranging from 10 AWG to 16 AWG depending on the circuit, is ensured to accommodate different current loads and minimize voltage drop.

A standout feature for environmental protection is the weather-resistant design, particularly the inclusion of a spring-loaded door. This meticulously engineered mechanism serves as a primary barrier against external contaminants. When the trailer plug is disengaged, the robust spring ensures the door snaps shut, completely enclosing the internal pins. This action effectively prevents the ingress of:

• **Moisture:** Rain, snow, condensation, and road spray are excluded, preventing short circuits, corrosion of electrical contacts, and the degradation of insulation.
• **Dirt and Dust:** Fine particulate matter is kept out, preserving the cleanliness of the contact surfaces and preventing abrasive wear or signal interference.
• **Road Debris:** Larger foreign objects, pebbles, and grit are blocked, protecting the delicate pins from physical damage.

This proactive sealing mechanism, combined with potential internal gaskets and integrated strain relief features, contributes to a high degree of ingress protection, often meeting standards equivalent to IP67 when properly installed and mated with a compatible plug. Such a robust seal is critical for maintaining circuit integrity and longevity in demanding outdoor applications.

Installation ease is a paramount consideration for the TC1770P, particularly highlighted by its "no extra splicing needed" claim. This signifies a plug-and-play design engineered for direct compatibility with OEM (Original Equipment Manufacturer) tow package wiring harnesses. Modern trucks and SUVs equipped with factory towing packages feature dedicated wiring harnesses that terminate in a specific connector designed to interface with trailer receptacles. The TC1770P is designed to mate directly with these factory connectors, offering several critical advantages:

• **Simplified Installation:** Eliminates the need for cutting, stripping, or crimping individual wires, drastically reducing installation time and complexity.
• **Reduced Error Potential:** Minimizes the risk of incorrect wiring, loose connections, or compromised insulation that can lead to electrical failures or safety hazards.
• **Maintained Electrical Integrity:** Preserves the factory-engineered wiring harness, ensuring optimal current flow and signal transmission without introducing resistance or potential failure points from aftermarket splices.
• **Preservation of Vehicle Warranty:** Many vehicle manufacturers specify that modifications involving cutting factory wiring can void portions of the electrical system warranty. Using a plug-and-play component like the TC1770P helps mitigate this risk.
• **Professional Aesthetic:** Results in a cleaner, more organized installation that mirrors factory quality.

Furthermore, the product offers flexibility in mounting with options for both a "bolt-on version" and a "twist-lock version." The bolt-on variant provides a highly secure and rigid attachment to the vehicle's bumper or a dedicated mounting bracket, often utilizing through-bolts and locking nuts for maximum stability. This method is preferred in applications where extreme vibration or heavy-duty use is anticipated, ensuring the receptacle remains firmly affixed. The twist-lock version, conversely, offers an expedited installation and removal process, ideal for scenarios requiring periodic replacement or easier access for maintenance. It typically involves a mating component that secures the receptacle with a simple rotational motion, offering a balance of security and convenience.

The performance and reliability of the TC1770P are directly linked to its meticulous design and material selection. Efficient electrical conductivity is paramount for all trailer functions. The chosen materials and contact design ensure minimal voltage drop across the connection, guaranteeing that trailer lights operate at full brightness and electric brakes receive adequate power for effective modulation. This directly translates to enhanced safety by ensuring clear signaling and responsive braking.

Durability and longevity are inherent attributes, designed to withstand the rigors of continuous use and exposure to a broad spectrum of environmental stressors. Factors contributing to its extended service life include:

• **Vibration Resistance:** Secure internal connections and robust housing prevent degradation from constant road vibration.
• **Thermal Stability:** Materials maintain integrity and performance across extreme temperature ranges.
• **Corrosion Protection:** Plated contacts and weather-resistant housing prevent electrical failures due to rust or oxidation.
• **Impact Resistance:** Polymer housing protects internal components from physical damage.

Safety features are integrated at multiple levels. The secure connection mechanism, whether bolt-on or twist-lock, prevents accidental disconnection during towing. The robust housing and sealed design protect against inadvertent electrical shorts that could lead to system malfunctions or even fires. Adherence to industry standards, such as SAE J560 (for general requirements for electrical connections) and specifically J2863 (for 7-way flat pin connectors), underscores the product's commitment to interoperability and safety. These standards ensure that the receptacle will reliably mate with any compliant 7-way RV Flat trailer plug, fostering universal compatibility and reducing user frustration.

The TC1770P finds its ideal application across a broad spectrum of towing needs. For **commercial fleets**, especially those operating utility trailers, flatbeds, or cargo trailers, the "Bulk" availability, combined with the product's durability and plug-and-play installation, significantly reduces vehicle downtime and maintenance costs. Standardizing on a high-quality component like the TC1770P streamlines repairs and inventory. **RV enthusiasts** benefit from the reliable and secure connection for long-haul travel, ensuring all critical systems from brakes to auxiliary power function flawlessly. For **general utility trailer owners**, whether for landscaping, construction, or recreational hauling, the robust construction guarantees consistent performance in demanding conditions. **Professional installers and vehicle upfitters** appreciate the ease of integration with OEM tow packages, allowing for efficient and high-quality installations that meet customer expectations and regulatory requirements.

To ensure optimal performance and longevity, a few maintenance best practices are recommended. Regular visual inspection of the receptacle for any signs of physical damage, corrosion on the pins, or debris accumulation is advisable. Prior to connecting a trailer, a quick clean with a non-conductive brush or compressed air can remove any accumulated dirt. The application of a high-quality dielectric grease to the pins and internal contact areas periodically can further enhance weather protection, prevent corrosion, and ensure smooth mating and unmating of the plug. It is crucial to always use a compatible 7-way RV Flat style trailer plug to prevent damage to the receptacle pins or an insecure connection.

In conclusion, the TC1770P 7-Way Black Plastic Flat Pin Truck Receptacle is more than just a connector; it is a meticulously engineered component critical to the safety, reliability, and functionality of modern towing systems. Its superior material science, comprehensive electrical functionality, robust weather resistance, and user-friendly installation options make it an indispensable choice for both individual users and large-scale commercial operations. By offering a direct, no-splicing connection to OEM tow packages, it simplifies installation while maintaining the integrity of the vehicle's electrical system. This commitment to quality, durability, and compliance ensures that every tow is executed with maximum confidence and minimal operational concerns, providing enduring value and peace of mind to vehicle owners and fleet managers alike.
