Specifications
| End Way (Number of Pins) | 7 + 4 |
|---|---|
| For Use With | Ford?? F-250, F-350, F-450 (2020+) |
| Pin Style | RV Flat & OEM |
| Start Way (Number of Pins) | 7 + 4 |
| Truck Side/Trailer Side | Truck Side |

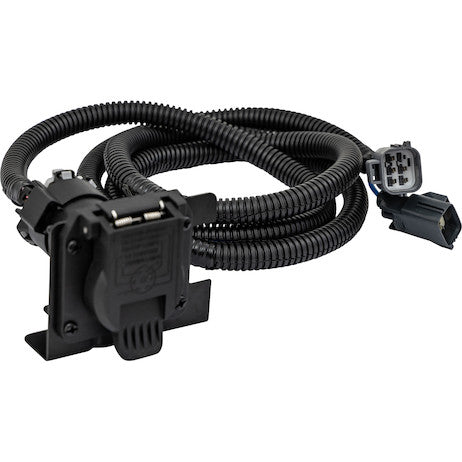

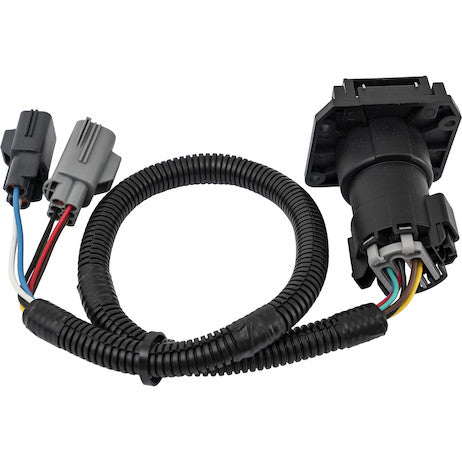

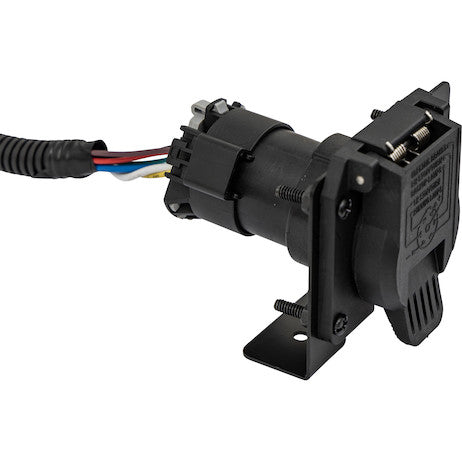

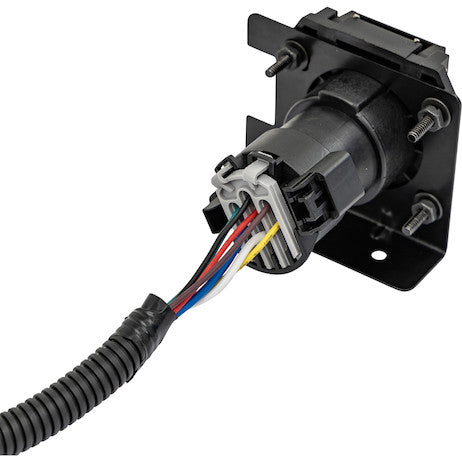

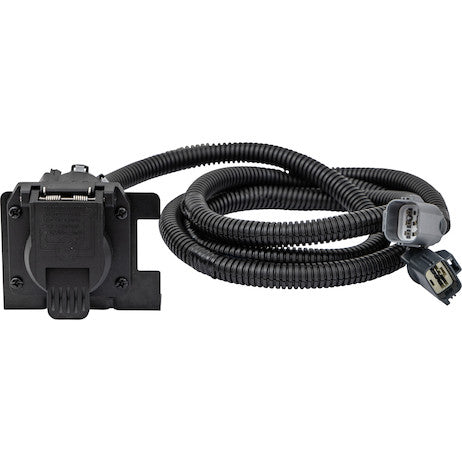

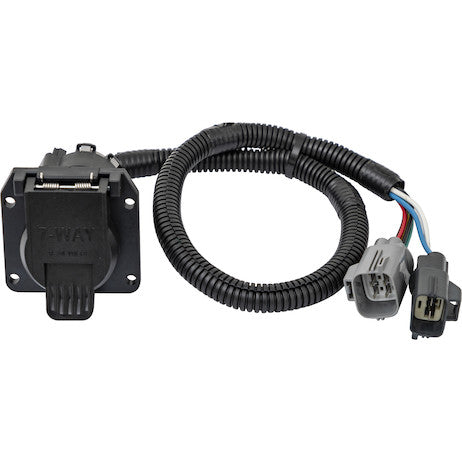

The 7-Way RV Blade Output Trailer Connector by Buyers Products represents an essential component in the robust electrical infrastructure required for modern towing applications. Engineered with precision and designed for specific vehicle integration, this connector ensures seamless and reliable electrical communication between your tow vehicle and trailer. Specifically tailored for Ford F-250, F-350, F-450 models from 2020 onwards, and the Ford E-450 from 2023+, it embodies a commitment to OEM-level fitment and uncompromised performance. The primary function of this truck-side connector is to provide a standardized 7-way RV blade socket, facilitating the transmission of critical signals and power required for safe and compliant trailer operation. This includes dedicated circuits for tail lights, brake lights, reverse lights, left and right turn signals, electric trailer brakes, and a crucial auxiliary power circuit.
The sophistication of modern towing demands more than just basic lighting. Larger trailers, particularly RVs, cargo trailers, and those carrying heavy equipment, require dedicated power for internal systems, auxiliary lighting, and, most importantly, integrated electric braking systems. The 7-way RV blade connector standard addresses these multifaceted needs by providing seven distinct electrical pathways, ensuring that all necessary functions are supported independently and reliably. Each pin within the connector serves a specific purpose, meticulously engineered to prevent cross-talk and ensure consistent signal integrity, even under the dynamic and often harsh conditions encountered during towing.
Understanding the 7-Way RV Blade Connector Standard
The 7-way RV blade connector has become the industry benchmark for heavy-duty towing applications due to its comprehensive electrical capabilities. Unlike simpler 4-way or 5-way connectors, which primarily handle basic lighting, the 7-way system provides the necessary infrastructure for advanced trailer features. Let’s delve into the specific functions of each terminal:
- Pin 1 (Yellow Wire - Center Pin): Auxiliary/Reverse Lights/Back-up Lights: This circuit typically provides power for trailer reverse lights, which are legally mandated in many jurisdictions for trailers exceeding a certain length or weight. Additionally, this circuit can be utilized for auxiliary functions that require power only when the vehicle is in reverse, or in some configurations, as a general auxiliary power source for low-draw applications on the trailer.
- Pin 2 (Blue Wire): Electric Trailer Brakes: This is arguably one of the most critical circuits for safety when towing large or heavy trailers. This dedicated pin provides a variable voltage signal from the tow vehicle’s brake controller to the trailer’s electric brakes, allowing for synchronized braking action. Proper functioning of this circuit is paramount for safe deceleration and stopping, preventing trailer sway and reducing wear on the tow vehicle’s braking system.
- Pin 3 (White Wire): Ground: The ground wire is fundamental to all electrical systems, providing the return path for current from all other circuits. A robust and reliable ground connection is essential for the proper operation of all trailer lights and electrical accessories. Poor grounding can lead to intermittent failures, dim lights, or complete loss of function, posing significant safety hazards.
- Pin 4 (Green Wire): Right Turn Signal/Right Brake Light: This circuit transmits the signal for the right turn indicator and right brake light on the trailer, mirroring the signals from the tow vehicle.
- Pin 5 (Red Wire): 12-Volt Auxiliary Power (Battery Charge/Accessory): This pin provides a continuous 12-volt power supply from the tow vehicle’s battery to the trailer. It is commonly used to charge the trailer’s onboard battery, power interior lights, refrigeration units, or other 12V accessories within the trailer, even when the tow vehicle’s engine is off (depending on vehicle wiring). This is indispensable for RVs and trailers with independent power requirements.
- Pin 6 (Brown Wire): Tail Lights/Running Lights: This circuit powers the tail lights, license plate lights, and side marker lights on the trailer. These lights are active whenever the tow vehicle's headlights or parking lights are on, ensuring visibility of the trailer from the rear and sides during nighttime driving or adverse weather conditions.
- Pin 7 (Black Wire): Left Turn Signal/Left Brake Light: Similar to Pin 4, this circuit conveys the signal for the left turn indicator and left brake light on the trailer, synchronized with the tow vehicle’s signals.
The standardized pin assignment ensures interoperability between different manufacturers' tow vehicles and trailers, a crucial aspect for a universal towing experience.
Precision Engineering and Robust Construction
The Buyers Products 7-Way RV Blade Output Trailer Connector is manufactured using advanced materials and processes to ensure maximum durability and longevity. The construction prioritizes resistance to the harsh environmental conditions inherent in towing:
- Housing Material: The connector housing is typically constructed from high-impact, UV-stabilized thermoplastic polymers. These materials offer superior resistance to cracking, fading, and degradation from prolonged exposure to sunlight, extreme temperatures, and common automotive chemicals such as road salt, oil, and grease. The robust housing protects the internal electrical components from physical damage and environmental ingress.
- Terminal Construction: The internal pins and blade terminals are crafted from high-grade, corrosion-resistant metals, most commonly brass or copper alloys. These materials are chosen for their excellent electrical conductivity and their ability to withstand oxidation and corrosion, which can severely impair electrical connections. The terminals are precision-machished to ensure a snug and secure fit within the mating trailer connector, minimizing resistance and preventing intermittent connections.
- Weather Sealing: Effective weather sealing is paramount for a reliable trailer connector. This product incorporates robust gaskets and seals around the wire entries and between mating surfaces to prevent the ingress of moisture, dirt, and debris. This meticulous sealing prevents corrosion of the terminals and wiring, which is a leading cause of electrical failures in towing systems.
- Cable Management and Strain Relief: The design includes integrated strain relief mechanisms where the wiring harness enters the connector body. This feature mitigates stress on the individual wire connections, preventing fatigue and breakage due to constant vibration and movement experienced during towing. The overall cable assembly is designed to withstand flexing and abrasion, ensuring signal integrity over the life of the product.
- Integrated Design: For the specified Ford F-Series and E-Series vehicles, these connectors are designed to integrate seamlessly with the existing OEM wiring harness. This plug-and-play capability eliminates the need for cutting, splicing, or complex wiring modifications, drastically simplifying installation and reducing the potential for wiring errors. The mating connectors are designed to lock securely, preventing accidental disconnections even under severe road conditions.
Vehicle-Specific Integration for Ford Super Duty and E-Series
The designation of this connector for Ford F-250, F-350, F-450 (2020+) and Ford E-450 (2023+) is a testament to its specialized engineering. Ford's Super Duty trucks (F-250, F-350, F-450) are renowned for their prodigious towing and hauling capacities, often paired with large RVs, heavy equipment trailers, or multi-axle cargo trailers. These vehicles feature sophisticated electrical systems designed to support extensive trailer demands. Similarly, the E-450 chassis cab is a workhorse for commercial applications, including ambulances, shuttle buses, and large delivery vehicles, all of which often tow additional equipment or utilize specialized trailer systems.
The significance of a vehicle-specific connector cannot be overstated:
- OEM Compatibility: The Buyers Products connector features OEM-style terminals and housing designs that mate perfectly with the factory-installed wiring harness on the specified Ford models. This ensures a true plug-and-play installation, maintaining the integrity of the vehicle's original electrical system. It avoids the performance degradation and potential warranty issues associated with aftermarket splices and universal connectors.
- Reliable Power Delivery: Ford Super Duty and E-Series vehicles are equipped with robust alternators and battery systems capable of delivering substantial auxiliary power to trailers. This connector is engineered to handle the current requirements for charging trailer batteries and powering accessories without excessive voltage drop or overheating, critical for long-duration trips.
- Advanced Trailer Features: Modern Ford trucks integrate advanced towing technologies such as trailer brake controllers, trailer sway control, and camera systems. A dedicated 7-way connector is essential for these systems to communicate effectively with the trailer, ensuring optimal performance and safety features are fully functional.
- Durability in Demanding Environments: Ford Super Duty trucks operate in diverse and often challenging environments, from construction sites to long-haul towing. The connector's robust construction ensures it can withstand vibrations, extreme temperatures, and exposure to road debris without compromising electrical integrity.
Electrical System Considerations and Safety
Proper electrical connectivity for towing extends beyond merely plugging in a connector; it involves a holistic understanding of the electrical system. The Buyers Products 7-Way RV Blade Output Trailer Connector serves as a critical interface that bridges the electrical systems of the tow vehicle and the trailer. Key electrical considerations include:
- Amperage and Wire Gauge: Each circuit within the 7-way connector is designed to carry a specific current load. The wire gauge of the vehicle's harness and the connector's terminals are matched to handle these loads without excessive resistance or heat generation. For instance, the 12V auxiliary power circuit often handles higher continuous current for battery charging, necessitating robust terminals and adequate wire sizing.
- Voltage Drop: Long wire runs, especially with inadequate gauge or poor connections, can lead to voltage drop. This diminishes the power reaching the trailer's components, resulting in dim lights, slow battery charging, or ineffective electric brakes. This connector is designed with low-resistance terminals to minimize voltage drop at the crucial connection point.
- Circuit Protection: While the connector itself does not provide circuit protection, it is designed to be compatible with the vehicle’s existing fuse and circuit breaker system. A properly functioning electrical system, inclusive of this connector, ensures that in the event of an overload or short circuit, the protective devices will trip, preventing damage to the wiring or vehicle electronics.
- Grounding Integrity: As previously mentioned, the ground circuit (Pin 3) is fundamental. A clean, secure ground connection is vital for the proper function of all circuits. The design of this connector ensures a strong ground path, critical for the reliable operation of all trailer lights and electric brakes, which are particularly sensitive to grounding issues.
- Compliance and Regulations: Trailer lighting and braking systems are subject to federal and state regulations. A high-quality, reliable connector like this helps ensure compliance by providing stable and consistent signal transmission for all legally required lighting and braking functions.
Installation and Maintenance
The plug-and-play nature of the Buyers Products 7-Way RV Blade Output Trailer Connector for the specified Ford models significantly simplifies installation. Typically, the process involves:
- Locating the OEM Harness: The tow vehicle will have a factory-installed trailer wiring harness, usually located near the rear bumper or hitch receiver, often secured with a cap.
- Connecting the Connector: The Buyers Products connector is designed to directly plug into this OEM harness, requiring no cutting or splicing of wires. Secure the locking tabs or fasteners to ensure a firm connection.
- Mounting: The connector housing can then be securely mounted to the vehicle's bumper, hitch, or a dedicated bracket using appropriate hardware (often included or sold separately).
- Testing: After installation, it is crucial to test all trailer functions (tail lights, brake lights, turn signals, reverse lights, and electric brakes) using a trailer test light or by connecting a trailer. Verify that all signals are transmitted correctly and consistently.
Maintenance for this connector is minimal but important for long-term reliability:
- Regular Inspection: Periodically inspect the connector for any signs of physical damage, corrosion, or wear. Check the rubber seals for integrity.
- Cleaning: Keep the terminals clean and free from dirt, dust, and moisture. A dielectric grease can be applied to the terminals to prevent corrosion and improve conductivity, especially in harsh environments.
- Secure Mounting: Ensure the connector remains securely mounted to prevent excessive movement and strain on the wiring.
The Buyers Products Advantage
Choosing the Buyers Products 7-Way RV Blade Output Trailer Connector means investing in a product from a company with a long-standing reputation for quality and reliability in the truck and trailer equipment industry. Buyers Products specializes in designing and manufacturing robust solutions for commercial and heavy-duty applications, where performance and durability are paramount. Their commitment to engineering excellence is reflected in:
- Application-Specific Design: Unlike generic connectors, this product is meticulously engineered for specific Ford models, ensuring optimal fit, function, and longevity. This attention to detail significantly enhances user experience and reduces the likelihood of compatibility issues.
- Quality Assurance: Buyers Products adheres to stringent quality control standards throughout its manufacturing processes. This includes rigorous testing of materials and finished products to ensure they meet or exceed industry specifications for electrical performance, environmental resistance, and mechanical durability.
- Reliability in Demanding Conditions: Products from Buyers are built to withstand the rigors of commercial and heavy-duty use. This connector is designed to perform reliably under the constant vibration, temperature fluctuations, and exposure to elements that are common in towing operations.
- Safety Enhancement: By providing a stable and secure electrical connection, this connector directly contributes to towing safety. Reliable lighting and consistent trailer brake activation are critical for preventing accidents and ensuring legal compliance on the road.
Conclusion
The 7-Way RV Blade Output Trailer Connector from Buyers Products is an indispensable component for Ford F-250, F-350, F-450 (2020+) and E-450 (2023+) owners engaged in towing. It transcends the basic function of merely connecting wires; it is a precisely engineered interface that enables the safe, efficient, and compliant operation of modern trailers. Its robust construction, meticulous design for vehicle-specific integration, and adherence to industry standards ensure unparalleled reliability and performance. By providing dedicated pathways for all critical signals—from essential lighting and turn indications to the crucial electric brake control and auxiliary power—this connector facilitates a superior towing experience. It empowers users with the confidence that their trailer's electrical systems are functioning optimally, thereby enhancing both safety and operational efficiency on every journey. For professionals and enthusiasts alike who demand uncompromising quality and seamless integration, the Buyers Products 7-Way RV Blade Output Trailer Connector stands as the definitive choice.
