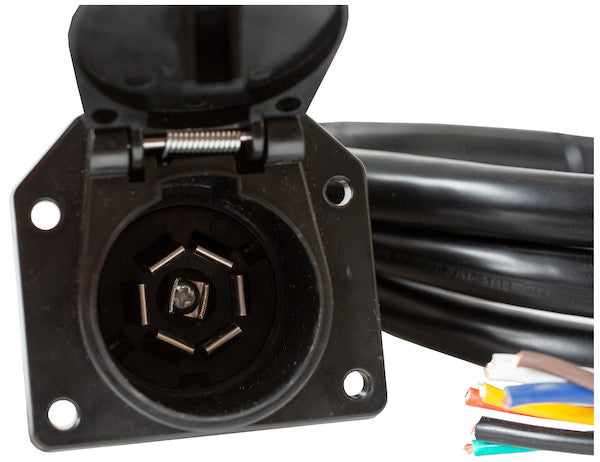

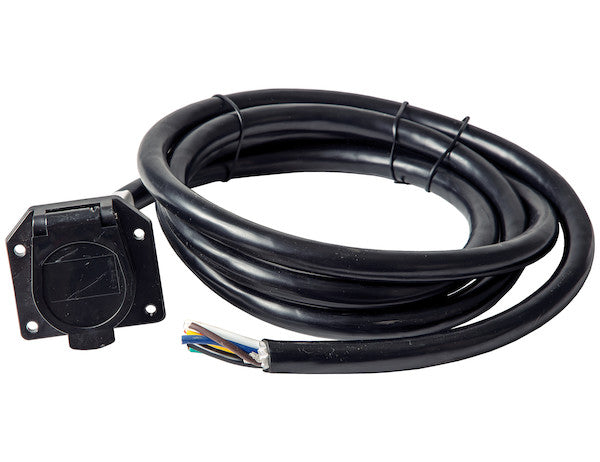

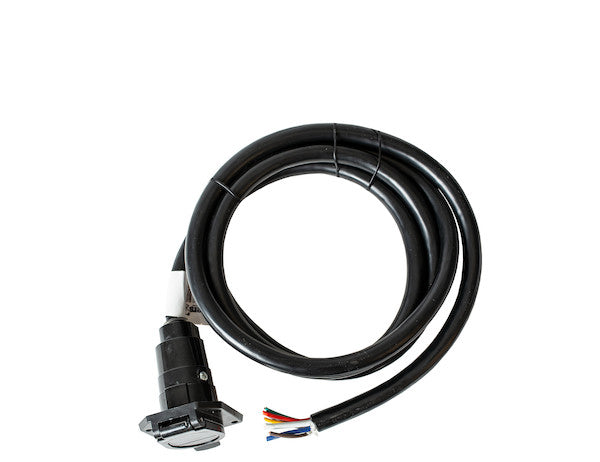

The 7-Way Flat Pin Trailer Connector with 96 in. Cable from Buyers Products features a generous length of prewired, color-coded cable for your trailer. You can wire it quickly and easily for the trailer electric functions you need. The cable includes a weather-resistant, plastic 7-way flat-pin connector for truck or trailer-side use.
Specifications
| End Way (Number of Pins) | 7 |
|---|---|
| Pin Style | RV Flat |
| Start Way (Number of Pins) | 7 |
| Truck Side/Trailer Side | Truck Side |
The Buyers Products 7-Way Truck Side Flat Pin Trailer Connector with its integrated 96-inch cable represents a robust and highly functional solution for establishing reliable electrical connectivity between a tow vehicle and a trailer. Engineered to meet the demanding requirements of modern towing, this connector assembly is designed to provide seamless transmission of power and critical signals, encompassing lighting, braking, and auxiliary functions. Its "truck side" designation specifies that this unit is intended for permanent installation on the tow vehicle, serving as the standardized receptacle into which a trailer's corresponding 7-way plug will connect. The "flat pin" nomenclature refers to the RV Blade style contacts, widely recognized for their secure connection and high current carrying capacity, distinguishing them from traditional round pin designs.
Advanced Engineering for Superior Connectivity
This 7-way connector is not merely a junction point; it is a meticulously engineered system designed for optimal performance and longevity. The core function of a 7-way connector is to expand upon the basic lighting functions offered by simpler 4-way or 5-way systems, incorporating vital capabilities such as electric trailer brakes, auxiliary 12V power, and reverse lights. Each of the seven flat pins is dedicated to a specific electrical function, ensuring comprehensive control and safety features essential for towing a wide array of trailers, from large recreational vehicles (RVs) and fifth-wheel setups to utility trailers equipped with electric brakes or auxiliary power needs.
The 7-Way RV Blade Standard Pin Configuration:
Understanding the standard pin configuration is crucial for proper installation and troubleshooting. Adherence to industry standards, such as SAE J2863 (superseding J560 for RV Blade type), ensures interoperability between different manufacturers' equipment. The typical color-coded functions for the 7-way flat pin connector are:
- White Wire: Ground – Provides the essential return path for all electrical circuits, critical for system stability.
- Blue Wire: Electric Brake – Carries the signal from the truck's brake controller to the trailer's electric brakes.
- Green Wire: Tail/Running Lights – Powers the trailer's taillights, marker lights, and license plate lights, active when the truck's lights are on.
- Red Wire: Left Turn/Stop Light – Activates the left turn signal and brake light on the trailer's left side.
- Brown Wire: Right Turn/Stop Light – Activates the right turn signal and brake light on the trailer's right side.
- Black Wire: 12V Auxiliary Power – Provides constant 12-volt power from the truck's battery, often used for charging trailer batteries, powering interior lights, or operating breakaway switch systems.
- Yellow Wire: Reverse Lights/Auxiliary – Typically used for trailer backup lights, but can be configured for other auxiliary functions as needed.
The pre-wired, color-coded 96-inch cable significantly simplifies the installation process by eliminating the need for complex, time-consuming individual wire splicing. This generous eight-foot length allows for flexible routing from the truck's existing wiring harness to the chosen mounting location for the connector, accommodating various truck chassis configurations and bumper designs.
Robust Design and Material Science
The construction of this 7-way connector prioritizes durability and reliability in harsh towing environments. The weather-resistant plastic housing is a key feature, meticulously selected for its ability to withstand constant exposure to the elements. Typically, these housings are molded from high-impact ABS (Acrylonitrile Butadiene Styrene) or reinforced nylon, materials renowned for their excellent mechanical strength, rigidity, and resistance to common environmental stressors. This includes resistance to:
- UV Radiation: Prevents material degradation, fading, and brittleness caused by prolonged sunlight exposure.
- Chemical Exposure: Protects against damage from road salts, oils, greases, automotive fluids, and cleaning agents.
- Temperature Extremes: Maintains structural integrity and performance across a broad operational temperature range, from freezing conditions to intense summer heat.
- Impact and Abrasion: Guards against physical damage from road debris, accidental impacts, and routine wear and tear.
Beyond the external housing, the internal components are equally critical. The flat pins themselves are typically constructed from highly conductive alloys such as brass or phosphor bronze, which are then often plated with tin or nickel. This plating serves multiple purposes: enhancing corrosion resistance, minimizing electrical resistance for optimal current flow, and increasing the lifespan of the contacts by reducing wear during repeated connections and disconnections. The flat blade design provides a larger contact surface area compared to round pins, contributing to lower electrical resistance, reduced heat generation, and a more stable connection, particularly under heavy electrical loads such as those generated by electric trailer brakes.
Integrated Cable Assembly for Seamless Installation
The 96-inch (8-foot) pre-wired cable is an integral part of this product's value proposition. This pre-assembled harness ensures that each conductor is of the correct gauge and type for its intended function, adhering to SAE standards for automotive wiring. For instance, the 12V auxiliary and ground wires often utilize a heavier gauge (e.g., 10-gauge) to handle higher current loads and minimize voltage drop over the length of the cable, which is critical for charging trailer batteries or powering accessories. Wires for lighting and signal functions (e.g., 14-gauge) are sized appropriately for their lower current demands.
Key Aspects of the Cable Assembly:
- High-Quality Conductors: Utilizes multi-stranded copper wire for superior flexibility and resistance to fatigue from vibration and bending.
- Insulation: Each individual wire within the cable is insulated with durable PVC (Polyvinyl Chloride) or XLPE (Cross-linked Polyethylene), providing excellent dielectric strength, abrasion resistance, and protection against moisture and chemical ingress.
- Outer Jacket: The entire bundle of seven wires is encased in a robust outer jacket, often made from flexible yet tough PVC or rubberized material. This jacket acts as an additional layer of protection against physical damage, moisture, and environmental contaminants, while also ensuring the wires remain neatly organized and protected as a single unit.
- Color-Coding: Strict adherence to the industry-standard color-coding scheme, as outlined previously, is paramount. This universal coding vastly simplifies the wiring process for installers and makes future diagnostics or modifications straightforward, reducing the likelihood of wiring errors that could lead to electrical malfunctions or safety hazards.
The pre-terminated nature of the cable at the connector end, combined with the bare wire leads at the other, allows for direct integration into the truck's existing electrical system. Installers can easily connect these leads to the appropriate circuits using crimp connectors, soldering, or by mating with a factory-installed wiring harness, depending on the specific vehicle and application. This design minimizes the complexity and labor required for installation, ensuring a professional and reliable connection.
Optimized for Truck Side Applications
As a "Truck Side" connector, this product is specifically engineered to be mounted on the tow vehicle, typically near the trailer hitch receiver. Its primary role is to provide a readily accessible and standardized interface for any trailer equipped with a corresponding 7-way RV blade style plug. This makes it an indispensable component for trucks, SUVs, and commercial vehicles frequently engaged in towing. The design considers the environmental stresses unique to this mounting location, including road spray, debris, and constant exposure to the elements.
Installation Considerations and Best Practices:
Proper installation of the 7-Way Truck Side Flat Pin Trailer Connector is critical for both functionality and safety. This involves:
- Secure Mounting: The connector housing often includes provisions for mounting to a bracket or directly to the vehicle's frame or bumper. A secure mount prevents the connector from rattling loose, sustaining damage, or interfering with trailer hookup. Buyers Products often provides or recommends compatible mounting brackets for a professional finish.
- Cable Routing: The 96-inch cable should be routed carefully along the vehicle's frame, away from moving parts, sharp edges, and excessive heat sources (e.g., exhaust). Using cable ties or mounting clips at regular intervals ensures the cable is tidy, secure, and protected from chafing or snagging.
- Waterproofing Connections: While the connector housing itself is weather-resistant, any splices or connections made at the bare wire end should also be properly sealed to prevent moisture ingress. Heat-shrink tubing with internal sealant, dielectric grease, and weatherproof crimp connectors are recommended to ensure long-term reliability.
- Testing: After installation, thorough testing of all seven functions (ground, brakes, tail lights, turn signals, 12V aux, reverse lights) using a trailer wiring tester or an actual trailer is essential to confirm correct wiring and functionality before towing.
The ease of wiring afforded by the pre-colored, pre-cut cable, combined with the robust nature of the connector, significantly reduces installation time and potential for errors, making it a preferred choice for both professional installers and DIY enthusiasts alike.
Reliability, Safety, and Compliance
The electrical connection between a tow vehicle and a trailer is paramount for safe towing operations. The Buyers Products 7-Way Flat Pin Trailer Connector plays a critical role in ensuring this safety by providing a stable and reliable conduit for essential signals. The proper functioning of trailer brake lights, turn signals, and running lights is a legal requirement and crucial for communicating the driver's intentions to other road users. Furthermore, a properly functioning electric brake circuit is vital for safe deceleration and stopping, especially with heavier trailers.
Safety and Performance Features:
- Stable Electrical Contacts: The flat blade design ensures consistent and low-resistance electrical contact, minimizing the risk of intermittent signals or power fluctuations that could lead to flickering lights or unreliable brake performance.
- Secure Latching Mechanism: While not explicitly stated in the brief description, most high-quality 7-way RV blade connectors incorporate a spring-loaded lid or a latching mechanism to securely hold the trailer's plug in place, preventing accidental disconnection due to vibration or road bumps. This also helps to seal the contacts from moisture and debris when not in use.
- Circuit Protection: While the connector itself does not provide circuit protection, its robust design ensures that if the vehicle's circuits are properly fused, the connector can handle the intended current loads without overheating or degradation, supporting the overall integrity of the electrical system.
- Adherence to Standards: Buyers Products' commitment to quality implies that this connector meets or exceeds relevant industry standards for automotive electrical components, ensuring compliance with safety regulations and interoperability.
Longevity and Maintenance
Designed for prolonged service life, this connector assembly requires minimal maintenance, yet periodic inspection can further extend its durability. Key maintenance practices include:
- Regular Cleaning: Keeping the contact pins and inside of the connector free from dirt, dust, and corrosion is important. A non-abrasive electrical contact cleaner can be used.
- Dielectric Grease: Applying a small amount of dielectric grease to the contact pins can further enhance corrosion resistance and ensure smooth plug insertion/removal, especially in corrosive environments.
- Cable Inspection: Periodically check the cable for any signs of fraying, cracking in the insulation, or physical damage. Address any issues promptly to prevent electrical shorts or failures.
- Mounting Integrity: Ensure the connector remains securely mounted to the vehicle and that all wiring connections are tight and corrosion-free.
By investing in a high-quality, pre-wired solution like the Buyers Products 7-Way Truck Side Flat Pin Trailer Connector, users benefit from reduced installation complexity, enhanced safety features, and long-term reliability. This product stands as a testament to thoughtful engineering, providing a dependable foundation for all your towing electrical needs, ensuring that power and signals are transmitted efficiently and securely between your tow vehicle and trailer, trip after trip.
