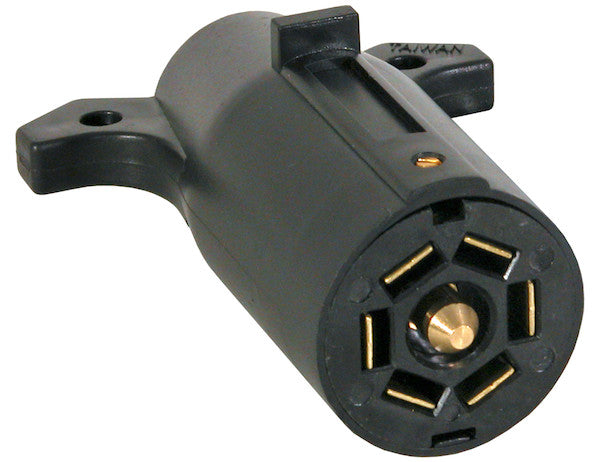

TC2007P - 7-Way Plastic Trailer Connector - Trailer Side

Advanced Technical Overview: The 7-Way Plastic Trailer Connector - Trailer Side

The Buyers Products 7-Way Plastic Trailer Connector, designed specifically for the trailer side, represents a critical interface component in modern towing systems. This robust connector facilitates the comprehensive electrical communication and power transfer between a tow vehicle and a wide array of utility, recreational, and commercial trailers. Engineered to industry standards, this particular model utilizes a flat terminal slot configuration, commonly referred to as the RV-style 7-way connector, distinguishing it through its pin orientation and standardized functionality. Its primary role is to establish a secure and reliable electrical conduit for essential trailer functions, encompassing lighting, braking systems, and auxiliary power applications.

Functionality and Pin Configuration: Decoding the 7-Way RV Flat Standard

Understanding the intricate electrical architecture of the 7-Way RV Flat connector is paramount for proper installation, diagnostics, and safe trailer operation. This connector adheres to a widely recognized industry standard, ensuring interoperability across a vast ecosystem of tow vehicles and trailers equipped with compatible receptacles. Each of the seven flat terminals serves a distinct and vital electrical function, meticulously designed to manage the complex demands of contemporary trailer systems. The typical pin assignments, viewed from the wire-side of the trailer connector (male pins facing you), are as follows:

• Pin 1 (White Wire): Ground (Common Return Path)
  The ground wire is arguably the most critical connection, serving as the common return path for all electrical circuits on the trailer. A robust, low-resistance ground connection is indispensable for the proper functioning of all lights, brakes, and auxiliary systems. A compromised ground can manifest as dim lights, erratic brake performance, or non-functional auxiliary components, posing significant safety risks. The White wire is universally recognized for this function.
• Pin 2 (Blue Wire): Electric Trailer Brake Control
  This pin provides the modulated power signal from the tow vehicle's brake controller to the trailer's electric brakes. When the tow vehicle's brakes are applied, the brake controller sends a varying voltage (typically 0-12V) through this wire to activate the trailer's electric brake magnets. The current flowing through these magnets creates an electromagnetic field that engages the brake shoes, ensuring synchronized braking between the tow vehicle and trailer. A reliable connection here is fundamental for safe deceleration and stopping, especially with heavier trailers.
• Pin 3 (Green Wire): Tail, Running, and Clearance Lights
  The green wire powers the trailer's tail lights, running lights, and side marker/clearance lights. This circuit activates concurrently with the tow vehicle's headlights or parking lights, providing essential visibility during nighttime driving or adverse weather conditions. Proper illumination of these lights is a legal requirement in most jurisdictions and crucial for road safety, indicating the trailer's presence and dimensions to other road users.
• Pin 4 (Red or Brown Wire): Right Turn Signal and Stop Light
  This pin transmits the combined signal for the right turn indicator and the right stop light. When the tow vehicle's right turn signal is activated, or the brake pedal is depressed, power is sent through this wire to illuminate the trailer's right rear turn signal and stop light. This dual-functionality is standard in many trailer wiring configurations.
• Pin 5 (Yellow Wire): Left Turn Signal and Stop Light
  Mirroring the function of Pin 4, the yellow wire carries the combined signal for the left turn indicator and the left stop light. Activation of the tow vehicle's left turn signal or brake pedal will power this circuit, illuminating the trailer's left rear turn signal and stop light. The synchronized operation of these signals is vital for conveying directional intentions and braking actions to following traffic.
• Pin 6 (Black Wire): 12-Volt Auxiliary Power (Battery Charge/Accessory)
  The black wire provides a constant 12-volt power supply from the tow vehicle's battery, typically fused, to the trailer. This circuit is invaluable for charging a trailer's onboard battery, powering interior lights, maintaining power to refrigerators, or operating other 12V accessories when the trailer is connected. For charging trailer batteries, a charge line isolator or diode may be incorporated in the tow vehicle to prevent current drain from the tow vehicle's battery when the engine is off.
• Pin 7 (Purple or Yellow Wire - often a different shade of yellow than Pin 5): Reverse/Backup Lights or Auxiliary Function
  This pin is commonly dedicated to powering the trailer's reverse lights, illuminating the area behind the trailer when the tow vehicle is shifted into reverse. This enhances visibility for the driver and alerts pedestrians to the trailer's rearward movement. In some less common configurations, this pin might be utilized for an auxiliary function, such as activating a specific hydraulic pump, camera, or another low-current accessory. Its primary and most frequent application, however, is for reverse lighting.

It is imperative for installers and users to verify the specific pinout of their tow vehicle and trailer, as variations, though uncommon for the RV flat standard, can occur, particularly with older or custom setups. Adherence to the standardized color coding and functional assignments is crucial for safety and optimal performance.

Material Science: The Robustness of Nylon Plastic Construction

The selection of durable nylon plastic for the construction of this Buyers Products 7-Way Trailer Connector is a deliberate engineering decision aimed at maximizing longevity, resilience, and operational integrity in demanding environments. Nylon, a thermoplastic polymer, offers a superior combination of mechanical, thermal, and chemical properties that make it exceptionally well-suited for exterior electrical connectors subjected to harsh outdoor conditions.

Key Advantages of Nylon in Connector Design:

• Exceptional Mechanical Strength and Impact Resistance: Nylon exhibits high tensile strength, stiffness, and excellent resistance to impact, even at low temperatures. This inherent toughness ensures the connector housing can withstand physical abuses common in towing applications, such as accidental drops, bumps, and vibrations encountered on rough terrain. Its ability to absorb energy without fracturing contributes significantly to its long service life.
• Superior Abrasion Resistance: Connectors are frequently handled and can come into contact with various surfaces during coupling and uncoupling. Nylon’s high abrasion resistance prevents premature wear and maintains the aesthetic and functional integrity of the housing over prolonged periods of use.
• Environmental Durability and UV Stability: Exposure to sunlight, rain, snow, road salt, and extreme temperatures is a constant challenge for trailer components. Specialized grades of nylon, often UV stabilized, are inherently resistant to degradation from ultraviolet radiation, preventing embrittlement, cracking, and discoloration that can compromise the connector's sealing and mechanical properties. Its low moisture absorption rate (compared to some other plastics) helps maintain dimensional stability and electrical insulation properties in humid conditions.
• Chemical Resistance: In automotive and towing environments, components are frequently exposed to a variety of chemicals, including fuels, oils, greases, cleaning agents, and de-icing solutions. Nylon demonstrates excellent resistance to many common automotive fluids, ensuring that the connector's structural integrity and electrical insulation are not compromised by chemical exposure.
• Thermal Stability: The connector must perform reliably across a wide range of operating temperatures, from scorching summer days to freezing winter nights. Nylon maintains its mechanical properties and structural integrity over a broad temperature spectrum, preventing deformation or material breakdown due to thermal stress.
• Excellent Electrical Insulation Properties: As an electrical connector, the insulating properties of the housing material are paramount. Nylon is a non-conductive material with high dielectric strength, effectively preventing short circuits and ensuring safe segregation of the live electrical terminals. This inherent insulation capability enhances user safety and system reliability.

By leveraging these advanced material properties, Buyers Products delivers a connector that not only meets but often exceeds the rigorous demands placed upon trailer-side electrical connections, guaranteeing sustained performance and reliability even in the most challenging operational contexts.

Engineering for Reliability: Design Features and Construction Methodology

Beyond material selection, the engineering design of the 7-Way Plastic Trailer Connector incorporates several features aimed at optimizing performance, ease of installation, and long-term durability. The "flat terminal slot" design refers to the internal contacts that accept the flat blade terminals of the truck-side connector, providing a large contact area for superior electrical conductivity and reduced resistance.

Key Design Elements:

• Secure Terminal Connections: The internal terminals are typically designed for robust wire attachment, commonly utilizing screw-type terminals. This allows for easy and secure attachment of the trailer's wiring leads, ensuring a strong mechanical and electrical bond. Proper torquing of these screws is critical to prevent loose connections, which can lead to intermittent power, increased resistance, and heat generation.
• Internal Sealing and Gaskets: While the primary housing is nylon, effective sealing against moisture and contaminants is often achieved through integrated internal gaskets or rubber boots where the wires enter the connector body. This helps prevent water ingress, which can lead to corrosion, short circuits, and system failures, particularly vital for components exposed to road spray and inclement weather.
• Strain Relief Mechanism: The point where the trailer wiring harness enters the connector is a common area for stress and potential wire damage. A well-designed connector will include a strain relief mechanism, such as a cable clamp or a specialized grommet, to secure the wiring harness. This feature prevents tension on the individual terminal connections, extending the life of the wiring and preventing premature failures due to bending or pulling forces.
• Ergonomic Design: Although a technical component, user interaction is important. The outer shell is often textured or shaped to provide a secure grip, facilitating easier coupling and uncoupling, even when hands are wet or gloved.
• Positive Latching Mechanism: While not explicitly stated, compatible 7-way connectors typically feature a positive latching mechanism (e.g., a spring-loaded lid on the truck-side receptacle that holds the trailer plug securely). The trailer-side connector is designed to integrate seamlessly with this, ensuring a firm, vibration-resistant connection during transit.

This holistic approach to design ensures that the connector is not merely a collection of parts but a cohesively engineered system optimized for reliable operation in demanding applications.

Installation and Wiring Best Practices

Proper installation of the 7-Way Plastic Trailer Connector is paramount to ensuring its functional integrity and the safety of the towing system. The process typically involves preparing the existing trailer wiring lead for connection.

1. Wire Preparation: Each wire from the trailer harness must be carefully stripped back approximately 1/2 to 3/4 inch, exposing the copper conductor. Care must be taken not to nick or damage the wire strands.
2. Terminal Connection: The stripped ends are then inserted into their corresponding terminals within the connector housing. As mentioned, screw terminals are common for this type of connector. Each wire should be fully inserted and the screw tightened securely. It is crucial to match the wire colors and functions precisely according to the standardized pinout (e.g., White to Ground, Blue to Brakes, etc.). Double-checking the connections with a wiring diagram is highly recommended.
3. Strain Relief Engagement: Once all wires are connected to their terminals, the external strain relief mechanism should be properly engaged around the entire wiring harness. This distributes any pulling force across the entire bundle, preventing individual wires from being tugged out of their terminals.
4. Assembly and Sealing: If the connector has multiple housing components, they are assembled, ensuring any internal seals or gaskets are correctly seated. This completes the weatherproofing of the internal connections.
5. Testing: Post-installation testing is critical. Using a trailer wiring tester or a multimeter, verify that all circuits (ground, turn signals, brake lights, tail lights, auxiliary power, reverse lights, and electric brakes) are functioning correctly when connected to a compatible tow vehicle. Pay close attention to polarity and continuity.

Adhering to these best practices prevents common issues such as intermittent connections, short circuits, and electrical failures, thereby enhancing the safety and reliability of the trailer. Using appropriate crimp connectors where applicable, and ensuring all connections are insulated and protected from environmental factors, further contributes to a durable and dependable wiring solution.

Diverse Applications in Towing

The 7-Way Plastic Trailer Connector is a ubiquitous component across a broad spectrum of towing applications, driven by its ability to manage both basic lighting functions and more advanced systems like electric brakes and auxiliary power. Its versatility makes it the preferred choice for:

• Travel Trailers and Recreational Vehicles (RVs): Essential for charging onboard batteries, powering interior 12V appliances (e.g., refrigerators, water pumps), and operating electric brakes crucial for safely managing the significant weight of RVs.
• Utility and Cargo Trailers: While smaller utility trailers might use 4-way or 5-way connectors, larger utility, enclosed cargo, and dump trailers often require electric brakes and potentially auxiliary power for hydraulic pumps or internal lighting, making the 7-way connector indispensable.
• Boat Trailers: Although some boat trailers use a 5-way (for surge brakes with a reverse lockout solenoid), a 7-way is increasingly used if additional functions like auxiliary power (e.g., for winches, deep cycle batteries) or reverse lights are desired, particularly for larger multi-axle boat trailers.
• Horse Trailers and Livestock Trailers: These trailers frequently incorporate electric brakes due to their significant weight, as well as interior lighting or ventilation fans that benefit from auxiliary 12V power.
• Equipment Haulers and Car Carriers: Heavily loaded equipment trailers almost universally rely on electric brakes, making the 7-way connection mandatory for safe transport.

The connector's ability to provide multiple discrete circuits simplifies wiring harnesses and offers a comprehensive solution for diverse trailer requirements, making it a standard in the industry for any trailer needing more than basic lighting.

Advantages and Long-Term Value Proposition

Investing in a high-quality 7-Way Plastic Trailer Connector like the Buyers Products model yields significant long-term benefits:

• Enhanced Safety: Reliable transmission of brake signals and consistent lighting are paramount for preventing accidents and ensuring compliance with traffic regulations. The robust connection minimizes the risk of intermittent failures, which can be catastrophic.
• Optimized Performance: Proper electrical conductivity ensures that trailer brakes activate efficiently and auxiliary systems receive stable power, contributing to smoother and more reliable operation of the entire towing setup.
• Durability and Longevity: The durable nylon construction, coupled with thoughtful engineering for sealing and strain relief, translates into a product with an extended service life. This reduces the frequency of replacements and associated maintenance costs and downtime.
• Versatility and Compatibility: Adherence to the RV flat 7-way standard ensures broad compatibility with a vast array of tow vehicles and trailers, simplifying integration and reducing potential compatibility issues.
• Ease of Maintenance: While robust, the design often allows for relatively straightforward inspection and potential re-wiring if individual pins are damaged, offering a degree of serviceability. Regular inspection of the connector for dirt, corrosion, or physical damage, and cleaning the terminals, will further extend its lifespan.

In conclusion, the Buyers Products 7-Way Plastic Trailer Connector - Trailer Side is more than just a simple electrical component; it is a meticulously engineered interface designed to deliver unwavering performance, safety, and reliability in the demanding world of trailer towing. Its durable construction, adherence to industry standards, and comprehensive functionality make it an indispensable asset for any towing operation requiring robust electrical integration between vehicle and trailer.
