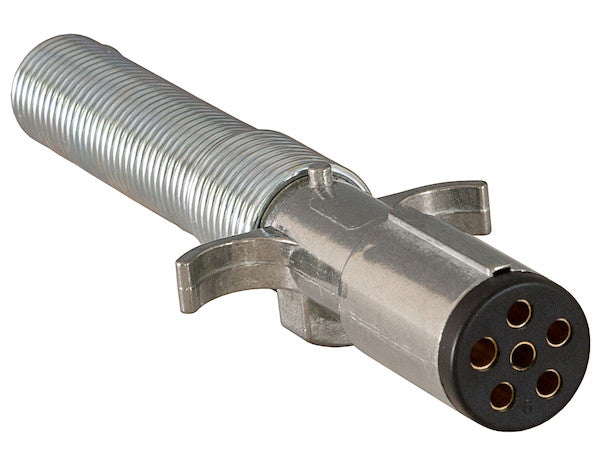

TC2061 - 6-Way Die-Cast Metal Trailer Connector with Spring - Trailer Side

Buyers Products 6-Way Die-Cast Zinc Trailer Connector is a round terminal slot, trailer-side connector. It attaches to an existing trailer wiring lead, and is commonly used to make a power connection between the vehicle and a utility trailer. It features durable, die-cast zinc construction. The optional "spring style" cable guard helps protect your wiring.

Specifications

Advanced Technical Overview: The 6-Way Die-Cast Zinc Trailer Connector with Spring - Trailer Side

In the demanding world of towing and hauling, the integrity of the electrical connection between a towing vehicle and its trailer is paramount. The Buyers Products 6-Way Die-Cast Zinc Trailer Connector, specifically designed for the trailer side and featuring a robust spring-style cable guard, represents a critical component engineered for superior performance, unwavering reliability, and enhanced safety. This connector is more than just a conduit; it is a meticulously crafted interface that ensures seamless communication and power transfer for essential trailer functions, from lighting and signaling to auxiliary power and critical electric braking systems. Its design encapsulates a blend of advanced material science, precision engineering, and practical functionality, making it an indispensable choice for a wide array of utility, recreational, and commercial trailers requiring a robust 6-way electrical interface.

Engineering Excellence: The Die-Cast Zinc Advantage

At the heart of this connector's exceptional durability lies its die-cast zinc construction. Die casting is a metal casting process characterized by forcing molten metal under high pressure into a mold cavity. For zinc, this process yields components with outstanding dimensional accuracy, excellent surface finish, and mechanical properties that are highly advantageous for a trailer connector. Zinc alloys, particularly those used in die casting, offer a superior combination of strength, hardness, and ductility, ensuring the connector can withstand the rigorous physical stresses inherent in towing operations, including constant vibrations, impacts, and repeated mating cycles. Unlike plastic alternatives, die-cast zinc maintains its structural integrity across a wide range of temperatures, preventing embrittlement in cold conditions or softening under extreme heat, factors common in diverse operational environments.

Beyond its mechanical resilience, die-cast zinc provides inherent resistance to environmental degradation. Zinc exhibits a natural galvanic corrosion resistance, particularly when exposed to moisture and road salts. In corrosive environments, zinc acts as a sacrificial anode, preferentially corroding before more noble metals it might be in contact with, thereby protecting the internal electrical terminals and maintaining circuit continuity. This self-sacrificing property significantly extends the connector's operational lifespan, reducing the need for premature replacement and minimizing downtime. Furthermore, the solid metallic enclosure of die-cast zinc offers superior electromagnetic interference (EMI) and radio frequency interference (RFI) shielding compared to non-metallic connectors. This is crucial for preventing external electrical noise from disrupting sensitive trailer systems, such as advanced braking controllers or monitoring equipment, ensuring clean and reliable signal transmission under all conditions. The thermal conductivity of zinc also aids in dissipating heat generated during high current draws, contributing to the overall stability and safety of the electrical connection.

Understanding the 6-Way Pin Configuration

The 6-way round pin configuration is a well-established standard for trailer electrical connections, offering a comprehensive set of functions beyond basic lighting, making it suitable for a variety of trailers that require additional power or control. Each of the six round terminals is dedicated to a specific function, ensuring organized and reliable electrical management. The typical assignments for a 6-way round connector are as follows:

• Ground (White Wire): Essential for completing all electrical circuits, providing a safe return path for current. A robust ground connection is fundamental for the proper operation of all other functions.
• Running Lights / Taillights (Brown Wire): Powers the trailer's running lights, taillights, and marker lights, ensuring the trailer is visible from all angles during nighttime or low-visibility conditions.
• Left Turn / Stop (Yellow Wire): Controls the left-hand turn signal and brake light, communicating turning intentions and braking actions to following vehicles.
• Right Turn / Stop (Green Wire): Controls the right-hand turn signal and brake light, mirroring the function of the left signal for the opposite side of the trailer.
• Auxiliary / 12V Power (Blue or Black Wire): Provides a constant 12-volt power supply from the towing vehicle to the trailer. This can be used for various auxiliary functions such as charging trailer batteries, powering interior lights, or operating small onboard appliances.
• Electric Brakes (Red or Dark Blue Wire): Transmits the control signal from the towing vehicle's brake controller to the trailer's electric brakes. This is a critical safety circuit, enabling synchronized braking between the vehicle and trailer, significantly enhancing stopping power and stability.

Adherence to this standardized wiring scheme is vital for interoperability between different towing vehicles and trailers, as well as for compliance with road safety regulations. The 6-way system provides a balanced solution, offering more functionality than simpler 4-way or 5-way connectors, particularly for trailers equipped with electric brakes, without the complexity of a 7-way system which typically includes a reverse light circuit.

Optimized Connectivity: Round Terminal Slots

The choice of round terminal slots for this connector is a deliberate design decision driven by the pursuit of superior electrical contact and longevity. Round pins, as opposed to flat blade terminals, offer several distinct advantages. Firstly, they provide a more secure and consistent contact surface. When inserted, the round pin naturally creates a wiping action against the mating socket, which helps to clear away minor contaminants or oxidation, ensuring a clean electrical path. This spherical contact geometry also distributes pressure more evenly, leading to a lower contact resistance and reduced risk of arcing or localized heating, especially under high current loads.

Secondly, round terminals are inherently more resistant to deformation and bending, which can plague flat blade connectors over time, especially with frequent use or improper alignment. Their robust cylindrical shape maintains structural integrity, ensuring reliable mating and unmating cycles without compromising the connection quality. This resilience translates directly into a longer service life and fewer intermittent connection issues. Furthermore, the precise manufacturing tolerance achievable with round pins ensures a snug fit, which significantly reduces the ingress of moisture, dirt, and debris into the electrical contacts. This enhanced environmental sealing protects against corrosion and short circuits, critical factors for maintaining consistent electrical performance in outdoor and often harsh environments. The intuitive orientation and ease of insertion of round pins also simplify the connection process for the user, reducing the potential for incorrect or partial engagement that could lead to electrical malfunction or damage.

Trailer-Side Specifics: Design and Application

This connector is explicitly designated as a "trailer-side" component, meaning it is designed to be permanently wired to the trailer's electrical lead and mate with a corresponding "truck-side" or "vehicle-side" connector mounted on the towing vehicle. This distinction is crucial for understanding its functional role and installation requirements. As the trailer-side component, it serves as the direct link from the trailer's internal wiring harness to the external power source provided by the tow vehicle. Its design prioritizes protection for the trailer's critical circuits, which are typically more extensive and less accessible than those on the vehicle side.

The trailer-side connector is engineered to withstand the unique stresses associated with being part of the towed unit. It is exposed to road spray, debris, and constant movement. Therefore, its robust die-cast zinc housing and secure terminal design are essential for safeguarding the electrical connections from physical damage and environmental ingress. This type of 6-way trailer-side connector is commonly employed on a wide range of trailers, including:

• Utility Trailers: For hauling equipment, landscaping materials, or general cargo, requiring lights and sometimes electric brakes.
• Small to Medium Boat Trailers: Essential for marine environments where corrosion resistance is paramount, and often includes electric brakes.
• Certain Travel Trailers/Campers: Where electric brakes are present, and auxiliary 12V power is needed for charging small batteries or internal lighting.
• Horse Trailers: Many models utilize electric brakes for animal safety and stability, making the 6-way ideal.

The trailer-side configuration ensures that the connection point is standardized and readily accessible for maintenance or troubleshooting on the trailer, facilitating ease of service for trailer owners and professionals alike.

The Integral Spring-Style Cable Guard: A Shield for Your Wiring

A distinctive and highly practical feature of this connector is its optional spring-style cable guard. While often overlooked, the cable guard plays a pivotal role in ensuring the longevity and reliability of the entire electrical connection system. The flexible spring mechanism acts as a critical strain relief device at the point where the trailer's wiring harness enters the connector housing. Without adequate strain relief, constant flexing, tugging, and vibration during towing can lead to fatigue and eventual breakage of individual wire strands, insulation degradation, or even complete detachment of the wiring from the connector terminals. The spring guard distributes these mechanical stresses over a larger area, absorbing movement and preventing concentrated strain at the wire entry point.

Beyond strain relief, the spring-style cable guard provides an additional layer of physical protection against abrasion and impact. As the trailer hitch moves and articulates, the trailer cable can rub against the trailer tongue, hitch components, or other obstacles. The durable metal spring acts as a protective shield, preventing chafing and cuts to the cable's outer jacket. This significantly reduces the risk of short circuits caused by exposed conductors, which can lead to fuse blows, electrical system damage, or even fire. Moreover, the spring design helps to maintain a consistent bend radius for the cable, preventing sharp kinks that could damage internal conductors over time. By safeguarding the delicate wiring at its most vulnerable point, the spring-style cable guard contributes significantly to the overall robustness, safety, and operational reliability of the trailer's electrical system, minimizing costly repairs and roadside breakdowns.

Installation and Compatibility Considerations

While designed for straightforward attachment, proper installation of the 6-Way Die-Cast Zinc Trailer Connector is paramount to unlock its full potential. The connector is engineered to accommodate standard trailer wiring gauges, typically ranging from 10 to 14 AWG, depending on the specific circuit (e.g., heavier gauge for brake and auxiliary power, lighter for lights). Installation involves stripping the insulation from the individual wires of the trailer's existing lead, feeding them through the cable guard (if utilized), and then securely attaching each wire to its corresponding terminal within the connector housing. Professional-grade crimping tools are recommended for creating strong, low-resistance connections, or soldering for an even more permanent and corrosion-resistant bond. After connections are made, ensuring proper insulation and sealing of the connector housing is vital to prevent moisture ingress and maintain electrical integrity.

Compatibility extends to the mating truck-side connector. While specific brands may vary, the 6-way round pin configuration is standardized, ensuring this trailer-side connector will mate correctly with any compliant 6-way round truck-side receptacle. Users should always verify their vehicle's existing or planned truck-side connector type to ensure a perfect match. Pre-installation checks should include confirming the correct wiring color code for each function on the trailer and verifying the tow vehicle's wiring to ensure consistent pin assignments. Post-installation, a comprehensive test of all trailer functions (running lights, turn signals, brake lights, auxiliary power, and electric brakes) is essential to confirm proper operation before active towing.

Electrical Performance and Reliability

The electrical performance of a trailer connector is defined by its ability to maintain low resistance, consistent voltage, and reliable current flow across all circuits. The Die-Cast Zinc Trailer Connector excels in these areas due to its premium materials and precise engineering. The robust round pin design ensures maximum surface contact, minimizing voltage drop and heat generation even during peak current draws, such as when all lights are illuminated and electric brakes are engaged. This low-resistance pathway is critical for ensuring that components like trailer lights receive adequate voltage to operate at full brightness and that electric brake systems receive the precise control signals necessary for effective and modulated braking.

Furthermore, the superior environmental sealing provided by the die-cast housing and snug-fitting terminals prevents the ingress of moisture, dirt, and corrosive elements that can compromise electrical contact over time. Oxidation and corrosion are leading causes of intermittent electrical failures in trailer wiring, resulting in flickering lights or non-functional brakes. By mitigating these risks, this connector ensures consistent and uninterrupted electrical communication, which is vital for both operational efficiency and road safety. The structural rigidity of the zinc housing also prevents internal wiring from shifting or shorting under vibration, maintaining circuit separation and integrity.

Durability in Diverse Environments

The operational lifespan of a trailer connector is heavily influenced by its ability to endure the challenging environments encountered during towing. This 6-Way Die-Cast Zinc Connector is built to withstand an array of adverse conditions:

• Temperature Extremes: From freezing winter conditions that can cause plastic to become brittle to scorching summer heat that can degrade inferior materials, the zinc construction maintains its physical and electrical properties across a broad temperature range.
• Moisture and Water Immersion: While not fully submersible, the tight tolerances and robust construction offer significant resistance to rain, road spray, and washdowns, protecting internal contacts from corrosion.
• Dust, Dirt, and Debris: The secure fit of the round terminals and the overall housing design minimize the entry of particulate matter that can interfere with electrical contact or cause abrasive wear.
• UV Radiation: Unlike many plastic connectors that can degrade and become brittle under prolonged exposure to ultraviolet radiation from the sun, the metallic zinc housing is completely unaffected, ensuring long-term aesthetic and structural integrity.
• Chemical Exposure: The zinc alloy provides good resistance to common automotive fluids, road salts, and mild chemicals, which can often be encountered on roads or in maintenance environments.
• Vibration and Shock: The die-cast construction provides excellent resistance to the constant vibrations and occasional shocks experienced during towing, particularly on rough roads or off-pavement applications, preventing loosening of connections or structural fatigue.

This comprehensive environmental resilience underscores the connector's suitability for heavy-duty, commercial, and recreational applications where reliability in harsh conditions is non-negotiable.

Adherence to Industry Standards and Safety

The design and functionality of the Buyers Products 6-Way Die-Cast Zinc Trailer Connector align with critical industry standards, promoting safety and interoperability. While specific certifications may vary, the adherence to the widely accepted 6-way round wiring configuration ensures compliance with legal requirements for trailer lighting and braking systems in most jurisdictions. Proper functioning of trailer lights and brakes is not merely a matter of convenience; it is a fundamental safety requirement. Functional turn signals and brake lights prevent rear-end collisions, while reliable electric brakes are essential for safe stopping distances, especially with heavier trailers. The robust construction and reliable electrical performance of this connector directly contribute to maintaining these crucial safety systems.

By providing a stable and corrosion-resistant electrical link, the connector reduces the risk of intermittent failures that could compromise safety on the road. Investing in a high-quality connector like this one is an investment in preventing accidents, avoiding legal penalties, and protecting valuable cargo and human lives. It signifies a commitment to professional-grade equipment that prioritizes dependability above all else.

Long-Term Value and Return on Investment

Choosing the Buyers Products 6-Way Die-Cast Zinc Trailer Connector is a decision that offers significant long-term value and an excellent return on investment. The initial cost of a premium die-cast zinc connector may be marginally higher than that of a plastic or lower-grade metal alternative, but the benefits in terms of durability, reliability, and reduced maintenance costs far outweigh this difference. The extended lifespan of this connector means fewer replacements, saving both material costs and labor time. Its robust design prevents common electrical failures, which can lead to costly roadside repairs, towing fees, or even damage to the trailer's electrical components. By ensuring consistent operation of lights and brakes, it helps avoid potential legal issues, fines, and insurance claims stemming from equipment malfunction.

For commercial operators, minimizing downtime due to electrical issues is critical for profitability. A reliable connector translates directly into more operational hours and greater productivity. For recreational users, it means peace of mind and an uninterrupted, safer journey. The protection offered by the spring-style cable guard further extends the life of the entire wiring harness, protecting a broader investment. Ultimately, this connector is designed to perform flawlessly for years, providing dependable service and safeguarding the entire vehicle-trailer electrical system, making it a wise and economical choice in the long run.

Conclusion: The Uncompromising Choice for Trailer Connectivity

The Buyers Products 6-Way Die-Cast Zinc Trailer Connector with Spring - Trailer Side stands as a benchmark in trailer electrical connectivity. Its meticulous design, leveraging the inherent strength, corrosion resistance, and shielding properties of die-cast zinc, combined with the proven reliability of the 6-way round pin configuration, sets it apart as a professional-grade solution. The integration of a protective spring-style cable guard further enhances its resilience, safeguarding critical wiring against the relentless rigors of towing. From its ability to provide clear signaling and effective braking to its capacity for auxiliary power delivery, this connector ensures that all trailer functions operate with unwavering dependability. For any application demanding uncompromising performance, safety, and longevity from its trailer-side electrical interface, this connector offers an unparalleled blend of advanced engineering and practical durability, representing an essential component for secure and reliable towing operations.
