TC2064P - 6-Way Round to 4-Flat Plastic Trailer Connector Adapter

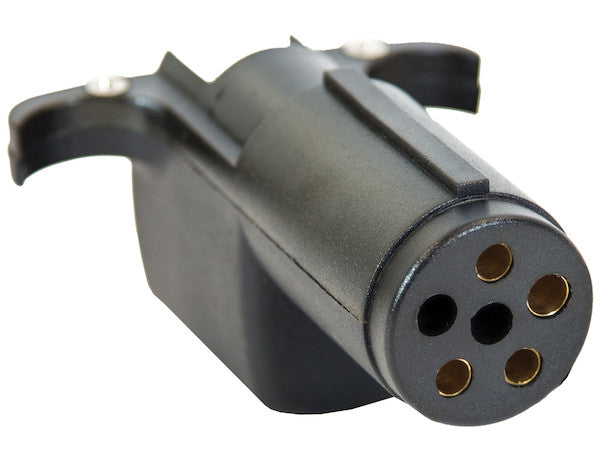

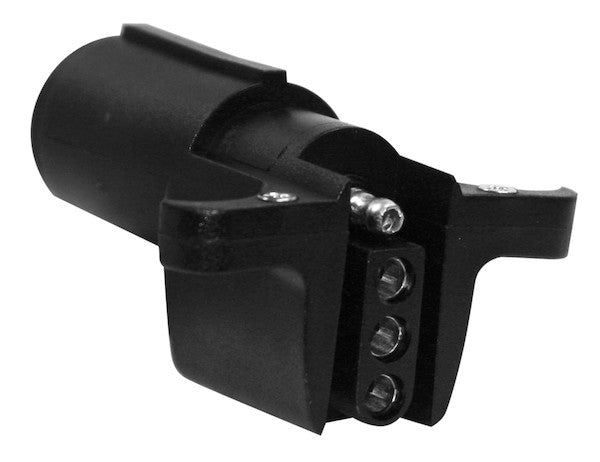

Buyers Products 6-Way to 4-Flat Trailer Connector Adapter corrects a mismatch between your truck and trailer connectors by converting a 6-way round pin connector to a 4-flat connector. It's made of durable and weather-resistant plastic.

Specifications

Advanced Technical Overview: 6-Way Round to 4-Flat Plastic Trailer Connector Adapter

The Buyers Products 6-Way Round to 4-Flat Trailer Connector Adapter represents a critical component in ensuring seamless electrical compatibility between diverse towing vehicles and towed equipment. In the realm of vehicle-to-trailer electrical interfacing, discrepancies in connector configurations are commonplace, necessitating robust and reliable adaptation solutions. This specific adapter is engineered to facilitate the conversion from a 6-way round pin connector, typically found on many medium-duty trucks, recreational vehicles (RVs), or vehicles equipped for heavy-duty towing, to the ubiquitous 4-flat connector, predominantly utilized on light-duty trailers such as utility trailers, small boat trailers, and cargo carriers. This technical document will delve into the intricacies of this adapter, exploring its design, material science, operational principles, and the benefits it confers to the end-user.

The primary function of any trailer connector adapter is to establish a secure and functional electrical bridge, translating the electrical signals from the tow vehicle’s harness to the trailer’s lighting and auxiliary systems. Without a proper adapter, a mismatch in pin configurations would render essential safety features, such as tail lights, brake lights, and turn signals, inoperable, posing significant safety hazards and potential legal ramifications. The 6-way round to 4-flat conversion specifically addresses a very common scenario where a more extensively wired tow vehicle (with potential for auxiliary power and electric brake control) is paired with a simpler trailer requiring only basic lighting functions.

Understanding the 6-Way Round Connector (Truck Side)

The 6-way round connector, designated as the "Start Way" on the truck side, is a more advanced electrical interface compared to its 4-flat counterpart, capable of handling a broader spectrum of electrical functions. Its robust design typically includes six distinct pins, each serving a specific purpose. While pin assignments can sometimes vary slightly by manufacturer, a standard configuration generally includes:

• Pin 1 (White or Ground): Provides the essential ground return path for all electrical circuits, crucial for system stability and preventing electrical interference.
• Pin 2 (Blue or Electric Brakes): Dedicated to supplying power for electric trailer brakes, allowing the tow vehicle's brake controller to modulate braking force on the trailer.
• Pin 3 (Green or Right Turn/Brake): Transmits signals for the right-hand turn indicator and simultaneous brake light function on the right side of the trailer.
• Pin 4 (Red or Auxiliary Power/12V Hot): Often used for continuous 12V power supply to the trailer, enabling functions such as charging auxiliary batteries, powering interior lights, or operating trailer-mounted accessories when the vehicle is running.
• Pin 5 (Brown or Tail/Running Lights): Powers the trailer's tail lights, marker lights, and license plate light, essential for nighttime visibility.
• Pin 6 (Yellow or Left Turn/Brake): Transmits signals for the left-hand turn indicator and simultaneous brake light function on the left side of the trailer.

The physical construction of a 6-way round connector is designed for durability and secure connection. It typically features a cylindrical housing with an interlocking mechanism or threaded ring to ensure a tight, weather-resistant seal. The pins themselves are often robust, made from conductive alloys, and recessed to prevent accidental shorting or damage during coupling. This connector type is prevalent on vehicles intended for towing heavier loads or trailers equipped with electric braking systems, auxiliary power requirements, or more complex lighting configurations.

Understanding the 4-Flat Connector (Trailer Side)

Conversely, the 4-flat connector, designated as the "End Way" on the trailer side, is the simplest and most widely adopted standard for light-duty trailers. Its design is characterized by four flat blade-style terminals arranged in a rectangular housing. This simplicity makes it highly cost-effective and easy to manufacture and install on a vast array of small trailers. The standard pin assignments for a 4-flat connector are as follows:

• Pin 1 (White or Ground): Serves as the common ground for all lighting circuits, analogous to the 6-way ground.
• Pin 2 (Brown or Tail/Running Lights): Supplies power to the trailer's tail lights, marker lights, and license plate light.
• Pin 3 (Yellow or Left Turn/Brake): Controls the left turn signal and left brake light on the trailer.
• Pin 4 (Green or Right Turn/Brake): Controls the right turn signal and right brake light on the trailer.

The 4-flat connector provides the absolute minimum essential lighting functions required by law for safe towing. It does not typically support electric brakes or auxiliary power, which is why it requires adaptation when connected to a tow vehicle equipped with a 6-way round system. Its open-face design, while simple, does necessitate proper maintenance and protection from environmental elements to prevent corrosion and ensure reliable contact.

Operational Principle and Electrical Conversion

The Buyers Products adapter functions as a passive electrical translator, intelligently routing the appropriate signals from the 6-way round input to the 4-flat output. Internally, the adapter contains a precisely engineered wiring harness that maps the functionalities. Specifically:

• The ground wire from the 6-way (typically white) is directly connected to the ground pin of the 4-flat.
• The tail/running light wire from the 6-way (typically brown) is directly connected to the tail/running light pin of the 4-flat.
• The left turn/brake wire from the 6-way (typically yellow) is connected to the left turn/brake pin of the 4-flat.
• The right turn/brake wire from the 6-way (typically green) is connected to the right turn/brake pin of the 4-flat.

The additional pins present in the 6-way round connector—specifically the electric brake signal (blue) and the auxiliary power feed (red)—are simply terminated within the adapter or remain unutilized, as there are no corresponding pins on the 4-flat connector to transfer these signals. It is crucial to understand that this adapter does not create new signals; it merely selects and routes the necessary signals. Therefore, a trailer requiring electric brakes or continuous auxiliary power cannot fully utilize those functions through this particular adapter, even if the tow vehicle provides them. Its purpose is solely for light-duty trailers that require the standard four basic lighting functions.

Material Science and Durability

The adapter's housing is constructed from a "durable and weather-resistant plastic." This material selection is paramount to the product's longevity and performance in demanding outdoor environments. While the specific polymer might vary, common choices for such applications include high-impact ABS (Acrylonitrile Butadiene Styrene) or robust PVC (Polyvinyl Chloride). These engineering plastics are selected for a combination of critical properties:

• Impact Resistance: Towing applications often involve rough handling, accidental drops, and exposure to road debris. The chosen plastic offers superior resistance to impact, preventing cracking or shattering under stress.
• UV Stability: Prolonged exposure to ultraviolet (UV) radiation from sunlight can degrade many plastics, leading to brittleness, discoloration, and structural failure. The plastic utilized in this adapter is formulated with UV stabilizers to resist photodegradation, maintaining its structural integrity and aesthetic appearance over time.
• Temperature Extremes: Trailer connectors are subjected to a wide range of temperatures, from freezing winter conditions to scorching summer heat. The material maintains its mechanical properties across these extremes, ensuring reliable performance without becoming brittle in cold or deforming in heat.
• Chemical Resistance: Road grime, salt, oil, grease, and various automotive fluids are common contaminants. The plastic resists degradation from these chemicals, preventing material breakdown and maintaining electrical insulation properties.
• Dielectric Strength: As an electrical housing, the plastic must possess excellent dielectric strength to insulate the internal conductors and prevent electrical short circuits, ensuring user safety and system integrity.

Beyond the housing, the internal electrical contacts are equally critical. They are typically manufactured from high-conductivity copper alloys, such as brass, and often treated with anti-corrosion platings (e.g., tin or nickel). These platings enhance conductivity, prevent oxidation, and reduce wear during repeated connections and disconnections, ensuring a stable and low-resistance electrical pathway.

Design and Ergonomic Considerations

The physical design of the Buyers Products adapter is optimized for both functionality and user experience. Key design elements include:

• Robust Housing: The external casing is engineered to withstand the rigors of towing, providing ample protection to the internal wiring and contacts.
• Secure Fit: The male 6-way round end is designed to mate precisely with the female receptacle on the truck, often featuring a ribbed or textured surface for improved grip during connection and disconnection. Similarly, the female 4-flat end provides a snug, reliable connection to the trailer's male 4-flat plug.
• Weather Sealing: While the plastic itself is weather-resistant, the design incorporates features to minimize moisture and debris ingress. This might include tight tolerances, internal sealing rings, or a specific mating geometry that forms a barrier against the elements when connected. This is crucial for preventing corrosion of the electrical contacts, which is a leading cause of intermittent or complete electrical failure in trailer systems.
• Strain Relief: Where the internal wiring exits the adapter or connects to the internal terminals, effective strain relief mechanisms are typically employed. These prevent wires from being pulled loose or damaged due to tension, vibration, or movement inherent in towing applications.

Installation, Usage, and Maintenance

Installation of the 6-way round to 4-flat adapter is designed to be straightforward and tool-free. The truck-side 6-way round male connector simply plugs into the vehicle's existing 6-way round female receptacle. Subsequently, the trailer's 4-flat male connector plugs into the adapter's 4-flat female receptacle. The "plug-and-play" nature of this device makes it highly convenient for users who frequently switch between different trailers or tow vehicles.

For optimal performance and longevity, a few maintenance best practices are recommended:

• Regular Inspection: Periodically inspect both ends of the adapter for signs of physical damage, corrosion, or wear.
• Cleanliness: Keep the electrical contacts clean and free of dirt, grease, and moisture. A dielectric grease can be applied to the contacts to further enhance protection against corrosion and improve conductivity, especially in harsh environments.
• Secure Connection: Always ensure a tight and secure connection at both the truck and trailer ends to prevent intermittent electrical contact.
• Proper Storage: When not in use, store the adapter in a clean, dry place, ideally away from direct sunlight and extreme temperatures, to prolong its service life.

Safety, Compliance, and Advantages

The primary advantage of the Buyers Products 6-Way Round to 4-Flat Trailer Connector Adapter is the enhancement of towing safety and operational versatility. By ensuring that essential trailer lighting—tail lights, brake lights, and turn signals—are fully functional, the adapter helps users comply with federal and local road safety regulations, reducing the risk of accidents and penalties. The robust construction and weather-resistant properties contribute to a reliable connection, minimizing the chances of electrical failure during transit.

Key benefits include:

• Seamless Compatibility: Bridges the gap between disparate tow vehicle and trailer electrical systems without complex rewiring.
• Enhanced Safety: Guarantees proper functioning of critical trailer lighting, improving visibility and communication on the road.
• Durability: Constructed from high-quality, weather-resistant plastic and robust internal components for extended service life.
• Ease of Use: Simple plug-and-play installation requires no tools or specialized knowledge.
• Cost-Effectiveness: An economical solution compared to modifying vehicle or trailer wiring harnesses.

In conclusion, the Buyers Products 6-Way Round to 4-Flat Plastic Trailer Connector Adapter is more than a simple accessory; it is a precisely engineered solution for a common towing challenge. Its design meticulously addresses the technical requirements of electrical signal translation while incorporating materials and construction methods that ensure durability, weather resistance, and user safety. For anyone requiring a reliable bridge between a 6-way round equipped tow vehicle and a 4-flat wired trailer, this adapter provides an indispensable, high-performance interface, embodying practical innovation in trailer electrical connectivity.
