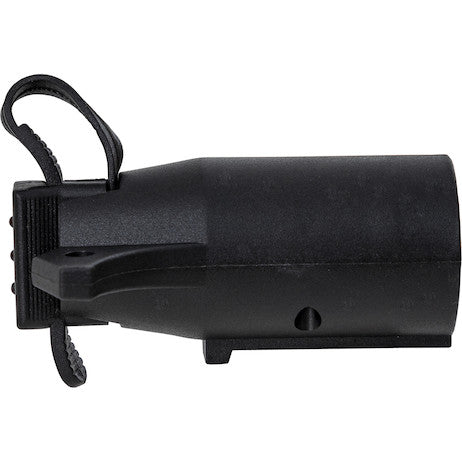

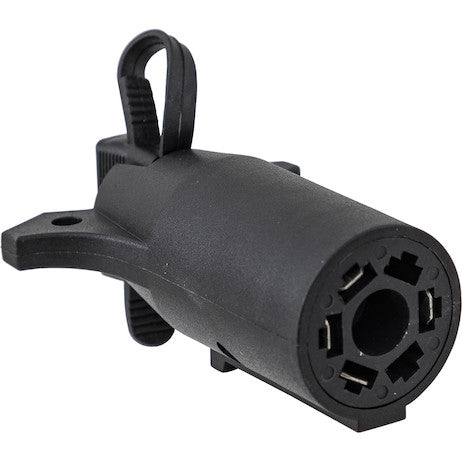

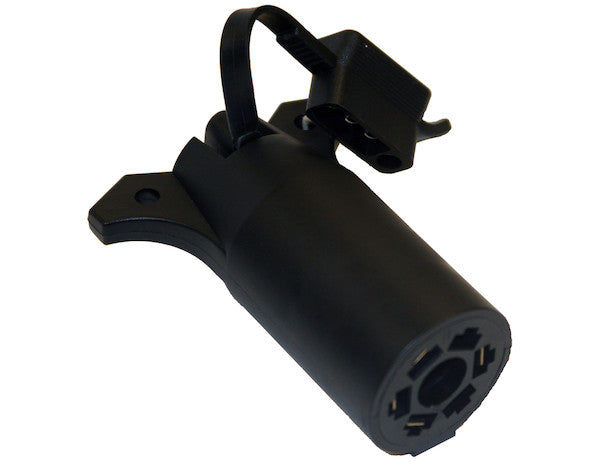

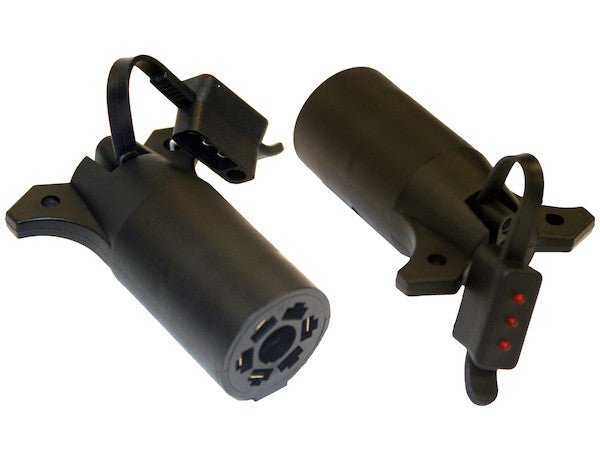

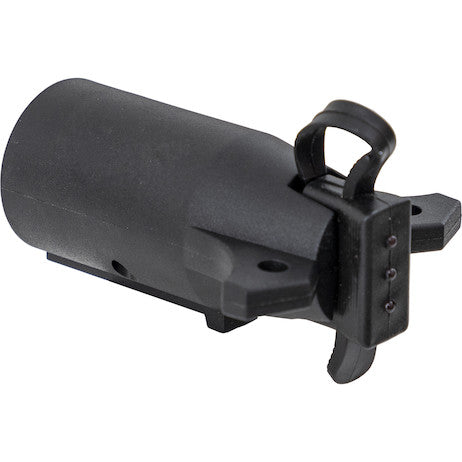

The 7-Way to 4-Flat Trailer Connector Adapter with LED Tester from Buyers Products solves a mismatch between your truck-side and trailer-side connectors by converting a 7-way flat pin connector to a 4-flat connector. It's made of durable and weather-resistant plastic and features a dust cap with built-in LED tester.
Specifications
| End Way (Number of Pins) | 4 |
|---|---|
| Pin Style | RV Flat to 4 Flat |
| Start Way (Number of Pins) | 7 |
| Truck Side/Trailer Side | Truck Side |
Advanced Interoperability: The 7-Way Flat to 4-Flat Trailer Connector Adapter with LED Tester
In the complex ecosystem of modern towing and hauling, ensuring seamless electrical compatibility between a tow vehicle and its trailer is paramount for both operational efficiency and, critically, safety. The Buyers Products 7-Way Flat to 4-Flat Plastic Trailer Connector Adapter with LED Tester represents a sophisticated yet user-friendly solution designed to bridge a common electrical interface disparity. This meticulously engineered adapter facilitates the conversion from a 7-way flat pin (often referred to as RV Blade style) connector, typically found on the truck side, to a standard 4-flat connector, commonly used on a wide array of lighter trailers. This comprehensive description will delve into the technical nuances, material science, diagnostic capabilities, and practical advantages that position this adapter as an indispensable component for any serious towing professional or enthusiast.
Understanding Trailer Electrical Connector Standards
The foundational principle behind any trailer connector adapter lies in its ability to reconcile differing electrical signaling standards. Two predominant standards in North American towing are the 7-way RV Blade connector and the 4-flat connector. A thorough understanding of each is essential to appreciate the adapter's utility.
The 7-Way RV Blade Connector (SAE J2863)
The 7-way RV Blade connector, standardized under SAE J2863, is a robust and versatile interface designed for trailers requiring more comprehensive electrical connections. Its seven distinct pins cater to a broader spectrum of functions beyond basic lighting, making it ideal for recreational vehicles, larger utility trailers, and commercial applications. The standard pin assignments for a 7-way connector are typically as follows:
Ground (White Wire): Essential for completing all electrical circuits.
Left Turn/Brake Light (Yellow Wire): Activates the left turn signal and left brake light on the trailer.
Right Turn/Brake Light (Green Wire): Activates the right turn signal and right brake light on the trailer.
Tail/Running Lights (Brown Wire): Powers the trailer's taillights, marker lights, and license plate light, typically activated with the tow vehicle's headlights.
Auxiliary/12V Charge Line (Black Wire): Provides constant 12-volt power to charge the trailer's battery, power interior lights, or other auxiliary components.
Electric Brakes (Blue Wire): Connects to the trailer's electric brake system, receiving signals from the tow vehicle's brake controller.
Reverse Lights/Auxiliary (Purple or Red Wire): Powers the trailer's reverse lights or can be used for other auxiliary functions, such as an actuator for a hydraulic dump trailer.
The 7-way connector's design incorporates a keyed blade arrangement for proper orientation, and often includes a spring-loaded cover for environmental protection. Its capabilities make it the preferred choice for heavier trailers that may incorporate electric brakes, interior lighting, or require battery charging functionality.
The 4-Flat Connector (SAE J1239)
In contrast, the 4-flat connector, typically associated with SAE J1239 specifications, is a simpler, more compact interface, predominantly utilized for light-duty trailers that only require basic lighting functions. These trailers commonly include small utility trailers, boat trailers, motorcycle trailers, and jet ski trailers. Its four pins are assigned to core lighting circuits:
Ground (White Wire): Provides the common return path for all electrical circuits.
Left Turn/Brake Light (Yellow Wire): Controls the left turn signal and left brake light.
Right Turn/Brake Light (Green Wire): Controls the right turn signal and right brake light.
Tail/Running Lights (Brown Wire): Powers the trailer's essential running and marker lights.
The 4-flat connector is prized for its simplicity, ease of installation, and robust functionality within its intended scope. However, it lacks the capacity for advanced features like electric brakes, reverse lights, or auxiliary power.
The Imperative for Conversion
The necessity for the 7-Way Flat to 4-Flat Trailer Connector Adapter arises when a tow vehicle equipped with a 7-way RV Blade connector needs to tow a trailer fitted with a 4-flat connector. Without this adapter, the fundamental difference in pin configuration and functionality would render the electrical connection impossible or, at best, incomplete. The adapter's role is not merely physical; it is an electrical translator, mapping the essential lighting signals from the higher-capacity 7-way system to the simpler 4-flat standard, ensuring that critical safety lighting functions are maintained.
The Buyers Products 7-Way Flat to 4-Flat Adapter: An Engineering Solution

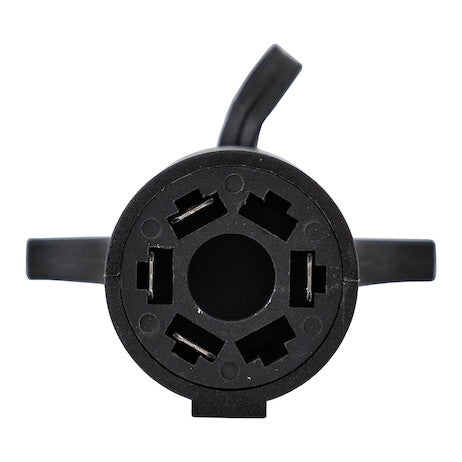

The Buyers Products adapter is engineered to perform this critical conversion with precision and reliability. As a "truck-side" adapter, it plugs directly into the 7-way receptacle on the tow vehicle, presenting a 4-flat output for the trailer. The internal wiring of the adapter is meticulously designed to correctly route the necessary signals:
The tow vehicle's 7-way ground pin is connected to the adapter's 4-flat ground pin.
The 7-way left turn/brake signal is routed to the 4-flat left turn/brake pin.
The 7-way right turn/brake signal is routed to the 4-flat right turn/brake pin.
The 7-way tail/running lights signal is routed to the 4-flat tail/running lights pin.
The additional signals present in the 7-way connector – specifically the auxiliary/12V charge line, electric brake line, and reverse light line – are left unconverted as they have no corresponding pins on a standard 4-flat trailer connector. This design ensures that the fundamental safety requirements for lighting (turn signals, brake lights, and running lights) are met, while intelligently managing the unused signals without causing electrical interference or errors. The adapter provides a direct electrical bridge, bypassing any complex electronic modules, thus maintaining signal integrity and minimizing potential points of failure. Its plug-and-play design ensures quick and effortless attachment, making it an invaluable tool for users who frequently switch between trailers with different connector types.
Advanced Diagnostic Capabilities: Integrated LED Tester

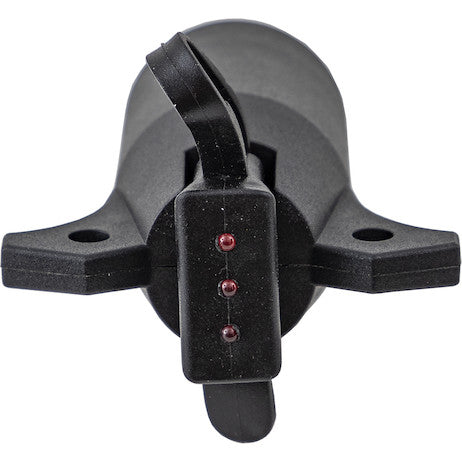

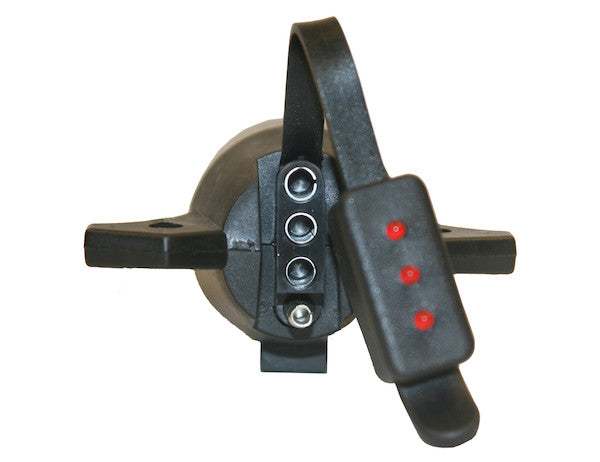

A standout feature of this Buyers Products adapter is its integrated LED tester, discreetly housed within the protective dust cap. This diagnostic capability elevates the adapter from a mere connector conversion device to a proactive safety and troubleshooting tool. The LED tester is designed to provide immediate visual feedback on the functionality of the primary lighting circuits, directly at the point of connection.
Upon connection to the tow vehicle's 7-way receptacle, and with the tow vehicle's electrical system activated, the LED tester illuminates corresponding indicators for each critical circuit: tail lights, left turn/brake, and right turn/brake. For instance, when the tow vehicle's running lights are switched on, the designated LED for tail lights on the adapter will illuminate. Similarly, engaging the left turn signal will cause the left turn/brake LED to flash, and depressing the brake pedal will illuminate both left and right turn/brake LEDs (assuming independent brake and turn signals are combined through the vehicle's wiring, as is common).
The utility of this integrated LED tester is profound:
Pre-Trip Inspection: It enables quick verification of the tow vehicle's output signals before attaching the trailer. This eliminates guesswork and ensures that any issues reside with the trailer's wiring, not the tow vehicle or the adapter itself.
Troubleshooting: In the event of a non-functional trailer light, the adapter's LED tester helps pinpoint the source of the problem. If the LED on the adapter illuminates but the trailer light does not, the issue is likely with the trailer's wiring or bulb. If the LED on the adapter fails to illuminate, the problem lies upstream – with the tow vehicle's wiring or fuses.
Enhanced Safety: By facilitating reliable verification of lighting signals, the LED tester contributes directly to safer towing operations. Correctly functioning brake lights and turn signals are critical for communicating driver intentions to other road users, significantly reducing the risk of accidents.
Regulatory Compliance: Many jurisdictions have strict regulations regarding trailer lighting. The LED tester assists users in maintaining compliance by providing a simple method to confirm system functionality prior to departure.
The presence of an LED tester transforms a passive adapter into an active diagnostic instrument, empowering users with immediate, actionable information, thereby saving time, reducing frustration, and enhancing overall road safety.
Superior Material Science and Construction
The performance and longevity of any trailer connector adapter are inextricably linked to the quality of its materials and construction. The Buyers Products 7-Way Flat to 4-Flat Plastic Trailer Connector Adapter is explicitly described as being "made of durable and weather-resistant plastic," a characteristic crucial for components exposed to the harsh outdoor environment associated with towing.
High-quality engineered plastics, such as specific grades of ABS (Acrylonitrile Butadiene Styrene) or UV-stabilized PVC (Polyvinyl Chloride) or similar robust polymers, are typically selected for automotive and towing applications due to a combination of desirable properties:
Impact Resistance: These materials possess excellent resistance to physical impact, protecting the internal electrical connections from bumps, drops, and general wear and tear inherent in regular use.
Weather Resistance: They are formulated to withstand extreme temperatures (hot and cold), significant humidity, rain, snow, and exposure to road salts and chemicals without degrading, cracking, or becoming brittle.
UV Stability: Prolonged exposure to ultraviolet (UV) radiation from sunlight can cause inferior plastics to fade, chalk, and lose mechanical strength. The "weather-resistant" designation implies the use of UV-stabilized polymers, ensuring the adapter maintains its structural integrity and aesthetic appearance over time.
Chemical Resistance: Towing environments often expose components to petroleum products, road grime, and cleaning agents. The plastic selected is resistant to degradation from such substances, preserving the housing's integrity.
The "dust cap" is another critical design element contributing to the adapter's durability and reliability. This cap serves as a primary barrier against environmental ingress when the 4-flat end of the adapter is not in use. It prevents the accumulation of dust, dirt, moisture, and debris on the electrical contacts, which are common culprits for corrosion and intermittent electrical connections. The dust cap is typically designed to fit snugly, creating an effective seal that prolongs the life of the internal contacts and ensures consistent electrical conductivity over time. Furthermore, the robust nature of the entire assembly, including the secure housing of the wiring and contact points, is indicative of a product designed for arduous service conditions.
Internally, the electrical contacts themselves are typically manufactured from high-conductivity metals, often brass, and may feature tin or nickel plating. This combination ensures optimal current flow and provides enhanced resistance to corrosion, which is a major concern in outdoor electrical connections. The mechanical design of the pins ensures a secure, low-resistance connection with both the truck's 7-way receptacle and the trailer's 4-flat plug, minimizing voltage drop and maximizing signal integrity.
Seamless Integration and Operational Versatility
The primary benefit of the 7-Way Flat to 4-Flat Plastic Trailer Connector Adapter is its ability to provide immediate and reliable electrical interoperability. This adapter allows a single tow vehicle to connect to a wider range of trailers, enhancing fleet flexibility for commercial operators or expanding options for recreational users. Whether a vehicle typically tows a heavy RV with electric brakes and then needs to haul a small boat trailer, this adapter makes the transition seamless. Its "truck side" orientation means it remains connected to the tow vehicle, ready to accept any compatible 4-flat trailer without needing to modify the trailer's wiring.
This versatility extends to various applications:
Recreational Towing: Connecting RVs, campers, and utility trailers to a variety of small boat, jet ski, or cargo trailers.
Commercial Fleets: Enabling light and medium-duty trucks to tow diverse equipment, ranging from landscaping trailers to small construction implements.
Rental Operations: Providing a universal solution for customers with various trailer types, simplifying inventory and ensuring connectivity.
Installation is straightforward: the 7-way end of the adapter is simply plugged into the tow vehicle's existing 7-way receptacle, and the trailer's 4-flat connector then plugs into the adapter. This plug-and-play design requires no tools, specialized knowledge, or permanent modifications to either vehicle, making it accessible to all users.
Key Advantages and User Benefits
The Buyers Products 7-Way Flat to 4-Flat Plastic Trailer Connector Adapter with LED Tester delivers a comprehensive suite of advantages:
Universal Compatibility: Resolves common connector mismatches, expanding towing capabilities.
Enhanced Safety: Ensures reliable transmission of essential lighting signals, critical for road safety.
Integrated Diagnostics: The LED tester provides immediate, visual feedback for quick troubleshooting and pre-trip verification, preventing costly delays and potential fines.
Exceptional Durability: Constructed from weather-resistant and impact-resistant plastic for long-term performance in demanding conditions.
Corrosion Protection: Features a protective dust cap to shield contacts from environmental elements, maintaining electrical integrity.
Effortless Operation: Simple plug-and-play installation requires no tools or complex wiring.
Cost-Effective Solution: Eliminates the need for expensive wiring modifications on either the tow vehicle or multiple trailers.
Trusted Quality: Backed by Buyers Products' reputation for manufacturing high-quality, reliable towing accessories.
Maintenance and Longevity
To ensure the maximum lifespan and optimal performance of the 7-Way Flat to 4-Flat Trailer Connector Adapter, minimal but consistent maintenance is recommended. Periodically inspect the electrical contacts on both ends for cleanliness and corrosion. Use a specialized electrical contact cleaner and a small brush to remove any dirt or oxidation. A thin layer of dielectric grease applied to the pins can further enhance protection against moisture and corrosion, improving conductivity and ease of connection. Always ensure the dust cap is securely in place when the 4-flat end is not connected to a trailer, safeguarding the internal contacts from environmental damage. Proper care will ensure years of reliable service from this essential towing accessory.
Commitment to Quality: The Buyers Products Standard
Buyers Products is renowned for its commitment to engineering high-quality, robust solutions for the work truck and trailer industries. This 7-Way Flat to 4-Flat Plastic Trailer Connector Adapter with LED Tester is a testament to that legacy. Every aspect, from the selection of durable plastics to the integration of a functional LED diagnostic tool, reflects a meticulous attention to detail and an understanding of the rigorous demands placed upon towing components. Users can trust in the reliability and longevity of this adapter, knowing it has been designed to meet the challenges of diverse towing applications, year after year.
Conclusion
The Buyers Products 7-Way Flat to 4-Flat Plastic Trailer Connector Adapter with LED Tester is more than just a simple converter; it is an intelligent, durable, and diagnostic-ready solution for achieving seamless electrical connectivity between disparate trailer systems. By expertly translating the complex signals of a 7-way RV blade connector to the essential functions of a 4-flat setup, and by offering immediate fault detection through its integrated LED tester, this product dramatically enhances convenience, safety, and operational efficiency. For anyone engaged in towing who values reliability, versatility, and peace of mind, this adapter represents an indispensable addition to their towing toolkit, embodying a blend of technical sophistication and practical utility that defines superior product engineering.
