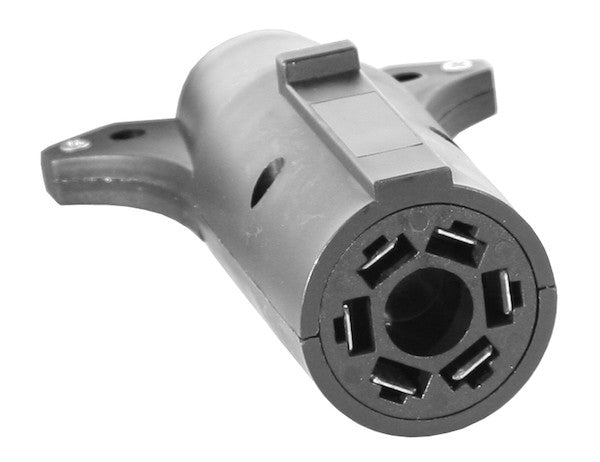

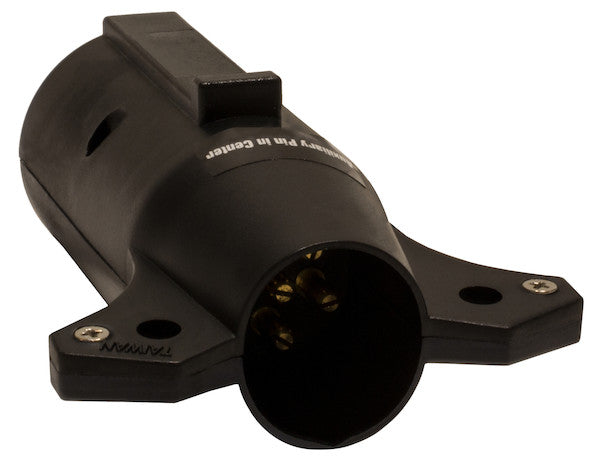

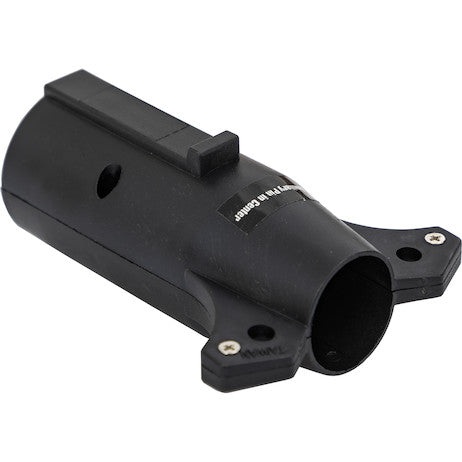

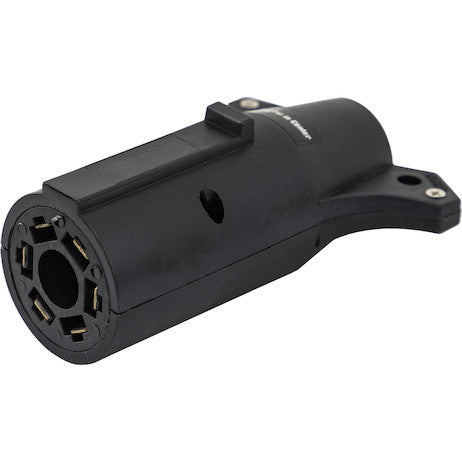

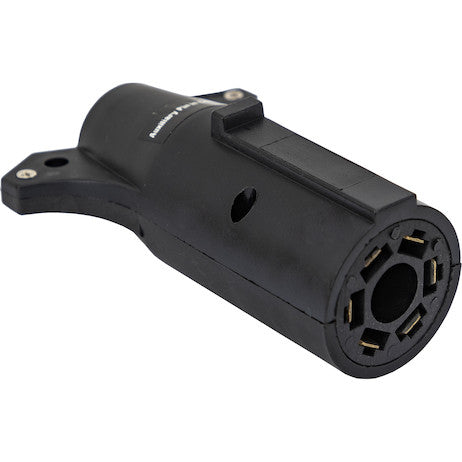

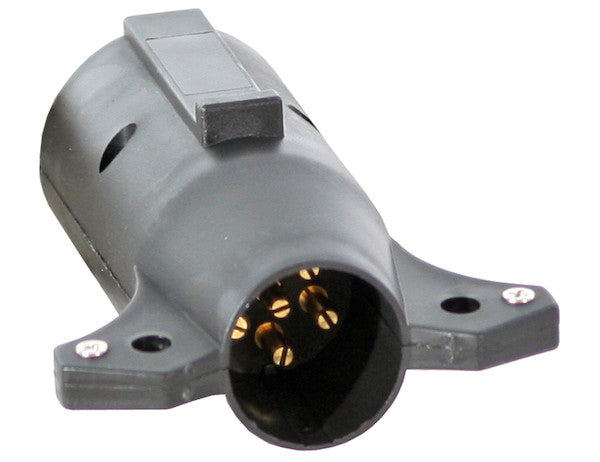

The 7-Way to 6-Way Trailer Connector Adapter from Buyers Products solves a mismatch between your truck-side and trailer-side connector hardware by easily converting a 7-way flat pin to 6-way round pin connector. The adapter is made of durable and weather-resistant plastic. It also includes a built-in connection latch and LED tester.
Specifications
| End Way (Number of Pins) | 6 |
|---|---|
| Pin Style | RV Flat to 6 Round |
| Start Way (Number of Pins) | 7 |
| Truck Side/Trailer Side | Truck Side |
Advanced Technical Overview: 7-Way Flat to 6-Way Round Trailer Connector Adapter
The interoperability of electrical systems between diverse tow vehicles and trailers is fundamental for safe and effective towing. The Buyers Products 7-Way Flat to 6-Way Round Trailer Connector Adapter is an expertly engineered solution designed to resolve common electrical incompatibilities, allowing a truck equipped with a standard 7-way RV blade-style connector to seamlessly power and control a trailer requiring a 6-way round pin configuration. This detailed technical overview explores the design, functionality, robust materials, and operational benefits of this crucial towing accessory.
Understanding Connector Standards: 7-Way RV Flat Pin
The 7-way RV blade-style connector, widely adopted across North America for light-to-medium duty towing, governs the electrical interface for recreational vehicles, boat trailers, and many utility trailers. Aligned with SAE J2863 standards, this connector provides seven distinct electrical pathways, ensuring comprehensive functionality:
- Pin 1 (White Wire): Ground (Common Return): Provides the essential common return path for all circuits, ensuring system stability and preventing voltage drops.
- Pin 2 (Blue Wire): Electric Brakes: Dedicated circuit for controlling trailer electric brakes, receiving a variable voltage signal from the truck’s brake controller for proportional braking. A critical safety feature.
- Pin 3 (Green Wire): Tail/Running Lights: Powers the trailer’s tail, marker, and license plate lights, activating concurrently with the truck’s running lights for visibility.
- Pin 4 (Red Wire): Right Turn Signal/Stop Light: Controls the right-hand turn signal and acts as the right-hand stop light.
- Pin 5 (Brown Wire): Left Turn Signal/Stop Light: Controls the left-hand turn signal and acts as the left-hand stop light.
- Pin 6 (Black Wire): Battery Charge Line/Auxiliary Power: Provides a constant 12-volt supply from the truck's battery, used for charging trailer batteries or powering auxiliary devices.
- Pin 7 (Yellow Wire): Reverse Lights/Auxiliary: Primarily for trailer reverse lights, enhancing visibility during backing. Can be repurposed for other auxiliary functions.
The 7-way flat connector’s blade-style terminals offer a large contact area, promoting low resistance and superior resistance to vibration and corrosion, which are vital for long-term reliability in demanding applications.
Understanding Connector Standards: 6-Way Round Pin
The 6-way round pin connector remains a common standard for many older utility trailers, horse trailers, and specialized recreational trailers, especially those with electric brakes but less extensive auxiliary power needs. While pin assignments can exhibit more variation than the 7-way RV due to the absence of a single, universal SAE standard, a typical configuration includes:
- Center Pin (White Wire): Ground: The central pin establishes the essential common return path for all circuits, crucial for system stability.
- Pin 1 (Blue Wire, typically at 12 o'clock): Electric Brakes: Supplies power to the trailer's electric brakes, controlled by the tow vehicle's brake controller, ensuring modulated braking.
- Pin 2 (Green Wire): Tail/Running Lights: Activates the trailer's tail and marker lights in sync with the tow vehicle’s running lights for compliance and visibility.
- Pin 3 (Yellow Wire): Left Turn Signal/Stop Light: Controls the left-hand turn signal and functions as the left-hand stop light.
- Pin 4 (Red Wire): Right Turn Signal/Stop Light: Controls the right-hand turn signal and functions as the right-hand stop light.
- Pin 5 (Black Wire): Auxiliary/Battery Charge: Provides auxiliary power, often for a battery charge line or other accessory functions, or sometimes reverse lights.
The 6-way round connector provides a secure connection suitable for its specific applications. However, the potential for pin assignment variations highlights the necessity of a precisely engineered adapter for correct functionality mapping.
The Role of the Adapter: Electrical Mapping and Conversion
The core function of the Buyers Products 7-Way Flat to 6-Way Round Trailer Connector Adapter is its precise electrical mapping and conversion. It intelligently translates the distinct pin assignments of the truck's 7-way RV blade connector to the corresponding pin assignments of the trailer’s 6-way round connector. This isn't merely a physical fit but a critical re-routing of electrical signals to ensure every function—ground, electric brakes, running lights, turn signals, stop lights, and auxiliary power—is correctly transmitted. For instance, the adapter meticulously directs the brake controller's output from the 7-way to the electric brake pin on the 6-way, maintaining signal integrity and minimal resistance. This precision engineering prevents circuit overloads, improper functionality, and potential safety hazards arising from incorrect wiring, ensuring voltage and current levels are preserved across the interface.
Advanced Material Science: Durable and Weather-Resistant Plastic Construction
The operational resilience of this trailer connector adapter stems directly from its advanced material composition. The Buyers Products adapter is constructed from high-grade, durable, and weather-resistant plastic, specifically chosen for its superior performance in harsh outdoor environments. Materials such as high-impact ABS (Acrylonitrile Butadiene Styrene) are utilized for their exceptional balance of toughness, rigidity, and impact resistance across a wide temperature spectrum. This ensures structural integrity against both extreme heat and cold, as well as resistance to common automotive fluids and chemicals. Beyond material selection, the "weather-resistant" attribute encompasses UV stabilization to prevent degradation from sunlight exposure, and a design that creates a robust seal. This protects internal electrical contacts from moisture, road salt, dust, and other environmental contaminants, thereby extending the adapter's operational lifespan and preventing intermittent connections or electrical failures.
Integrated Connection Latch for Enhanced Security
A fundamental design element contributing to the adapter's reliability is its integrated connection latch. This mechanical locking mechanism ensures a secure and stable interface between the truck-side 7-way connector and the adapter. The latch provides several critical benefits:
- Vibration Resistance: Actively counteracts constant towing vibrations, preventing loosening of the connection even over challenging terrain or extended periods.
- Accidental Disconnection Prevention: Eliminates the risk of the adapter detaching due to bumps, sharp turns, or sudden movements, thereby maintaining continuous power to vital safety systems.
- Improved Contact Integrity: Ensures optimal contact pressure between electrical terminals, reducing resistance, preventing arcing, and minimizing heat generation for greater efficiency and longevity.
- Ergonomic Operation: Designed for straightforward engagement and disengagement without requiring excessive force or specialized tools, despite its secure locking action.
This commitment to mechanical security is paramount, acknowledging that electrical functionality is intrinsically linked to the integrity of its physical interface.
Advanced Diagnostic Capability: Integrated LED Tester
A key distinguishing feature is the integrated LED tester, providing instant visual feedback on critical electrical circuits. This diagnostic tool significantly streamlines pre-trip inspections and troubleshooting, with indicators typically covering:
- Running Lights: Confirms activation of tail and marker lights.
- Left Turn Signal: Verifies left turn circuit functionality.
- Right Turn Signal: Verifies right turn circuit functionality.
- Brake Lights: Indicates activation of the stop light circuit.
- Auxiliary/Battery Charge: Shows presence of constant 12V power from the truck.
- Electric Brakes: May indicate brake controller output when activated.
The benefits of this integrated diagnostic capability are substantial:
- Rapid Pre-Trip Inspection: Allows quick verification of truck electrical output, identifying issues before coupling the trailer, reducing delays and enhancing safety.
- Simplified Troubleshooting: Helps pinpoint problem sources; if adapter LEDs function, the issue lies with the trailer; if not, the truck's system is implicated.
- Enhanced Safety: Objectively verifies all lighting and braking systems are operational, preventing accidents from non-functional signals.
- Regulatory Compliance: Aids in meeting jurisdictional requirements for trailer lighting and braking functionality.
This feature transforms the adapter into a proactive safety and maintenance instrument, offering immediate insight into the towing setup's electrical health.
Operational Advantages and Applications
The Buyers Products 7-Way Flat to 6-Way Round Trailer Connector Adapter offers significant operational advantages:
- Seamless Compatibility: Instantly converts a 7-way RV blade-equipped tow vehicle for compatibility with 6-way round trailers, negating costly rewiring.
- Enhanced Safety Profile: Ensures reliable transmission of critical lighting and brake signals, contributing directly to safer towing and regulatory compliance.
- Environmental Durability: Robust plastic construction and weather-resistant design ensure consistent performance across diverse conditions.
- User-Centric Design: The integrated latch and LED tester simplify connection and diagnostics for all users.
- Fleet Versatility: Provides essential flexibility for commercial fleets to pair diverse tow vehicles and trailers efficiently.
- Cost-Efficiency: Avoids expensive vehicle or trailer modifications, extending the utility and lifespan of existing equipment.
Typical applications include:
- Towing older horse or livestock trailers with electric brakes using modern 7-way RV-equipped pickup trucks.
- Connecting specialized utility or heavy equipment trailers retaining the 6-way round standard to newer tow vehicles.
- Rental fleet scenarios requiring adaptable tow vehicles for various trailer types.
Installation and Maintenance Recommendations
Installation is straightforward: plug the 7-way end into the truck's receptacle, ensuring the latch engages, then connect the trailer's 6-way plug. Prior to each trip, use the LED tester for circuit verification. For optimal longevity and performance:
- Regularly inspect for physical damage, corrosion, or wear.
- Clean electrical contacts periodically with a non-abrasive cleaner.
- Apply dielectric grease to terminals to repel moisture and prevent corrosion.
- Store in a clean, dry place when not in use.
Conclusion
The Buyers Products 7-Way Flat to 6-Way Round Trailer Connector Adapter exemplifies intelligent engineering and practical design. By converting disparate connector standards, it removes compatibility barriers, significantly enhances towing safety through reliable signal transmission, and provides invaluable diagnostic capabilities via its integrated LED tester. Its robust, weather-resistant plastic construction and secure connection latch ensure sustained performance in the most challenging operational environments. This adapter offers a highly efficient, cost-effective, and reliable solution for professionals and recreational users encountering connector mismatches, underscoring Buyers Products' commitment to quality and innovation in towing accessories.
