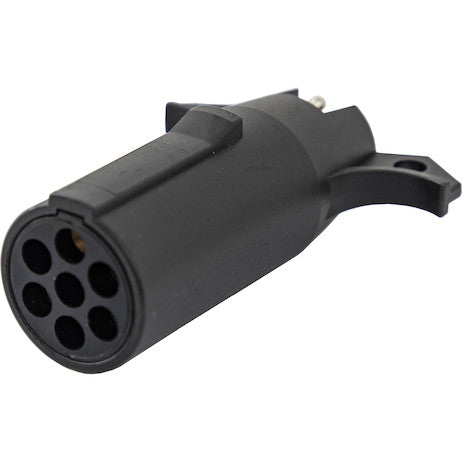

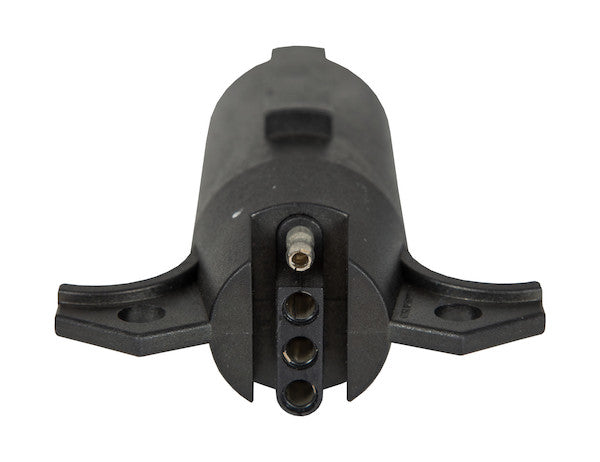

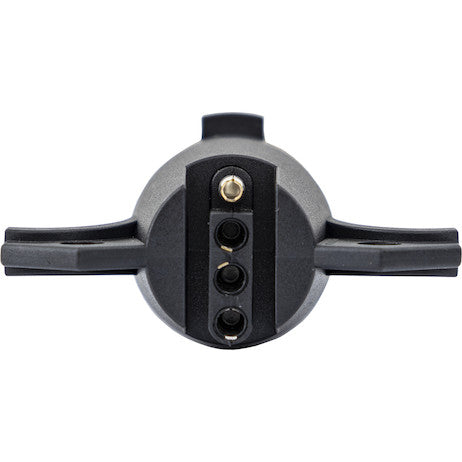

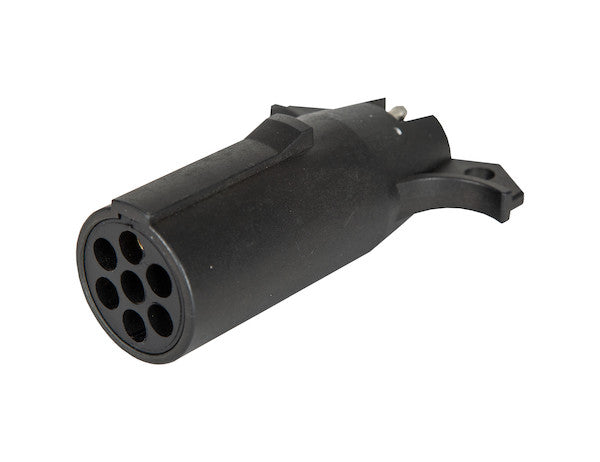

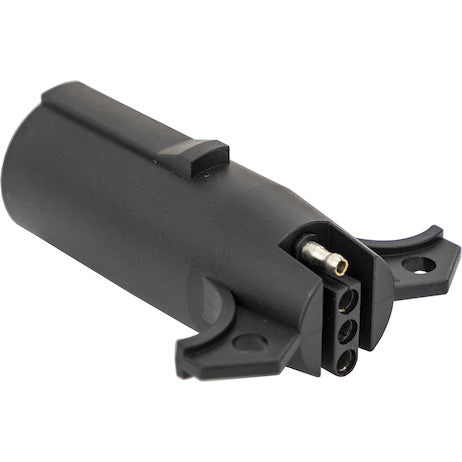

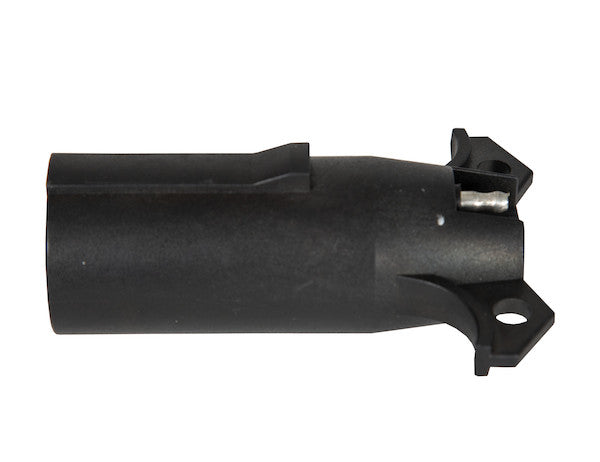

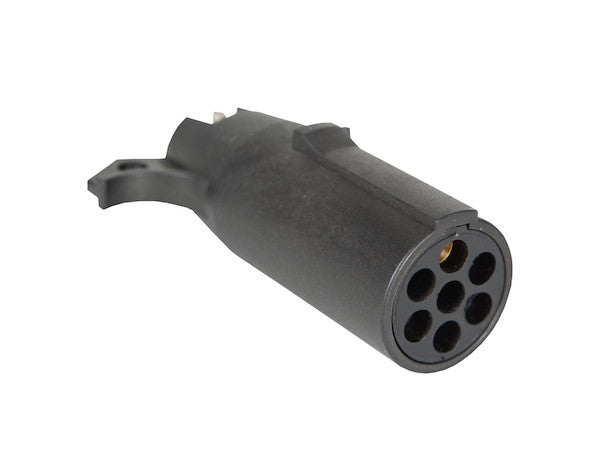

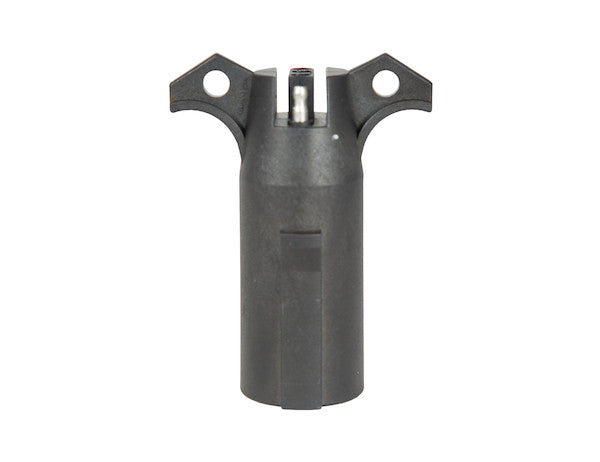

TC2274P - 7-Way Round to 4-Pin Flat Converter

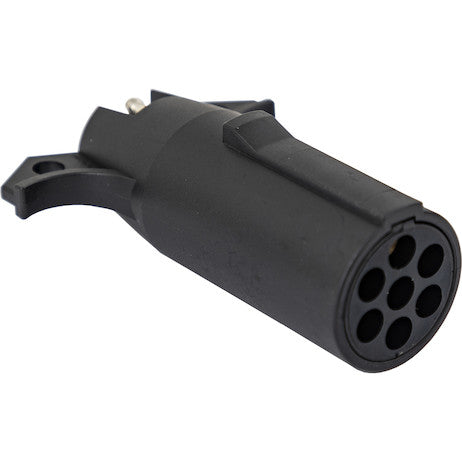

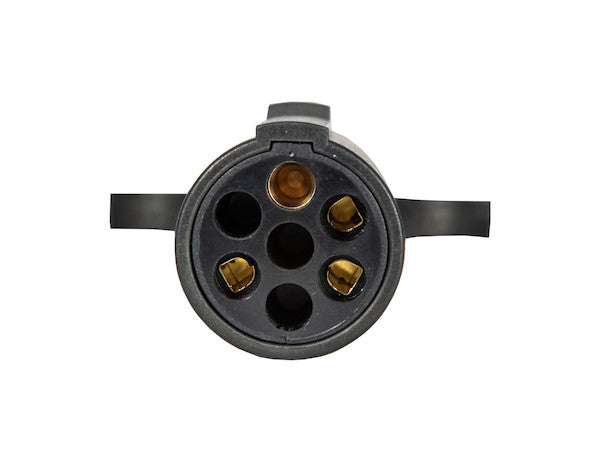

Buyers Products 7-Way Round to 4-Pin Flat Connector bridges the gap between mismatched truck-side and trailer-side connectors. It converts a 7-way round connection to a 4-pin flat. The connector is made of durable, weather-resistant plastic.

Specifications

In the complex ecosystem of modern vehicle and trailer integration, seamless electrical connectivity is paramount for both operational efficiency and road safety. Discrepancies between a tow vehicle's wiring harness and a trailer's electrical receptacle are a common challenge, necessitating specialized interface solutions. The Buyers Products 7-Way Round to 4-Pin Flat Converter stands as a quintessential example of such an indispensable device, meticulously engineered to resolve these incompatibilities by facilitating a robust and reliable electrical bridge between disparate systems. This product is not merely an adapter; it is a critical component that ensures the proper transmission of essential lighting signals from a tow vehicle equipped with a standard 7-way round connector to a trailer designed for a more conventional 4-pin flat connection, all while maintaining the integrity and safety of the electrical pathway.

To fully appreciate the utility and engineering of this converter, it is essential to delve into the characteristics and functionalities of both the 7-way round and 4-pin flat connector standards. The 7-way round connector, often conforming to the SAE J560 standard, represents a robust and comprehensive electrical interface typically found on heavier-duty tow vehicles, RVs, and commercial trucks. Its design is intended to support a broader spectrum of trailer functions beyond basic lighting. The standard pinout for a 7-way round connector is as follows:

• Pin 1 (White Wire): Dedicated to Ground. This is the common return path for all electrical circuits, crucial for system stability and proper current flow.
• Pin 2 (Blue Wire): Assigned to Electric Brakes. This circuit supplies power to the trailer's electric brake system, enabling synchronized braking with the tow vehicle via a brake controller.
• Pin 3 (Green Wire): Supplies power for Tail Lights, Running Lights, and typically License Plate Lights. This ensures the trailer is visible from the rear and sides during nighttime or low-visibility conditions.
• Pin 4 (Red Wire): Designates a 12V Auxiliary Power feed. This constant power supply is used for charging the trailer battery, powering interior lights, or operating other 12V accessories within the trailer when connected.
• Pin 5 (Brown Wire): Controls the Right Turn Signal and Right Brake Light. This provides signaling for right-hand turns and activates the right-side brake light in conjunction with the tow vehicle's braking.
• Pin 6 (Yellow Wire): Manages the Left Turn Signal and Left Brake Light. Similar to Pin 5, but for the left side of the trailer.
• Pin 7 (Black Wire): Typically used for Reverse Lights or an additional Auxiliary function, such as a backup camera power supply. This helps illuminate the area behind the trailer when reversing.

The 7-way round connector's design often incorporates a robust, weather-resistant housing, sometimes featuring a spring-loaded cover and a locking tab mechanism to ensure a secure connection that resists accidental disengagement, vibration, and environmental ingress. The larger number of pins allows for advanced trailer features such as electric brakes, reverse lights, and auxiliary power, which are vital for larger, heavier, or more complex trailers like travel trailers, fifth wheels, and some utility trailers.

In stark contrast, the 4-pin flat connector is the most basic and widely adopted standard for lighter-duty trailers. Its simplicity and compact form factor make it ideal for applications where only essential lighting functions are required. The standard wiring configuration for a 4-pin flat connector is:

• Pin 1 (White Wire): Ground. As with the 7-way, this is the foundational electrical return.
• Pin 2 (Brown Wire): Tail Lights/Running Lights. This pin consolidates the power for all basic running lights on the trailer, ensuring visibility.
• Pin 3 (Yellow Wire): Left Turn Signal/Brake Light. This single circuit handles both the left-hand turn indication and the left-side brake light.
• Pin 4 (Green Wire): Right Turn Signal/Brake Light. Similarly, this circuit manages the right-hand turn indication and the right-side brake light.

The 4-pin flat connector's design is typically characterized by a molded rubber or plastic housing that encapsulates the flat blades, providing a degree of weather resistance. Its ease of connection and minimalist design make it ubiquitous for small utility trailers, boat trailers, and other recreational trailers that do not feature electric brakes, internal lighting systems, or auxiliary power requirements. It is a 'plug-and-play' solution focused purely on the legal requirements for trailer lighting.

The Buyers Products 7-Way Round to 4-Pin Flat Converter’s primary function is to intelligently map the necessary signals from the more complex 7-way round system to the simpler 4-pin flat interface. When the converter is plugged into the vehicle's 7-way receptacle, it selectively channels and consolidates specific signals. The mapping process is as follows:

• The Ground signal from the 7-way round connector (Pin 1, White) is directly routed to the Ground pin of the 4-pin flat connector (Pin 1, White).
• The Tail/Running Light signal from the 7-way round connector (Pin 3, Green) is directed to the Tail/Running Light pin of the 4-pin flat connector (Pin 2, Brown).
• The Left Turn/Brake Light signal from the 7-way round connector (Pin 6, Yellow) is conveyed to the Left Turn/Brake Light pin of the 4-pin flat connector (Pin 3, Yellow).
• The Right Turn/Brake Light signal from the 7-way round connector (Pin 5, Brown) is channeled to the Right Turn/Brake Light pin of the 4-pin flat connector (Pin 4, Green).

Crucially, it is imperative for users to understand the inherent limitations of this conversion. The 7-way to 4-pin flat converter is a passive device designed for basic lighting functions. This means that the more advanced signals present in the 7-way system are not, and cannot be, carried over to the 4-pin flat configuration. Specifically, the electric brake signal (Pin 2, Blue), the 12V auxiliary power feed (Pin 4, Red), and the reverse light/auxiliary signal (Pin 7, Black) from the 7-way round connector are intentionally omitted from the 4-pin flat output. This is not a design flaw but rather a fundamental consequence of the disparate pin counts and intended functionalities of the two standards. Therefore, this converter is explicitly designed for trailers that do not require electric brakes, internal power, or reverse lights. Attempting to tow a trailer with electric brakes using this converter would render the trailer's braking system inoperable, posing a significant safety risk. Users must always verify the electrical requirements of their trailer against the capabilities of the converter before use.

The engineering behind the Buyers Products 7-Way Round to 4-Pin Flat Converter prioritizes durability and reliability in challenging outdoor environments. The product's description highlights its construction from "durable, weather-resistant plastic." This material choice is critical for a component that will be exposed to a wide array of environmental stressors, including moisture, dirt, dust, UV radiation from sunlight, temperature fluctuations, and potential mechanical impacts. High-quality automotive-grade plastics such as ABS (Acrylonitrile Butadiene Styrene) or PVC (Polyvinyl Chloride) are typically employed for their excellent balance of strength, impact resistance, and rigidity. Furthermore, the plastic compound is often engineered with UV stabilizers to prevent material degradation, embrittlement, and discoloration when exposed to prolonged sunlight. The weather-resistant aspect extends beyond just the material composition; it also encompasses the design of the connector housing. Integral gaskets, O-rings, or precision-molded seals are often incorporated at the接口 points and wire entry points to prevent the ingress of water, salt spray, and road contaminants into the electrical contacts, which are prime causes of corrosion and electrical malfunction. The contact pins themselves are typically constructed from corrosion-resistant metals, such as brass or copper alloys, and often plated with nickel or tin to further enhance conductivity and resistance to oxidation, ensuring consistent electrical performance over the product's lifespan. Internal wiring is securely encapsulated, often with internal strain relief mechanisms, to protect connections from vibration and tension, which are common stresses during towing operations.

Installation and usage of the Buyers Products 7-Way Round to 4-Pin Flat Converter are characterized by their straightforward, plug-and-play simplicity. To ensure optimal performance and safety, a few procedural considerations are recommended. Prior to connection, it is advisable to inspect both the vehicle's 7-way round receptacle and the trailer's 4-pin flat plug for any signs of damage, corrosion, or accumulated debris. Clean contacts ensure a secure and efficient electrical transfer. The converter is designed for a firm, positive fit; users should ensure it is fully inserted and properly seated into the vehicle's receptacle. Once connected, it is crucial to perform a comprehensive lighting test. This involves systematically activating the vehicle's running lights, left and right turn signals, and brake lights, verifying that the corresponding lights on the trailer illuminate correctly. This pre-trip check is not merely a recommendation but a critical safety procedure to confirm proper functionality before commencing travel. For ongoing maintenance, occasional inspection of the converter for any wear, cracks in the housing, or corrosion on the contacts will help prolong its service life. Keeping the connections clean and free of dielectric grease, if appropriate, can further enhance longevity.

Safety and regulatory compliance are paramount considerations in all towing accessories. While the Buyers Products 7-Way Round to 4-Pin Flat Converter primarily handles low-voltage lighting circuits, adherence to established automotive electrical standards, such as those set by the Society of Automotive Engineers (SAE), ensures interoperability and reliability. The electrical load imposed by typical trailer lighting is well within the capacity of modern vehicle wiring systems, and passive converters like this do not introduce significant resistance or draw. However, the most critical safety aspect reiterates the non-transmission of brake control and auxiliary power. This converter is unequivocally intended for light-duty trailers that do not incorporate electric braking systems or require onboard 12V power from the tow vehicle. Using this converter with a trailer equipped with electric brakes will bypass the brake controller, potentially leading to catastrophic brake failure on the trailer. Therefore, responsible operation mandates a thorough understanding of the trailer's electrical specifications. Furthermore, proper cable management to prevent the converter or its connected wiring from dragging on the ground or becoming snagged during transit is essential to prevent damage and ensure continuous operation of trailer lights.

The target audience for the Buyers Products 7-Way Round to 4-Pin Flat Converter is broad, encompassing anyone who encounters a mismatch between their tow vehicle and trailer wiring. This includes recreational users with multiple trailers, such as a large RV with a 7-way connector who occasionally needs to tow a small boat or utility trailer with a 4-pin flat plug. It is also invaluable for rental fleet operators, automotive service centers, and individuals who frequently borrow or lend trailers. The convenience offered by this converter eliminates the need for complex, permanent wiring modifications, offering a flexible and cost-effective solution for temporary or occasional towing requirements. It ensures that regardless of the vehicle's primary setup, a standard light-duty trailer can be safely and legally towed with correct lighting functionality. This product exemplifies the Buyers Products commitment to delivering practical, high-quality solutions that enhance the functionality and versatility of towing operations, backed by robust engineering and durable construction. By providing a reliable bridge for essential lighting signals, it streamlines the towing process, ensuring compliance with road safety regulations and providing peace of mind for operators on the road. The emphasis on weather-resistant materials and solid construction underlines a product designed for longevity and dependable performance in demanding real-world conditions, making it an indispensable tool for any towing enthusiast or professional.
